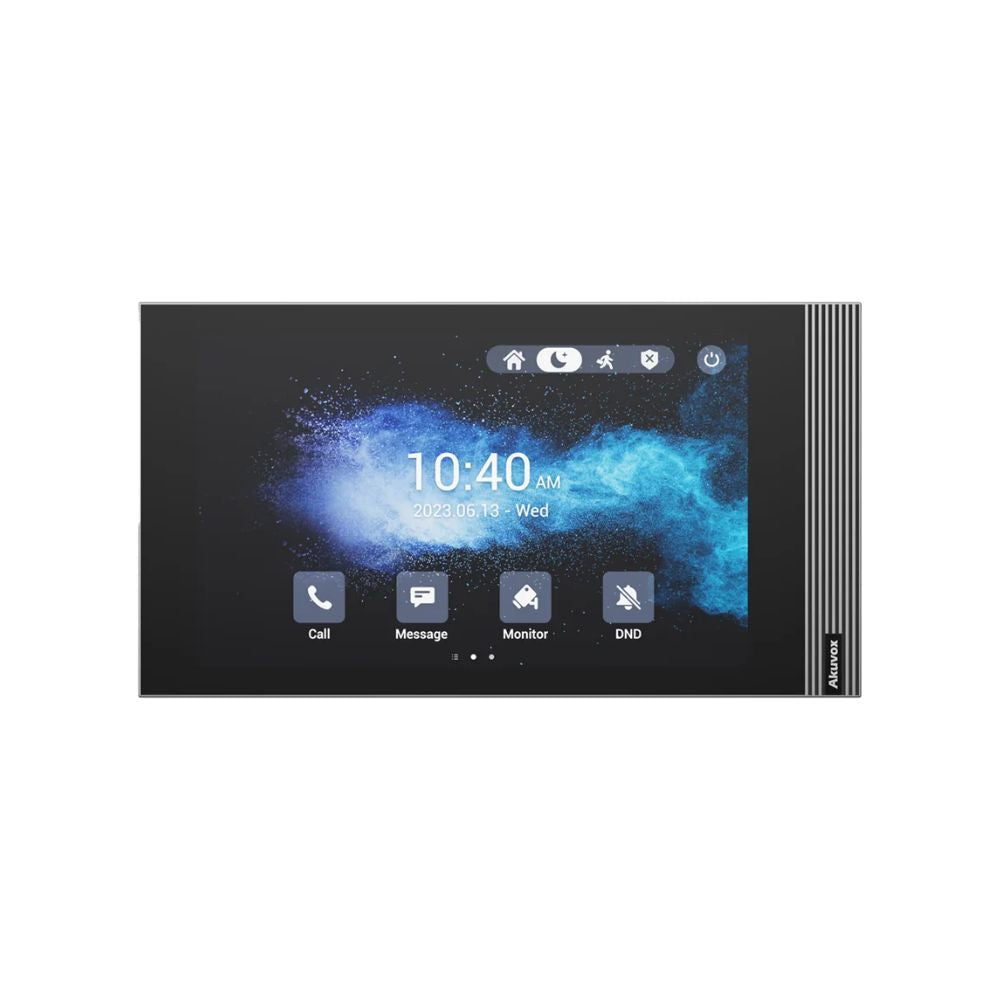

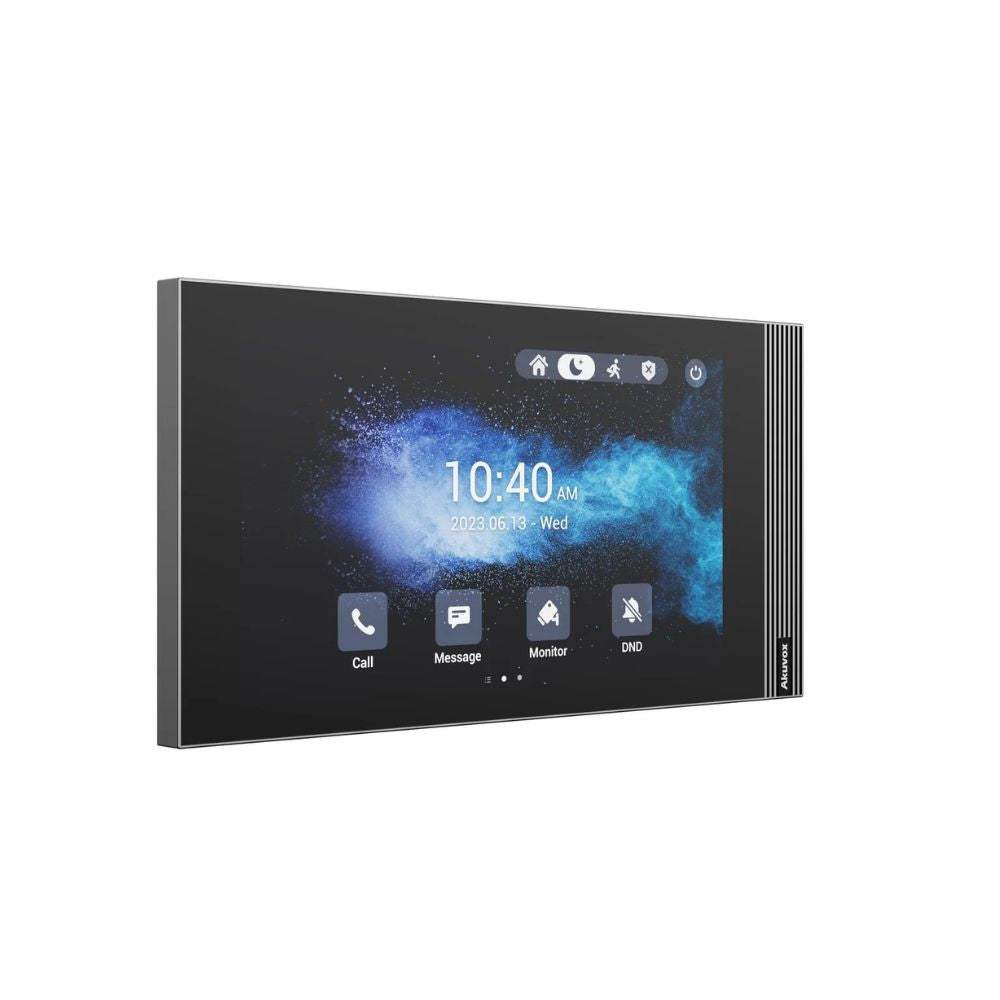

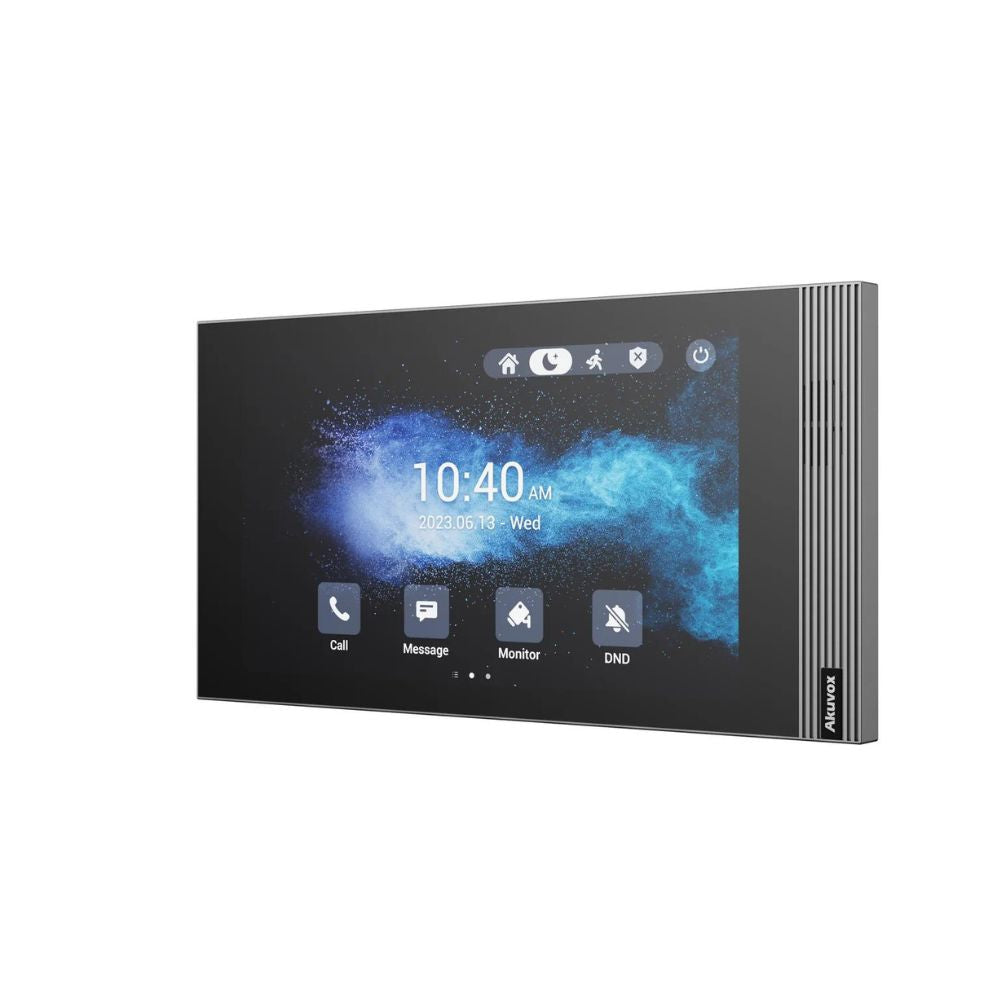

Akuvox 7" TouchScreen Linux Monitor- S562

Description

The Akuvox S562 multifunctional communicator, with a Linux operating system, provides audio and video communication with door phones via SIP 2.0 protocol.
It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touch screen display.

Features

  • Ultra-clear, stylish appearance;
  • 7-inch capacitive touch screen with energy saving mode;
  • Two-way audio communication with other units in the network;
  • Complies with SIP standard for easy integration in every SIP capable PBXes;
  • Powered by PoE or external source
  • Support US or European electrical wall box mounting
Datasheet

AKUVOX 7" TOUCHSCREEN LINUX MONITOR- S562

Tech Specs
Physical & Power
  • Front panel: Plastic
  • RAM / ROM: 128MB / 128MB
  • Display: 7 Inch TFT LCD 1024x600 resolurion
  • Screen: 7 Inch capacitive touch screen
  • Relays out: 1
  • Bell in: 1
  • I/ O: 8
  • Microphone: -42dB
  • Speaker: 4Ω / 2W
  • Ethernet ports: 2xRJ45, 10/100Mbps adaptive
  • 802.3af Power-over-Ethernet
  • 12V DC connector (if not using PoE)
  • Installation: Wall-mounted & Desktop
  • Dimension: 216.4x118.8x21.7mm
  • Working Humidity: 10~90%
  • Working Temperature: -10°C ~ +45°C
  • Storage Temperature: -20°C ~ +70°C
Audio
  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711μ, G.729
  • Broadband audio codec: G.722
  • DTMF: Out-of-band DTMF (RFC2833), SIP Info
  • Echo Cancellation
Video
  • Streaming Formats: H.264
Networking
  • Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP,
    DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP,
    ARP
Touch Screen Display
  • Display Mode: Normally white, Transmissive
  • LCD Size: 7inch (Diagonal)
  • Resolution: 1024x600
  • Luminance: 250 cd/m
  • Viewing Angle: 50° Left, 50° Right,
    40° Upper, 50° Lower
  • Touch Screen: Projected capacitive
Deployment &Maintenance
  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Firmware upgrade
  • System logs (include door access logs)
Application Scenario
  • Villas
  • Apartment complexes
  • Home automation systems
  • Modern interiors

Video

Read more

Akuvox 7" TouchScreen Linux Monitor- S562

Product form

SKU: S562

$246.57 $216.00 Incl. GST

    • Guaranteed secure & safe checkout.

      paypal
    • FREE Express Courier Shipping for all orders over $100
    • 30-Day Returns Policy
    • Back to Base Australian Warranty & Tech Support
    • Australian Stock, No Grey Import Products

    Product Datasheet

    Description

    The Akuvox S562 multifunctional communicator, with a Linux operating system, provides audio and video communication with door phones via SIP 2.0 protocol.
    It delivers the ultimate touch screen experience in an unobtrusive, space-saving design featuring a brilliant 7-inch capacitive touch screen display.

    Features

    • Ultra-clear, stylish appearance;
    • 7-inch capacitive touch screen with energy saving mode;
    • Two-way audio communication with other units in the network;
    • Complies with SIP standard for easy integration in every SIP capable PBXes;
    • Powered by PoE or external source
    • Support US or European electrical wall box mounting
    Datasheet

    AKUVOX 7" TOUCHSCREEN LINUX MONITOR- S562

    Tech Specs
    Physical & Power
    • Front panel: Plastic
    • RAM / ROM: 128MB / 128MB
    • Display: 7 Inch TFT LCD 1024x600 resolurion
    • Screen: 7 Inch capacitive touch screen
    • Relays out: 1
    • Bell in: 1
    • I/ O: 8
    • Microphone: -42dB
    • Speaker: 4Ω / 2W
    • Ethernet ports: 2xRJ45, 10/100Mbps adaptive
    • 802.3af Power-over-Ethernet
    • 12V DC connector (if not using PoE)
    • Installation: Wall-mounted & Desktop
    • Dimension: 216.4x118.8x21.7mm
    • Working Humidity: 10~90%
    • Working Temperature: -10°C ~ +45°C
    • Storage Temperature: -20°C ~ +70°C
    Audio
    • SIP v1 (RFC2543), SIP v2 (RFC3261)
    • Narrowband audio codec: G.711a, G.711μ, G.729
    • Broadband audio codec: G.722
    • DTMF: Out-of-band DTMF (RFC2833), SIP Info
    • Echo Cancellation
    Video
    • Streaming Formats: H.264
    Networking
    • Protocols support: IPv4, HTTP, HTTPS, FTP, SNMP,
      DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP,
      ARP
    Touch Screen Display
    • Display Mode: Normally white, Transmissive
    • LCD Size: 7inch (Diagonal)
    • Resolution: 1024x600
    • Luminance: 250 cd/m
    • Viewing Angle: 50° Left, 50° Right,
      40° Upper, 50° Lower
    • Touch Screen: Projected capacitive
    Deployment &Maintenance
    • Auto-Provisioning
    • Web management portal
    • Web-based packet dump
    • Configuration backup / restore
    • Firmware upgrade
    • System logs (include door access logs)
    Application Scenario
    • Villas
    • Apartment complexes
    • Home automation systems
    • Modern interiors

    Video

    Read more
