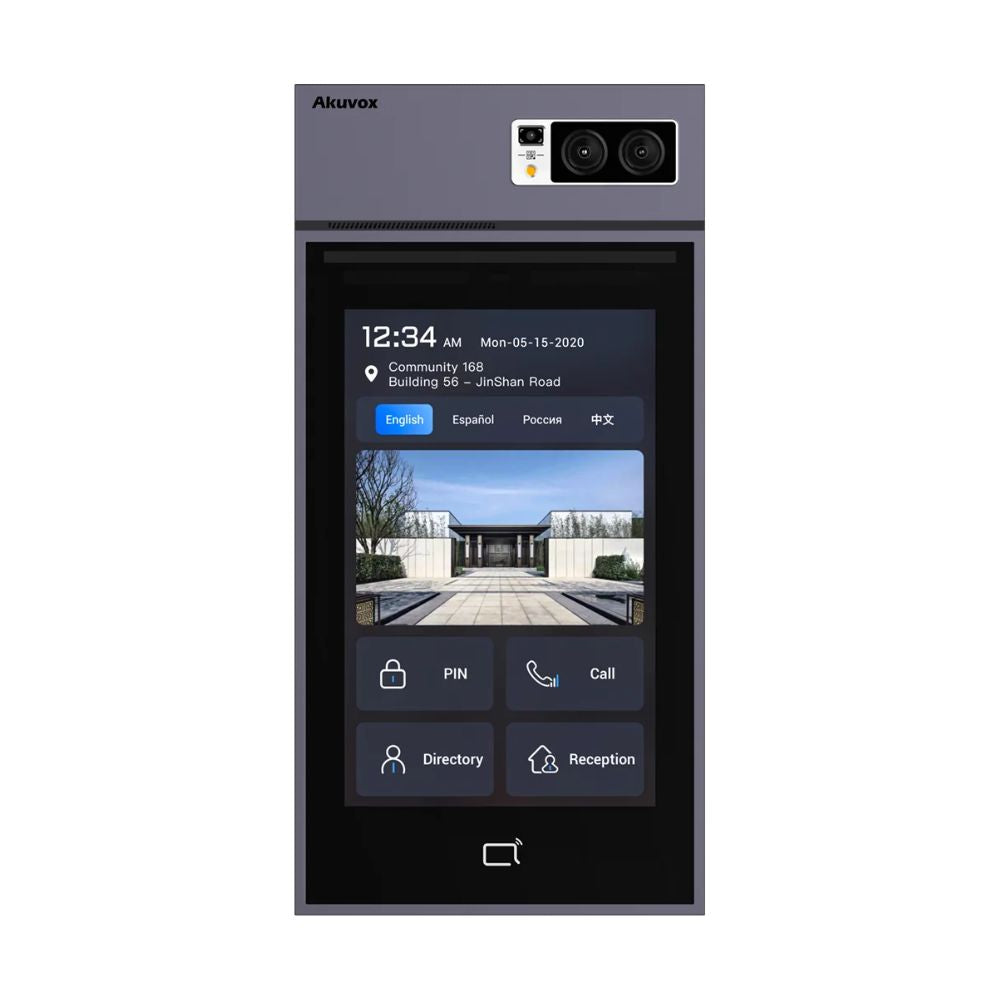

Akuvox 10" TouchScreen Android Video Door Phone- S539

Description

Description

Akuvox's S539 is designed to provide a visually stunning and intuitive user-experience. It brings a number of innovative new features to provide a fully customizable solution for tenants and visitors access control in condominiums, apartment buildings, office buildings, gated communities and industrial buildings.

Features

  • Aluminum panel with 10inch touchscreen
  • Android operation system
  • Wide-angle camera: 120° (H), 72° (V)
  • Two-way audio communication over IP networks with Echo Cancel feature
  • Multi-way access feature including: Face, Card, PIN, BLE & QR code
  • Flush-mounted and Surface-mounted
  • complies with SIP & ONVIF
Datasheet
Tech Specs

AKUVOX 10 Inch TouchScreen Android Video Door Phone- S539

Physical & Power
  • Front panel: Aluminum
  • Display: 1inch IPS LCD
  • Main Camera: 5M Pixels, with Starlight
  • Relays out: 3
  • Inputs: 3
  • Microphone: 2
  • Speaker: 2
  • BLE: Support
  • IP Rating: IP66
  • IK Rating: IK08
  • Installation: Flush mounted & Wall Mounted
  • Size: 363.5 X 179.8 X 30.8 mm
  • Tamper resistant: Support
  • Working Humidity: 10~90%
  • Working Temperature: -30°C ~ +55°C
  • Storage Temperature: -30°C ~ +70°C
Audio
  • SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Narrowband audio codec: G.711a, G.711μ,
  • Broadband audio codec: G.722
  • DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info
  • Echo Cancellation
  • Voice Activation Detection
  • Comfort Noise Generator
Video
  • Sensor: 1/2.7", CMOS for main camera
  • Pixels: CIF, QCIF, VGA, 4CIF, 720p, 1080p
  • Video codec: H.264
  • Video technology: HDR
  • Video Resolution: up to 1920 X 1080
  • Max. Image transfer rate: 1080p-30fps
Networking
  • Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, DNS, NTP, RTSP, RTP, TCP,UDP, ICMP, DHCP, ARP
Door Entry Feature
  • Android OS for any 3rd party software or customization
  • Multi-way Unlock: Face, IC/ID Card, PIN and BLE
  • Camera permanently operational
  • Auto night mode with LED illumination
Deployment &Maintenance
  • Auto-Provisioning
  • Web management portal
  • Web-based packet dump
  • Configuration backup / restore
  • Firmware upgrade
  • System logs (include door access logs)
Application Scenario
  • Provides resident/ visitor access control for buildings such as condominiums, apartment buildings, office buildings, gated communities and industrial buildings.
