Description

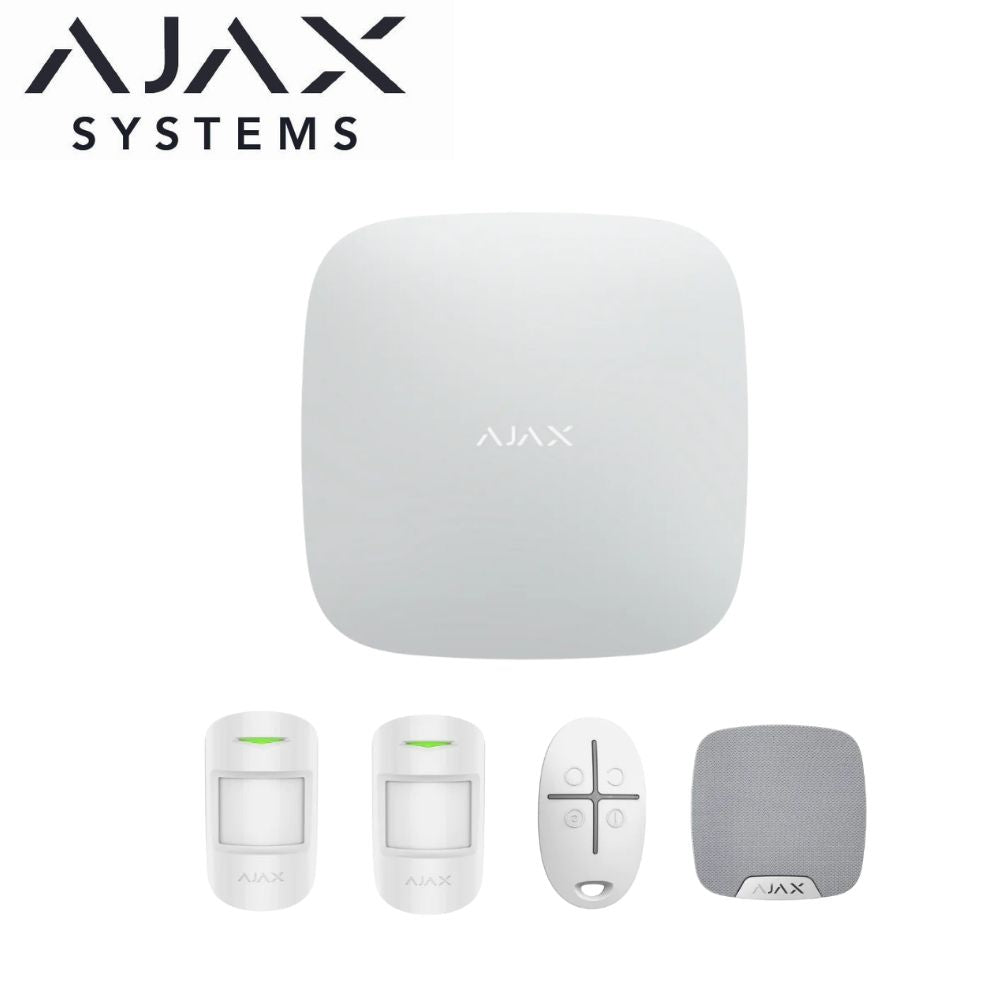

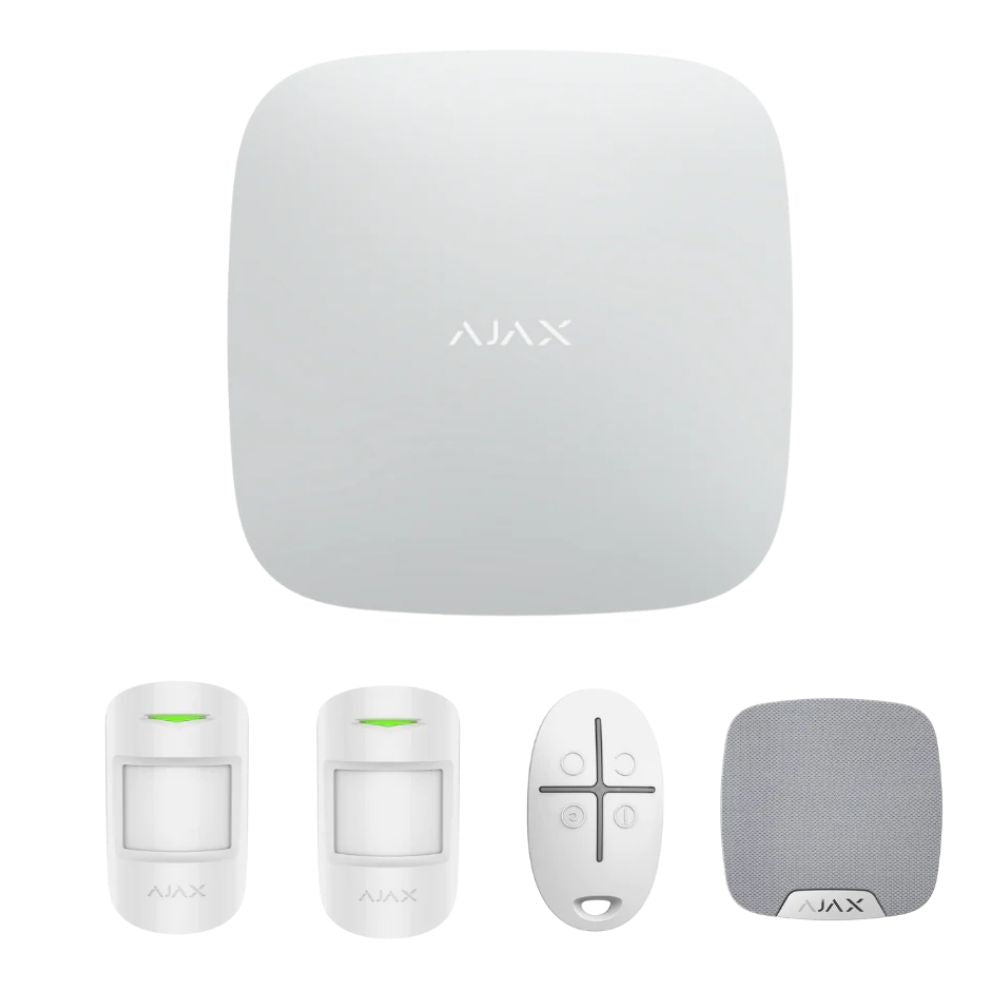

StarterKit includes:
- 1 x Hub2 Ajax-35992
- 2 x Motion Protect Ajax-30655
- 1 x Space Control Ajax-30670
- 1 x Home Siren Ajax-30630
More info about these products on Ajax website:
Downloads
Video
Tech Specs
Hub 2
| Classification |
Security system control panel with Ethernet, Wi-Fi, and dual SIM card support |
| Support of detectors with photo verification of alarms |
Available |
| Number of connected wireless Ajax devices |
Up to 100 |
| Number of connected IP cameras or DVR's |
Up to 25 |
| Number of connected Automation scenarios |
up to 32 |
| Number of security groups |
Up to 9 |
| Number of rooms |
Up to 50 |
| Number of users |
Up to 50 |
|
|
| Central Monitoring Station communication protocols |
Supported protocols
- SIA (DC-09)
- SurGard (Contact ID)
- ADEMCO 685
- Other proprietary protocols
|
| Power supply |
110-240 V~ AC with pre-installed battery
6 V⎓ DC with alternative 6V PSU power supply |
| Built-in back-up battery |
Li-Ion 3 Аh
Ensures up to 15 hours of operation when using SIM card only |
| Energy consumption from the grid |
Up to 10 W |
| Tamper proof |
Available, tamper |
| Radio communication protocols with Ajax detectors and devices |
Jeweller — for transmitting events and alarms.
Learn more
Wings — for transmitting photos.
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| RF output power |
10.4 mW (max 25 mW) |
| Radio signal range |
Up to 1700 m |
| Communication channels |
2 SIM cards
- 2G (GSM900/DCS1800 (B3/B8))
- 3G (WCDMA 850/900/2100 (B1/B5/B8))
- LTE (FDD B1/B3/B5/B7/B8/B20/B28)
Wi-Fi (802.11 b/g/n)
Ethernet
|
| Operating temperature range |
From –10°C to +40°C |
| Operating humidity |
Up to 75% |
| Size |
163 × 163 × 36 mm |
| Weight |
362 g |
| Service life |
10 years |
MotionProtect
| Sensitive element |
PIR sensor |
| Motion detection distance |
Up to 12 m |
| Motion detector viewing angles (H/V) |
88,5° / 80° |
| Time for motion detection |
From 0.3 to 2 m/s |
| Pet immunity |
Yes, height up to 50 cm, weight up to 20 kg
Why motion detectors react to animals and how to avoid it >
|
| Tamper protection |
Yes |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale.
|
| Compatibility |
Operates with all Ajax hubs, radio signal range extenders, ocBridge Plus, uartBridge
|
| Maximum RF output power |
Up to 20 mW |
| Modulation of the radio signal |
GFSK |
| Radio signal range |
Up to 1700 m (any obstacles absent)
Learn more
|
| Power supply |
1 battery CR123A, 3 V |
| Battery life |
Up to 5 years |
| Installation method |
Indoors |
| Operating temperature range |
From -10°С to +40°С |
| Operating humidity |
Up to 75% |
| Overall dimensions |
110 × 65 × 50 mm |
| Weight |
86 g |
| Service life |
10 years |
| Certification |
Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-2-2, EN 50131-5-3 |
SpaceControl
| Number of buttons |
4 |
| Panic button |
Yes |
| Accidental click protection |
Available with the firmware version 5.54.1.0 and higher. Manufacture date from March 19, 2020
How to find out the manufacture date of a detector or device
|
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility |
Operates with all Ajax hubs, radio signal range extenders, ocBridge Plus, uartBridge
|
| Effective radiated power |
6.01 dBm / 3.99 mW (limit 20 mW) |
| Modulation of the radiosignal |
GFSK |
| Radio signal range |
Up to 1,300 m (any obstacles absent) |
| Power supply |
1 battery CR2032A, 3 V |
| Service life from the battery |
Up to 5 years (depending on the usage frequency) |
| Operating temperature range |
From -25°С to +50°С |
| Operating humidity |
Up to 95% |
| Overall dimensions |
65 × 37 × 10 mm |
| Weight |
13 g |
| Service life |
10 years |
| Certification |
Security Grade 2, Environmental Class III in conformity with the requirements of EN 50131-1, EN 50131-3, EN 50131-5-3 |
HomeSiren
| Type of notification |
Acoustic and LED |
| Sound notification volume |
81 – 105 dB at a distance of 1 m (adjustable) |
| Operating frequency of the buzzer |
3.4 ± 0.5 kHz |
| Tamper protection |
Yes |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility |
Operates only with all Ajax hubs, and radio signal range extenders |
Maximum RF output power |
Up to 25 mW |
Radio signal modulation |
GFSK |
Radio signal range |
Up to 2,000 m (any obstacles absent) |
Battery supply |
2 × CR123A, 3 V |
Battery life |
Up to 5 years |
Socket for connecting
an external light indicator |
Yes (power supply 3 V, 10 mA) |
| Body protection level |
IP50 |
| Installation method |
Indoors |
Operating temperature range |
From -10°С to +40°С |
Operating humidity |
Up to 75% |
Overall dimensions |
75 × 76 × 27 mm |
Weight |
97 g |
Service life |
10 years |
| Certification |
Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-4, EN 50131-5-3 |
2 Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SECSOURCE will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@secsource.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
