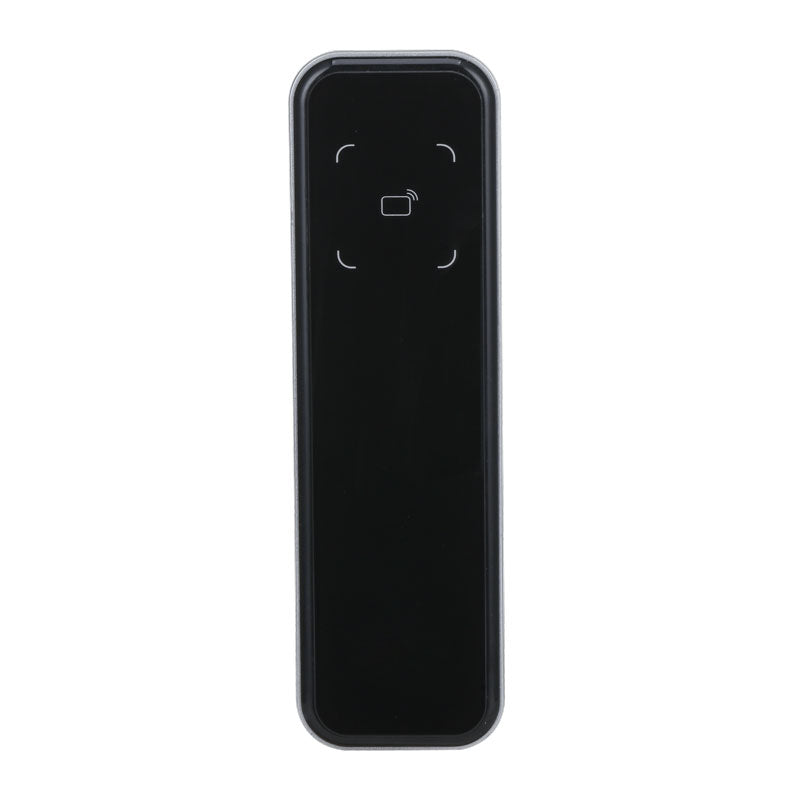

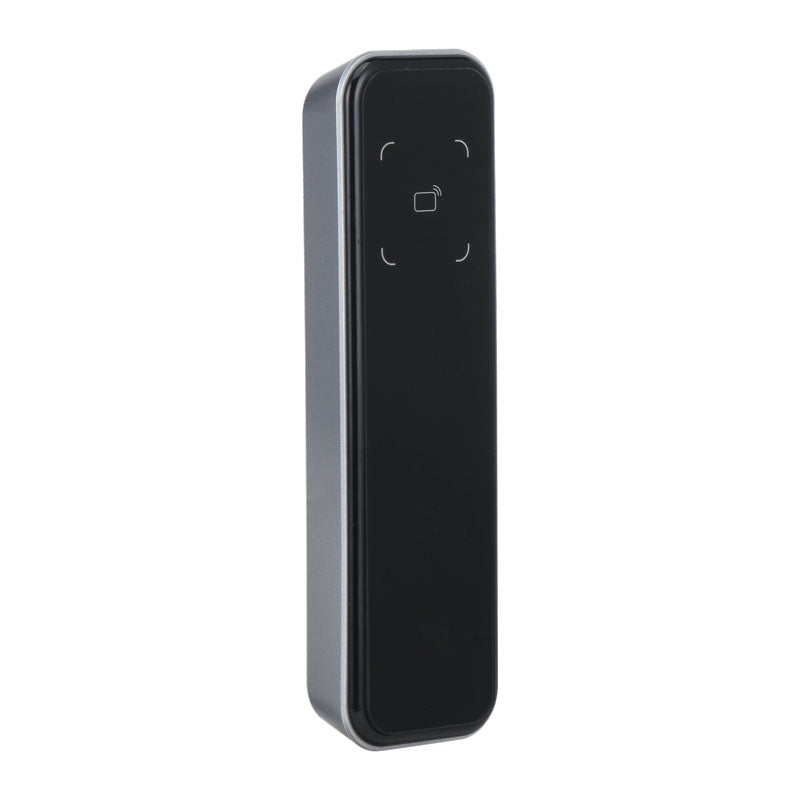

The ACRDR-2LKC2 is a professional access control reader, capable of granting access via RFID.
Features:
• Compatible with 13.56MHz access control systems
• Gain access via RFID card
• Use with Door Access Control series for multiple units
• Connect and configure with PC via ethernet cable
• RS485 protocol
• Elegant, glossy black finish for professional appearance
• Tamper switch triggers loud alarm, deterring removal
• Blue backlight for low light visibility
Downloads
Tech Specs
| Specification |
Details |
| Audio |
Buzzer |
| Communication |
RS485 / Wiegand |

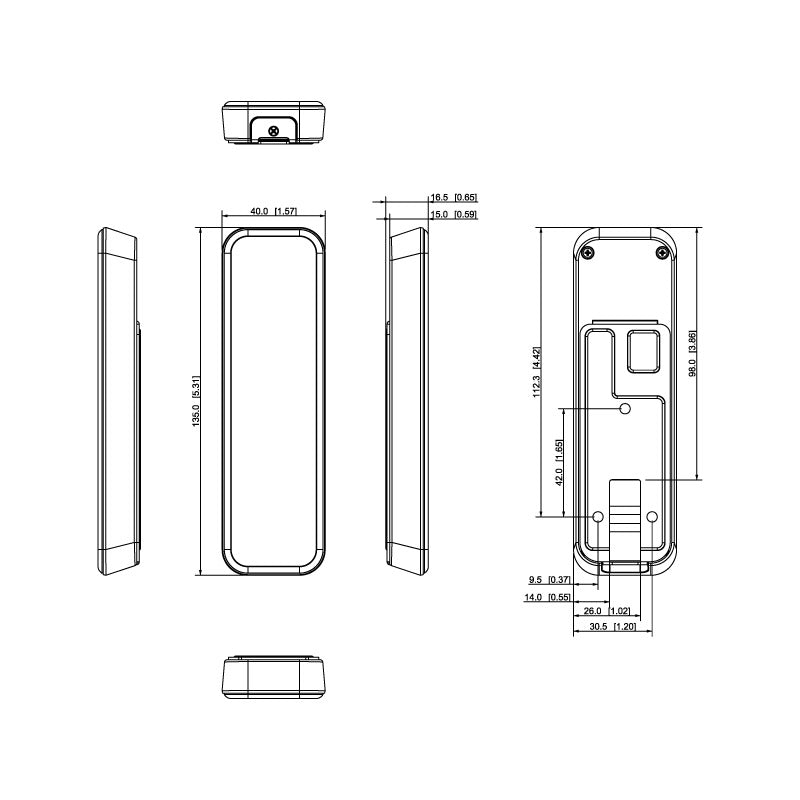

| Dimensions |
135 x 40 x 15mm |
| Fingerprint Scan |
N/A |
| Ingress Protection |
IP66 |
| Keypad |
N/A |
| Light |
Blue Backlight |
| Main Processor |
8 Bit |
| Net Weight |
0.16kg |
| Operating Conditions |
-30°~+70° C / Less than 95% RH |
| Power Supply |
5~15 VDC / 100mA |
| Product |
RFID Reader |
| RFID Format |
13.56MHz |
| RFID Read Range |
≤8cm |
| RFID Read Time |
<0.1s |
| Tamper Switch |
Yes |
| Vandal Protection |
N/A |
4-Year Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
