Special Order
Please check with our team for information on availability.

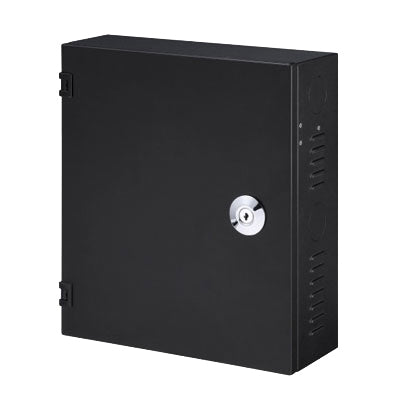

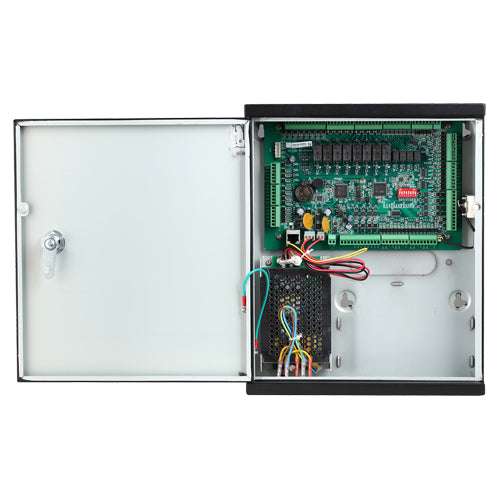

VIP Vision Access Controllers are the central management device for your system. Take full control with user management, event logs, access period scheduling, alarm functions, CCTV integration and much more.
Features:
• Store up to 100,000 valid cards & 150,000 records
• Supports RFID card, fingerprint and keycode
• TCP/IP network interface for configuration via PC
• RS485 & Wiegand 34 communication protocols
• Door time-out, intrusion, duress and tamper alarms
• Anti-passback, multi-door interlock, multi-card open
• Support 128 efficient time and holiday schedules
• Watch dog function ensure device free from halting
• Sturdy wall-mounted metal casing
• Backup battery support, battery connector included
*12V 7Ah backup battery recommended (Sold separately)
Manage with SmartPSS (minimum spec Windows 7, 2.4GHz or higher, GPU with DX8.0c support, 1GB RAM, 1024x768 resolution)
* Please note that backup battery up-time uses 12VDC7Ah Lead Acid Battery. Figures are calculated estimates for reference only. Actual installation results may vary
* This controller and supported readers are compatible with 13.56MHz NFC cards only.
Downloads
Tech Specs
| Specification |
Details |
| Access Control |
Anti-pass back, Multi-interlock, Multi-card unlock |
| Alarm Function |
Door time-out, Intrusion, Tamper, Duress |
| Battery Backup |
12VDC 7Ah Battery / UPS (Sold Separately) |
| Battery Up-time |
Electric Door Strikes: 20hrs (2 doors) / 11hrs (4 doors) / 6hrs (8 doors) |
| Card Memory |
100,000 |
| Dimensions |
280 x 320 x 114mm |
| Ethernet |
RJ-45 (10/100Base-T) |
| Event Memory |
150,000 |
| Housing |
Metal |
| Input Ports |
20 (8 x door sensor; 8 x exit button; 4 x alarm) |
| Main Processor |
32 Bit |
| Memory |
16MB |
| Net Weight |
2.0kg |
| Operating Conditions |
-30° ~ +60° C / Less than 95% RH |
| Output Ports |
12 (8 x door lock, 4 x alarm) |
| Period |
Support 128 groups of schedules, 128 groups of periods and 128 groups of holiday periods |
| Power Supply |
240V AC |
| Reader Interface |
Wiegand 34 / RS485 |
| Reader Ports |
8 |
| RTC |
Yes |
| User Management |
General, VIP, Guest, Patrol, Blacklist, Duress |
4-Year Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
