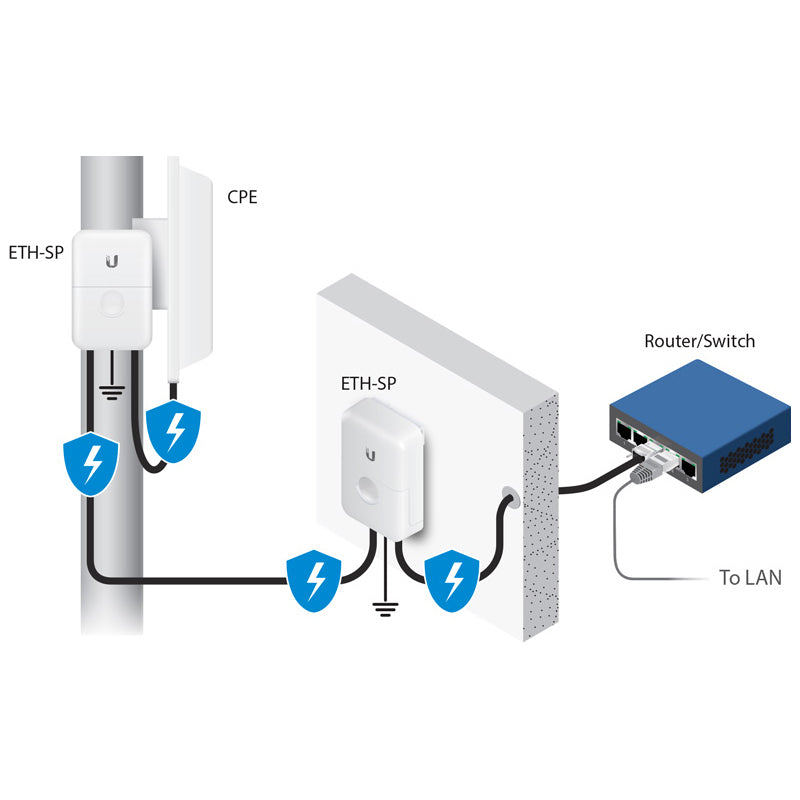

The VSETH-SP is engineered to protect any Power‑over‑Ethernet (PoE) or non‑PoE device with connection speeds of up to 1 Gbps. This is a great protection for outdoor POE devices, when damaging electrostatic discharge attacks and surges are diverted to the VSETH-SP and safely discharged into the ground, so network devices are protected.
Downloads
Tech Specs
| Specification |
Details |
| Data Line Protection |
RJ45 10/100/1000 Ethernet |
| DC Spark-Over Voltage |
90V @ 100V/s |
| Dimensions |
91 x 61 x 32.5 mm |
| Discharge Current |
5kA (Maximum), 0.5kA (Normal) |
| ESD/EMP Protection |
Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/μs |
| IEEE 802.3af PoE Support |
Yes |
| Interface Connections |
(2) RJ45 Female Connectors |
| Maximum Capacitance |
1.0 pF @ 1 MHz |
| Maximum Impulse Spark-over Voltage |
700V @ 1kV/μs |
| Maximum Insulation Resistance |
1G ohm @ 50V |
| Operating Humidity |
10 to 90% Noncondensing |
| Operating Temperature |
-30 to 65° C |
| Shock and Vibration Certification |
ETSI300-019-1.4 Standard |
| Weight |
80 g |
1-Year Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
