| Camera |
| Image Sensor |
1/1.8” 8Megapixel progressive CMOS |
| Max. Resolution |
8.0 Megapixel |
| Effective Pixels |
3840 (H) x 2160 (V) |
| RAM / ROM |
512MB / 32MB |
| Ultra Low Light Colour |
No |
| Min Illumination |
0.004Lux/F1.9( Color,1/3s,30IRE) 0.09Lux/F1.9 Color,1/30s,30IRE) 0Lux/F1.9(IR on) |
| S/N Ratio |
?50dB |
| Infrared |
Yes |
| Infrared System |
2 x Infrared LED, 30m range, Auto/manual on/off control |
| Lens |
| Lens Type |
Motorised Varifocal |
| Lens / Iris |
3.7mm~11mm |
| Field of View |
H:112°~46°, V:60°~26° |
| Focus |
Fixed |
| DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.) |
| Detect (25px/m) |
83m (wide) / 190m (tele) |
| Observe (63px/m) |
33m (wide) / 76m (tele) |
| Recognise (125px/m) |
17m (wide) / 38m (tele) |
| Identify (250px/m) |
8m (wide) / 19m (tele) |
| Video |
| Resolution |
8.0MP (3840 x 2160) to CIF (352 x 288) |
| Frame Rate (Main) |
8.0MP (1~25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
N/A |
| Video Compression |
H.265+/H.265/H.264+/H.264 |
| Bit Rate |
H.265: 16Kbps~8192Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Day/Night |
Auto (ICR) / Color / B&W |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual |
| Gain Control |
Auto / Manual |
| Noise Reduction |
3D DNR |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) |
| IVS |
| IVS |
Yes |
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Tripwire, Intrusion |
| Network |
| Ethernet |
RJ-45 (10/100Base-T) |
| Protocol |
HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
| Streaming Method |
Unicast / Multicast |
| Max. User Access |
10 Users / 20 Users |
| RTMP Support |
No |
| Interface |
| Video Interface |
N/A |
| Audio Interface |
N/A |
| Alarm Interface |
N/A |
| RS485 |
N/A |
| Edge Storage |
MicroSD Card (up to 128GB) / NAS / Local PC |
| Interoperability |
ONVIF / PSIA / CGI |
| Environmental |
| Power Supply |
12VDC / PoE (802.3af) (Class 0) |
| Power Consumption |
<10.9W |
| Operating Conditions |
-30° ~ +60° C / Less than 95% RH |
| Ingress Protection |
IP67 |
| Weather Resistance |
Yes |
| Vandal Resistance |
IK10 |
| Series |
Professional Series |
| Camera Type |
Dome |
| Housing |
Metal & Polycarbonate Dome |
| Pan/Tilt/Rotation |
Pan: 0° ~355 ° ; Tilt: 0° ~ 70° ; Rotation: 0° ~ 355° |
| Tri-Axis Mounting |
Yes |
| ePoE |
No |

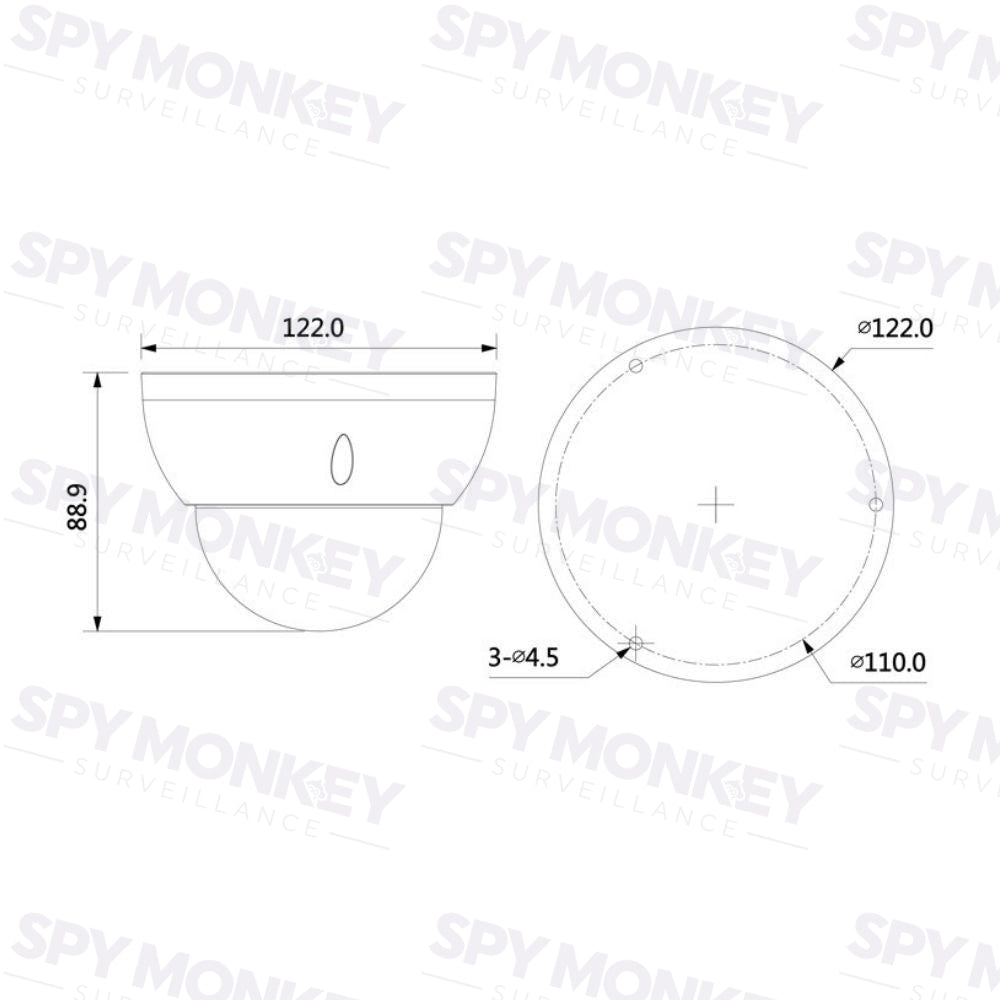

| Dimensions |
Ø122mm x 89mm |
| Net Weight |
0.49kg |
| Warranty (Years) |
4 |
