VIP Vision™ Professional Series CCTV kits offer broadcast-quality image performance with built-in Power over Ethernet for fast installations. Mix & match any equivalent priced dome or bullet camera to suit your installation needs.

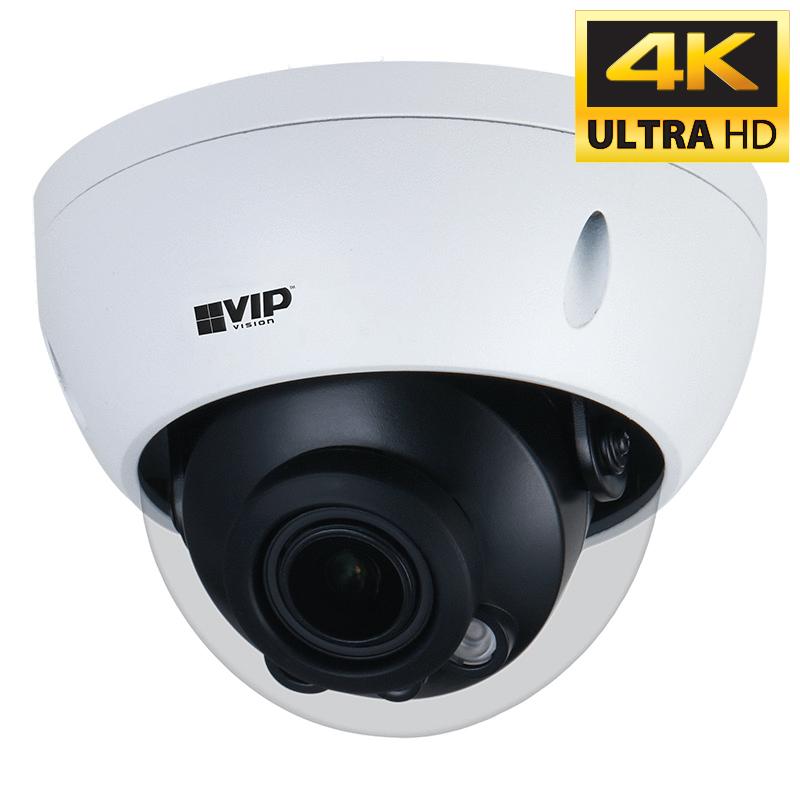

The VSIPP-8DIRMD is a versatile dome camera that can fit any application. This camera features an array of tools to perform in just about any environment, with a vandal & weather rated housing, infrared, remote zoom control & more.

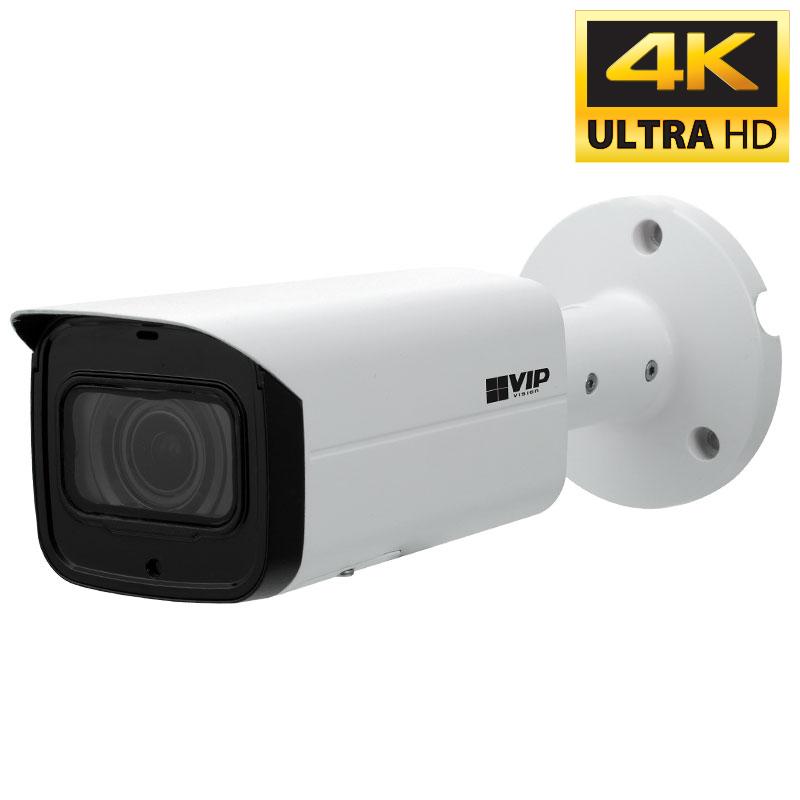

The VSIPP-8BIRMG can remotely configure wide or narrow fields of view, allowing you to enjoy hassle free surveillance installation and adjustment should your surveillance requirements or environment change.

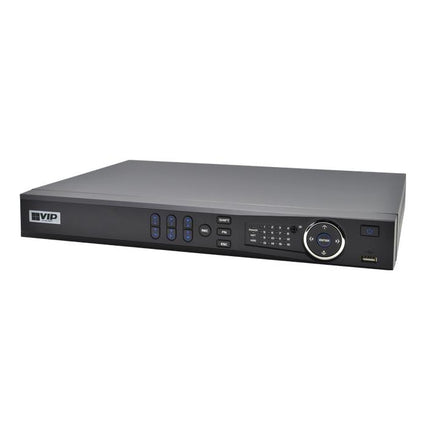

The VIP Vision NVR8PRO7 is an 8 channel network video recorder with extended PoE. It offers Ultra HD broadcast-quality image performance with 8 built-in ePoE for Power over Ethernet at ranges up to 800m, making long-distance PoE camera installations simpler than ever before.
Kit Features
- Records 8.0MP (3840 x 2160) up to 15fps
- Built-in 8 port Power over Ethernet (8 port ePoE)*
- Motorised cameras featuring True WDR & infrared
- IVS with tripwire, intrusion, motion detection & more
- Remote view in seconds with setup via QR code
- Remote view for iOS, Android & Windows Phone
- WARRANTY: 4 Years Back-to-Base Manufacturer Warranty!

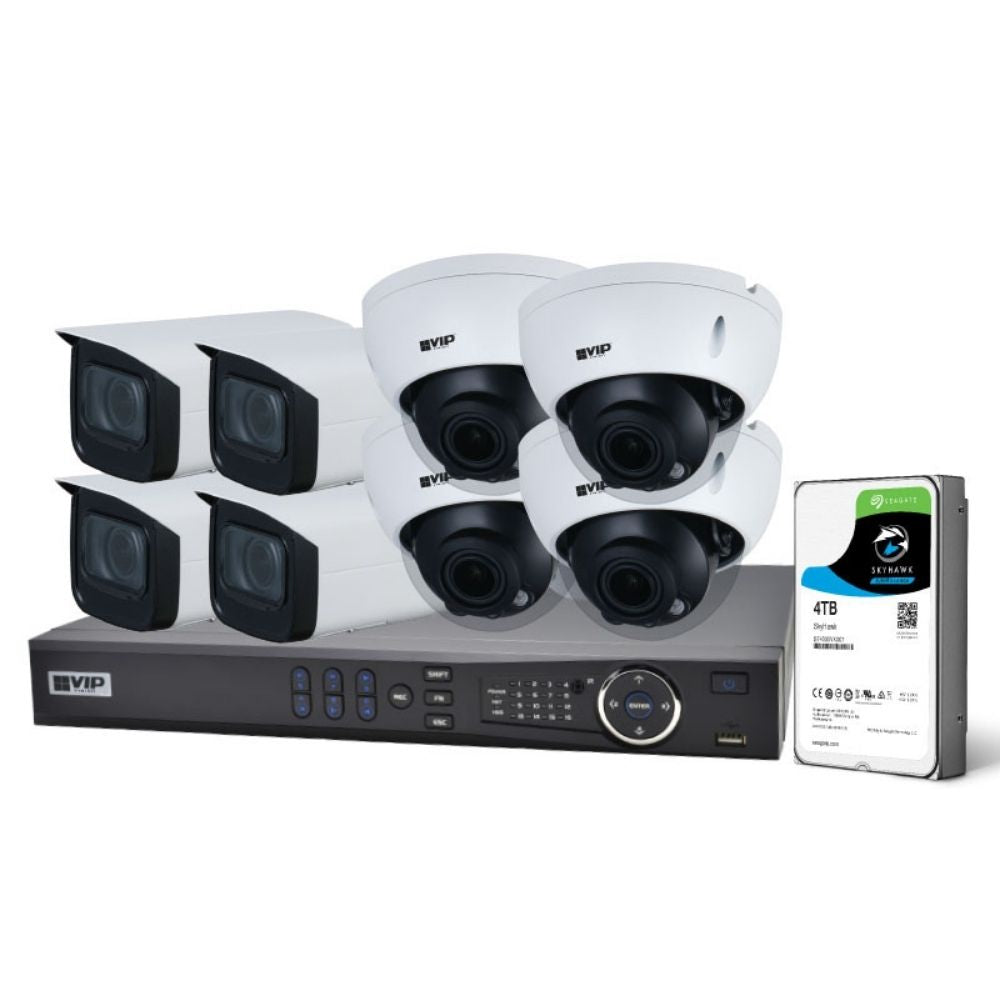

Kit Includes
- 1 x 8 channel ePoE NVR + pre-installed 4TB HDD
- 4 x 8.0MP 2.7~13.5mm WDR 40m IR motorised dome cameras
- 4 x 8.0MP 2.7~13.5mm WDR 60m IR motorised bullet cameras
- 1 x 1.5m CAT5 patch cable for networking
- 1 x 1m HDMI output cable
- 1 x NVR Remote
- 1 x Mouse
* Camera cabling sold separately
Tech Specs
VIP Vision VSIPP-8DIRMD Security Camera
| Camera |
|
| Image Sensor |
1/2.7’’ 4.0MP Progressive Scan CMOS |
| Max. Resolution |
8.0 Megapixel |
| Effective Pixels |
|
| RAM / ROM |
156MB / 128MB |
| Ultra Low Light Colour |
Yes |
| Min Illumination |
|
| S/N Ratio |
N/A |
| Infrared |
Yes |
| Infrared System |
2 x Infrared LED, 40m range, Auto/manual on/off control |
| Lens |
|
| Lens Type |
|
| Lens / Iris |
2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris |
| Field of View |
Horizontal: 113°~31°, Vertical: 58°~17° (5x Optical Zoom) |
| Focus |
Auto Focus / 0.8m Min. Focus Distance |
| DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.) |
| Detect (25px/m) |
|
| Observe (63px/m) |
|
| Recognise (125px/m) |
|
| Identify (250px/m) |
|
| Video |
|
| Resolution |
8.0MP (3840 x 2160) to CIF (352 x 288) |
| Frame Rate (Main) |
8.0MP (1 ~ 15fps) / 4.0MP (1 ~ 25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
N/A |
| Video Compression |
H.265+ / H.265 /H.264+ / H.264 / H.264B / MJPEG |
| Bit Rate |
H.265: 12 ~ 8192Kbps / H.264: 32 ~ 8192Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Day/Night |
|
| Lighting Compensation |
|
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| Gain Control |
Auto / Manual |
| Noise Reduction |
3D DNR |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) |
| IVS |
|
| IVS |
Yes |
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared |
| Network |
|
| Ethernet |
|
| Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
| Streaming Method |
|
| Max. User Access |
20 Users |
| RTMP Support |
NA |
| Interface |
|
| Video Interface |
N/A |
| Audio Interface |
1 input, 1 Output / Audio Compression - G.711a; G.711Mu; G726; AAC |
| Alarm Interface |
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC |
| RS485 |
N/A |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS / FTP / SFTP |
| Interoperability |
ONVIF / P2P / CGI / Milestone / Genetec |
| Environmental |
|
| Power Supply |
|
| Power Consumption |
<7.4W |
| Operating Conditions |
|
| Ingress Protection |
IP67 |
| Weather Resistance |
Yes |
| Vandal Resistance |
IK10 |
| Series |
|
| Camera Type |
Dome |
| Housing |
Metal |
| Pan/Tilt/Rotation |
Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355° |
| Tri-Axis Mounting |
Yes |
| ePoE |
N/A |
| Dimensions |
|
| Net Weight |
0.47kg |
| Warranty (Years) |
4 |
VIP Vision VSIPP-8BIRMG Security Camera
| Camera |
|
| Image Sensor |
1/2.7’’ 8.0MP Progressive Scan CMOS |
| Max. Resolution |
8.0 Megapixel |
| Effective Pixels |
|
| RAM / ROM |
512MB / 128MB |
| Ultra Low Light Colour |
Yes |
| Min Illumination |
|
| S/N Ratio |
> 50dB |
| Infrared |
Yes |
| Infrared System |
4 x Infrared LED, 60m range, Auto/manual on/off control |
| Lens |
|
| Lens Type |
|
| Lens / Iris |
2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris |
| Field of View |
Horizontal: 113°~31°, Vertical: 58°~17° (5x Optical Zoom) |
| Focus |
Auto Focus / 0.8m Min. Focus Distance |
| DORI Distance (Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.) |
| Detect (25px/m) |
|
| Observe (63px/m) |
|
| Recognise (125px/m) |
|
| Identify (250px/m) |
|
| Video |
|
| Resolution |
8.0MP (3840 x 2160) to CIF (352 x 288) |
| Frame Rate (Main) |
8.0MP (1 ~ 15fps) / 4.0MP (1 ~ 25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
N/A |
| Video Compression |
H.265 / H.264 / H.264B / MJPEG |
| Bit Rate |
H.265: 12 ~ 8192Kbps / H.264: 32 ~ 8192Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Day/Night |
|
| Lighting Compensation |
|
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
| Gain Control |
Auto / Manual |
| Noise Reduction |
3D DNR |
| Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) |
| IVS |
|
| IVS |
Yes |
| Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Tripwire, Intrusion |
| Network |
|
| Ethernet |
|
| Protocol |
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
| Streaming Method |
|
| Max. User Access |
20 Users |
| RTMP Support |
NA |
| Interface |
|
| Video Interface |
N/A |
| Audio Interface |
1 input, 1 Output / Audio Compression - G.711a; G.711Mu; G726; AAC |
| Alarm Interface |
1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC |
| RS485 |
N/A |
| Edge Storage |
MicroSD Card (up to 256GB) / NAS |
| Interoperability |
ONVIF / P2P / CGI / Milestone / Genetec |
| Environmental |
|
| Power Supply |
|
| Power Consumption |
<9.9W |
| Operating Conditions |
|
| Ingress Protection |
IP67 |
| Weather Resistance |
Yes |
|
