Description
Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.
Easy Series
Products from Easy series are most popular choices for entry-level applications such as retail. L series IP cameras, B series NVRs, Ultra 265 PoE kits and Navigator PTZ dome cameras are included. All of them are featured with Ultra 265 compression technology which is exclusively released by Uniview. In addition, they provide excellent performance with affordable price. Meanwhile, Easy series are easy to install and maintain, hence can be utilized anywhere. Easy family products are most cost-effective options for a residence and small business application.
Features
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
- Ultra 265, H.265, H.264
- ROI (Region of Interest)
- ONVIF Conformance
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Datasheet
Videos
Tech Specs

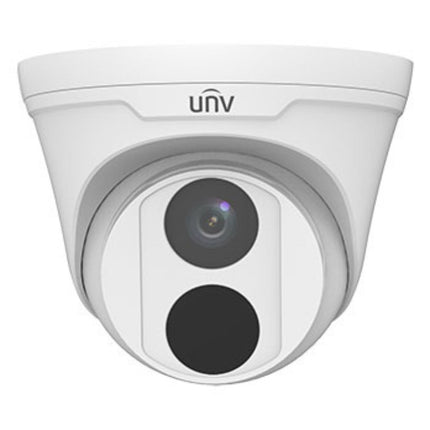

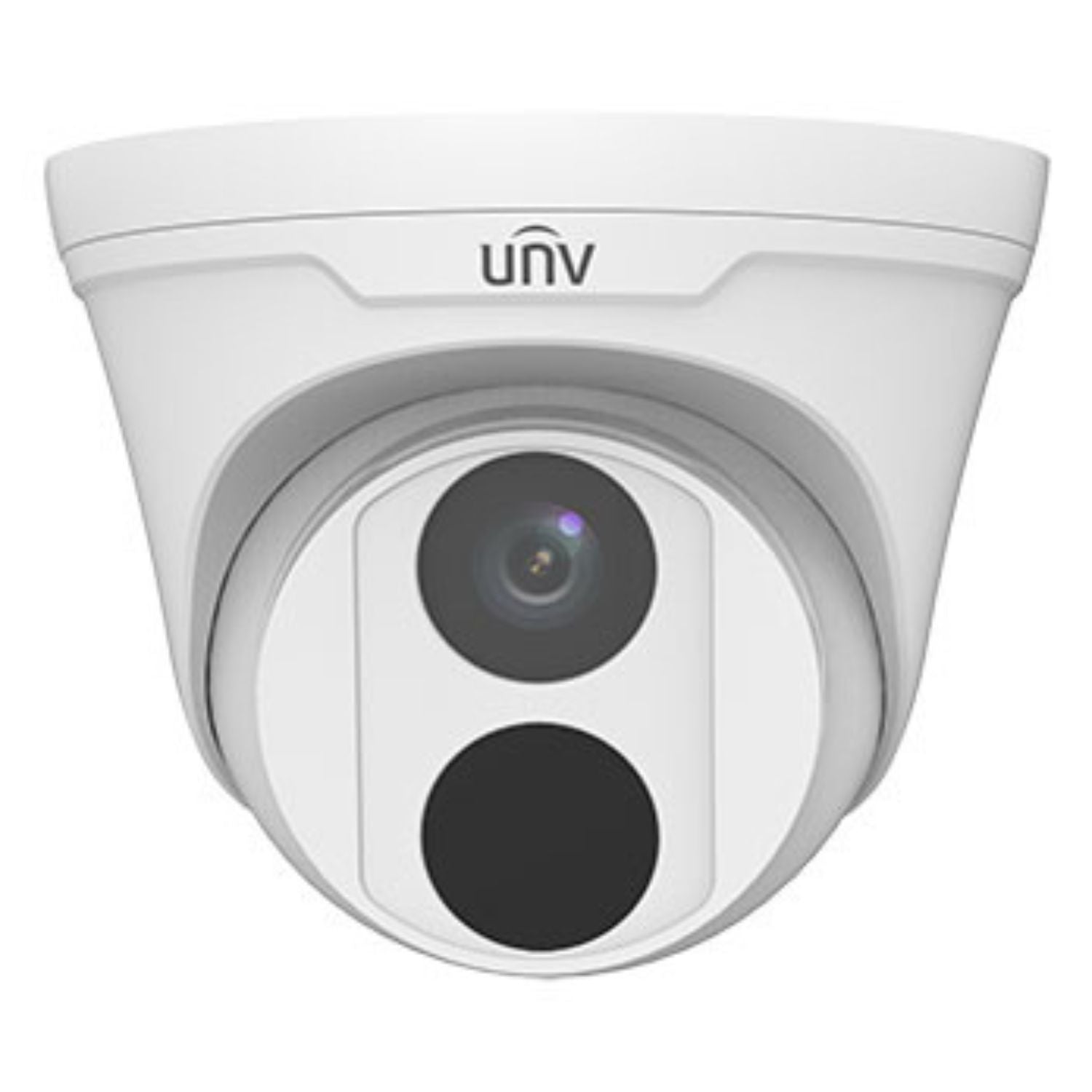

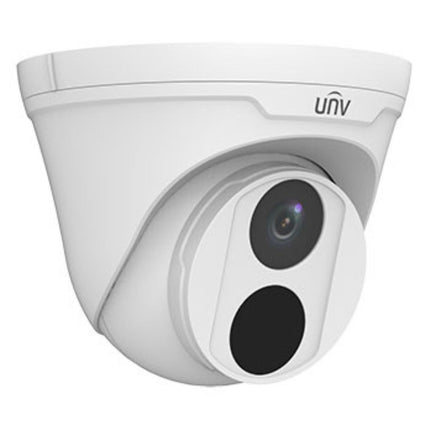

Uniview Security Camera: 4MP Turret, 2.8mm, Easy - IPC3614LR3-PF28-D
| IPC3614LR3-PF28-D |
IPC3614LR3-PF40-D |
| Camera |
| Sensor |
1/3", 4.0 megapixel, progressive scan, CMOS |
| Lens |
2.8mm@F2.0 |
4.0mm@F2.0 |
| DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
| 2.8 |
63 |
25.2 |
12.6 |
6.3 |
| 4.0 |
90 |
36 |
18 |
9 |
| Angle of view (H) |
104.4° |
78.9° |
| Angle of View (V) |
54.4° |
39.6° |
| Angle of View (O) |
135.7° |
97.0° |
| Adjustment angle |
Pan: 0° ~ 360° |
Tilt: 0° ~ 80° |
Rotate: 0° ~ 360° |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Min. Illumination |
Colour: 0.03Lux (F2.0, AGC ON)
0Lux with IR |
| Digital noise reduction |
2D/3D DNR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| S/N |
>52dB |
| IR Range |
Up to 30m (98 ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Defog |
Digital Defog |
| WDR |
DWDR |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile |
| Frame Rate |
Main Stream: 4MP (2592*1520), Max 20fps;
Sub Stream: 720P (1280*720), Max 20fps;
Third Stream: D1 (720*576), Max 20fps |
| Video Bit Rate |
128 Kbps~16 Mbps |
| OSD |
Up to 4 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 2 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Vertical/Horizontal/180° |
| Dewarping |
NA |
| HLC |
Supported |
| BLC |
Supported |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS |
| Compatible Integration |
ONVIF (Profile S, Profile T),API |
| Client |
EZStation
EZView
EZLive |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface |
| Network |
10/100M Base-TX Ethernet |
| Certifications |
| Certifications |
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15 |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 4W |
| Dimensions (Ø x H) |
Φ118 x 96mm (Φ4.6” x 3.8”) |
| Net Weight |
0.35kg (0.77lb) |
| Material |
Metal + Plastic |
| Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection |
2KV |
| Ingress Protection |
IP67 |
