Uniview Security Camera: 4MP Motorised Varifocal Eyeball 2.7-12mm

Description

Description

This has been superseded by IPC3635SB-ADZK-I0

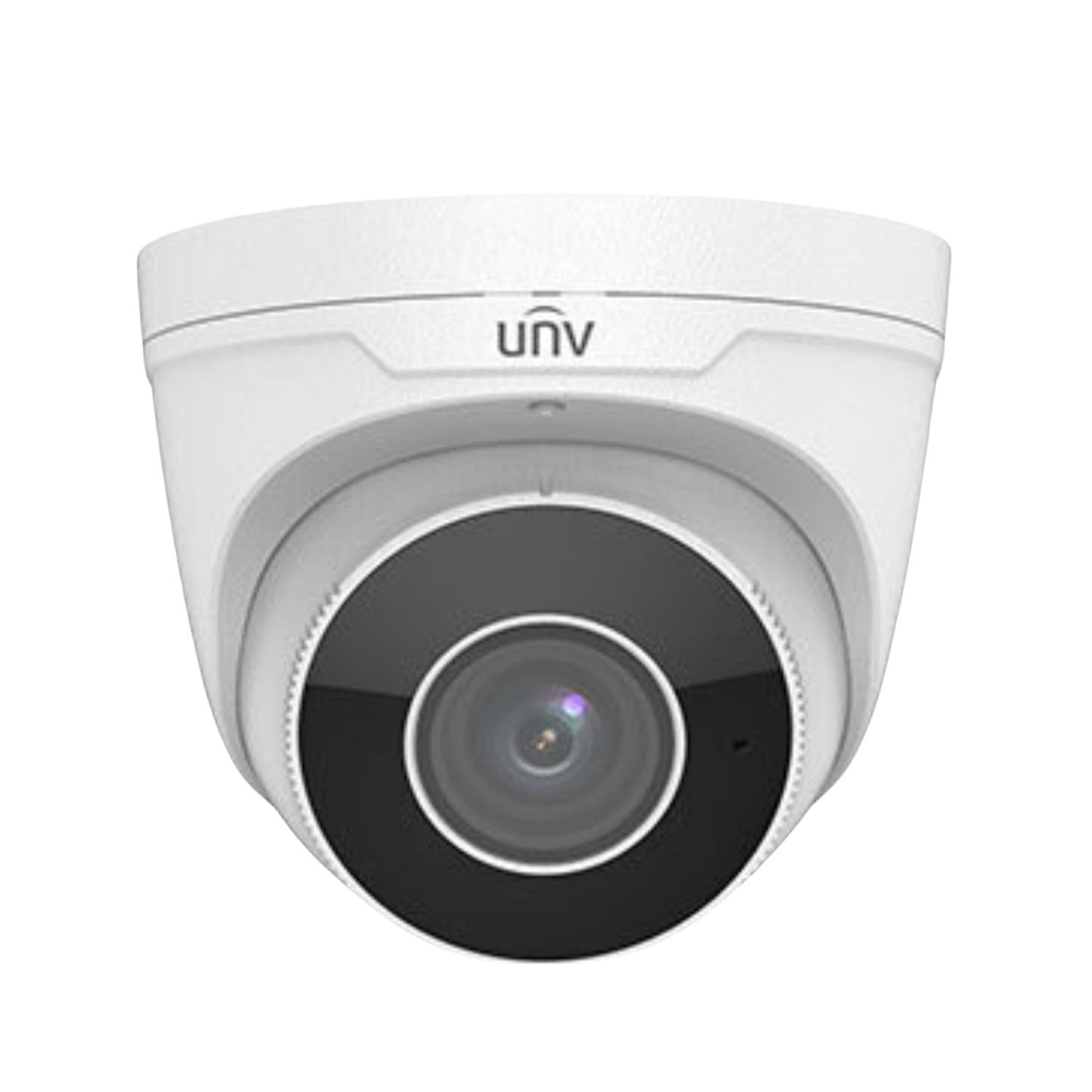

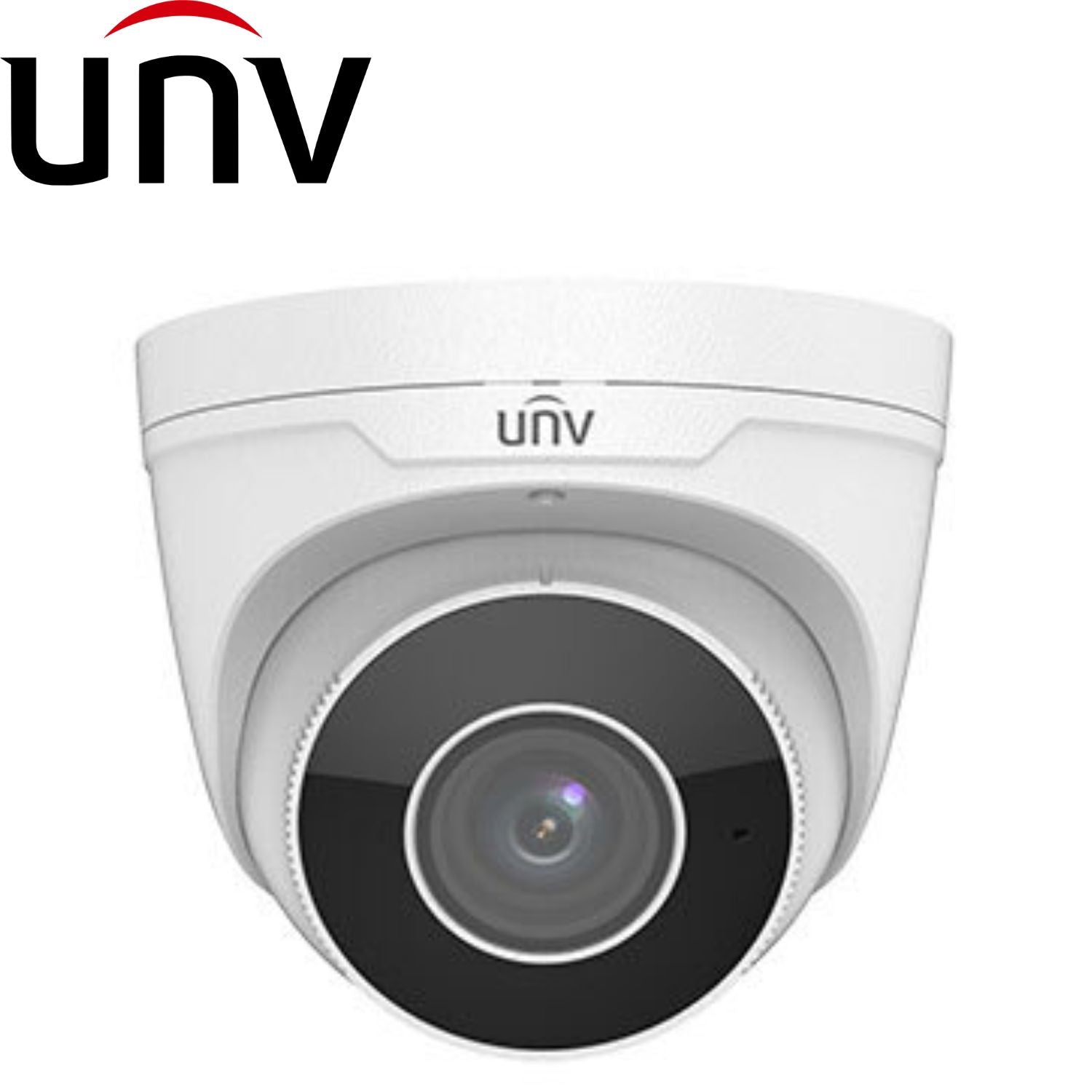

The Uniview IPC3634ER3-DPZ28 is a 4MP motorised varifocal eyeball turret camera. Designed by Uniview, a leading innovator in the surveillance industry, the camera has excellent high clarity resolution, 30m infrared night vision range and powerful inbuilt smart detections that help make it easy to monitor, detect and alert you of intrusions.

Image optimisation technology such as WDR and 3D DNR actively minimise noise and balances light. The camera is compatible with most 3rd party digital video recorders and supports power-over-ethernet for simple plug-and-play set up. It also supports audio recording and can be installed outdoors thanks to its IP67 weatherproof construction.

Features

  • 4 Megapixel, 1/3" progressive scan CMOS, Motorised 2.7mm-12mm lens
  • Supports Power Over Ethernet POE + DC12V Output
  • 2560 x 1440 resolution,25fps
  • Smart IR night vision, up to 30m IR distance with auto IR cut filter
  • Optical glass window with higher light transmittance
  • IR anti-reflection window to increase the infrared transmittance
  • 3D DNR, ROI, 9:16 corridor mode, Digital Defog, 120 dB WDR
  • H.265, H.264, MJPEG Video Compression
  • Smart functions including Cross-Line Detection, Motion Detection, Face Detection, People Counting
  • Wide voltage range of ±25, IP67 full weather protection
  • WARRANTY: 3 years back-to-base manufacturer warranty

More Info

UNIVIEW 4MP MOTORISED VARIFOCAL EYEBALL CAMERA - IPC3634ER3-DPZ28

Easy Set-up

  • POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to camera, making installation fast and easy.

  • DC12V Output - No need for extra cable to run a microphone, light or siren. Camera's with the Building Pack have DC12V output built into the camera so no need for an additional power supply.

Optics

  • Day/night functionality - Designed to operate just as good in total darkness as well as light.
  • Motorised Zoom - With built-in varifocal motorised lens you can control zoom functions on the camera remotely. (2.7~12 mm@F1.4)
  • Smart IR night vision, up to 30m (98 ft) IR distance

  • Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

  • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

  • Anti-Reflective Glass - Anti-reflective glass lenses prevent infrared reflection and the accumulation of insects that are attracted to light and obscure or dirty the lens.

  • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
  • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.

  • Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.

Compression

  • H.265, H.264, MJPEG
  • Embedded smart algorithm
  • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
  • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
  • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduce the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.
  • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

Network

  • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
  • IP67 - Cameras are sealed against extreme weather, water and dust.

Back Up Storage

  • Edge Storage - Thanks to this backup storage option the cameras have the ability to record to micro SD card up to 128GB.

Intelligence

  • Face detection - The camera takes a snapshot of the face and stores it in the NVR. When you need to identify a person the system will take you to the specific moment the person appeared on the screen.
  • Intrusion Detection - You can draw a box or an area of interest within the screen for the camera to monitor. When the camera identifies an intrusion it will prompt the NVR to send you an email or notification with snapshots.
  • Scene Change - The camera can identify if it is being tampered with if there is a change in scenery it is actively monitoring. It will be prompted to send you an email with snapshots of the incident.
  • Cross Line Detection - Similar to intrusion by drawing lines, however this works best for identifying point A to point B intrusion. For example, a car may be permitted to enter an area from point A but prohibited to exit at point B. The system will only alert you if both point A and point B are triggered in that order.
  • People Counting - Pointed at a door (or by drawing a line) the camera will count person by person. It can also identify how many people enter and how many exit. You can review the results by specific time periods on a graph. Suitable for stores or places with high traffic.
  • Defocus Detection - The camera can detect when it is out of focus and alert you.
Tech Specs

UNIVIEW 4MP MOTORISED VARIFOCAL EYEBALL CAMERA - IPC3634ER3-DPZ28

IPC3634ER3-DPZ28
Camera
Sensor 1/3", 4megapixel, progressive scan, CMOS
Lens

2.7~12 mm@F1.4
Angle of view(H) 91.0°~27.0°
Zoom/Focus Motor drive
Shutter Auto/Manual, 1/6~1/100000 s
Min. Illumination Colour: 0.02 Lux (F1.4, AGC ON)
0 Lux with IR
IR Range Up to 30m (98 ft) IR range
Day/Night IR-cut filter with auto switch (ICR)
S/N >52dB
WDR 120dB
Noise Reduction 2D/3D
Video
Max. Resolution 2592x1520
Video Compression H.265, H.264, MJPEG
Frame Rate 4MP (2592×1520): Max.20 fps; 4MP (2560×1440): Max.25 fps
Video Streaming Triple
9:16 Corridor Format Supported
ROI Supported
Evaluative Metering Supported
OSD Up to 8 OSDs
Privacy Mask Up to 8 areas
Smart
Behavior Detection Intrusion, crossing line, motion detection
Intelligent Identification Face detection, Defocus, Scene Change
Statistical Analysis People counting
Storage
Edge Storage Micro SD, up to 128 GB
Network
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration ONVIF,API
Interface
Built-in Mic Supported
Network 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 8.16W
Dimensions (Ø x H) ?129 x 110 mm (Ø5.08” x 4.3”)
Weight 0.67 kg (1.48lb)
Working Environment -40°C ~ +60°C (-40°F ~ 140°F), Humidity ? 95% RH(non-condensing)
Ingress Protection IP67
Videos

Unboxing & Installation Demonstration

Uniview Company Introduction

Downloads

Read more
