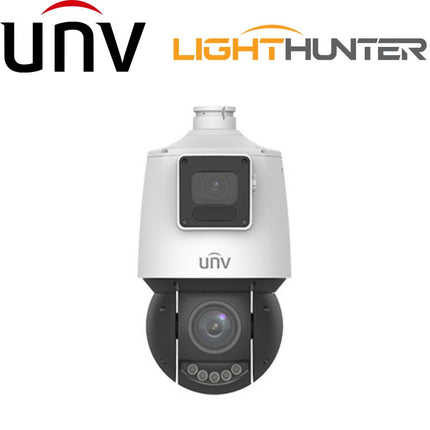

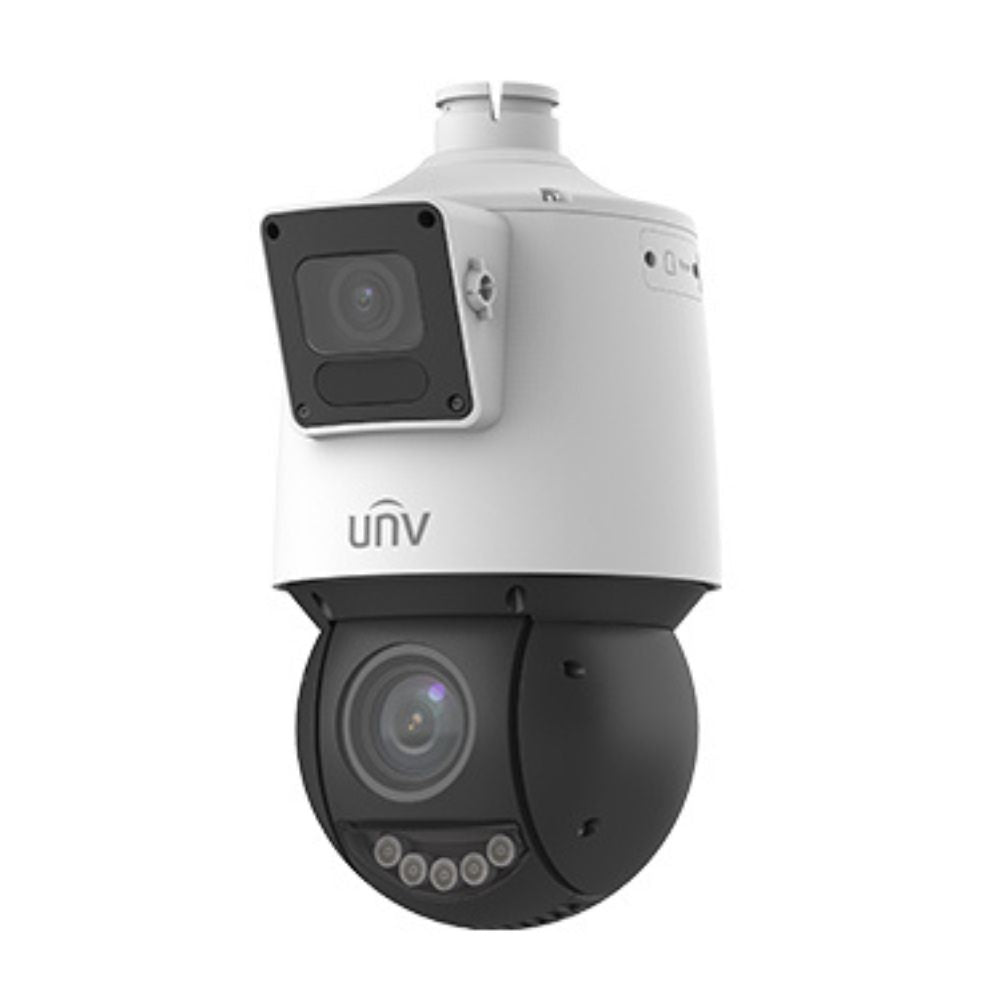

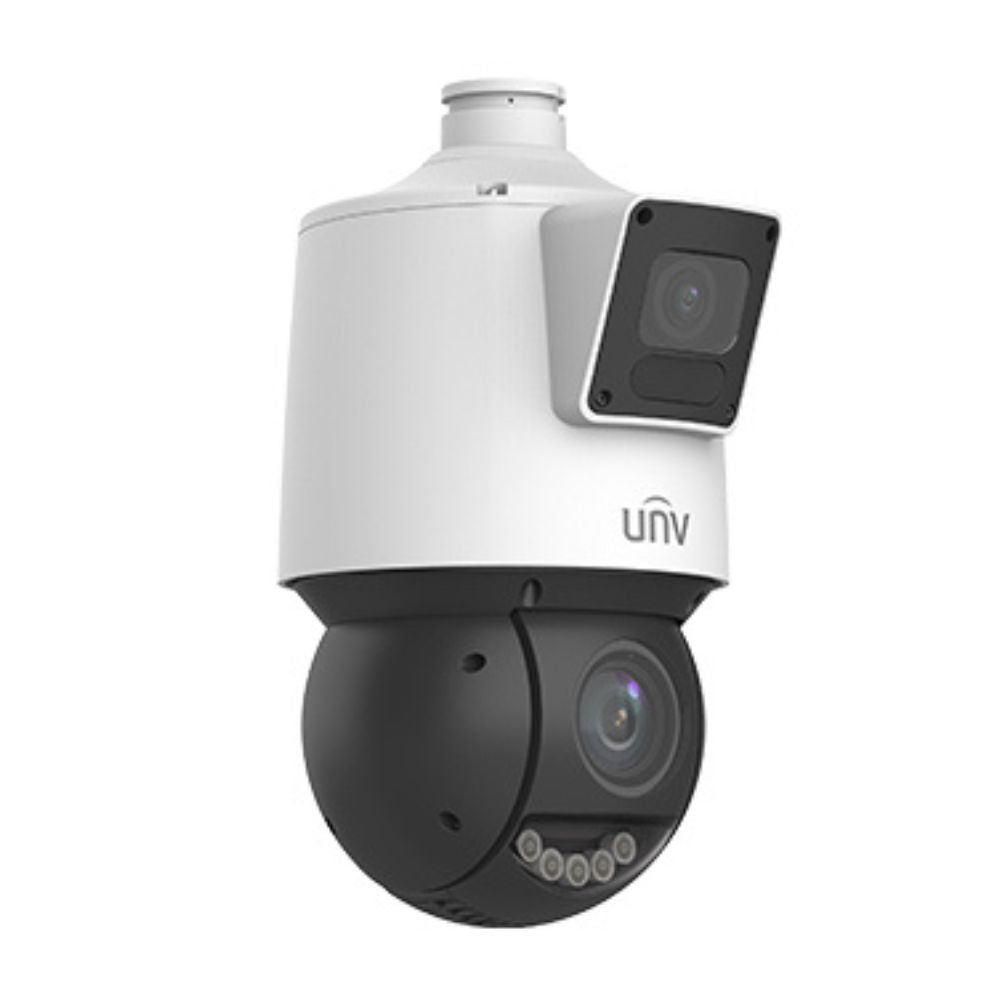

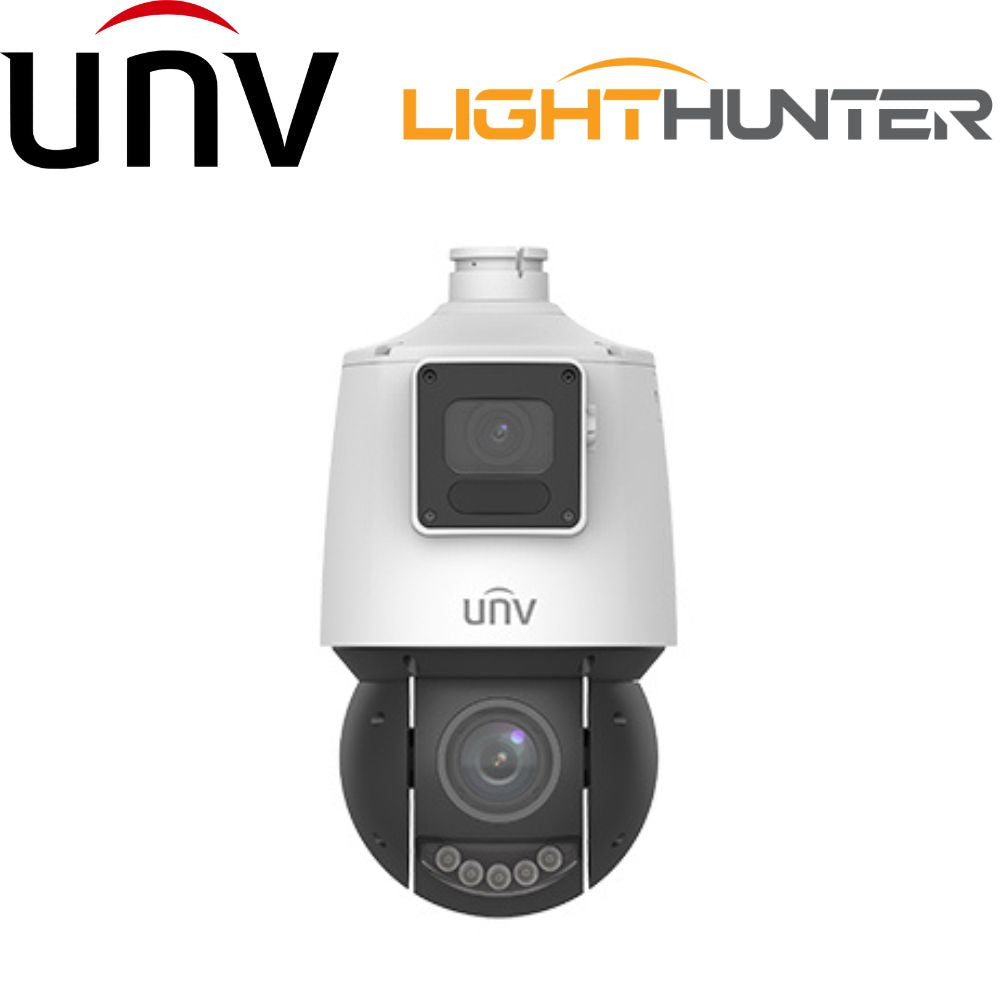

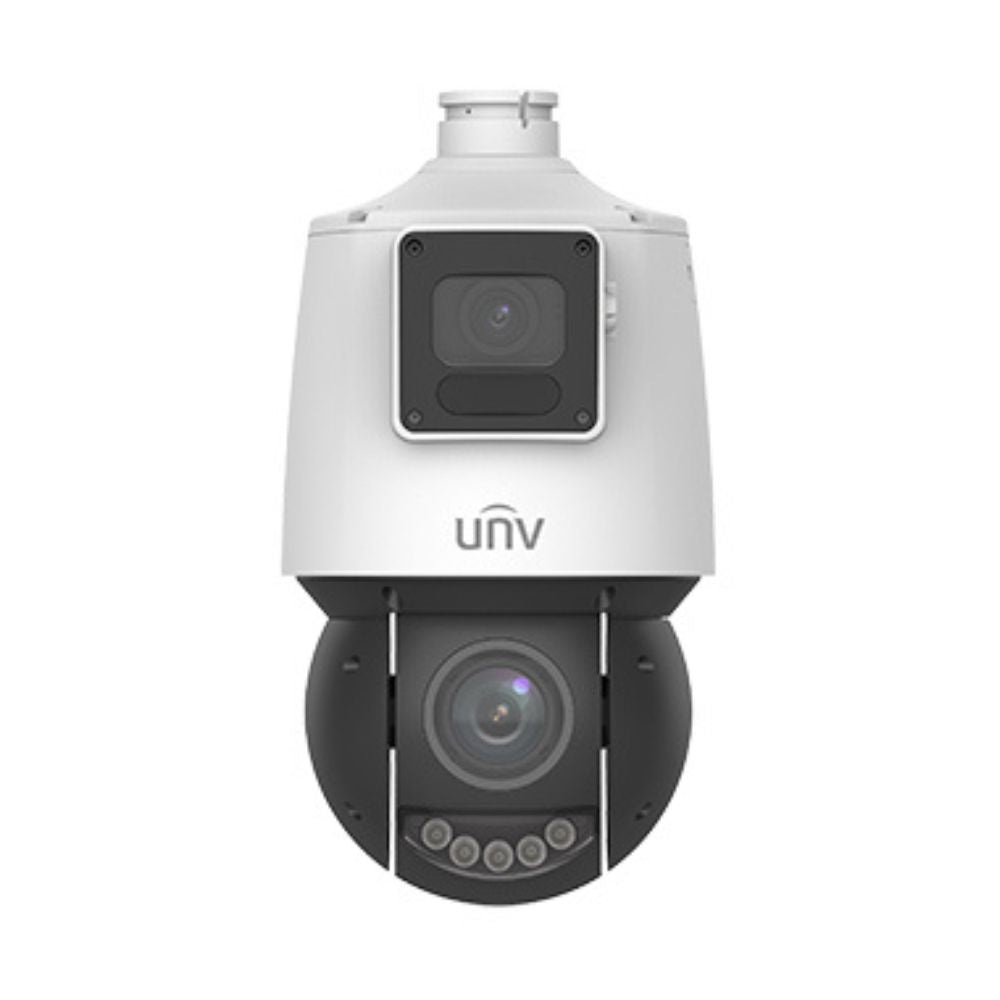

Uniview Security Camera: 4MP+4MP Lighthunter Dual-lens Network PTZ Camera - IPC94144SR-X25-F40C

Description

Description

Engineered by Uniview, one of the world's leading video surveillance innovators, Uniview can meet your security needs in different scenarios. Their IP cameras renders high-quality images even in low illumination environment while featuring smart functions based on video content analytics, and minimizing bandwidth and storage. The most important business value of them is to provide excellent performance at an affordable price.

The IPC94144SR-X25-F40C from Uniview is a Dual Lens, Lighthunter IP PTZ Camera. This new Lighthunter Mini PTZ from Uniview has a number of unique features you can count on to protect your property or facility. First of all, the two lens system works in sync with a Fixed 4.0mm Lens and a PTZ (Pan, Tilt and Zoom) Lens. That means you can see your overall image on the main lens while capturing details, or tracking motion on the second lens. Even better, you can set the PTZ portion to Auto-Track, triggered by the main lens. Smart Intrusion Prevention supports Line Crossing and can be set to send alerts if someone enters or leaves an area. You can also set parameters for People Counting and Entering/Leaving and area. In addition, the camera employs Univiews ‘Lighthunter’ Technology, so your images stay in color even in extremely low light levels.

Features
  • Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
  • High quality image with 4MP,1/2.7’’ CMOS sensor
  • Ultra 265, H.265, H.264, MJPEG
  • 25X optical zoom of PTZ channel allows for closer viewing of subjects
  • PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule
  • Lighthunter technology ensures ultra-high image quality in low illumination environment
  • DC12V or PoE+(IEEE 802.3at) power supply
  • Alarm 2 in and 1 out, Audio 1 in and 1 out
Datasheet
Videos

Tech Specs

Uniview Security Camera: 4MP+4MP Lighthunter Dual-lens Network PTZ Camera - IPC94144SR-X25-F40C

IPC94144SR-X25-F40C
Camera Panorama Detail
Sensor 1/2.7", 4MP, CMOS 1/2.7", 4MP, CMOS
Min. Illumination Color:0.003 lux (F1.6, AGC ON)
0 lux with IR		 Color:0.003 lux (F1.5, AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
WDR 120dB
S/N ＞56dB
Lens
Lens type 4mm@F1.6 4.8~120mm@F1.5,
AF automatic focusing and motorized zoom lens
Optical Zoom N/A 25X
Iris Fixed aperture; F1.6 Auto; F1.5(W)~F3.8(T)
Angle of View (H) 91.3° 55.46° ~ 3.09°
Angle of View (V) 51.5° 32.94° ~ 1.73°
Angle of View (O) 112.3° 68.22° ~ 3.65°
DORI
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
4 (Panorama) 90.0 (295.3 ft) 36.0 (118.1 ft) 18.0 (59.1 ft) 9.0 (29.5 ft)
4.8 (Detail 123.8 (406.0 ft) 49.5 (162.4 ft) 24.8 (81.2 ft) 12.4 (40.6 ft)
120 (Detail) 2475.0 (8120.1 ft) 990.0 (3248.0 ft) 495.0 (1624.0 ft) 247.5 (812.0 ft)
Illuminator
IR Range Up to 30m (98.4 ft) Up to 100m (328.1 ft)
Wavelength 850nm (IR)
Light On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
Frame Rate Main Stream: 4MP (2688*1520),Max 30fps;
Sub Stream: 1080P (1920*1080), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;		 Main Stream: 4MP (2688*1520),Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps;
Third Stream: D1 (720*576), Max 30fps;
Video Bit Rate 128 Kbps ~ 16 Mbps
U-code Support
ROI Up to 8 areas
Video stream Triple streams
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas per scene 24 areas, up to 4 areas per scene
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital noise reduction 2D/3D DNR
Smart IR Support
Flip Normal/Flip Vertical/Flip Horizontal/180°
HLC Support
BLC Support
Defog Digital defog
Events
Basic Detection Motion detection, Audio detection, Tampering Alarm
Auto Tracking N/A Support
General Function Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio Support
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 256 GB
Network Storage ANR
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and common user
Security Password protection, strong password, HTTPS encryption, Export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client EZStation
EZLive
EZView
Web Browser Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range N/A 360°
Pan Speed N/A 0.1°/s ~ 80°/s
Preset speed: N/A Preset speed: 80°/s
Tilt Range 18° ± 5° -15° ~ 90°
Tilt Speed N/A 0.1°/s ~ 80°/s
Preset speed: N/A Preset speed: 80°/s
Number of Presets 1024
Preset Patrol 16 patrols, up to 64 presets for each patrol
Route Patrol 16 patrols, up to 32 actions for each patrol
Recorded Patrol 16 patrols, up to 128 actions for each patrol
Patrol Stay Time 15s~1800s
Preset Image Freeze N/A
Home Position Support
Interface
Audio I/O 1/1
Alarm I/O 2/1
Serial Port 1 RS485
Built-in Mic N/A
Built-in Speaker Support
Wi-Fi N/A
Network 1 * RJ45 10M/100M Base-TX Ethernet
Video Output N/A
Certification
EMC CE-EMC (EN 55032: 2015+A1:2020,EN 61000-3-3: 2013+A1: 2019,EN IEC 61000-3-2: 2019+A1: 2021,EN 55035: 2017+A11:2020)
FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety CE LVD (EN 62368-1:2014+A11:2017)
CB (IEC 62368-1:2014)
UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment CE-RoHS (2011/65/EU;(EU)2015/863)
Protection IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power DC12V (±25%), PoE+(IEEE 802.3at)
Power consumption: MAX 24W
Power Interface Ø 5.5mm coaxial power plug
Dimensions (Ø x H) Φ163 x 304mm (Φ6.4” x 12.0”)
Weight 2.27kg (5.00lb)
Working Environment -40℃ ~ +65℃(-40°F ~ +149°F)，Humidity: ≤95% RH (non-condensing)
Storage Environment -40℃ ~ +70℃(-40°F ~ +158°F)，Humidity: ≤95% RH (non-condensing)
Surge protection 6KV
Reset button Support

3-Years Warranty


Uniview 3-Years Manufacturer Warranty!

Our Uniview products are high-quality and durability-tested by Uniview engineers. Enjoy the peace of mind of a three-year warranty!

✔️ Authorised Uniview Dealer!

✔️ Australian Stock, No Grey Imports!

✔️ 3-Years Manufacturer Warranty!


Uniview offers a 2-year manufacturer warranty and SECSOURCE offer an additional 1-year warranty which covers defects in materials or broken components that could affect the normal operation of the product. In the event of a device being faulty, Uniview and SECSOURCE will repair or replace the faulty product at no cost.

The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft. SECSOURCE will facilitate any warranty claims on the customers' behalf with the manufacturer. If you think you have a faulty product, please contact our support team and we will gladly help you troubleshoot and determine that the product is indeed faulty. We aim to do so in a manner that is as fast and efficient as possible.

Once determined faulty you will need to return the product to us first so that we can pass it on to the manufacturer. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock. Please note, we do not cover inbound shipping to us however if a replacement is to be sent we will cover outbound shipping to the customer.

We may need the serial number of the product and your order number. Please don’t ship us anything until you have had confirmation from one of our team and they have given you a return address.

You can contact us by email at support@secsource.com.au or phone on 1300 049 519.
