Description
In today's world, the most secure home and business is one that has a surveillance system. The Uniview 8-camera 8-Channel 5MP LightHunter Kit provides that security. IPC3615SB-ADF28(40)KM-I0 is a 5-megapixel LightHunter IP camera. It comes with an exceptional high-clarity resolution, infrared night vision, and LightHunter illumination technology that ensures ultra-high image quality in a low illumination environment.
The system supports advanced smart detections including Intrusion & Cross-Line Detection, Motion Detection, Face detection, Audio detection as well as People counting for statistical analysis. Built-In mics allow for audio recording. The cameras can be setup to trigger recording, alarms or email notifications with snapshots.
In addition to 8 starlight turret cameras is your choice of a Uniview 8 channel (NVR301-08X-P8) or 16 channel (NVR302-16S-P16) network video recorder, both capable of recording in 8 megapixel (4K) resolution. The more channels you have the more cameras you can add, allowing you to expand your security system as needed.
Enjoy plug and play functionality and long range PoE+, capable of connecting, powering and streaming cameras from 250-300 metres away. Ultra265 video compression, a Uniview innovation that compresses video, maximises efficiency of bandwidth and storage capacity.
Viewing your cameras remotely is possible through the EZ View app for smart devices (iOS, Android), by internet explorer web browser or free video management software for mac or PC (EZStation), allowing set up and control of various functions of your system as well as Live viewing.
Designed for responsible and safety-minded business and home owners on a moderate budget, this is a professional security investment that can be relied upon for years to come.
Uniview's quality products come with 3 years manufacturer warranty.
Features
-
8 x 5 megapixel (5MP) LightHunter Illumination Turret Cameras, with Optional 2.8mm (Standard) or 4mm fixed lens
-
OPTIONAL 8 channel or 16 channel NVR. All support 8MP (4K) Recording with 8 - 16 independent POE ports (Plug and Play)
-
NVR Options are NVR301-08X-P8 or NVR302-16S-P16
-
2 Terabyte hard drive (upgradable to 10TB)
- Smart Functions include Motion Detection, Intrusion Detection, Cross-Line Detection and Audio Detection.
- Supports Audio Recording and comes with Built-In Mic.
- Access your Live video feed on your smart device with EZView app. Supports android and ios.
-
LightHunter Technology ensures ultra-high image quality in a low illumination environment.
- Support 1-ch HDMI at up to 4K(3840x2160) resolution
- Accurate Retrieval, Instant Playback NVR
- 120 dB Optical WDR (Wide Dynamic Range), 2D/3D DNR (Digital Noise Reduction), accurate retrieval, instant playback, ROI, 9:16 corridor mode
- Smart IR night vision 30m
- Video Compression Ultra H.265,H.265, H.264, MJPEG - Triple Streams
- 4 KV surge protection, IP67 weather protection
- WARRANTY: 3 years back-to-base manufacturer warranty
More Info

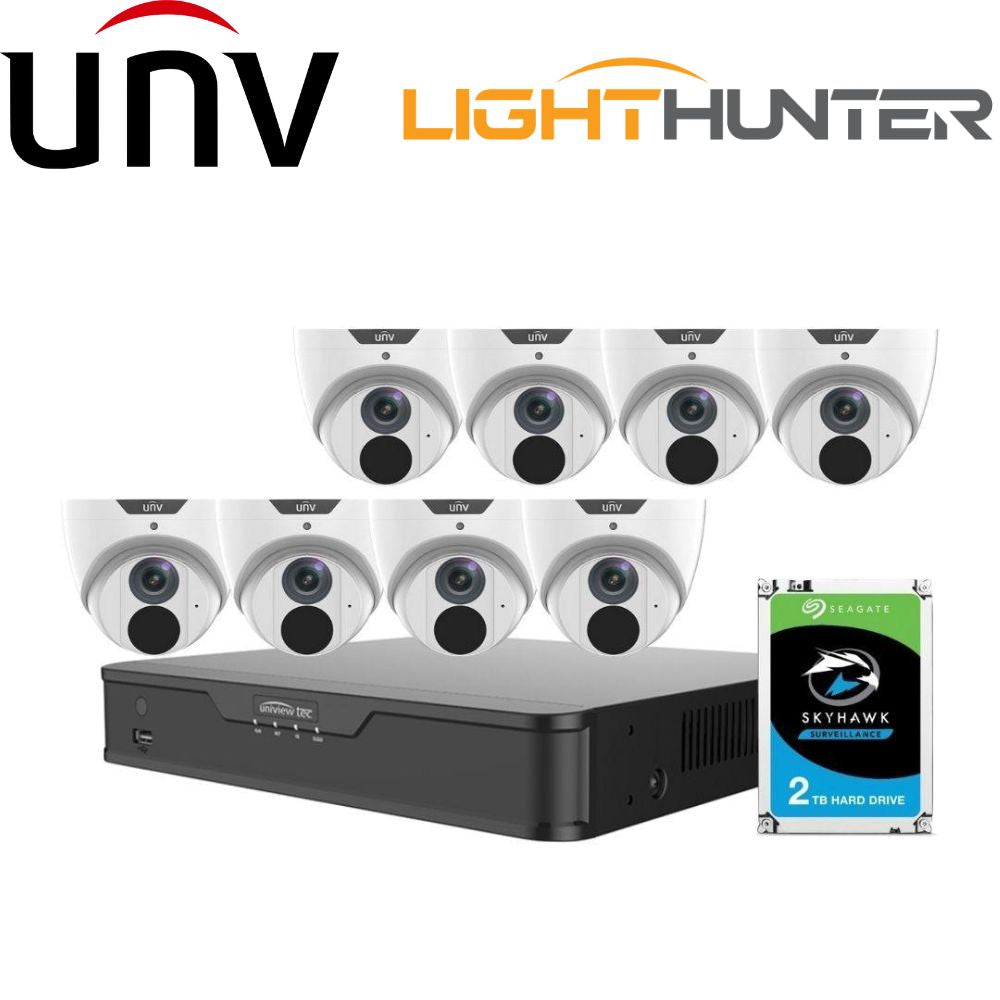

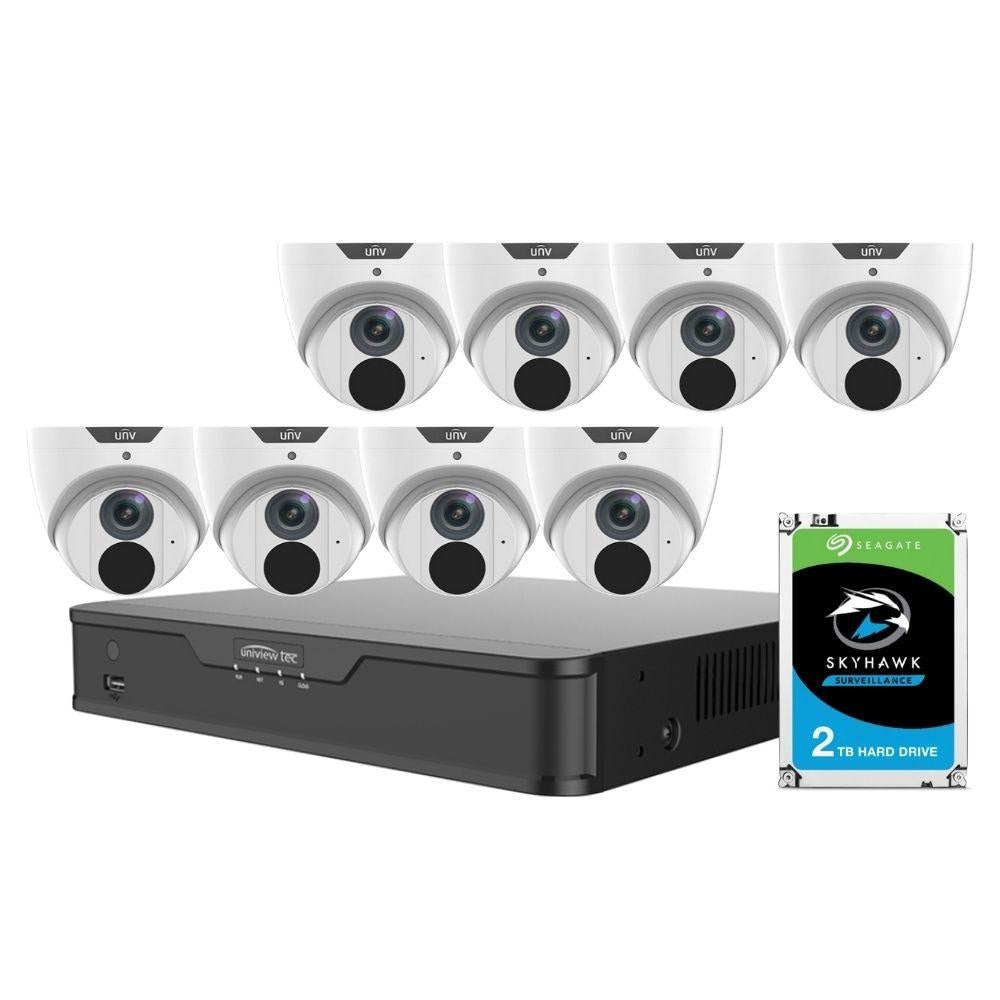

Uniview 8-camera 8-Channel 5MP LightHunter Kit
Remote Access

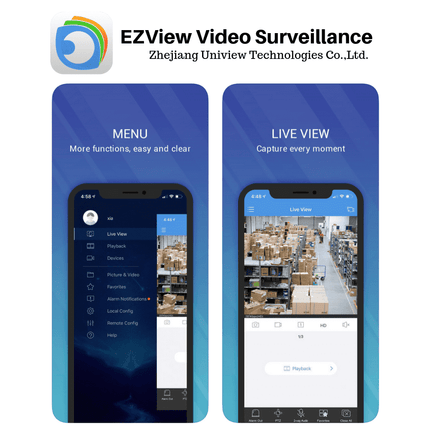

- Access your Live camera footage from anywhere in the world with your smart device. Just download the EZ-View app and connect to your network. For android and ios.
Easy Set-up
POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to the camera, making installation fast and easy. Typically it's possible to run 100 metres of POE cable from NVR to camera. This kit supports POE distances of 250-300 metres of Cat5E or Cat6 cable without the need for repeaters or extenders.
-
DC12V - The camera has a DC12V connector as well as POE so that it can be powered by a 12V power supply if POE connectivity is unavailable.
Optics
-
Day/night functionality - Designed to operate just as good in total darkness as well as light.
Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.
IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.
-
Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
-
2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.
Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.
Audio
-
Supports Audio recording - (Turret) cameras have built-in mic's and the NVR can support recording audio.
Compression
Network
-
ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.
Structure
-
Wide temperature range: -30°C to 60°C
-
Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
-
IP67 - Cameras are sealed against extreme weather, water and dust.
2TB SKYHAWK SURVEILLANCE HARD DRIVE - ST2000VX008
-
Built to record 90% of the time — supports up to 64 cameras
-
Up to 10 TB or 2,000+1 hours of HD video
-
180 TB/year workload rating, 3× the workload of a desktop drive and backed by a 3-year limited warranty
-
NVR ready drives deliver robust drive design for multi-drive environments
Tech Specs
UNIVIEW NVR301-08X-P8 | 8 CHANNEL 8MP (4K) NVR
| Model |
NVR301-08X-P8 |
| Video/Audio Input |
| IP Video Input |
8-ch |
| Two-way Audio Input |
1-ch, RCA |
| Network |
| Incoming Bandwidth |
80Mbps |
| Outgoing Bandwidth |
64Mbps |
| Remote Users |
128 |
| Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output |
| HDMI/VGA Output |
HDMI:
3840x2160/30Hz,1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
VGA:
1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Recording Resolution |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio Output |
1-ch, RCA |
| Synchronous Playback |
8-ch |
| Corridor Mode Screen |
3/4/5/7/9 |
| Decoding |
| Decoding format |
Ultra 265/H.265/H.264 |
| Liveview/Playback |
4K/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Capability |
2 x 4k@30, 3 x 5MP@30, 4 x 4MP@30, 5 x 3MP@30,8 x 1080p@30 |
| Hard Disk |
| SATA |
1 SATA interface |
| Capacity |
up to 10TB for each disk |

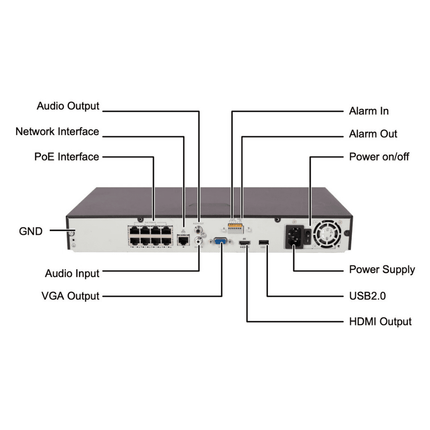

| External Interface |
| Network Interface |
1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB Interface |
Rear panel: 1 x USB2.0,1 x USB3.0 |
| PoE |
| Interface |
8 independent 100 Mbps PoE network interfaces |
| Max Power |
Max 30W for single port
Max 108W in total (13.5W for each) |
| Supported Standard |
IEEE 802.3at, IEEE 802.3af |
| General |
| Power Supply |
52V DC
Power Consumption: ?8 W (without HDD) |
| Working Environment |
-10°C ~ + 55°C (+14°F ~ +131°F), Humidity ? 90% RH (non-condensing) |
| Dimensions (W×D×H) |
260mm × 240mm × 47mm (10.2"×9.4"×1.9 ") |
| Weight (without HDD) |
1kg (2.20 lb) |
OPTIONAL: Uniview 16 Channel 8MP (4K) Network Video Recorder - NVR302-16S-P16
| NVR302-16S-P16 |
| Video/Audio Input |
| IP Video Input |
16-ch |
| Two-way Audio Input |
1-ch, RCA |
| Network |
| Incoming Bandwidth |
160Mbps |
| Outgoing Bandwidth |
96Mbps |
| Remote Users |
128 |
| Protocols |
P2P, UPnP, NTP, DHCP, PPPoE |
| Video/Audio Output |
HDMI/VGA
Output |
VGA: 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,1920X1080@60 HDMI:
4k(3840x2160@30), 4k(3840x2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,
1920X1080@60 |
| Recording Resolution |
8MP/6MP/5MP/4MP /3MP/1080p/960p/ 720p/D1/2CIF/CIF |
| Audio Output |
1-ch, RCA |
| Synchronous Playback |
16-ch |
| Corridor Mode Screen |
3/4/5/7/9/10/12/16 |
| Decoding |
| Decoding format |
Ultra265/H.265/H.264 |
| Live view/ Playback |
8MP/6MP/5MP/4MP/ 3MP/1080p/960p/ 720p/D1/2CIF/CIF |
| Capability |
1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1 |
| Hard Disk |
| SATA |
2 SATA interfaces |
| Capacity |
up to 10TB for each disk |
| Smart |
| VCA Detection |
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking |
| VCA Search |
Face search, Behavior search |
| Statistical Analysis |
People counting |
| External Interface |
| Network Interface |
1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface |
| USB Interface |
Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0 |
| Alarm In |
4-ch |
| Alarm Out |
1-ch |
| PoE |
| Interface |
16 independent 100Mbps PoE network interfaces |
| Max Power |
Max 30W for single port
Max 240W in total ( 15W for each ) |
| Supported Standard |
IEEE 802.3af/at |
| General |
| Power Supply |
220V AC
Power Consumption: ?9 W( without HDD ) |
| Working Environment |
-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing) |
| Dimensions(W× D×H) |
380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" ) |
Weight
( without HDD ) |
?2.4kg (5.29 lb) |
Uniview IPC3615SB-ADF28(40)KM-I0 Security Camera
| Camera |
| Sensor |
1/2.7", 5.0 megapixel, progressive scan, CMOS |
| Lens |
2.8mm@F1.6 / 4.0mm@F1.6 |
| Shutter |
Auto/Manual, 1 ~ 1/100000s |
| Minimum Illumination |
Colour: 0.003Lux (F1.6, AGC ON)
0Lux with IR on |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Digital Noise Reduction |
2D/3D DNR |
| S/N |
>56dB |
| IR Range |
Up to 30m (98ft) IR range |
| Wavelength |
850nm |
| IR On/Off Control |
Auto/Manual |
| Defog |
Digital Defog |
| WDR |
120dB |
| Video |
| Video Compression |
Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile |
Baseline profile, Main Profile, High profile |
| Frame Rate |
Main Stream:5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
| Video Bit Rate |
128 Kbps~16 Mbps |
| OSD |
Up to 8 OSDs |
| Privacy Mask |
Up to 4 areas |
| ROI |
Up to 8 areas |
| Motion Detection |
Up to 4 areas |
| Image |
| White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital noise reduction |
2D/3D DNR |
| Smart IR |
Support |
| Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
| Dewarping |
N/A |
| HLC |
Supported |
| BLC |
Supported |
| Audio |
| Audio Compression |
G.711 |
| Suppression |
Supported |
| Sampling Rate |
8KHZ |
| Storage |
| Edge Storage |
Micro SD, up to 256 GB |
| Network Storage |
ANR |
| Network |
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, SNMP |
| Compatible Integration |
ONVIF (Profile S, Profile T), API |
| Client |
EZStation
EZView
EZLive |
| Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
| Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
| Interface |
| Network |
1 RJ45 10M/100M Base-TX Ethernet |
| Built-in Mic |
Supported |
| Certifications |
| Certifications |
CE: EN 60950-1
UL: UL60950-1
FCC: FCC Part 15 |
| General |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) |
| Power consumption: Max 4.0W |
| Dimensions (Ø x H) |
?110.5 x 94.1mm (?4.4” x 3.7”) |
| Net Weight |
0.425kg (0.93lb) |
| Material |
Metal |
| Operating Conditions |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing) |
| Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ?95% RH (non-condensing) |
| Surge Protection |
2KV |
| Ingress Protection |
IP67 |
| Reset Button |
N/A |
