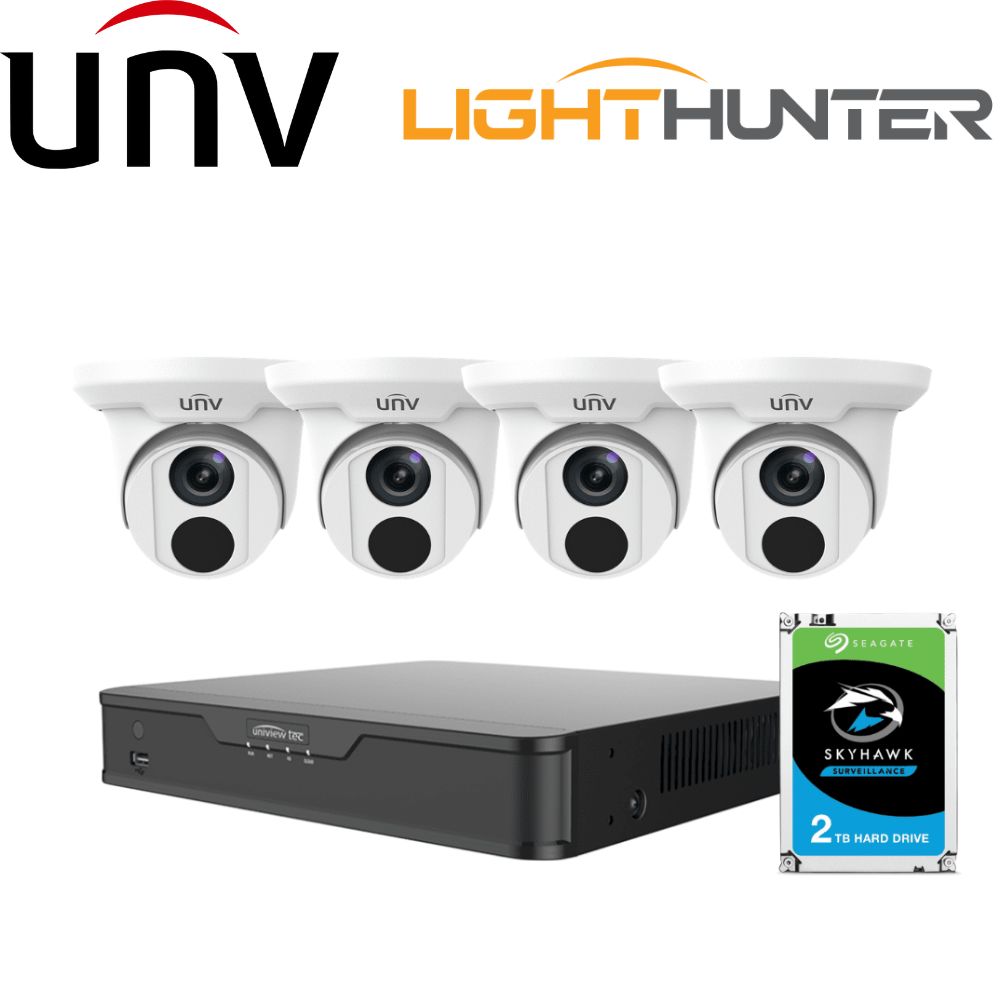

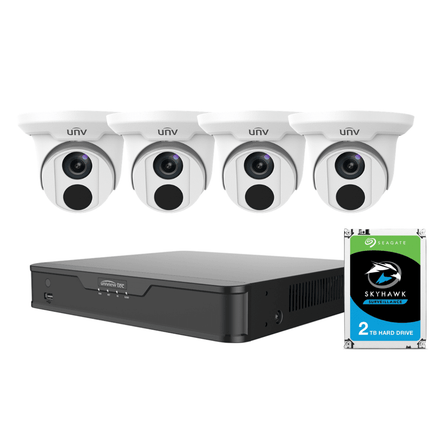

Uniview 4 Channel Tradies Kit: 4K NVR, 4 x 4MP Turret Cameras, 2TB HDD

Description

Description

This product has been superseded by the Uniview 4/8/16 Channel Security System: 4K NVR, 4 x 5MP LightHunter Turret Cameras, 2TB HDD.

Uniview’s 4-channel 4-camera tradies kit is the perfect surveillance system for small businesses who need to protect their premises. Each 4 megapixel, 2.8mm fixed lens camera (IPC3614SR3-DPF28M) produces high clarity video, in addition to Uniview’s image enhancing technology such as WDR and 3D DNR, that balances light in difficult recording conditions, and minimises noise and interference. A range of intelligence features help identify threats, and include Intrusion and Cross-Line detection, Motion Detection and Face Detection, which can be setup to trigger recording, alarms or email notifications with snapshots. Also included is people counting, a statistical gathering feature useful for some businesses. Pan and rotation range is a full 360 degrees with 0-77 degrees of tilt for easy positioning.

The NVR301-04-P4 is a 4 Channel NVR capable of recording in 8 megapixel (4K) resolution. Enjoy plug and play functionality and long range PoE+, capable of connecting, powering and streaming cameras from 250-300 metres away. It supports 1 SATA Hard Disk up to 8 Terabytes and Ultra265 video compression, a Uniview innovation that compresses video, maximising efficiency of bandwidth and storage capacity. Viewing your cameras remotely is possible through the EZ View app for smart devices, or by web browser on desktop computer, also allowing set up and control of various functions of your system.

Designed by market leaders in innovation, Uniview’s quality cameras are popular with professional CCTV installers worldwide, often being used for large commercial projects. All our Uniview products feature full 3 years manufacturer warranty.

Features

  • 4 Channel Compact 4K (8MP) NVR with 4 independent POE+ network interfaces
  • 4 x 4 megapixel (4MP) IR turret cameras, 2.8mm fixed lens
  • 2 Terabyte hard drive (upgradable to 8TB) 1 HDD capacity

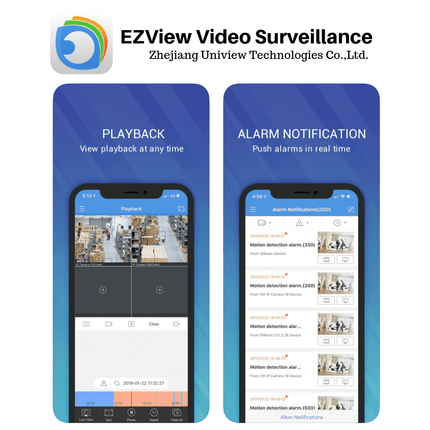

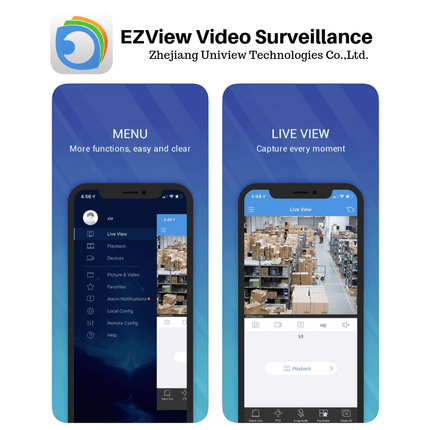

  • Access your Live video feed on your smart device with EZView app. Supports android and ios
  • Smart Detections: Intrusion & Cross-Line Detection, Motion Detection, Face detection, People counting
  • Support 1-ch HDMI at up to 4K(3840x2160) resolution
  • Accurate retrieval, instant playback NVR
  • 120 dB WDR (Wide Dynamic Range), 3DDNR
  • Smart IR night vision, up to 30m IR distance
  • Video Compression Ultra 265,H.265, H.264, MJPEG - Triple Streams
  • 4 KV surge protection, IP67 weather protection
  • WARRANTY: 3 years back-to-base manufacturer warranty

More Info

Easy Set-up

  • POE+ Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to camera, making installation fast and easy. This kit has an NVR that supports POE+ Typically its possible to run 100 metres of POE cable from NVR to camera. Camera’s and NVR’s in the building kit can be connected with up to 250 metres of Cat5E or Cat6 cable without the need for repeaters or extenders.

  • DC12V Output - No need for extra cable to run a microphone, light or siren. Camera's with the Building Pack have DC12V output built into the camera so no need for an additional power supply.

Optics

  • Day/night functionality - Designed to operate just as good in total darkness as well as light.
  • Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

  • IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

  • Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
  • 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.

Compression

  • Embedded smart algorithm
  • Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra H.265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.

  • Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
  • ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
  • 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduce the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.
  • Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

Network

  • ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

Structure

  • Wide temperature range: -35°C to 60°C (-31°F to 140°F)
  • Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
  • IP67 - Cameras are sealed against extreme weather, water and dust.

Intelligence

  • Face detection - The camera takes a snapshot of the face and stores it in the NVR. When you need to identify a person the system will take you to the specific moment the person appeared on the screen.
  • Intrusion Detection - You can draw a box or an area of interest within the screen for the camera to monitor. When the camera identifies an intrusion it will prompt the NVR to send you an email or notification with snapshots.
  • Scene Change - The camera can identify if it is being tampered with if there is a change in scenery it is actively monitoring. It will be prompted to send you an email with snapshots of the incident.
  • Cross Line Detection - Similar to intrusion by drawing lines, however this works best for identifying point A to point B intrusion. For example, a car may be permitted to enter an area from point A but prohibited to exit at point B. The system will only alert you if both point A and point B are triggered in that order.
  • People Counting - Pointed at a door (or by drawing a line) the camera will count person by person. It can also identify how many people enter and how many exit. You can review the results by specific time periods on a graph. Suitable for stores or places with high traffic.
  • Defocus Detection - The camera can detect when it is out of focus and alert you.

2TB SKYHAWK SURVEILLANCE HARD DRIVE - ST2000VX008

  • Built to record 90% of the time — supports up to 64 cameras
  • Up to 10 TB or 2,000+1 hours of HD video
  • 180 TB/year workload rating, 3× the workload of a desktop drive and backed by a 3-year limited warranty
  • NVR ready drives deliver robust drive design for multi-drive environments
Tech Specs

UNIVIEW 4 CHANNEL COMPACT 8MP (4K) NVR -NVR301-04-P4

Model NVR301-04-P4
Video/Audio Input
IP Video Input 4-ch
Two-way Audio Input 1-ch, RCA
Network
Incoming Bandwidth 40Mbps
Outgoing Bandwidth 64Mbps
Remote Users 128
Protocols P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA
Output
HDMI:
4K (3840 x 2160) /30Hz, 1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720
/60Hz, 1024 x 768 /60Hz VGA:
1920 x 1080p /60Hz, 1920 x 1080p /50Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz
Recording Resolution 8MP/6MP/5MP/ 4MP/3MP/1080p /960p/720p /D1/2CIF/CIF
Audio Output 1-ch, RCA
Synchronous Playback 4-ch
Corridor Mode Screen 1/3
Decoding
Decoding format Ultra 265, H.265, H.264
Live view
/Playback
8MP/6MP/ 5MP/4MP/ 3MP/1080p /960p/720p /D1/2CIF/CIF
Capability 1 x 4K@30, 2 x 4MP @30, 4 x 1080p @30, 8 x 720p @30, 16 x D1
Hard Disk
SATA 1 SATA interface
Capacity up to 8TB for each disk
Smart
VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search Face search, Behavior search
Statistical Analysis People counting

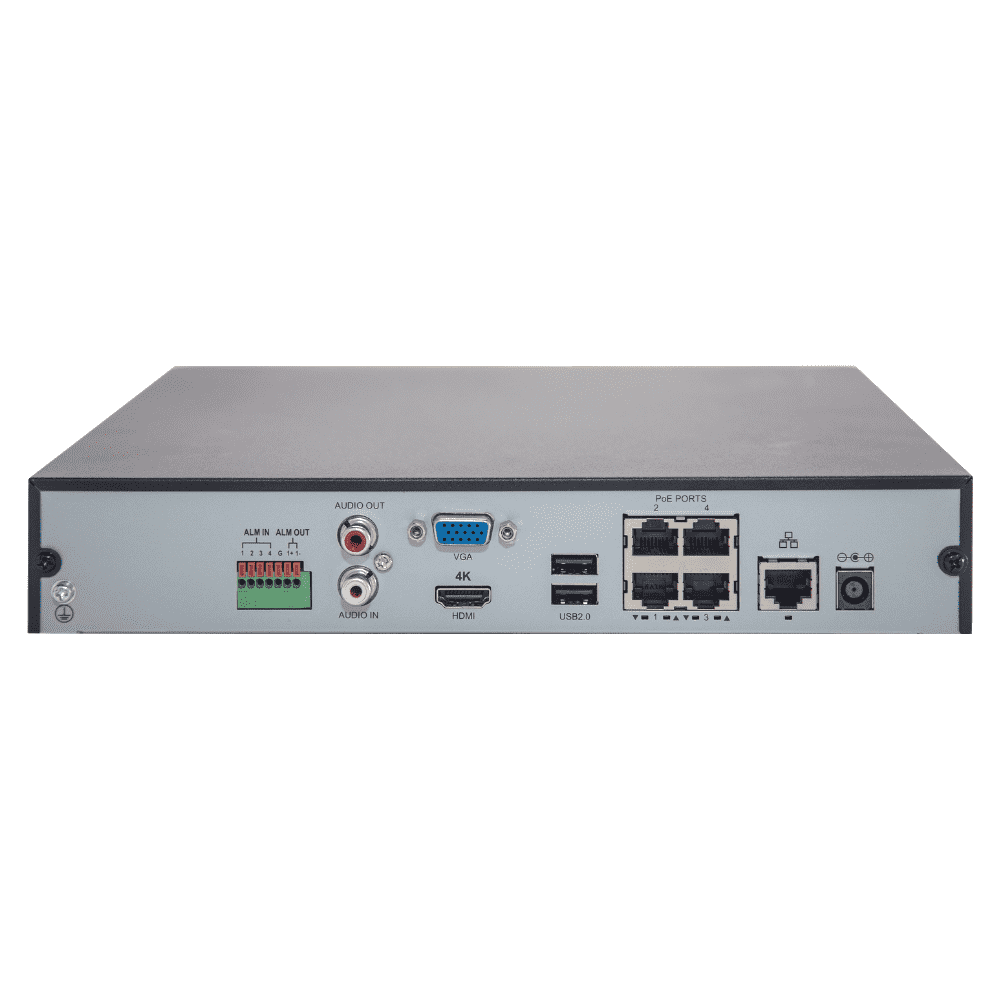

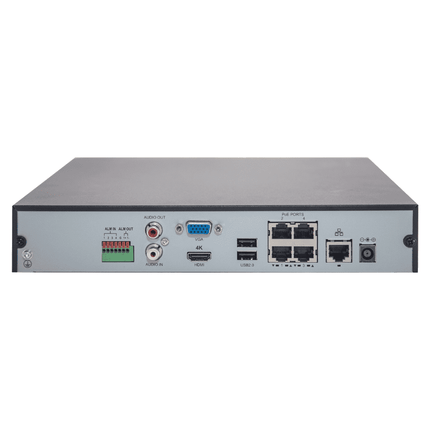

External Interface
Network Interface 1 RJ-45 10M/100M self-adaptive Ethernet Interface
USB Interface Rear panel?2 x USB2.0, Front panel?1 x USB2.0
Alarm In 4-ch
Alarm Out 1-ch
PoE
Interface 4 independent 100 Mbps PoEnetwork interfaces
Max Power Max 30W for single port
Max 54W in total ( 13.5W for each )
Supported Standard IEEE 802.3at, IEEE 802.3af
General
Power Supply 48V DC
Power Consumption: ? 5 W ( without HDD )
Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH (non-condensing)
Dimensions(W× D×H) 260mm × 240mm × 44mm (10.2" ×9.4" ×1.7")
Weight
( without HDD )
? 1.12 Kg ( 2.47 lb )

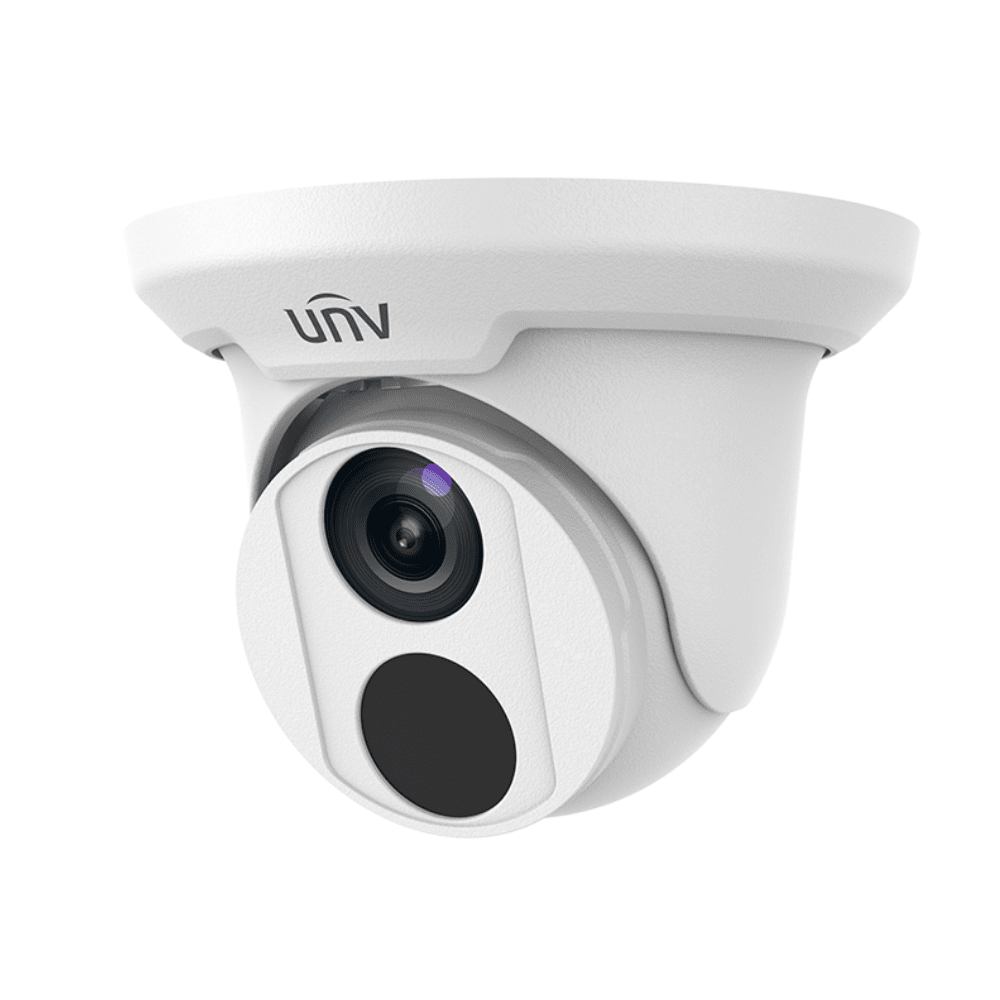

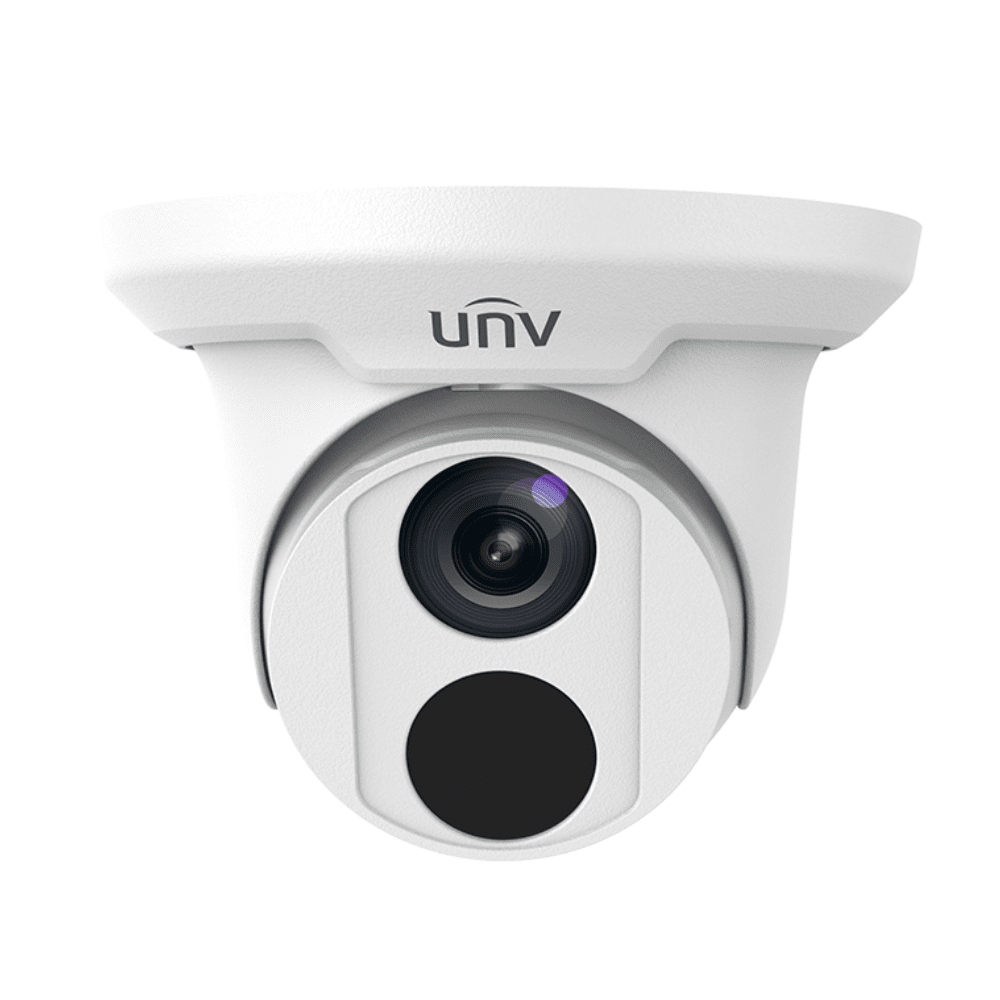

UNIVIEW 4MP TURRET CAMERA 2.8mm - IPC3614SR3-DPF28

IPC3614SR3-DPF28M
Camera
Sensor 1/3", 4megapixel, progressive scan, CMOS
Lens

2.8mm@F1.8

Angle of view(H) 101.8°
Adjustment Range Pan: 0°~360° , Tilt: 0° ~ 77°, Rotation: 0° ~ 360°
Shutter Auto/Manual, 1/6~1/100000 s
Min. Illumination Colour: 0.02 Lux (F1.8, AGC ON)
0 Lux with IR
IR 30m (98ft) IR range
Day/Night IR-cut filter with auto switch (ICR)
WDR 120 dB
AWB(Auto white balance) Auto/manual
Gain Control Auto/manual
Noise Reduction 2D/3D
Video
Max. Resolution 2592×1520
Video Compression H.265, H.264, MJPEG
Frame Rate 4MP (2592×1520): Max.20 fps; 4MP (2560×1440): Max.25 fps
3MP (2048×1520): Max.30 fps; 1080P (1920×1080): Max. 30 fps
Video Streaming Triple
9:16 Corridor Mode Supported
Evaluative Metering Supported
OSD Up to 8 OSDs
Motion Detection Up to 2 areas
Privacy Mask Up to 8 areas
Smart
Behavior Detection Intrusion, crossing line, motion detection
Intelligent Identification Face detection, Defocus, Scene Change
Statistical Analysis People counting
Network
Protocols L2TP, IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x
Compatible Integration ONVIF,API
Interface
Network 10M/100M Base-TX Ethernet
General
Power 12 V DC, or PoE (IEEE802.3 af)
Power consumption: Max 5.5W
2
Dimensions (Ø x H) ?126 x 94 mm (Ø5.0” x 3.7”)
Weight 0.45 kg (0.99lb)
Operating Conditions -35°C ~ +60°C (-31°F ~ 140°F), Humidity ? 95% RH(non-condensing)
Ingress Protection IP67

Videos

Uniview 4MP Turret Camera Unboxing - IPC3614SR3-DPF28M

Uniview Company Introduction

Downloads

Datasheets

Uniview 4 Channel Tradies Kit: 4K NVR, 4 x 4MP Turret Cameras, 2TB HDD

Product form

SKU: TRADIES-KIT-1

 SPY MONKEY B2B
For pricing please Log In or see our Quote Form or email us at info@spymonkey.com.au.

    Out of stock
