Uniview 16 Channel Network Video Recorder: 12MP Ultra HD Prime Series - NVR302-16E-P16-B

Description

Description

The Uniview NVR302-16E-P16 is a 16 Channel Prime Series Network Video Recorder that can support high resolution cameras up to 12 megapixels. It features POE for easy plug-and-play set up and can support third party cameras thanks to it's ONVIF conformance. This network video recorder allows you to search and playback recorded footage easily thanks to its fast and accurate file retrieval. It supports Ultra 265 and H.265 video compression. In-built smart detections include face detection, cross-line detection and people counting.

FEATURES

  • 16 Channel and up to 12MP recording NVR
  • 16 independent POE+ network interfaces for plug and play set up
  • POE+ Supports IP Cameras up to 260-300 metres away
  • Supports 2 SATA Hard Drive capacity (Up to 10TB each)
  • 320Mbps Bandwidth Capacity
  • Supports Higher Decoding Capability: 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30
  • Access your Live video feed on your smart device with EZView app. Supports android and ios
  • Support for P2P, UPnP, NTP, DHCP, PPPoE
  • Support cloud upgrade
  • Third-party IP cameras supported with ONVIF conformance
  • Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution simultaneous output
  • Accurate retrieval, instant playback
  • Various fisheye de-warping modes for live view and playback for both web interface and GUI
  • Supports Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Face search, Behaviour search, People counting
  • ANR technology for backup storage option when network is disconnected
  • 4 channel alarm input/1 channel alarm output
  • Support Ultra 265/H.265/H.264 video formats compression
  • WARRANTY: 3 years back-to-base manufacturer warranty

More Info

UNIVIEW 16 CHANNEL 12MP (4K) NVR - NVR302-16E-P16-B

This 16 channel network video recorder can record up to 12 megapixel resolution. It also supports mobile client access, so you can access your Live camera footage through a smart device, using the EZ View app.

This NVR can support Visual Content Analysis VCA smart functions as well as search and statistical analysis functions with compatible cameras. They include Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Face search, Behaviour search and People counting.

  • POE+ Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to the camera, making installation fast and easy. This kit has an NVR that supports POE+ Typically it's possible to run 100 metres of POE cable from NVR to camera. Camera’s and NVR’s in the building kit can be connected with up to 260-300 metres of Cat5E or Cat6 cable without the need for repeaters or extenders.

    Back Up Storage

    • ANR - When the connection between cameras and network video recorder is disrupted, the system can back up to a second storage option on the camera, like an SD card. When the connection is restored again all the footage recorded on the SD card will be automatically transferred to back to the NVR. This is known as ANR (Automatic Network Replenishment). This model NVR supports ANR.


      Tech Specs

      UNIVIEW 16 CHANNEL 12MP (4K) NVR - NVR302-16E-P16-B

      Model NVR302-16E-P16-B
      Video/Audio Input
      IP Video Input 16-ch
      Two-way Audio Input 1-ch, RCA
      Network
      Incoming Bandwidth 320Mbps
      Outgoing Bandwidth 320Mbps
      Remote Users 128
      Protocols P2P, UPnP, NTP, DHCP, PPPoE
      Video/Audio Output
      HDMI/VGA
      Output      		 VGA:
      1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024 /60Hz, 1280x720 /60Hz, 1024x768 /60Hz HDMI:
      4K (3840x2160) /60Hz, 4K (3840x2160) /30Hz, 1920x1080p /60Hz, 1920x1080p /50Hz, 1600x1200 /60Hz, 1280x1024
      /60Hz, 1280x720 /60Hz, 1024x768 /60Hz
      Recording Resolution 12MP/8MP/ 6MP /5MP/4MP /3MP /1080p /960p /720p /D1/2CIF/CIF
      Audio Output 1-ch, RCA
      Synchronous Playback 16-ch
      Corridor Mode Screen 3/4/5/7/9/10/12/16
      Decoding
      Decoding format Ultra 265, H.265, H.264
      Live view/ Playback 12MP/8MP/ 6MP/5MP /4MP/3MP /1080p /960p /720p/D1 /2CIF/CIF
      Capability 3 x 12MP@25, 4 x 4K@30, 8 x 4MP@30, 16 x 1080P@30
      Hard Disk
      SATA 2 SATA interfaces
      Capacity up to 10TB for each disk
      Smart
      VCA Detection Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
      VCA Search Face search, Behavior search
      Statistical Analysis People counting

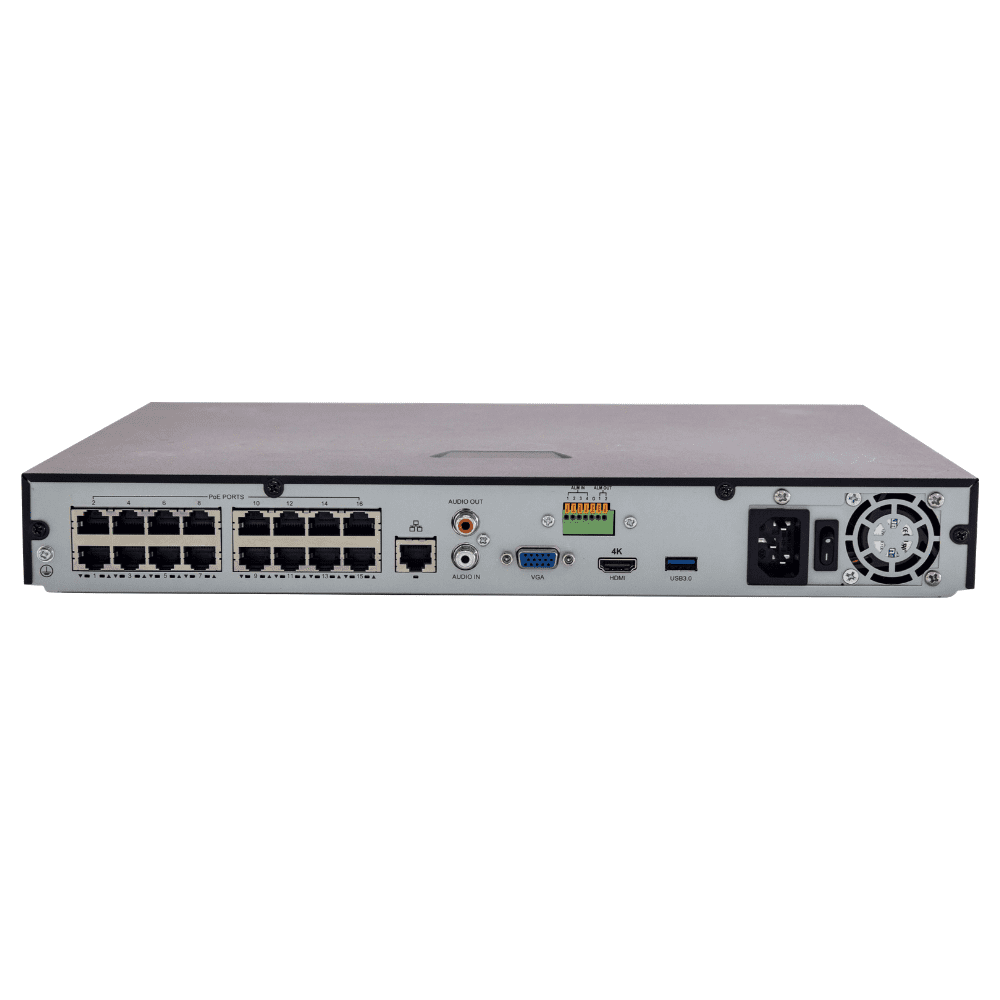

      External Interface
      Network Interface 1 RJ-45 10M/100M/ 1000M self-adaptive Ethernet Interface
      USB Interface Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
      Alarm In 4-ch
      Alarm Out 1-ch
      PoE
      Interface 16 independent 100 Mbps PoE network interfaces
      Max Power Max 30W for single port
      Max 240W in total ( 15W for each )
      Supported Standard IEEE 802.3af/at
      General
      Power Supply 100 ~ 240 V AC
      Power Consumption: ? 20 W( without HDD )
      Working Environment -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ? 90% RH(non-condensing)
      Dimensions (W× D×H) 380 mm × 315mm × 46 mm(15" × 12.4"×1.8")
      Weight
      ( without HDD )      		 ?2.48kg?5.47lb?
