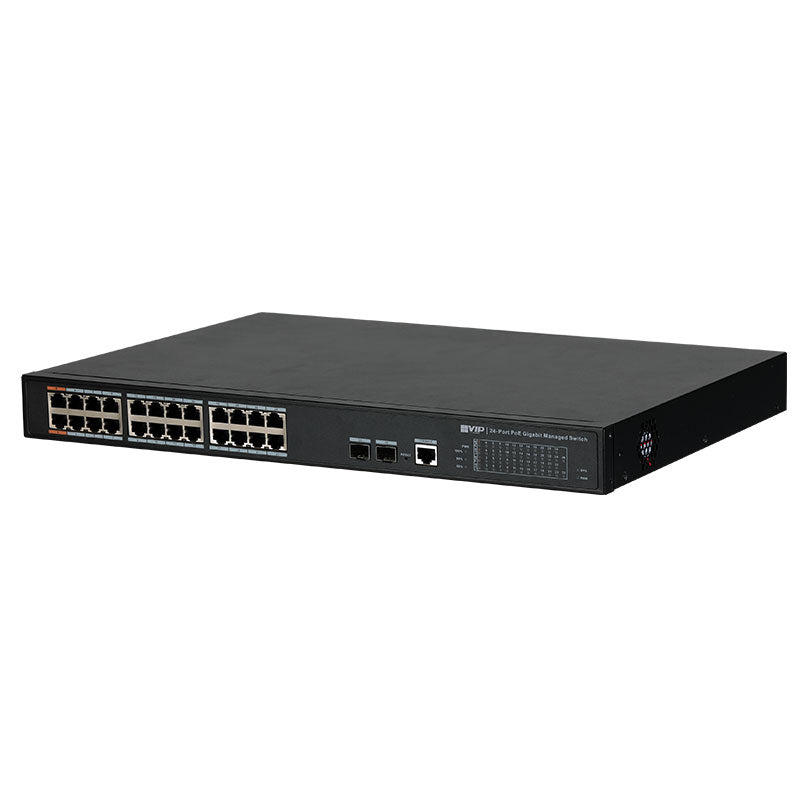

The VSPOE-SWC24 is a fast rackmount ethernet switch, suitable for high-powered PoE devices. The series offers web management and L2 management for network traffic quality of service, VLAN and a suite of other features.
Product features:
• 22 x PoE+ 1000Mbps device ports
• 2 x Hi-PoE 1000Mbps device ports
• 2 x 1000Mbps Base-X (SFP) uplink combo ports
• PoE, PoE+ and Hi-PoE support for up to 60W per port
• Total PoE power load up to 360W
• L2 management, manage via web browser
• Rackmount tabs for 19” cabinet installation
• Professional appearance full metal enclosure
• Lightning overvoltage protection up to 2kV
Datasheets
Tech Specs
| Device Ports | Port 1-24: 16 x 10/100/1000M Base-T (PoE) |
| DHCP | DHCP client, DHCP server, DHCP snooping |
| Dimensions | 440 x 300 x 44mm |
| Exchange Mode | Store & forward |
| Extend Mode | N/A |
| Flow Control | Half-duplex based on back pressure type control, Full duplex based on PAUSE frame |
| Input Power | 100 ~ 240VAC |
| Lightning Protection | Common Mode: 2kV / Differential Mode: 1kV |
| LLDP | Support |
| MAC Address Capacity | 8K |
| Mounting Options | Rackmount Tabs |
| Network Management | Web (http protocol), Serial, SNMP |
| Network Time Protocol | Support |
| Operating Environment | -10° ~ 55°C / RH90% (max) |
| Packet Forwarding Rate | 38.68Mbps |
| PoE | Yes |
| PoE Management | N/A |
| PoE Protocol | IEEE802.3af / IEEE802.3at / Hi-PoE |
| Port Aggregation | Manual aggregation / LACP protocol |
| Port Mirroring | Many-to-one port mirroring |
| Ports | 24 ports |
| Quality of Service | Support QoS base on CoS/DPL/PCP/DEI, Each port support 8 output queue, Support port shaping, Support port tag remarking, Support QoS base on DSCP |
| Security Features | Users management, SSH, HTTPS, SNMP v1/v2/v3, ROMN, ACL, IP source guard, ARP inspection, 802.1x, loop protection |
| Spanning Tree Protocol | STP / RSTP / MSTP |
| Speed | Gigabit 10/100/1000 |
| Switch Management | L2 Management |
| Switch Power Load | Port 1~2: ?60W, Port 3~24: ?30W |
| Switching Capacity | 52Gbps |
| System Maintenance | Configuration file upload/download, Supports updated packet upload, System log |
| Uplink Ports | Port 25-26: 2 x 1000M Base-X (uplink) |
| Virtual LAN | 802.1Q Standard VLAN |
| Weight | 3.51kg |
