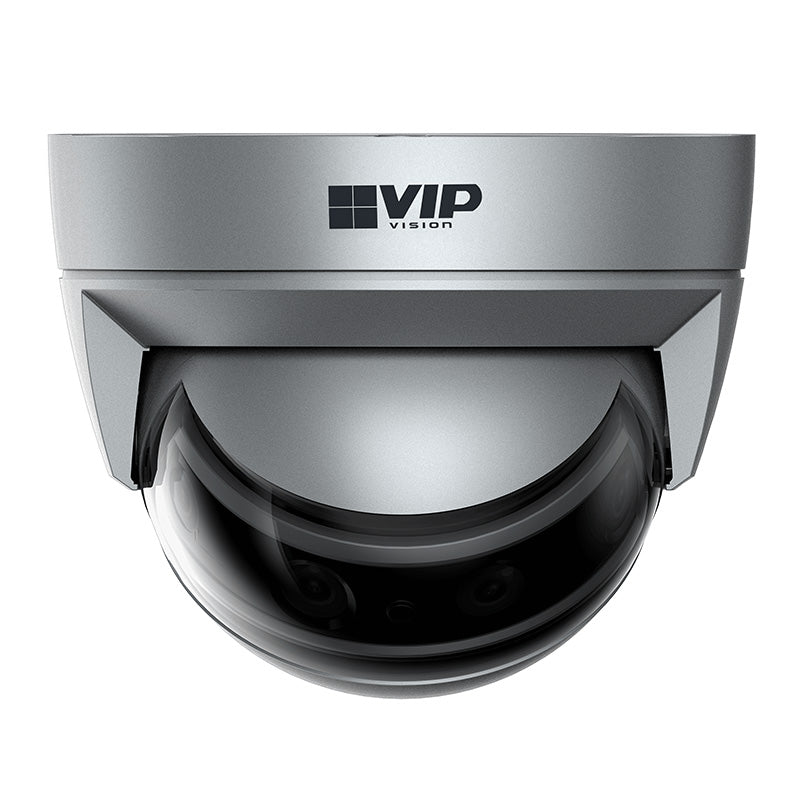

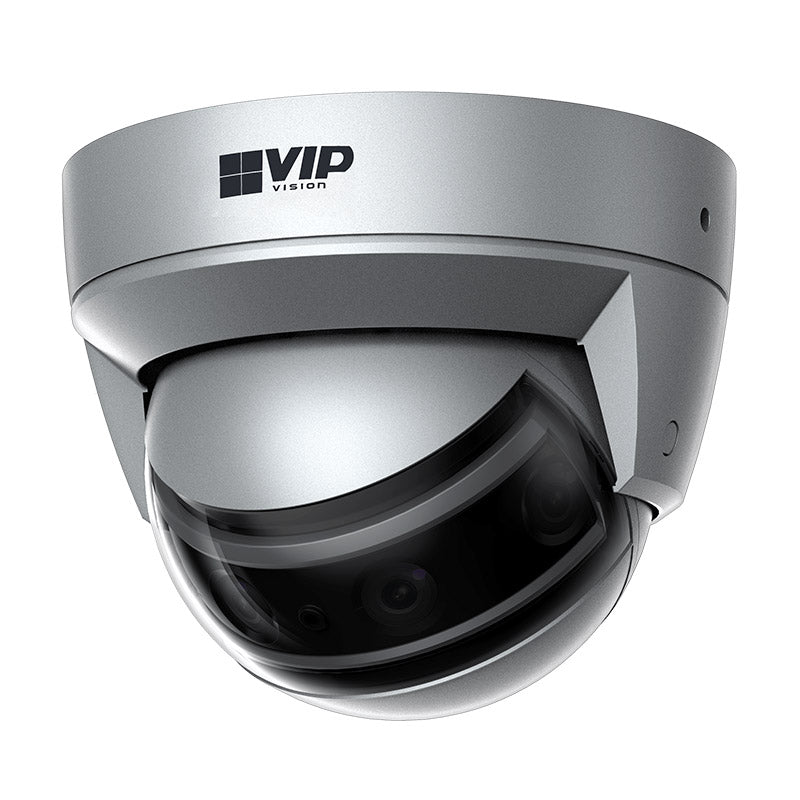

The VSIPPA-8DIR-I is designed to perform the duties of multiple cameras and uses a unique configuration of multiple sensors and lenses to deliver seamless 180° surveillance coverage. This series features person & vehicle detection via AI, and can be used to count people in crowds, map people activity with heat mapping, monitor vehicle count and set maximum thresholds to trigger alerts on people/vehicle congestion.
Camera features:
• 4 x 2.0MP 1/2.8’’ sensors; stream 4096 x 1800 at 25fps
• 30m range 180° infrared range & auto ICR day/night
• Intelligent AI detection to identify people and vehicles

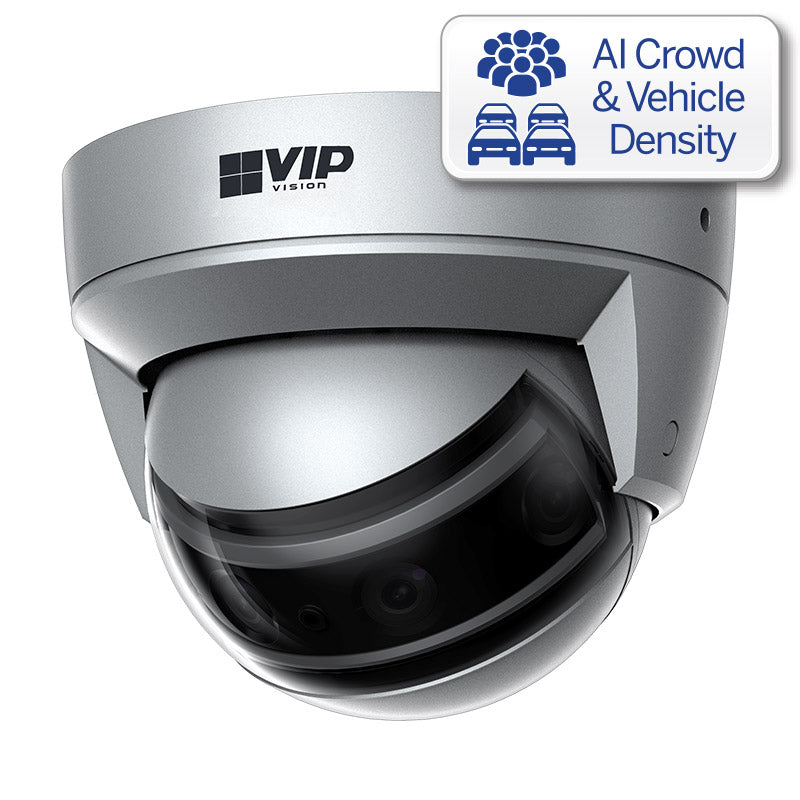

• AI detect crowds, set thresholds & map on heatmap
• AI detect vehicle density & set vehicle count thresholds
• H.265 high efficiency video compression support
• MicroSD card slot for edge recording up to 256GB
• Audio and alarm interface input/outputs
• Digital WDR, BLC / HLC and 3D noise reduction
• IP67 weather & IK10 vandal resistant housing
Displays as single camera channel with 180° panoramic view (no dewarp modes).
Datasheets
Tech Specs
| Alarm Interface | 2 Inputs (5mA 3V–5V DC) / 2 Output (1000mA 30V DC/500mA 50V DC) |
| Audio Interface | 1 Input, 1 Output (RCA port) / Compression: G.711A, G.711Mu, G.726, G.723 |
| Bit Rate | H.264: 9 kbps ~ 17664 kbps /H.265: 9 kbps ~ 17664 kbps |
| Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type | Panorama |
| Day/Night | Auto (ICR) / Color / B&W |
| Detect (25px/m) | 38.6m |

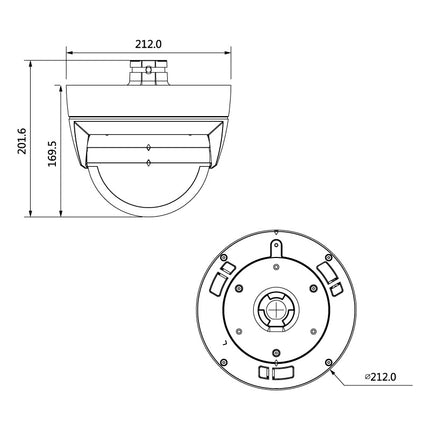

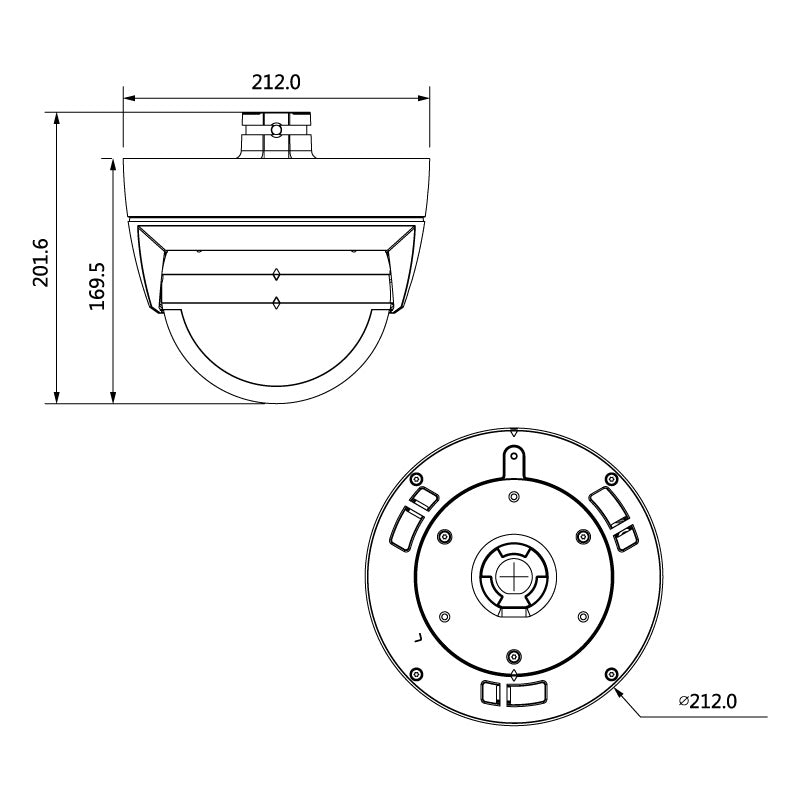

| Dimensions | ?212mm x 170mm |
| Edge Storage | FTP / SFTP / MicroSD card (Support max. 256GB) / NAS |
| Effective Pixels | 4096 (H) x 1800 (V) |
| ePoE | No |
| Ethernet | RJ-45 (100/1000Base-T) |
| Field of View | Horizontal: 180°, Vertical: 90° |
| Focus | Fixed |
| Frame Rate (Main) | 4096 x 1800 (1~25fps) |
| Frame Rate (Sub) | 1024 x 452 (1 ~ 25fps) |
| Frame Rate (Third) | 1920 x 832 (1 ~ 25fps) |
| Gain Control | Auto / Manual |
| Housing | Metal body, PVC lens cover |
| Identify (250px/m) | 3.9m |
| Image Sensor | 4 x 1/2.8’’ 2.0MP Progressive Scan CMOS |
| Infrared | Yes |
| Infrared System | 6 x Infrared LED, 30m range, 180° IF, Auto/Manual on/off control |
| Ingress Protection | IP67 |
| Intelligent Functions | Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Defog, Smart Infrared, People Counting, Heat Map, E-PTZ, Tripwire, Intrusion |
| Interoperability | ONVIF / CGI / P2P / Milestone / Genetec |
| IVS | Yes |
| Lens / Iris | 2.8mm F1.6 Fixed Lens |
| Lens Type | Fixed |
| Lighting Compensation | BLC / HLC / DWDR |
| Max. Resolution | 8.0 Megapixel |
| Max. User Access | 20 (Total bandwidth: 80Mbps) |
| Min Illumination | Colour: 0.005 Lux (F1.6, 30IRE) / B/W: 0.0005 Lux (F1.6, 30IRE) / 0 Lux (illuminator on) |
| Net Weight | 3.65kg |
| Noise Reduction | 3D DNR |
| Observe (63px/m) | 15.4m |
| Operating Conditions | -40° ~ +60° C / Less than 95% RH |
| Pan/Tilt/Rotation | Pan: 0?~355? ; Tilt: 0?~75? ; Rotation: ±20? |
| Picture Control | - |
| Power Consumption | Basic Power Consumption : 4.9W (12V DC); 6.4W(24V AC); 6.5W (PoE) / Max. Power Consumption (ICR + IR LED): 12.5W (12V DC);14.3W(24V AC); 14.9W (PoE) |
| Power Supply | 12VDC / 24VAC / PoE (802.3at) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour |
| RAM / ROM | 2GB / 4GB |
| Recognise (125px/m) | 7.7m |
| Resolution | 4096 x 1800 (approx. 7.4MP) to 1024 x 452 (approx. 0.5MP) |
| RS485 | 1 Input (Baud rate range: 1200bps ~115200bps) |
| RTMP Support | No |
| S/N Ratio | > 56dB |
| Series | Panorama Series |
| Smart Scene Adaptive (SSA) | Yes |
| Streaming Method | Unicast / Multicast |
| Tri-Axis Mounting | Yes |
| Ultra Low Light Colour | Yes |
| Vandal Resistance | IK10 |
| Video Compression | H.265+ / H.264+ / H.265 / H.264 / H.264H / H.264B / MJPEG (Supported by the sub stream) |
| Video Interface | N/A |
| Weather Resistance | Yes |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
4-Year Warranty
This purchase comes with a 4-Year warranty!
