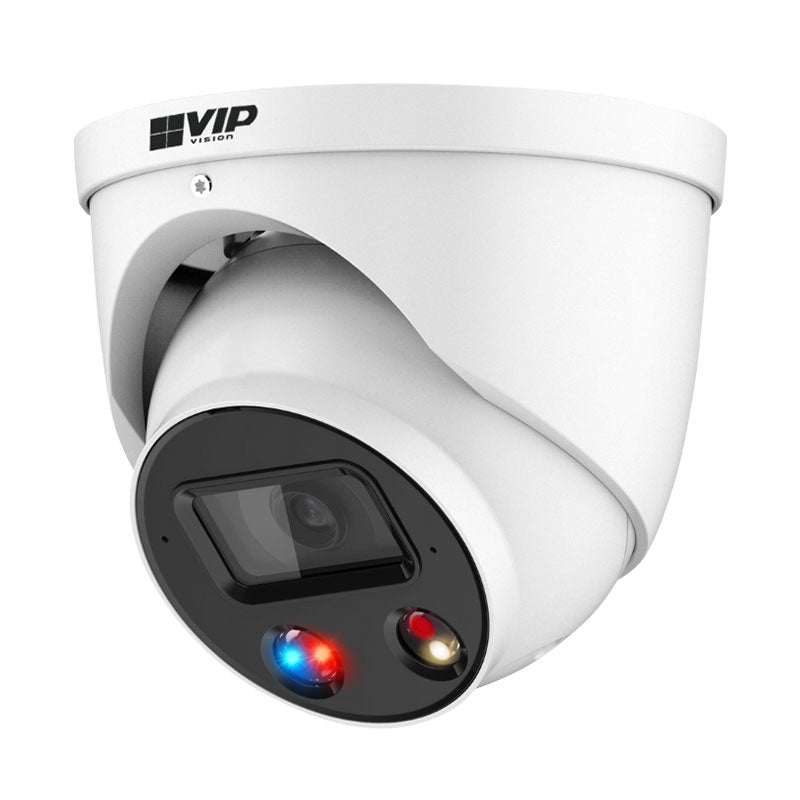

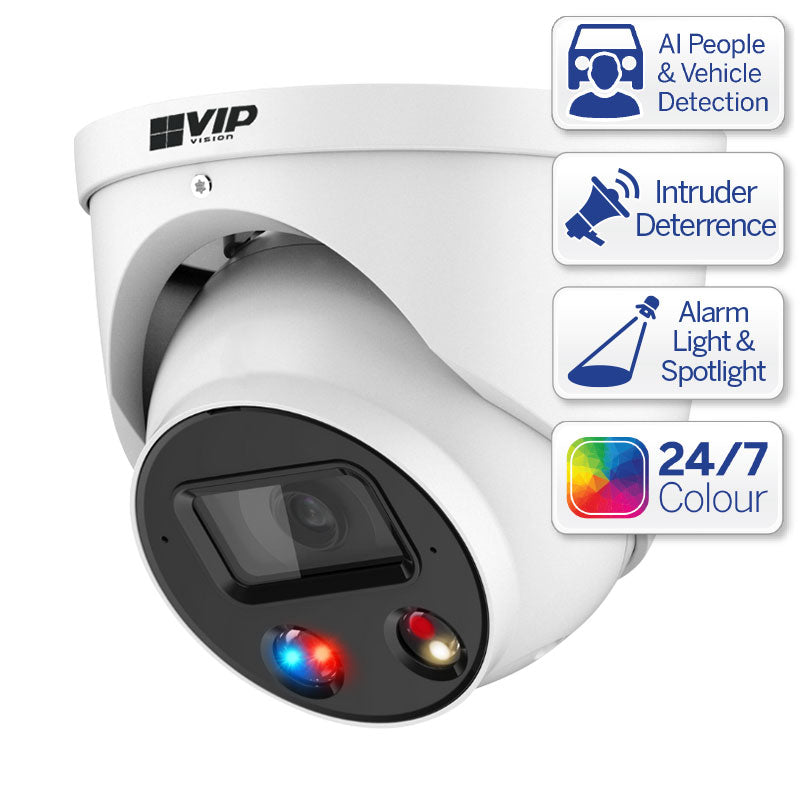

Featuring smart motion detection, the Professional AI Series can distinguish between people, vehicles & other motion to filter out false alarms. The VSIPP-5DG-ID2 includes a loud siren & flashing strobe lights that activate in response to alarm events (such as motion detection), deterring intruders and preventing crime before it happens.
The VSIPP-5DG-ID2 features 24/7 Colour at night to capture colour detail in the dark and Tripwire/Intrusion detection to detect people & vehicles in specific areas.
Camera features:
• Stream up to 5.0MP (2688 x 1520) at 20fps
• 2.8mm fixed lens with 97° viewing angle
• Activates spotlight, flashing light & siren, and switches from IR to colour in response to alarm events
• 24/7 Colour low light performance at 0.003lx
• Up to 30m infrared, BLC/HLC & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• H.265 encoding for efficient storage & streaming
• AI powered perimeter protection that identifies people and vehicles
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• MicroSD slot for recording at the edge up to 256GB
• IP67 weather rated housing for outdoor use
Datasheets
Tech Specs
Alarm Interface |
1 channel in: 5mA 3-5VDC / 1 channel out: 300mA 12VDC |
Audio Interface |
Built-in Mic & Built-in Speaker / Audio Compression - PCM; G.711a; G.711Mu; G.726; G.723 |
Bit Rate |
H.265: 3 ~ 20480Kbps / H.264: 3 ~ 20480Kbps |
Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
Camera Type |
Turret |
Day/Night |
Auto (ICR) / Color / B&W |
Detect (25px/m) |
66m |

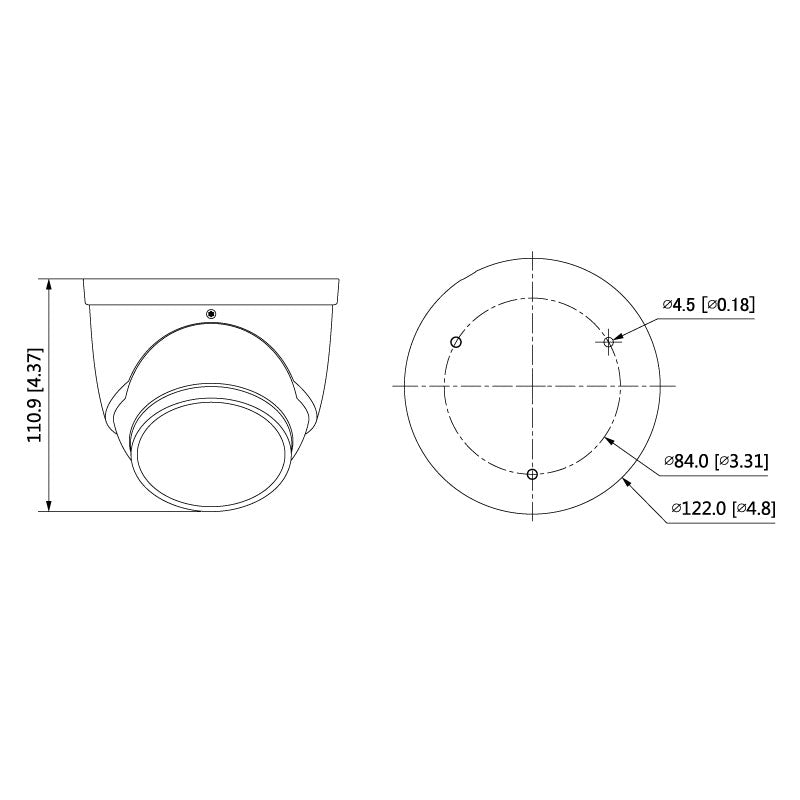

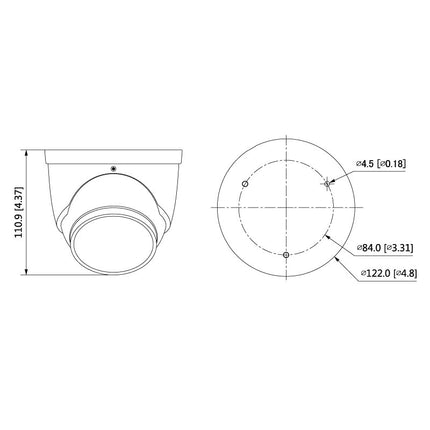

Dimensions |
Ø122mm x 111mm |
Edge Storage |
MicroSD Card (up to 256GB) / NAS / FTP / SFTP |
Effective Pixels |
2592 (H) x 1944 (V) |
ePoE |
No |
Ethernet |
RJ-45 (10/100Base-T) |
Event Trigger |
Motion Detection, Video Tampering, Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly |
Face Attributes |
N/A |
Face Detection |
N/A |
Field of View |
Horizontal: 97°, Vertical: 70°, Diagonal: 128° |
Focus |
Auto Focus / 1.5m Min. Focus Distance |
Frame Rate (Main) |
5.0MP (1 ~ 20fps) |
Frame Rate (Sub) |
704 x 576 (1 ~ 25fps) |
Frame Rate (Third) |
1080p (1 ~ 25fps) |
Gain Control |
Auto / Manual |
Heat Map |
N/A |
Housing |
Metal |
Identify (250px/m) |
7m |
Image Sensor |
1/2.7” 5.0MP Progressive Scan CMOS |
Infrared System |
1 x Infrared LED, 30m range, Auto/manual on/off control |
Ingress Protection |
IP67 |
Intelligent Functions |
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Illumination, Defog, Object Abandoned / Missing |
Intelligent Search |
Via NVR Smart Search, Search tripwire/intrusion events by people or vehicle |
Interoperability |
ONVIF (Profile S, Profile G, Profile T) / P2P / CGI / Milestone |
LED Lights |
1 x Spotlight (Warm White), 1 x Red & Blue Deterrent Light |
Lens / Iris |
2.8mm F1.0 Fixed Focal Lens with Fixed Iris |
Lens Type |
Fixed |
Lighting Compensation |
BLC / HLC / WDR (120dB) |
Max. Resolution |
5.0 Megapixel |
Max. User Access |
20 Users (Total bandwidth: 72MB) |
Min Illumination |
0.003 Lux/F1.0 (Color) |
Net Weight |
0.75kg |
Noise Reduction |
3D DNR |
Observe (63px/m) |
26m |
Operating Conditions |
-40°C ~ +60°C / ?95% RH |
Pan/Tilt/Rotation |
Pan: 0° ~ 360°, Tilt: 0° ~ 78°, Rotation: 0° ~ 360° |
People Counting |
N/A |
Perimeter Protection |
Tripwire, Intrusion, fast moving, parking detection (Add recognition of humans & vehicles) |
Picture Control |
Mirror / Flip (0°, 90°, 180°, 270°) |
Power Consumption |
Basic: 1.86W (12VDC) / 4.18W (PoE) / Max (IR & LED on): 6.5W (12VDC) / 8.8W (PoE) |
Power Supply |
12VDC / PoE (802.3af) |
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
RAM / ROM |
512MB / 128MB |
Recognise (125px/m) |
13m |
Resolution |
5.0MP (2592 x 1944) to CIF (352 x 288) |
RS485 |
N/A |
S/N Ratio |
> 56dB |
Series |
Professional AI Series |
Smart Scene Adaptive (SSA) |
Yes |
Streaming Method |
Unicast / Multicast |
Vandal Resistance |
N/A |
Video Compression |
H.265+ / H.265 / H.264+ / H.264 / H.264H / MJPEG |
Video Interface |
N/A |
White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual |
