The Professional AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time. When used in conjunction with a VIP Vision NVR, person and vehicle events can be isolated in footage playback to improve surveillance efficiency.
Camera features:
• Stream up to 4.0MP (2688 x 1520) at 20fps
• 2.7 ~ 13.5mm motorised lens with 104 ~ 27° viewing angles
• H.265 encoding for efficient storage & streaming
• Up to 40m infrared range; true day/night (auto ICR)
• MicroSD slot for recording at the edge up to 256GB
• AI powered perimeter protection & smart motion detection (SMD+)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• IP67 weather rated housing for outdoor use
• IK10 vandal resistant metal housing
Datasheets
Tech Specs
| Alarm Interface | 1 channel in: 5mA 5VDC/ 1 channel out: 300mA 12VDC |
| Audio Interface | 1 input (RCA Port) / 1 output (RCA Port) / Audio Compression - G.711a; G.711Mu; G726; AAC |
| Bit Rate | H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps |
| Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type | Dome |
| Day/Night | Auto (ICR) / Color / B&W |
| Detect (25px/m) | 64m (wide) / 220m (tele) |

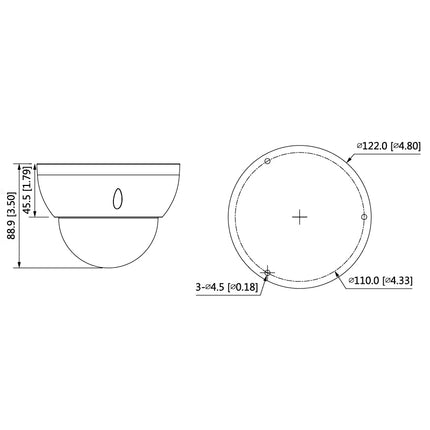

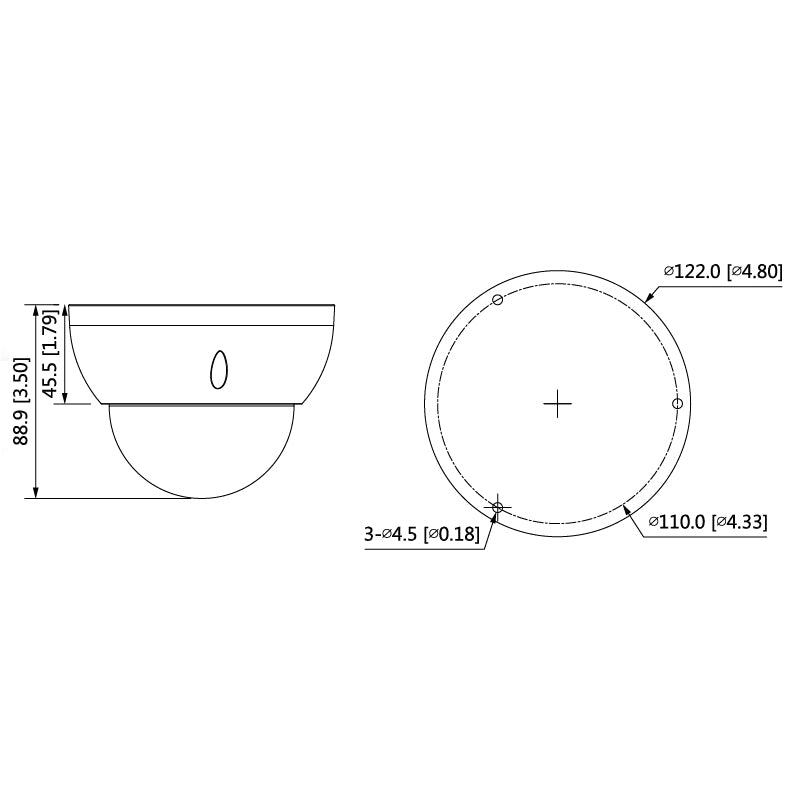

| Dimensions | Ø122mm x 89mm |
| Edge Storage | MicroSD Card (up to 256GB) / NAS |
| Effective Pixels | 2688 (H) x 1520 (V) |
| ePoE | No |
| Ethernet | RJ-45 (10/100Base-T) |
| Event Trigger | N/A |
| Face Attributes | N/A |
| Face Detection | N/A |
| Field of View | Horizontal: 104°~27°, Vertical: 55°~15° (5x Optical Zoom) |
| Focus | Auto Focus / 0.8m Min. Focus Distance |
| Frame Rate (Main) | 4.0MP (1 ~ 25fps) |
| Frame Rate (Sub) | D1 (1 ~ 25fps) |
| Frame Rate (Third) | 720p (1 ~ 25fps) |
| Gain Control | Auto / Manual |
| Heat Map | N/A |
| Housing | Metal |
| Identify (250px/m) | 6m (wide) / 22m (tele) |
| Image Sensor | 1/3’’ 4.0MP Progressive Scan CMOS |
| Infrared System | 2 x Infrared LED, 40m range, Auto/manual on/off control |
| Ingress Protection | IP67 |
| Intelligent Functions | Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared |
| Intelligent Search | Via NVR Smart Search, Search tripwire/ intrusion events by people or vehicle |
| Interoperability | ONVIF / P2P / CGI / Milestone / Genetec |
| Lens / Iris | 2.7 ~ 13.5mm F1.5 Motorised Varifocal Lens with Fixed Iris |
| Lens Type | Motorised Varifocal |
| Lighting Compensation | BLC / HLC / WDR (120dB) |
| Max. Resolution | 4.0 Megapixel |
| Max. User Access | 20 Users |
| Min Illumination | 0.005 Lux/F1.5 (Color) |
| Net Weight | 0.49kg |
| Noise Reduction | 3D DNR |
| Observe (63px/m) | 26m (wide) / 88m (tele) |
| Operating Conditions | -30°C ~ +60°C / ?95% RH |
| Pan/Tilt/Rotation | Pan: 0° ~ 355°, Tilt: 0° ~ 75°, Rotation: 0° ~ 355° |
| People Counting | N/A |
| Perimeter Protection | Tripwire & Intrusion (Add recognition of humans & vehicles) |
| Picture Control | Mirror / Flip (0°, 90°, 180°, 270°) |
| Power Consumption | <8.5W |
| Power Supply | 12VDC / PoE (802.3af) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour |
| RAM / ROM | 512MB / 128MB |
| Recognise (125px/m) | 13m (wide) / 44m (tele) |
| Resolution | 4.0MP (2688 x 1520) to CIF (352 x 288) |
| RS485 | N/A |
| S/N Ratio | > 56dB |
| Series | Professional AI Series |
| Smart Scene Adaptive (SSA) | Yes |
| Streaming Method | Unicast / Multicast |
| Vandal Resistance | IK10 |
| Video Compression | H.265+ / H.265 /H.264+ / H.264 / H.264B / MJPEG |
| Video Interface | N/A |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
