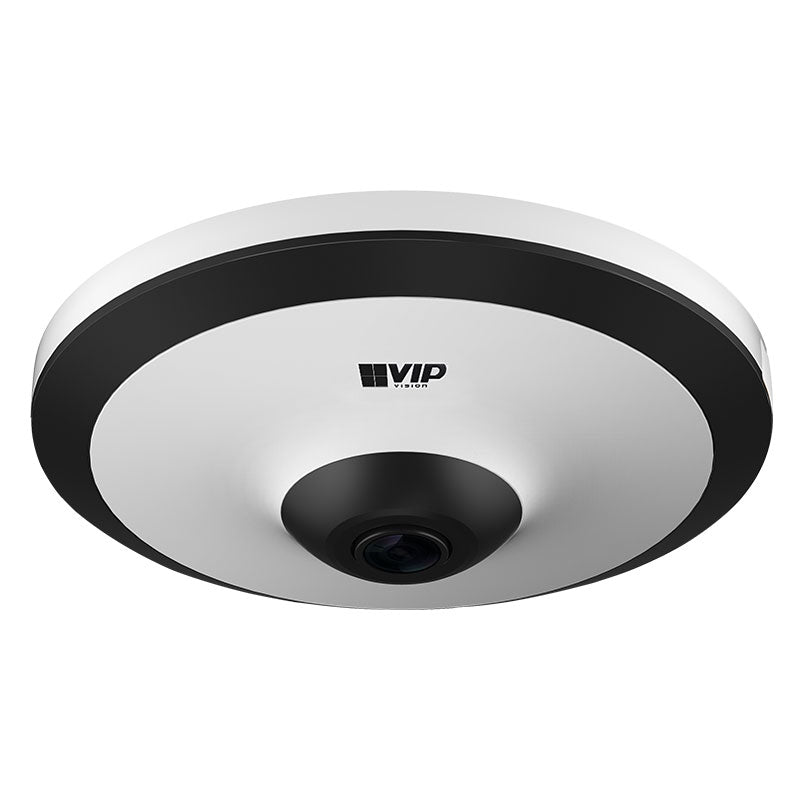

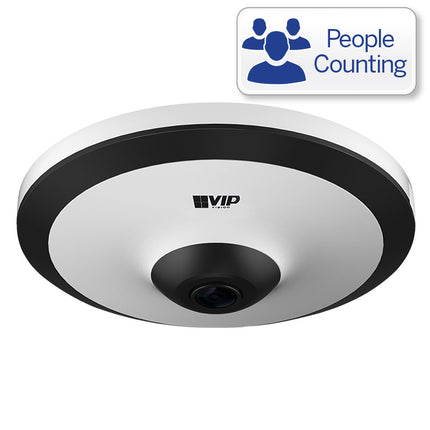

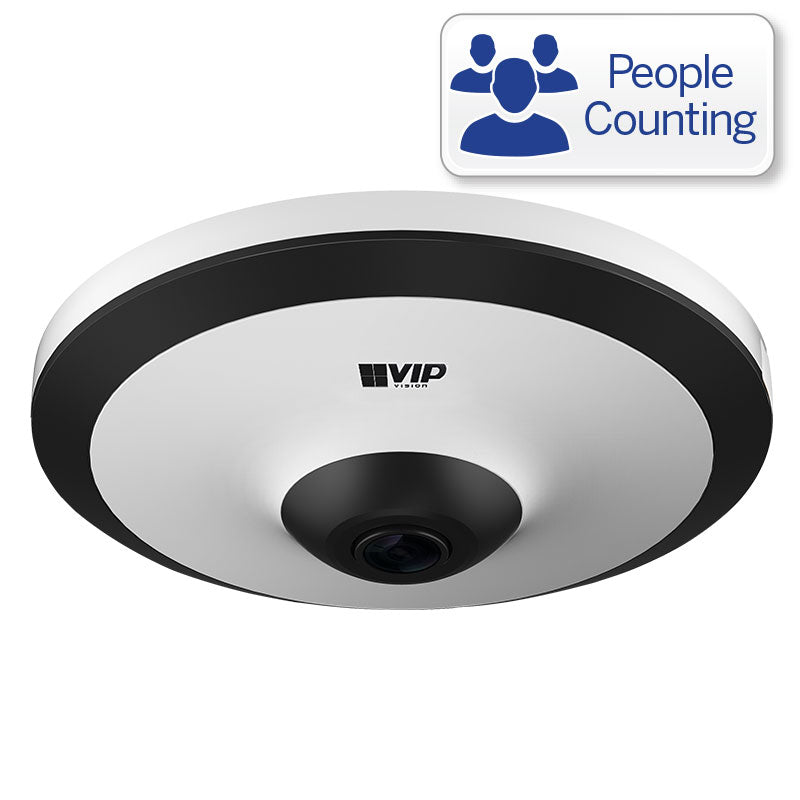

The VSIPFE-5IR-I performs the duties of multiple cameras, with the powerful benefit of AI-powered people counting and heat mapping functions. Receive real-time alerts when a certain number of people enter an area with AI people & area counting or set up heat map to observe the amount of time people spend in areas.
Camera features:
• Stream up to 5.0MP (2592 x 1944) at 25fps
• Circular fisheye lens with 360° viewing angle

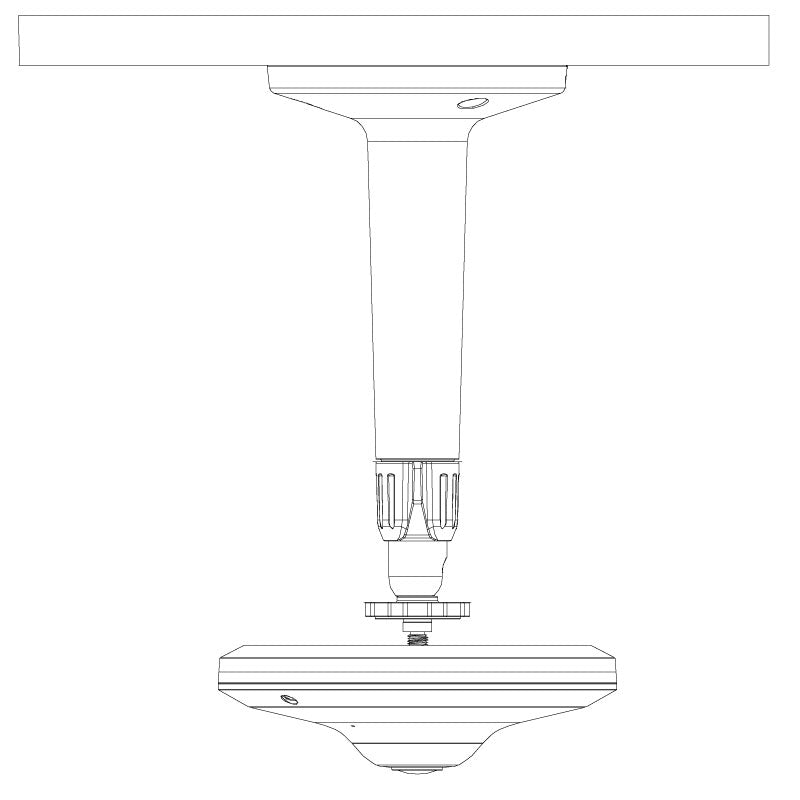

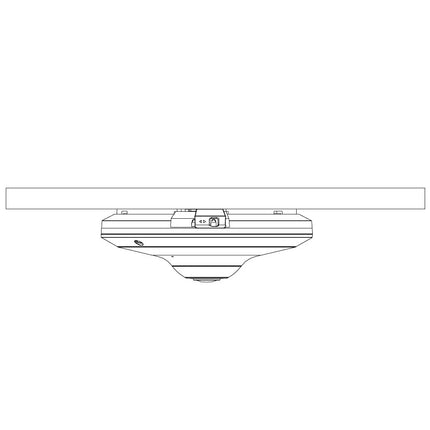

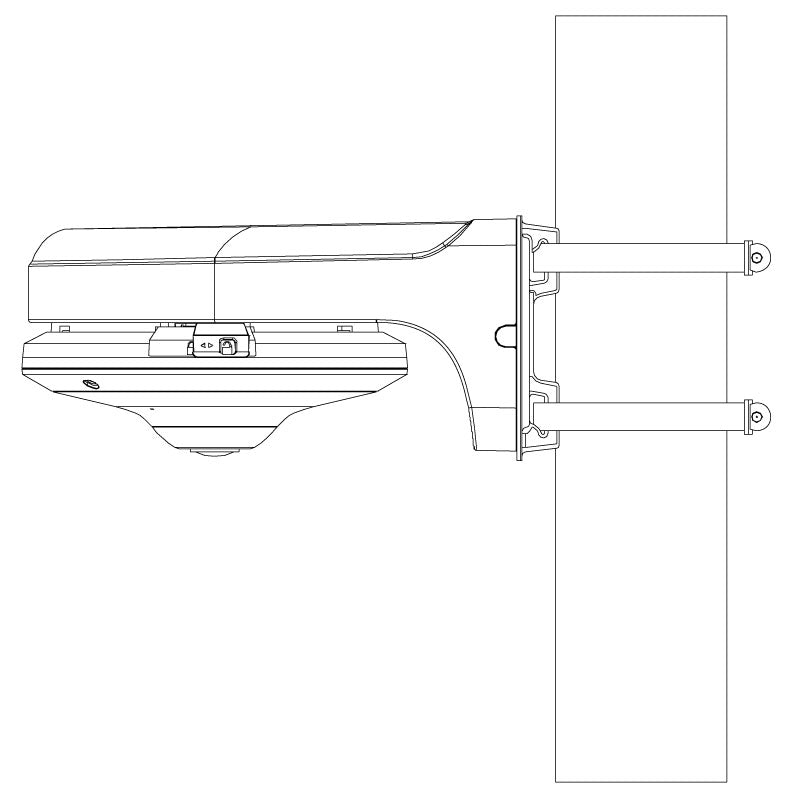

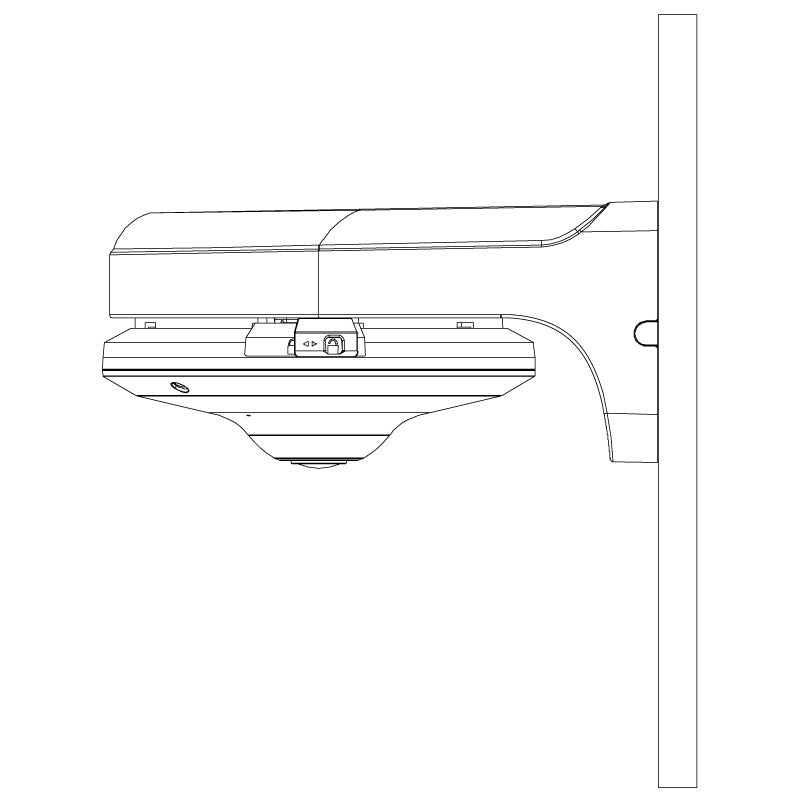

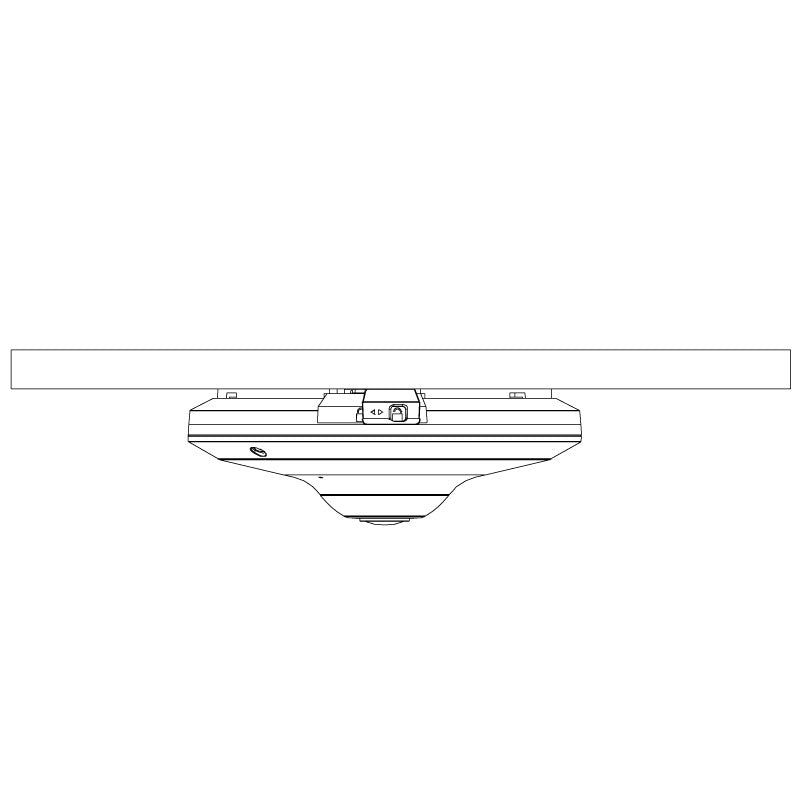

• Dewarp modes* for ceiling, floor & wall mounting
• Virtual PTZ, panorama, & camera split dewarp modes
• Up to 10m infrared range; true day/night (auto ICR)
• Set up AI-enhanced people tracking for real-time alerts, statistics and business analytics
• Heat map, tripwire, intrusion & regions of interest
• MicroSD card slot for edge recording up to 256GB
• Built in mic and audio/alarm inputs and outputs
Datasheets
Tech Specs
| Alarm Interface | 1 Input (5mA 3VDC ~ 5VDC), 1 Output (300mA 12VDC) |
| Audio Interface | 1 input (RCA Port), 1 Built-in Mic / 1 output (RCA Port) / Audio Compression - PCM; G.711a; G.711Mu; G726; AAC |
| Bit Rate | H.265: 3 ~ 8192Kbps / H.264: 3 ~ 8192Kbps |
| Bit Rate Control | Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type | Fisheye Dome |
| Day/Night | Auto (ICR) / Color / B&W |
| Detect (25px/m) | 28m |
| Dewarping Modes | Original (no dewarp) / Panoramic / Double Panoramic / Virtual PTZ / Original + 3 split, + 4 split, + 8 split |

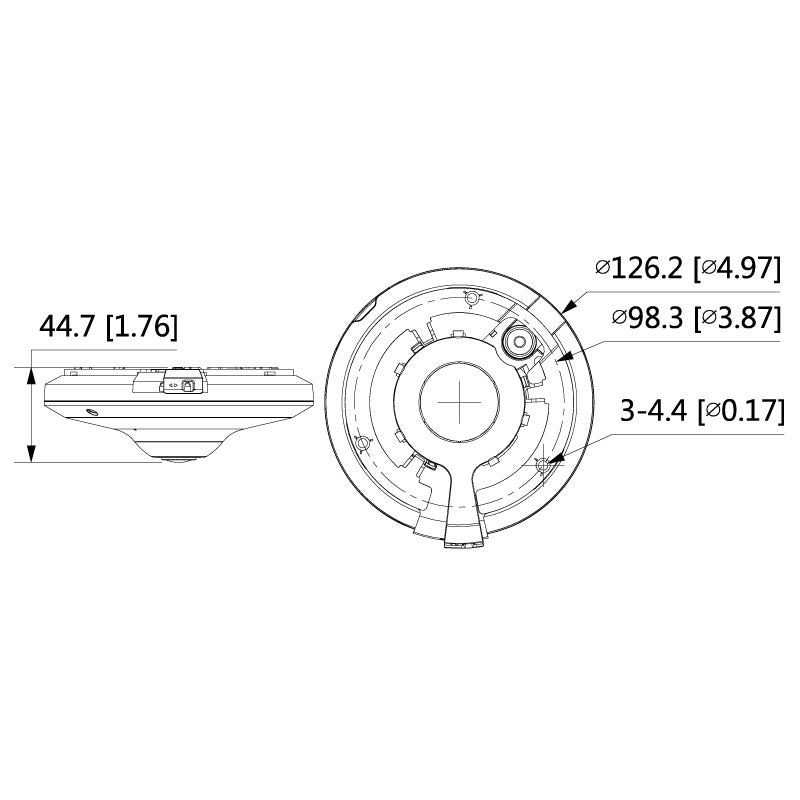

| Dimensions | Ø126.2mm x 44.6mm |
| Edge Storage | MicroSD Card (up to 256GB) / NAS / FTP / SFTP |
| Effective Pixels | 2592 (H) x 1944 (V) |
| ePoE | No |
| Ethernet | RJ-45 (100/1000 Base-T) |
| Field of View | Horizontal: 180°, Vertical: 180° |
| Focus | Fixed / 0.2m Min. Focus |
| Frame Rate (Main) | 5.0MP (1~25fps) |
| Frame Rate (Sub) | D1 (1 ~ 25fps) |
| Frame Rate (Third) | 720p (1 ~ 25fps) |
| Gain Control | Auto / Manual |
| Housing | Metal + Plastic |
| Identify (250px/m) | 3m |
| Image Sensor | 1/2.7’’ 5.0MP Progressive Scan CMOS |
| Infrared System | 3 x Infrared LED, 10m range, Auto/manual on/off control |
| Ingress Protection | N/A |
| Intelligent Functions | Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Heat Map |
| Interoperability | ONVIF Profile S, G & T / CGI / P2P / Milestone / Genetec |
| Lens / Iris | 1.4mm F2.0 Fixed Circular Fisheye Lens |
| Lens Type | Fixed |
| Lighting Compensation | BLC / HLC / True WDR (120dB) |
| Max. Resolution | 5.0 Megapixel |
| Max. User Access | 20 Users (Total bandwidth: 64M) |
| Min Illumination | 0.006lx/F2.0 (Colour) |
| Net Weight | 0.3kg |
| Noise Reduction | 3D DNR |
| Observe (63px/m) | 11m |
| Operating Conditions | -10° ~ +50° C / Less than 95% RH |
| Pan/Tilt/Rotation | N/A |
| People Counting | Supports Area People Counting (No. of people, People quantity thresholds, 4 zones), Heat Mapping (No.of people and time spent) |
| Power Consumption | <3.6W (12VDC) / <4.4W (PoE) / <8.8W (Max.) |
| Power Supply | 12VDC / PoE (802.3af) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP |
| RAM / ROM | 512MB / 128MB |
| Recognise (125px/m) | 6m |
| Resolution | 5.0MP (2592 x 1944) to CIF (352 x 288) |
| RS485 | N/A |
| S/N Ratio | >56dB |
| Series | Specialist AI Series |
| Smart Scene Adaptive (SSA) | Yes |
| Streaming Method | Unicast / Multicast |
| Vandal Resistance | N/A |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 / H.264H / H.264B / MJPEG |
| Video Interface | N/A |
| White Balance | Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom |
