Description

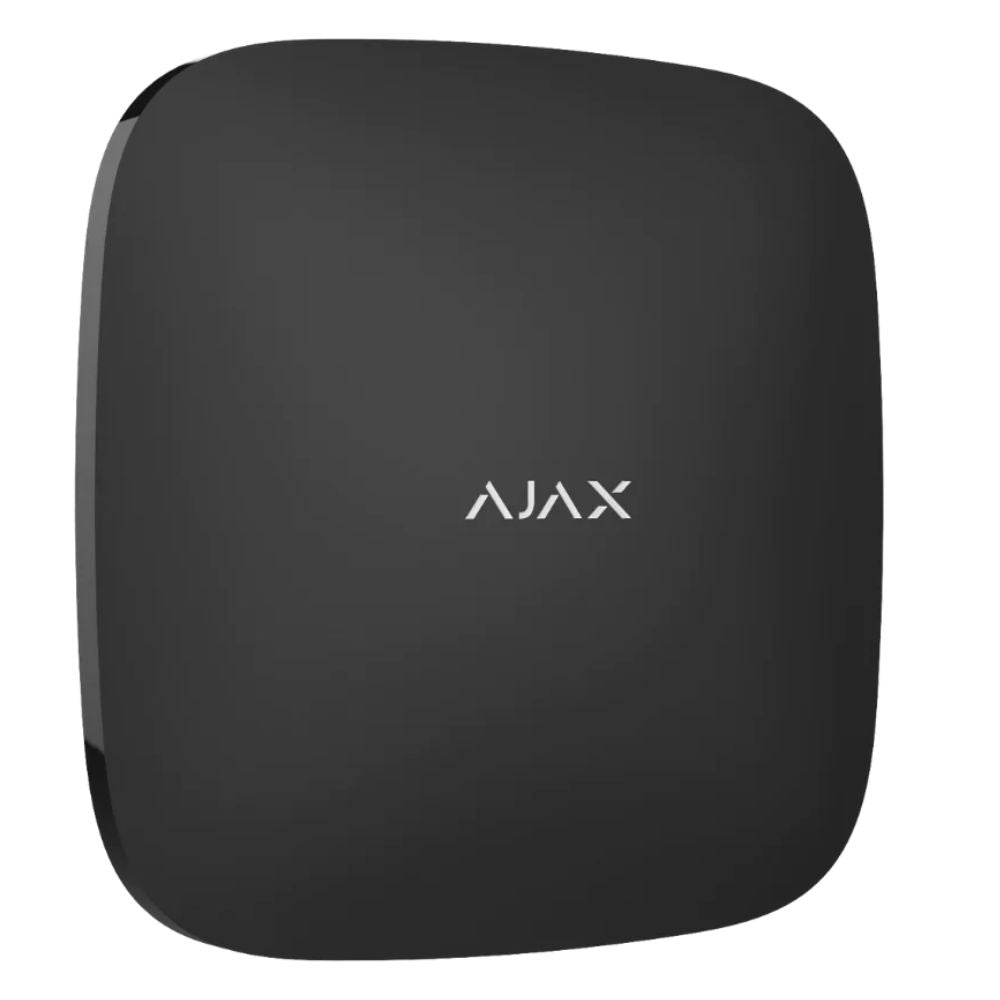

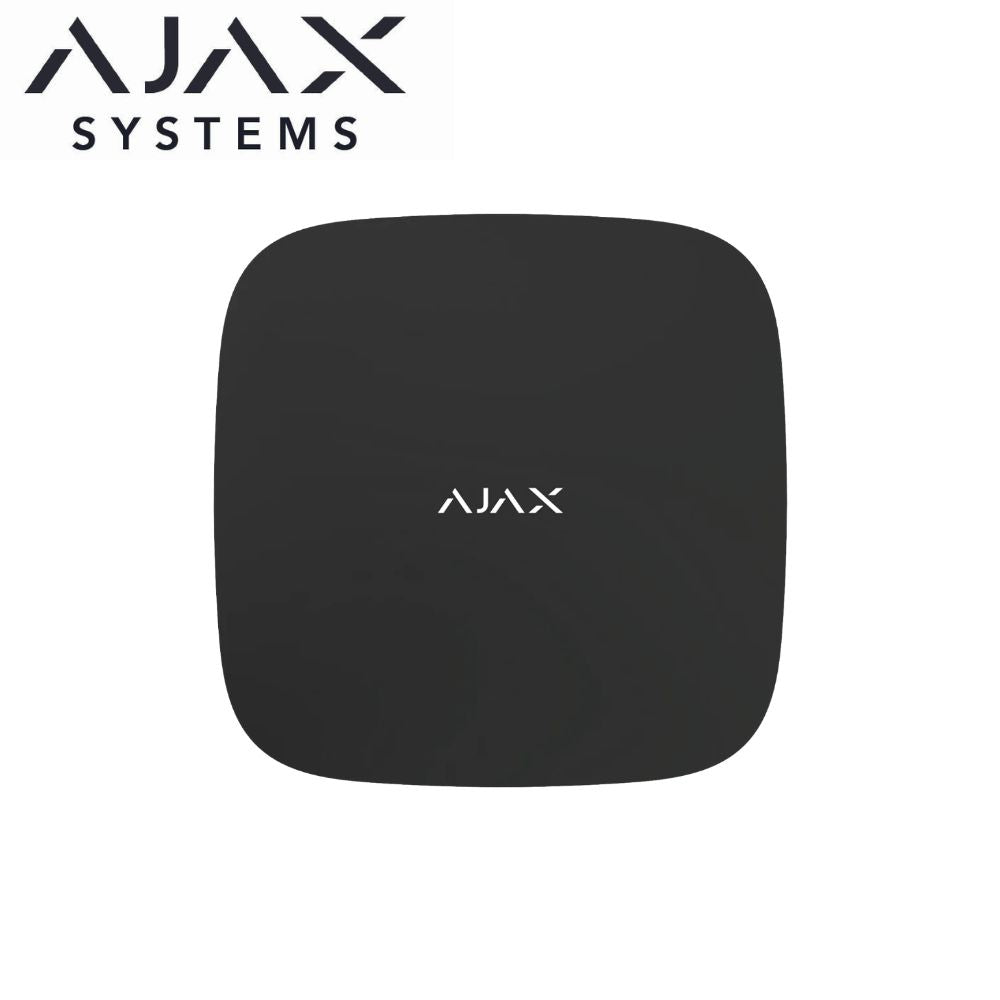

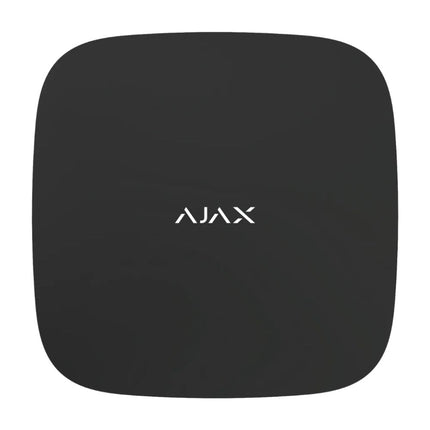

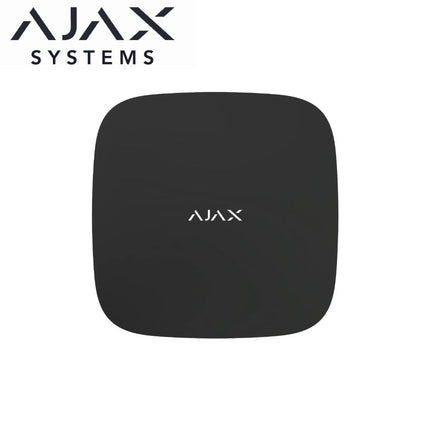

Hub 2 is a security system control panel that supports photo verification of alarms. It controls the operation of all connected devices and interacts with the user and the security company. The device is designed for indoor installation only.
The hub reports doors opening, breaking of windows, the threat of fire or flood, and automates routine actions using scenarios. If outsiders enter the secure room, Hub 2 will send photos from MotionCam / MotionCam Outdoor motion detectors and notify a security company patrol.
Hub 2 needs internet access to connect to the Ajax Cloud service. The control panel has three communication channels: Ethernet and two SIM cards. The hub is available in two versions: with 2G and 2G/3G/4G (LTE) modem.
Features
- In control of security, not your private life
- Alarm photo verification in 9 seconds
- Always connected — via cable and cellular networks
- Guaranteed delivery of alarms and visual alarm verifications-
- Flexibility at the core
- Controlled with apps
- Automates security
- Resistant to sabotage
- Future-proof-
- Hub 2 is ready to operate out of the box.
Complete Set
- Hub 2 (2G) or Hub 2 (4G)4

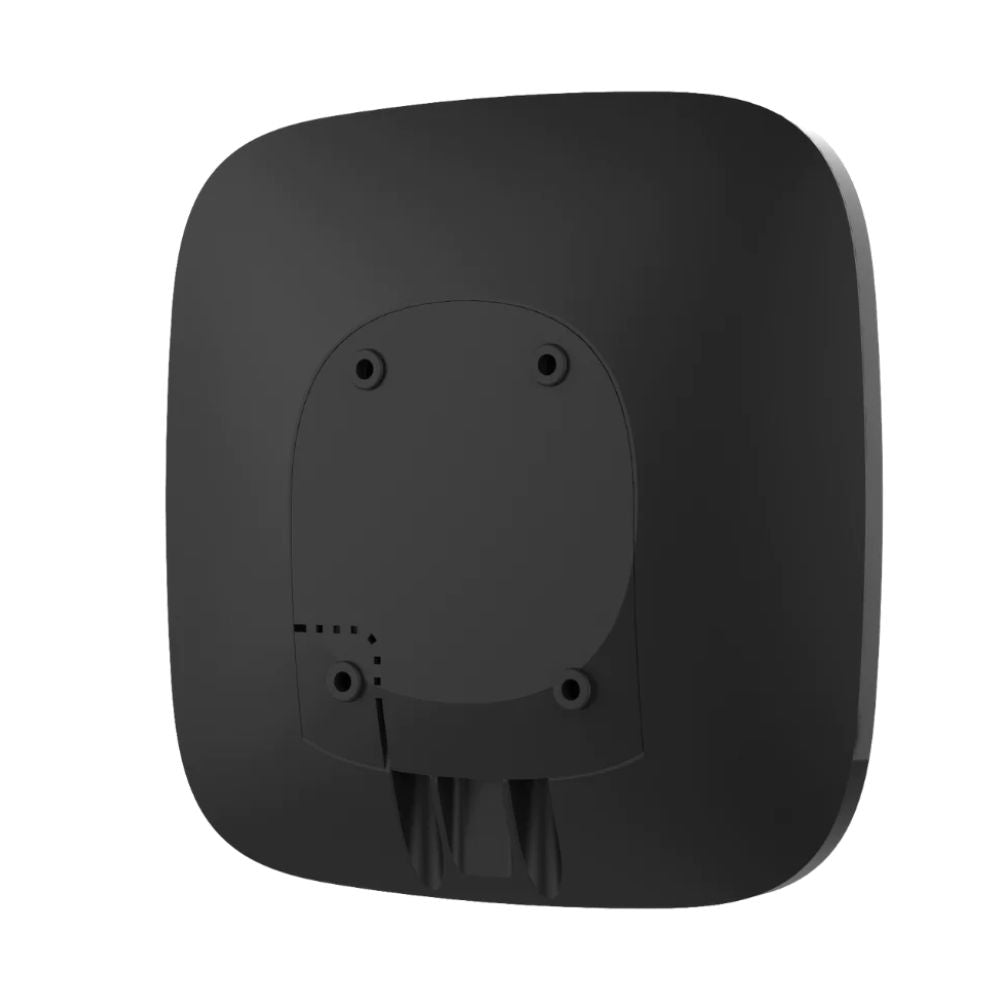

- SmartBracket mounting panel
- Power cable
- Ethernet cable
- Installation kit
- SIM card5
- User Guide
More info about Hub 2 (4G) (Black) on Ajax website : https://ajax.systems/products/hub-2/
Download
Video
Tech specs
| General settings |
| Classification |
Security system control panel |
| Colour |
White, black |
| Installation method |
Indoors |
| Communication with Ajax Cloud |
| Hub 2 (2G) communication channels |
2 SIM cards
- 2G (GSM900/DCS1800 (B3/B8))
Ethernet
|
| Hub 2 (4G) communication channels |
2 SIM cards
- 2G (GSM900/DCS1800 (B3/B8))
- 3G (WCDMA 850/900/2100 (B1/B5/B8))
- LTE (FDD B1/B3/B5/B7/B8/B20/B28)
Ethernet
|
| Communication with devices |
| Communication protocols |
Encrypted two-way radio protocols:
Jeweller — for transmitting events and alarms.
Wings — for transmitting photos.
|
| Radio communication range |
Up to 2000 m without obstacles
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depending on the sales region) |
| Radio signal modulation |
GFSK |
| Maximum effective radiated power (ERP) |
≤ 25 mW |
| Polling interval |
12–300 s
(set by administrator in the app) |
| Time for alarm delivery from detector to hub |
0.15 s |
| Time for photo delivery from detector to hub |
up to 9 s at default settings
Learn more
|
| Capabilities |
| Number of connected devices |
up to 100 including range extenders and sirens |
| Number of connected ReX |
up to 5 |
| Number of connected sirens |
up to 10 |
| Number of security groups |
up to 9 |
| Number of users |
up to 50 |
| Video surveillance |
up to 25 cameras or DVRs |
| Number of rooms |
up to 50 |
| Number of scenarios |
up to 32
Learn more
|
| Central Monitoring Station communication protocols |
- SurGard (Contact ID)
- SIA (DC-09)
- ADEMCO 685
- Other proprietary protocols
Learn more
|
| Power supply |
| Power supply |
110–240 V with a pre-installed power supply unit
12 V with an alternative power supply unit 12V PSU
6 V with an alternative power supply unit 6V PSU
|
| Backup battery |
Li-Ion 2 Ah
(up to 16 h of battery life with Ethernet disabled) |
| Energy consumption from the grid |
10 W |
| Anti-sabotage protection |
| Tamper |
+ |
| Radio frequency hopping |
+ |
| Fraud protection |
+ |
| Lid |
| Operating temperature range |
From -10°C to +40°C |
| Operating humidity |
Up to 75% |
| Dimensions |
163 × 163 × 36 mm |
| Weight |
362 g |
| Service life |
10 years |
