Description

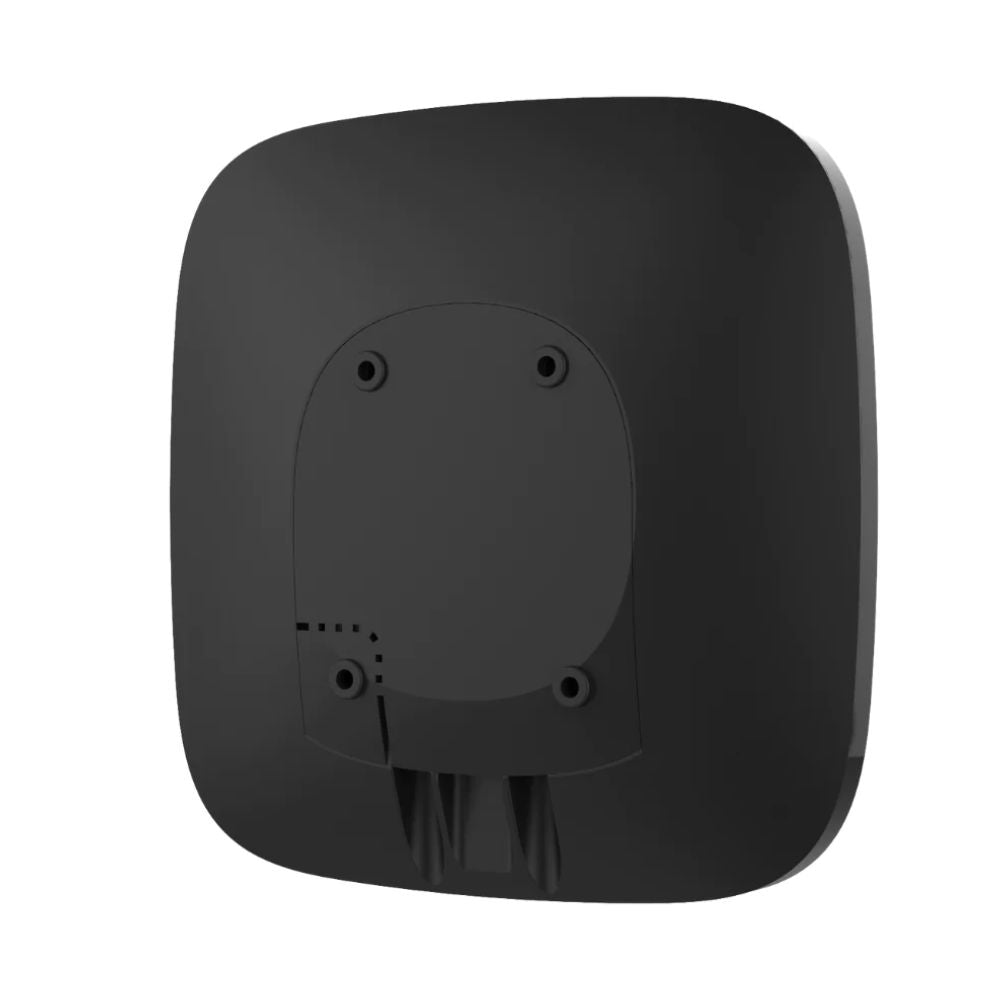

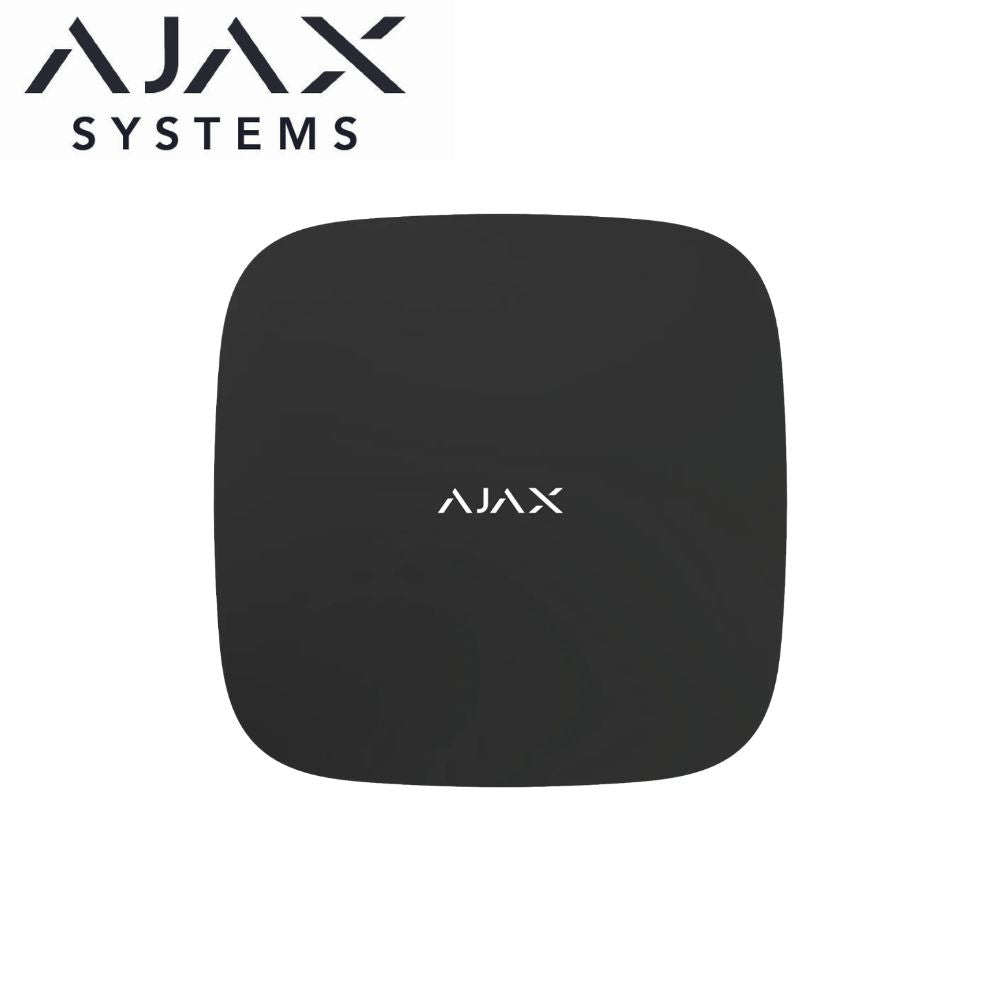

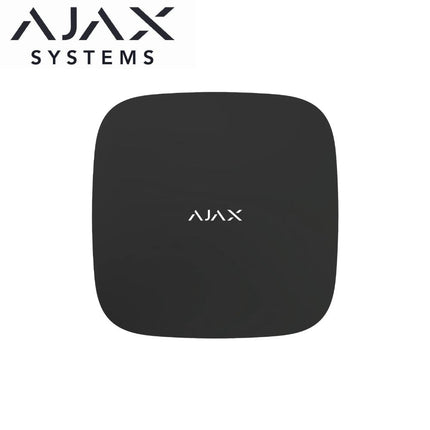

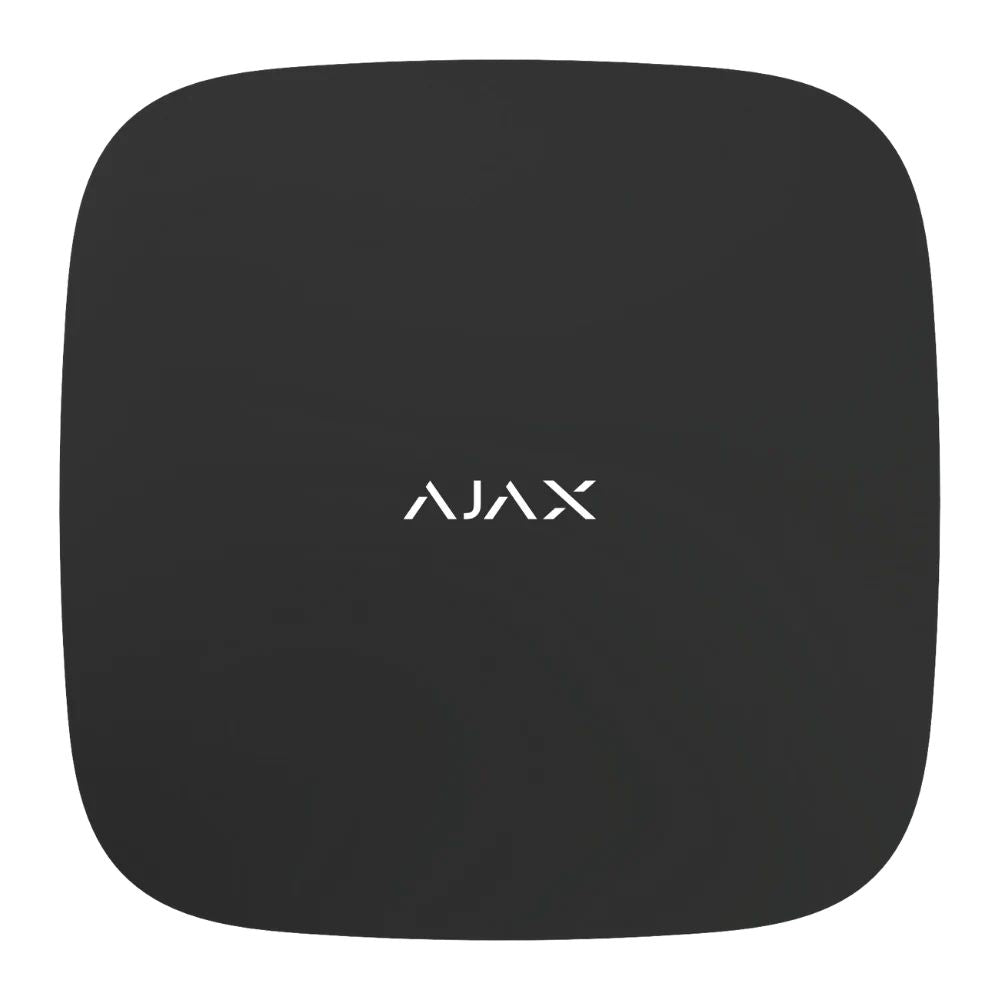

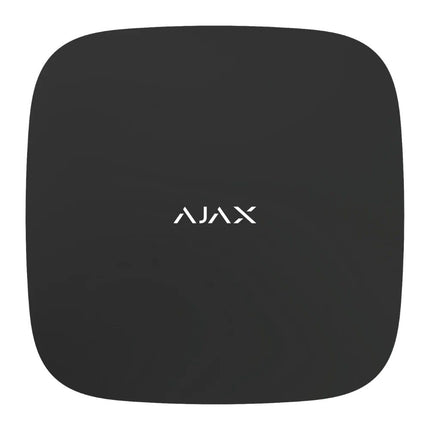

ReX 2 is a radio signal repeater of the security system with support for photo-verification of alarms. Communicates with the hub via radio and Ethernet. Installed indoors.
It has a built-in tamper for protection against opening and is equipped with a backup battery for 38 hours of battery life.
Features
- Remote configuring and control
- Photo verification
- PRO anti-sabotage
- Data-rich notifications
- Connecting to a hub via Ethernet
- Hassle-free installation
- Up to 38 hours of backup battery life
- Up to 35 km2 of coverage with one security system
- Extended radio communication range
- Verification of alarms with snapshots
- Guaranteed delivery of alarms and photo verifications
- Radio communication through steel and concrete
- Enhanced security system
- Ready to resist intruder attacks
- Evolving, not outdated
- Hassle-free installation
Complete Set
- ReX 2
- SmartBracket mounting panel
- Power supply cable
- Ethernet cable
- Installation kit
- Quick start guide
More info about ReX 2 (Black) on Ajax website: https://ajax.systems/products/rex-2/
Download
Video
Tech specs
| Common parameters |
| Classification |
Radio signal repeater |
| Color |
White black |
| Installation method |
indoors |
| Restrictions |
| Hub Compatibility |
|
| Number of ReX 2 connected to the hub |
- Hub 2 (2G) - 5
- Hub 2 (4G) - 5
- Hub 2 Plus - 5
- Hub Hybrid (2G) - 5
- Hub Hybrid (4G) - 5
|
| Number of devices connected to ReX 2 |
Depends on hub model:
- Hub 2 (2G) - 99
- Hub 2 (4G) - 99
- Hub 2 Plus - 199
- Hub Hybrid (2G) - 99
- Hub Hybrid (4G) - 99
|
Connection
|
| Channels of connection |
Two-way secure radio protocols:
-
Jeweler - for transmitting events and alarms
-
Wings - for transferring photos
-
Ethernet - as an alternative or additional communication channel for transmitting events, alarms and photos.
|
| Radio range |
Up to 1700 meters in the absence of obstacles
To learn more
|
| RF band |
866.0 - 866.5 MHz
868.0 - 868.6 MHz
868.7 - 869.2 MHz
905.0 - 926.5 MHz
915.85 - 926.5 MHz
921.0 - 922.0 MHz
Depend on sales region. |
| Radio signal modulation |
GFSK |
| Maximum Effective Radiated Power (ERP) |
≤ 20mW |
| Poll period |
12–300 seconds
(set by the administrator in the application) |
| The speed of delivery of alarms from the sensor to the hub through the repeater |
0.3 seconds |
| The speed of delivery of photos from the sensor to the hub through the repeater via the Wings channel |
18 seconds (depending on settings)
To learn more
|
| The speed of delivery of photos from the sensor to the hub via a repeater via Ethernet |
10 seconds (depending on settings)
To learn more
|
| Food |
| Source of power |
110-240V, 50/60Hz |
| Backup battery |
Li-Ion 2 Ah
Up to 38 hours of battery life when Ethernet is disabled
Up to 12 hours of battery life when Ethernet is active
|
| Sabotage Protection |
| Tamper |
+ |
| RF hopping |
+ |
| Fraud protection |
+ |
| Frame |
| Operating temperature range |
From -10°С to +40°С |
| Permissible humidity |
Up to 75% |
| The size |
163×163×36mm |
| The weight |
410 g |
| Life time |
10 years |
