Description

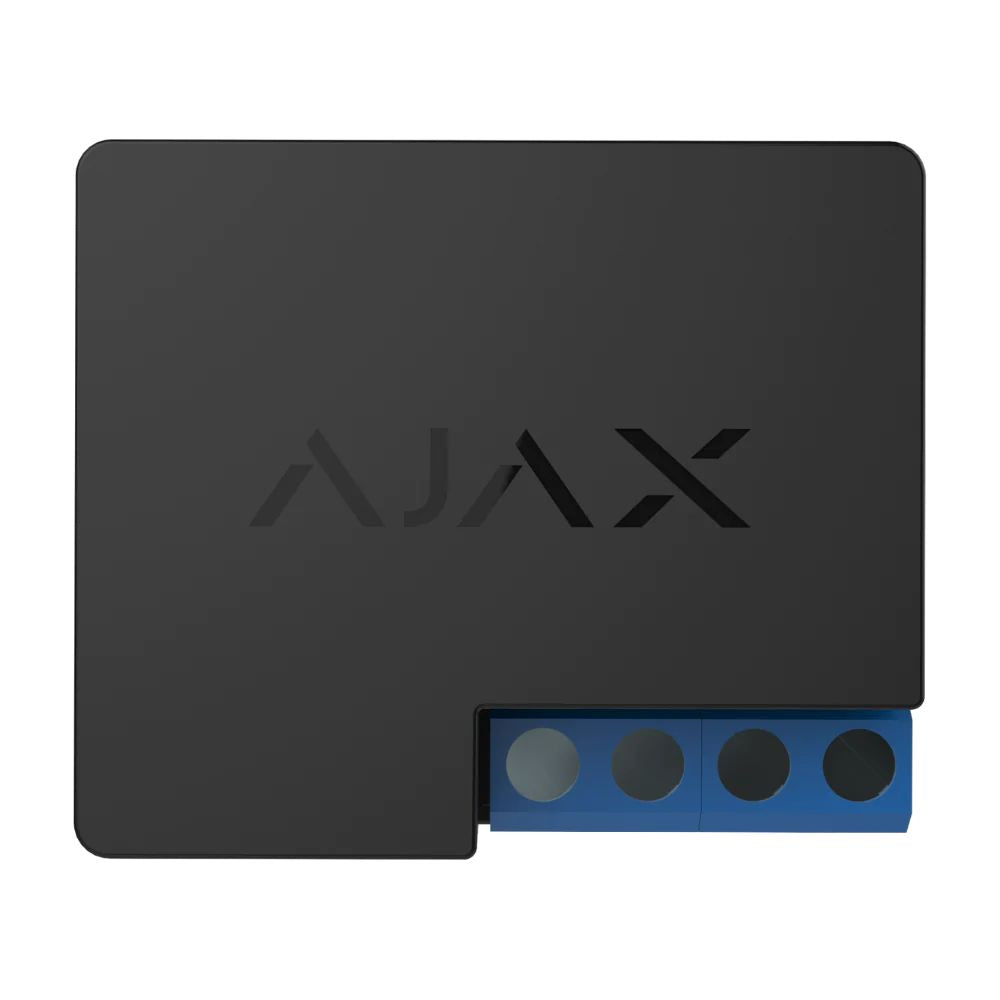

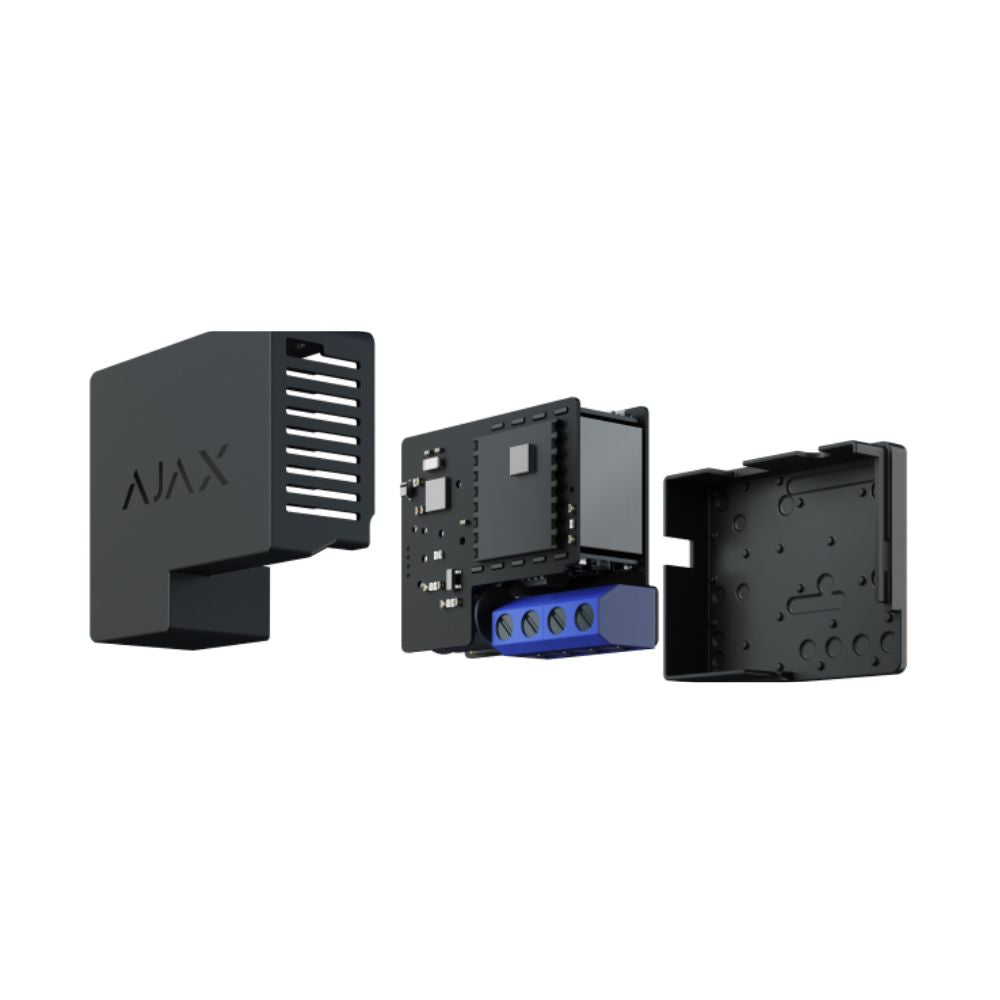

WallSwitch is a power relay to control 110/230 V~ power supply remotely. The relay power supply is not galvanically isolated with terminal blocks; therefore, WallSwitch switches only the power received at the power supply terminal blocks. The device has an energy consumption meter and features three types of protection: voltage, current, and temperature.
Features
- Safeguard in the power grid
- No extra effort
Complet Set
-
WallSwitch
-
Installation set
- User's guide
More info about WallSwitch on Ajax website: https://ajax.systems/products/wallswitch/
Download
Tech Specs
WallSwitch
| Classification |
Radio channel relay unit |
| Device type |
|
| Installation method |
Into wall plate |
| Compatibility |
Operates with all Ajax hubs, range extenders
|
| Actuating element |
Relay |
| Voltage protection |
For 230 V~ mains: maximum — 264 V, minimum — 161 V
For 110 V~ mains: maximum — 126 V, minimum — 77 V |
| Relay service life |
200,000 switch-ons |
| Maximum load current |
13 A |
| Maximum current protection |
Yes (13 A) |
| Maximum temperature protection |
>65°C |
| Permissible power |
Resistive load at 230 V — up to 3 kW
Resistive load at 110 V — up to 1.5 kW |
| Electric power meter function |
Available |
| Energy consumption parameter check |
Current, voltage, power consumption |
| Alarm signal delivery time |
0.15 s |
| Power supply |
110−230 V±10% 50/60 Hz |
| Operation modes |
Impulse (firmware version 5.54.1.0 or higher. Manufacture date from March 5, 2020)
Bistable |
| Contact state |
Normally open
Normally closed |
Adjustable pulse duration (firmware version 5.54.1.0 or higher) |
1–255 sec |
| Jeweller radio technology |
Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Detector scanning period — 12–300 s |
| Operating temperature range |
From 0°С to +64°С |
| Permissible humidity |
Up to 75% |
| Anti-sabotage |
Protection against fraud
Jamming detection |
| Protection class of body |
IP20 |
| Remote setting and testing |
+ |
| Dimensions |
39 × 33 × 18 mm |
| Weight |
30 g |
| Warranty |
24 months |
| Complete set |
WallSwitch
Installation set
User's guide |
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
