Description

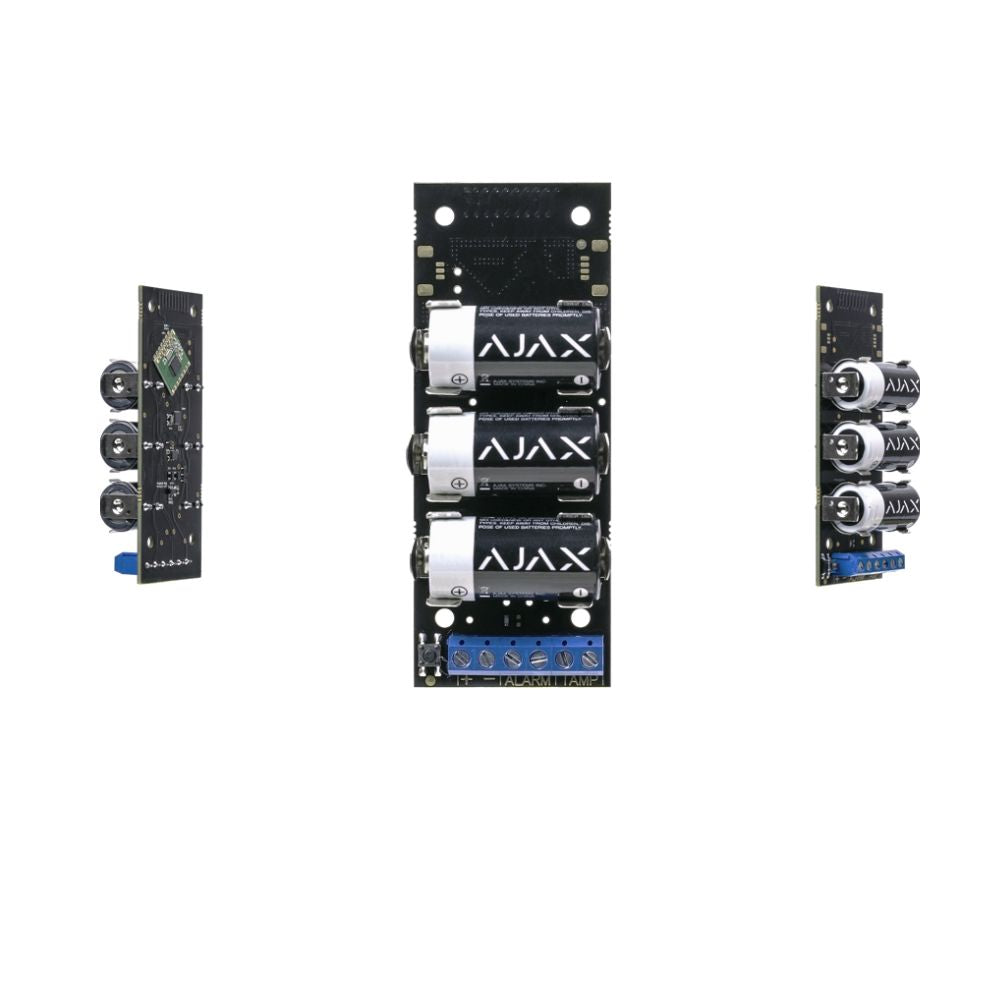

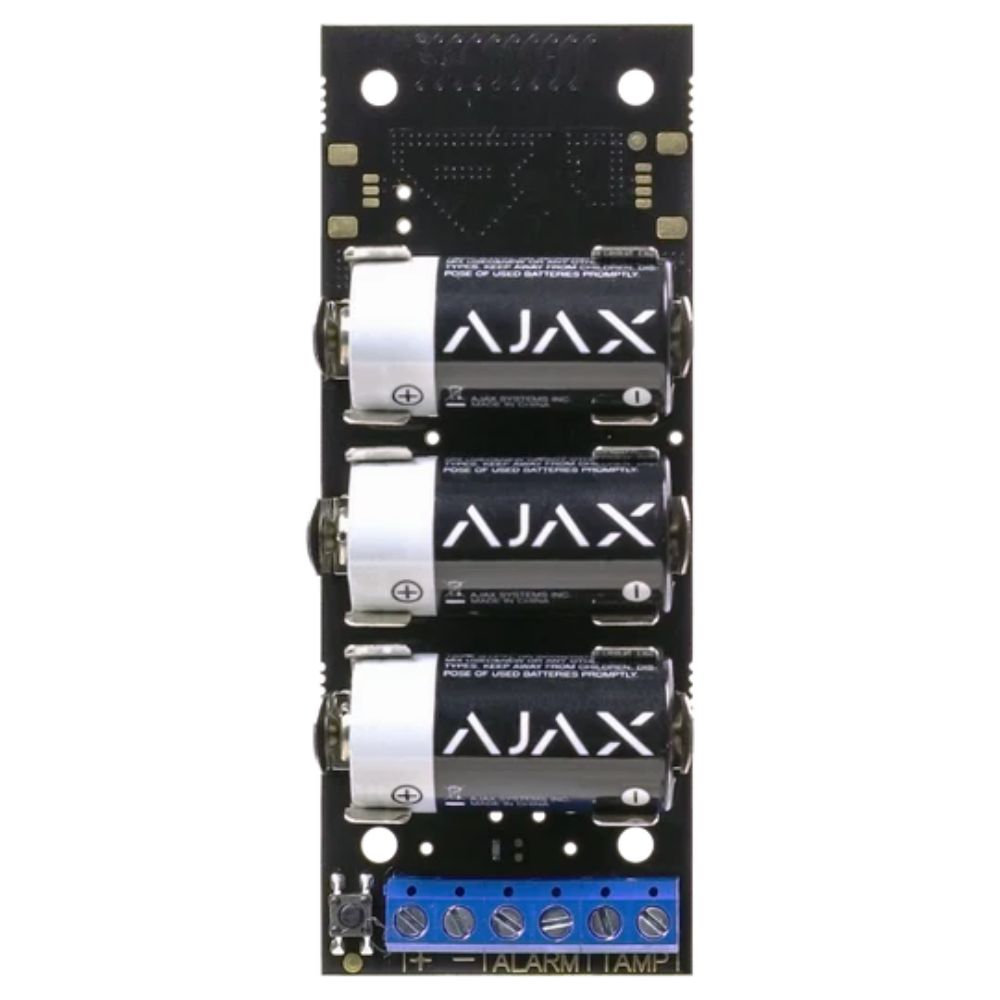

Transmitter is a module for connecting third-party detectors to Ajax security system. It transmits alarms and notifies when the tamper of the third-party detector triggers. The module is equipped with its own accelerometer, which protects it from dismounting. It runs on batteries and can supply power to the connected detector.
Transmitter operates within the Ajax security system, by connecting via the protected Jeweller protocol to the hub. It is not intended to use the device in third-party systems.
Features
- Module for integrating a third-party wired detector or device into the Ajax security system.
- Principle of operation
- Transmitter works with any detector or device with NC/NO contact type.
- Installation and set up
- Makes third-party wired device part of the Ajax security system
- Provides 3.3 V⎓ power supply for the wired device
- Operates in temperatures from −25°C to +50°С and humidity up to 75%
Complete Set
- Transmitter.
- Battery CR123A — 3 pcs.
- Installation kit.
- Quick Start Guide.
More info about Transmitter on Ajax website: https://ajax.systems/products/transmitter/
Download
Video
Tech Specs
Transmitter
| Connecting a detector |
ALARM and TAMPER (NO/NC) terminals |
| Mode for processing alarm signals from the detector |
Pulse or Bistable |
| Power supply |
3 × CR123A, 3V batteries |
| Capability to power the connected detector |
Yes, 3.3 V⎓ |
| Protection from dismounting |
Accelerometer |
| Radio protocol for communication with hubs and range extenders |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region. |
| Compatibility |
Operates only with all Ajax hubs, and radio signal range extenders
|
| Maximum effective radiated power |
Up to 20 mW |
| Modulation |
GFSK |
| Communication range |
Up to 1,600 m in an open space |
| Devices polling interval |
12–300 s |
| Operating temperature range |
From –25°С to +50°С |
| Operating humidity |
Up to 75% |
| Dimensions |
100 × 39 × 22 mm |
| Weight |
74 g |
| Service life |
10 years |
