Description

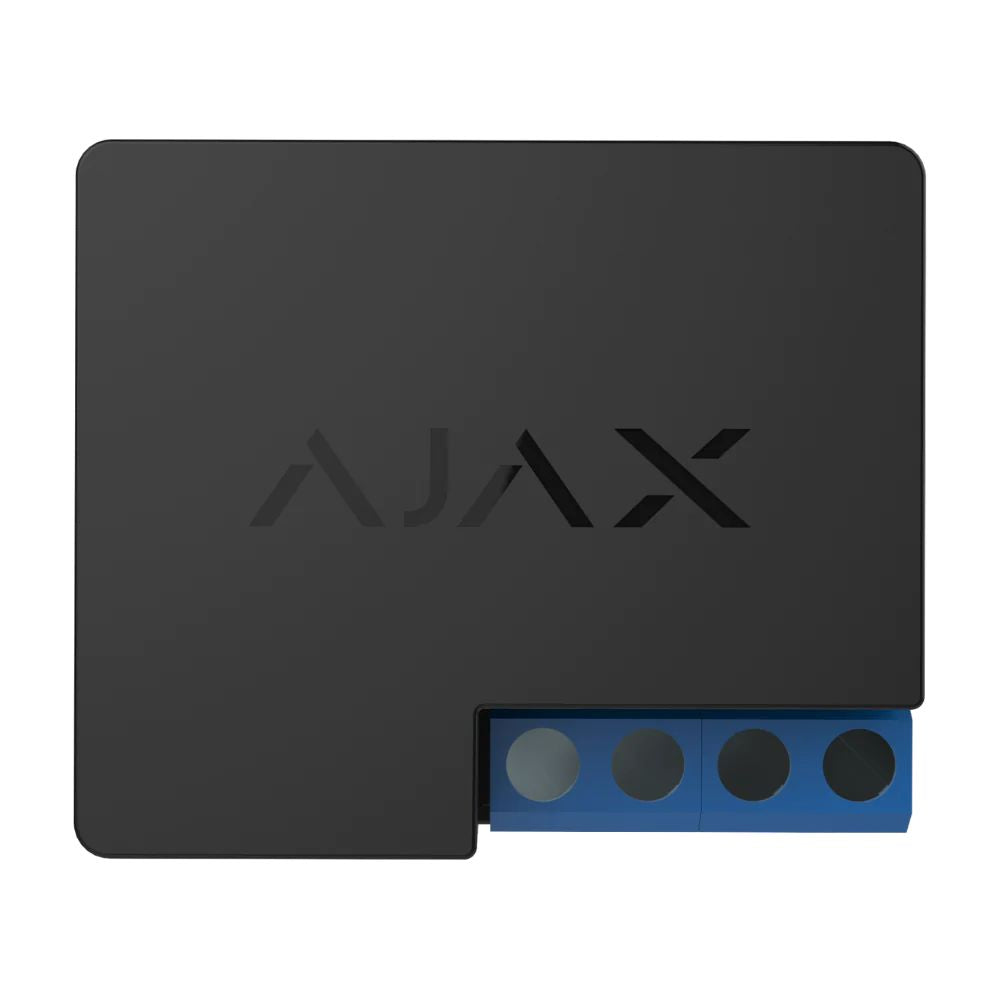

Relay is a wireless, low-voltage relay featuring potential-free (dry) contacts. Use Relay to remotely switch on/off appliances powered by a 7–24 V⎓ source. Relay can operate both in pulse and bistable mode. The device communicates with a hub via radio protocol. In the line of sight, the communication distance is up to 1,000 m.
The Relay contacts are not galvanically connected to the device itself, so they can be connected to the input control circuits of various equipment to imitate a button, toggle switch, etc.
Features
- Flexibility at the core
- No extra effort
Complete Set
- Relay
- Installation kit
- Quick Start Guide
More info about Relay on Ajax website: https://ajax.systems/products/relay/
Download
Video
Tech Specs
Relay
| Classification |
Radio channel relay unit |
| Device type |
Wireless |
| Installation method |
Into electric switchboard, junction box |
| Compatibility |
Operates with all Ajax hubs and range extenders
|
| Actuating element |
Electromagnetic relay |
| Relay service life |
200,000 switch-ons |
| Voltage protection |
Max — 36.5 V⎓, min — 6.5 V⎓ |
| Maximum load current |
5A at 24 V⎓, 13A at 230V~ |
| Maximum current protection |
No |
| Maximum temperature protection |
> 65°C at the place of installation |
| Electric power meter function |
No |
| Energy consumption parameter check |
Voltage |
| Power supply |
7–24 V⎓ (DC only) |
| Operation modes |
Pulse
Bistable |
| Contact state |
Normally open
Normally closed |
| Adjustable pulse duration |
1–255 sec |
| Jeweller radio technology |
Communication range with central unit — up to 1,000 m in an open space
Two-way communication between devices
Radio frequency bands:
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
(depends on the region of sale)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Device scanning period — 12–300 s |
| Operating temperature range |
From –20°С to +64°С |
| Permissible humidity |
Up to 85% |
| Protection class of body |
IP20 |
| Anti-sabotage |
Protection against fraud
Jamming detection |
| Remote setting and testing |
+ |
| Dimensions |
39 × 33 × 18 mm |
| Weight |
25 g |
| Warranty |
Replacement and repair within 24 months of the date of sale. |
| Complete set |
Relay
Installation kit
Quick Start Guide |
2-Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
