Description
MultiTransmitter Jeweller is an integration module for connecting third-party wired detectors and devices to an Ajax security system. It has 18 wired zones for connecting NC, NO, EOL, 2EOL and 3EOL devices (black).
MultiTransmitter is equipped with two tampers that protect it against dismantling. The device is powered from the 100–240 V~ mains, and can also run on a 12 V⎓ backup battery. Can supply 10.5–15 V⎓ for connected detectors and devices.
Features
- Security via smartphone
- Data-rich alarms
- Radio communication without reliability compromises
- TDMA technology developed by Ajax Systems for uninterrupted communication with devices.
- Security without barriers
- Protected against sabotage
Complete Set
- MultiTransmitter Jeweller.
- Casing.
- Power supply cable.
- 12 V⎓ battery connection cable.
- Installation kit.
- Quick Start Guide.
More info about MultiTransmitter on Ajax website: https://ajax.systems/products/multitransmitter/
Download
Video
Tech Specs
MultiTransmitter
Compatibility |
Compatible hub models
All Ajax hubs
The Hub control panel does not support the 2EOL and 3EOL connection types. Other hub models require the OS Malevich firmware version 2.13 or higher to support such connection types.
Compatible range extenders
All Ajax radio signal range extenders
|
Communication with a hub or range extender |
Jeweller communication technology
Proprietary wireless communication technology to transmit alarms and events.
It features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration via the Ajax apps.
Frequency bands
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Radio signal modulation
GFSK
Radio communication range
up to 2,000 m
Between an integration module and a hub/range extender in an open space.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Radio frequency hopping
To prevent interception and jamming.
|
Wired devices connection |
Number of zones
18 wired zones
Multiple devices can be connected to one zone. The number of connected devices depends on their power consumption.
Type of connection
NC, NO, EOL
MultiTransmitter with a firmware version lower than 2.13.
NC, NO, EOL, 2EOL, 3EOL
MultiTransmitter with a firmware version 2.13 and higher. The Hub control panel does not support the 2EOL and 3EOL connection types. Other hub models require the OS Malevich firmware version 2.13 or higher to support such connection types.
EOL resistance
from 1 kΩ to 7.5 kΩ with 100 Ω increment
MultiTransmitter with a firmware version lower than 2.13. EOL resistance is measured automatically in the Ajax PRO apps.
from 1 kΩ to 15 kΩ for each resistor, up to 30 kΩ of total resistance
MultiTransmitter with a firmware version 2.13 and higher. Resistance is measured automatically for each EOL resistor in the Ajax PRO apps.
Cable length
up to 400 m
When using a signal cable with a 0.22 mm² copper-clad aluminium conductor.
Operation mode
pulse, bistable
Adjusted by a PRO or user with admin rights in the Ajax app.
Event type
9 types of events for each wired zone
- Intrusion
- Fire
- Medical help
- Panic button
- Gas alarm
- Tamper alarm
- Malfunction
- Leakage
- Custom
Adjusted by a PRO or user with admin rights in the Ajax app.
|
Recommendations |
The device is powered from the 110–240 V~ mains and designed for indoor use only. |
Anti-sabotage protection |
Tamper alarm
Two tampers to detect the MultiTransmitter casing opening and alert about detachment from the wall.
Protection against spoofing
with the integration module authentication
Communication loss detection
within 36 seconds
Between a hub or range extender and MultiTransmitter. The detection time depends on the Jeweller or Jeweller/Fibra settings.
Instant detection of wired connection loss, short circuits, and malfunctions
when using EOL/2EOL/3EOL connection type
Depends on the connection type.
|
Power supply |
MultiTransmitter power supply
100–240 V~, 50/60 Hz
MultiTransmitter backup power supply
12 V⎓, up to 7 Ah capacity with a full charge cycle of up to 30 hours
The backup battery is not included in the set.
Connected devices power supply
10.5–15 V⎓, up to 1 A of total maximum current consumption
Four power lines powered by MultiTransmitter: one for fire detectors, and three for other devices.
|

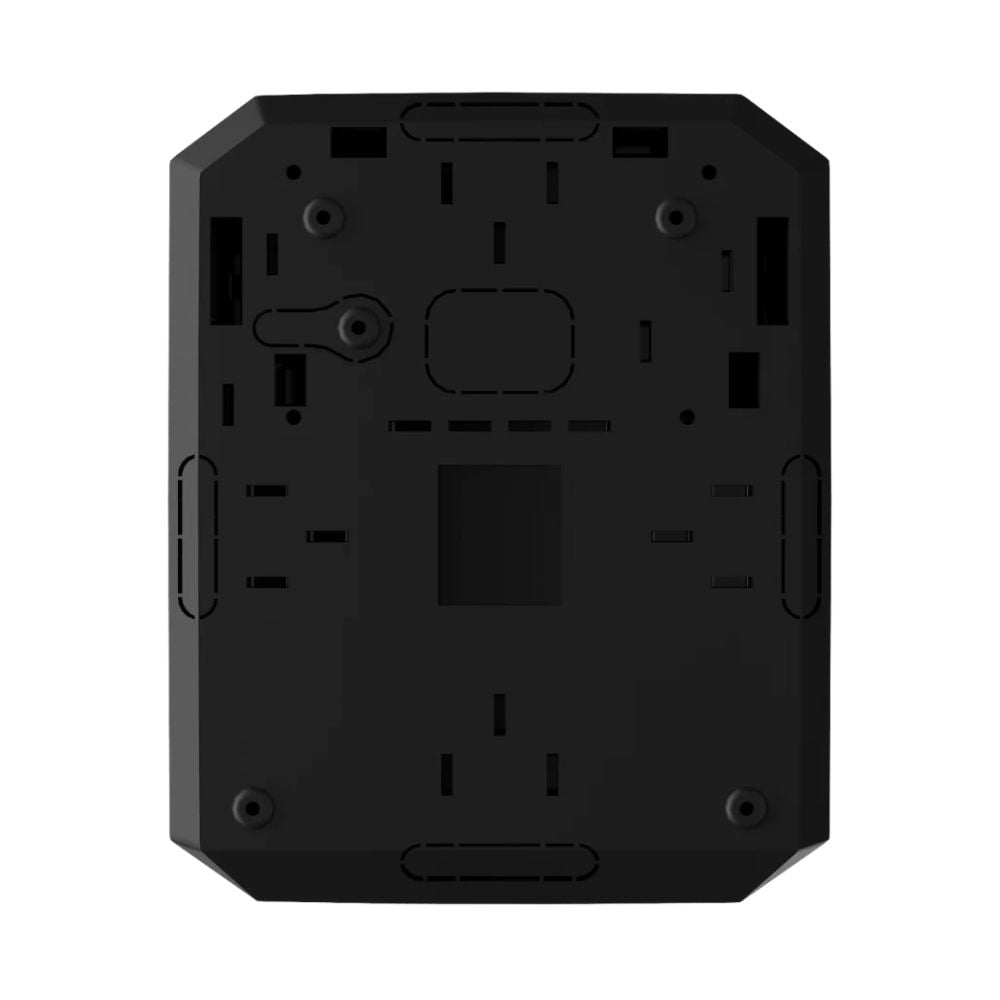

Casing |
Dimensions

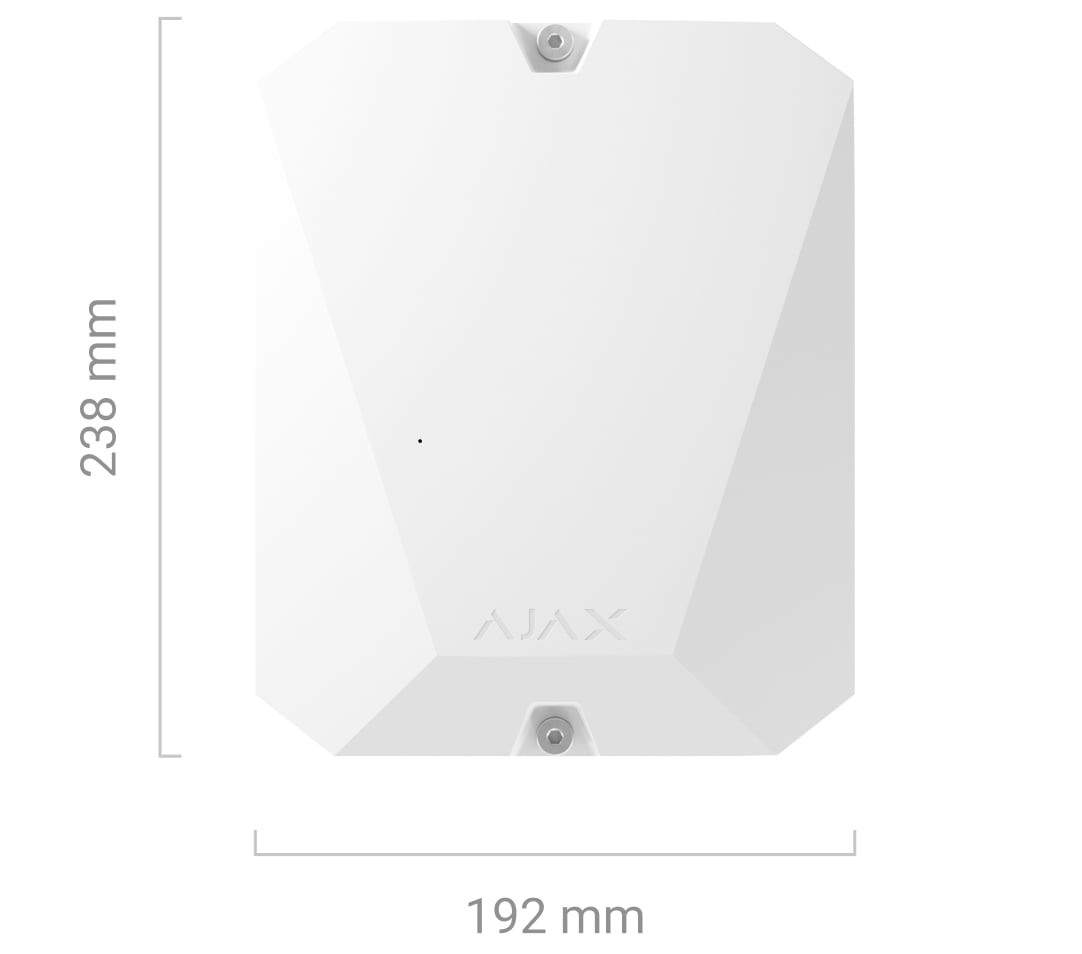

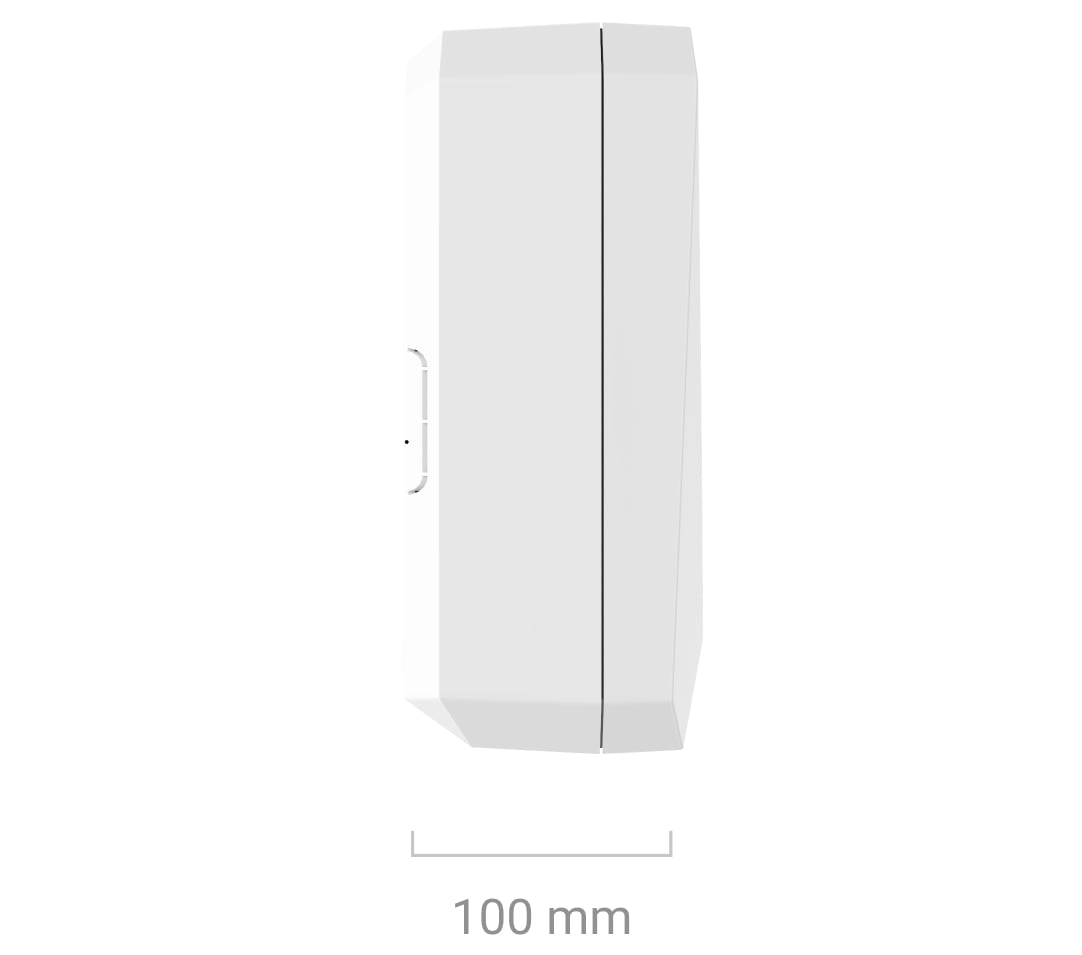

192 × 238 × 100 mm
Weight
805 g
Operating temperature range
from −10°C to +40°C
Operating humidity
up to 75%
Protection class
IP40

|
