Description

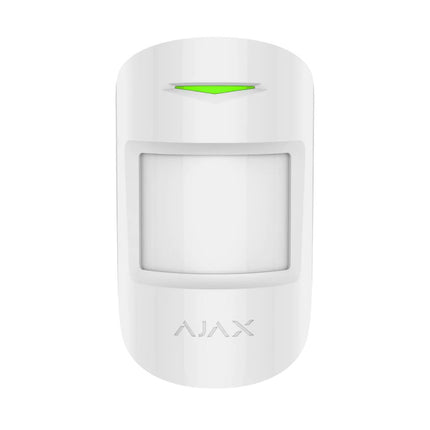

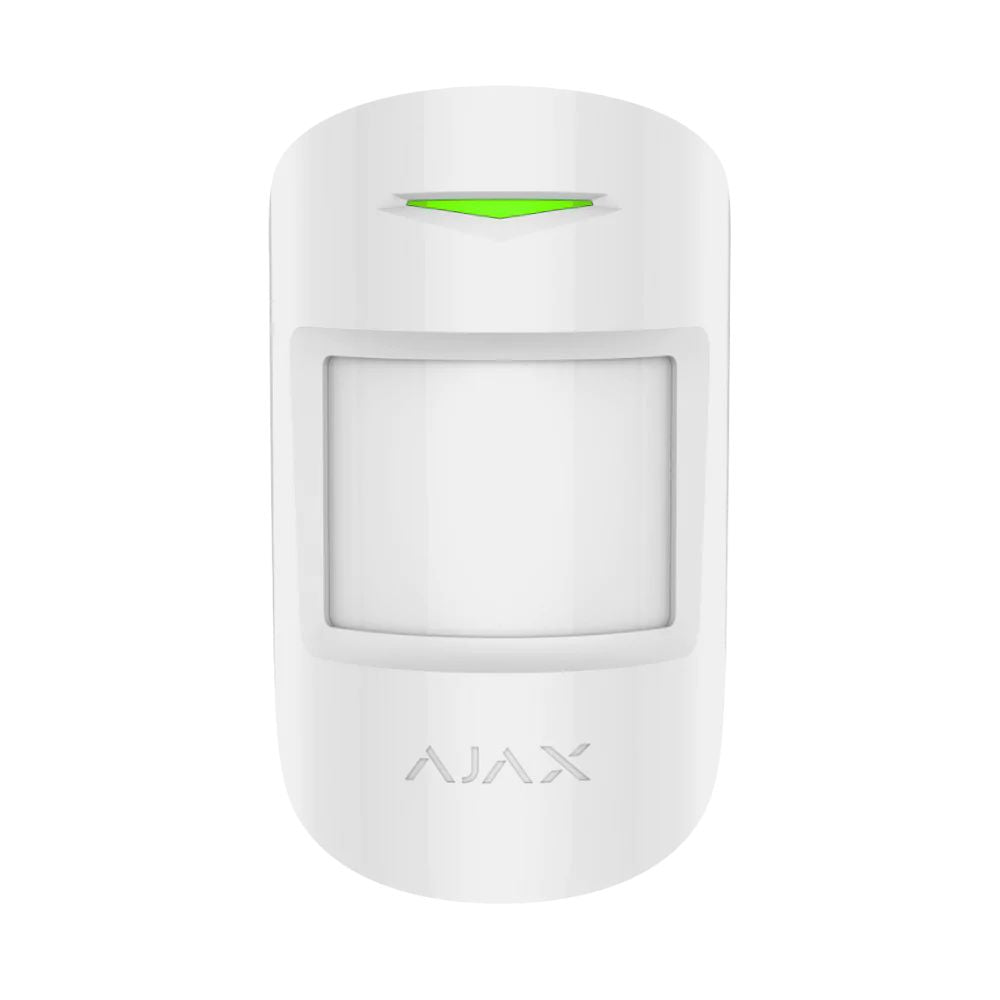

MotionProtect Plus Jeweller is a wireless indoor motion detector. It can operate for up to 5 years from an built-in battery, and monitors the area within a 12-meter radius. MotionProtect Plus ignores animals, while recognizing a human from the first step. Together with the IR sensor, detector applies a radio-frequency scan that filters out thermal interference.
MotionProtect Plus operates within the Ajax security system, connected to the hub via the protected Jeweller protocol. The communication range is up to 1200 meters in the line of sight. In addition, the detector can be used as a part of third-party security central units via the uartBridge or ocBridge Plus integration modules.
Features
- Wireless motion detector with microwave sensor that notifies the owner of first signs of home or office intrusion.
- Detects human presence by temperature difference with background thermal radiation.
- Designed for operation in rooms with fireplaces and air conditioners.
- Installation and set up
Complete Set
- MotionProtect Plus motion detector
- SmartBracket mounting panel
- CR123A battery (pre-installed)
- Installation set
- User’s guide
More info about MotionProtect Plus on Ajax website: https://ajax.systems/products/motionprotectplus/
Download
Video
Tech specs
| nsitive element |
1 × PIR sensor
1 × K-band microwave sensor
When the device detects motion, it conducts an additional RF scan to eliminate false alarms due to thermal interference: air flows, heated curtains and blinds, fans, fireplaces, air conditioners, and other likely sources of false alarms.
|
| Motion detection distance |
Up to 12 m |
| Motion detector viewing angles (H/V) |
88,5° / 80° |
| Time for motion detection |
From 0.3 to 2 m/s |
| Pet immunity |
Yes, height up to 50 cm, weight up to 20 kg
Why motion detectors react to animals and how to avoid it >
|
| Tamper protection |
Yes |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility |
Operates with all Ajax hubs, radio signal range extenders, ocBridge Plus, uartBridge
|
| Maximum RF output power |
Up to 20 mW |
| Modulation of the radio signal |
GFSK |
| Radio signal range |
Up to 1200 m (without obstacles)
Learn more
|
| Power supply |
1 battery CR123A, 3 V |
| Battery life |
Up to 5 years |
| Installation method |
Indoors |
| Operating temperature range |
From -10°С to +40°С |
| Operating humidity |
Up to 75% |
| Overall dimensions |
110 × 65 × 50 mm |
| Weight |
96 g |
| Service life |
10 years |
2 Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
