Description

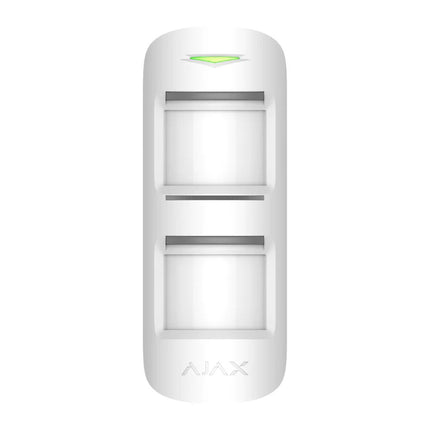

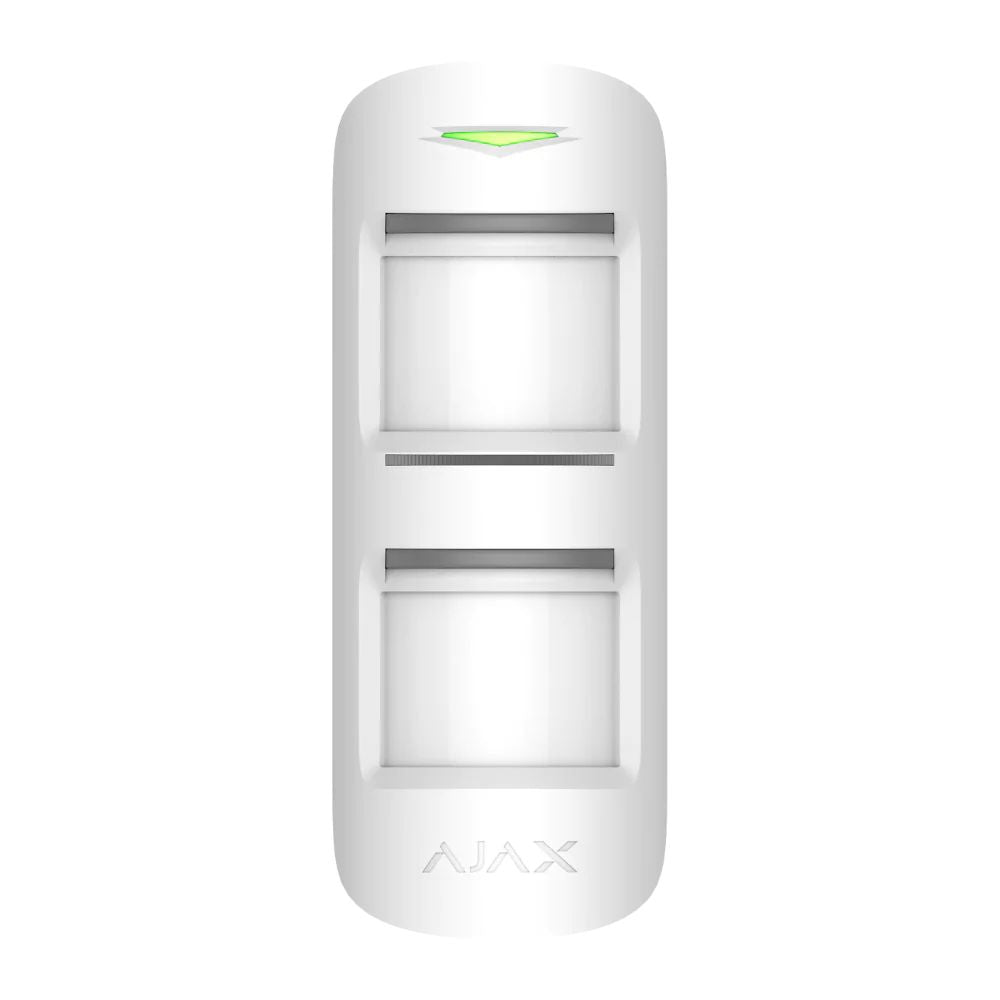

MotionProtect Outdoor is a wireless outdoor motion detector for the Ajax security system. The detector communicates with the hub via protected Jeweller radio protocol at a distance up to 1,700 meters in the line of sight. MotionProtect Outdoor features protection against blocking the detector view (anti-masking system) and triggering by pets (pet immunity). The motion detection distance is adjustable: from 3 up to 15 meters.
MotionProtect Outdoor can operate both on pre-installed batteries or use an external power supply. Depending on the detector settings, the batteries’ life is up to 5 years.
Features
- The first line of defence for home and business
- Two-step algorithm for false alarm prevention
- Intelligent anti-masking system
- Guaranteed alarm delivery
- Ready for heat and cold
- Protection of masking sensors
- Installation without brain teasers
Complete Set
- MotionProtect Outdoor motion detector
- SmartBracket mounting panel
- Two CR123A batteries (pre-installed)
- Installation kit
- User's guide
More info about MotionProtect Outdoor on Ajax website: https://ajax.systems/products/motionprotect-outdoor/
Download
Video
Tech specs
| Sensing element |
PIR sensor, 2 pcs |
| Detection angle, horizontal |
90° |
| Time for motion detection |
From 0.3 to 2 m/s |
| Motion detection distance |
Adjustable, 3–15 m when the detector is
installed at 1 m height |
| Protection against masking |
Yes |
| Pet ignoring function |
Yes, height up to 80 cm when the detector is installed at 1 m height
Why motion detectors react to animals and how to avoid it >
|
| Protection against false triggering |
Yes, algorithmic analysis |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility |
Operates only with all Ajax hubs, and radio signal range extenders
|
| Maximum radio signal power |
Up to 20 mW |
| Radio signal modulation |
GFSK |
| Radio signal range |
Up to 1,700 m (where there are no obstacles)
Learn more
|
| Power supply |
2 × CR123A, 3 V |
| Battery life |
Up to 5 years |
| External power |
5 – 28 V DC, 200 mA |
| Body protection level |
IP55 |
| Anti-tamper switch |
Yes |
| Installation method |
Outdoors/indoors |
| Operating temperature range |
From -25°С to +60°С |
| Operating humidity |
Up to 95% |
| Accessories |
Hood for MotionProtect Outdoor |
| Overall dimensions |
183 × 70 × 65 mm |
| Weight |
322 g |
| Service life |
10 years |
