Description

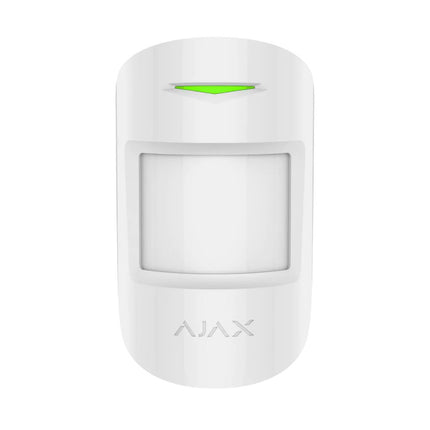

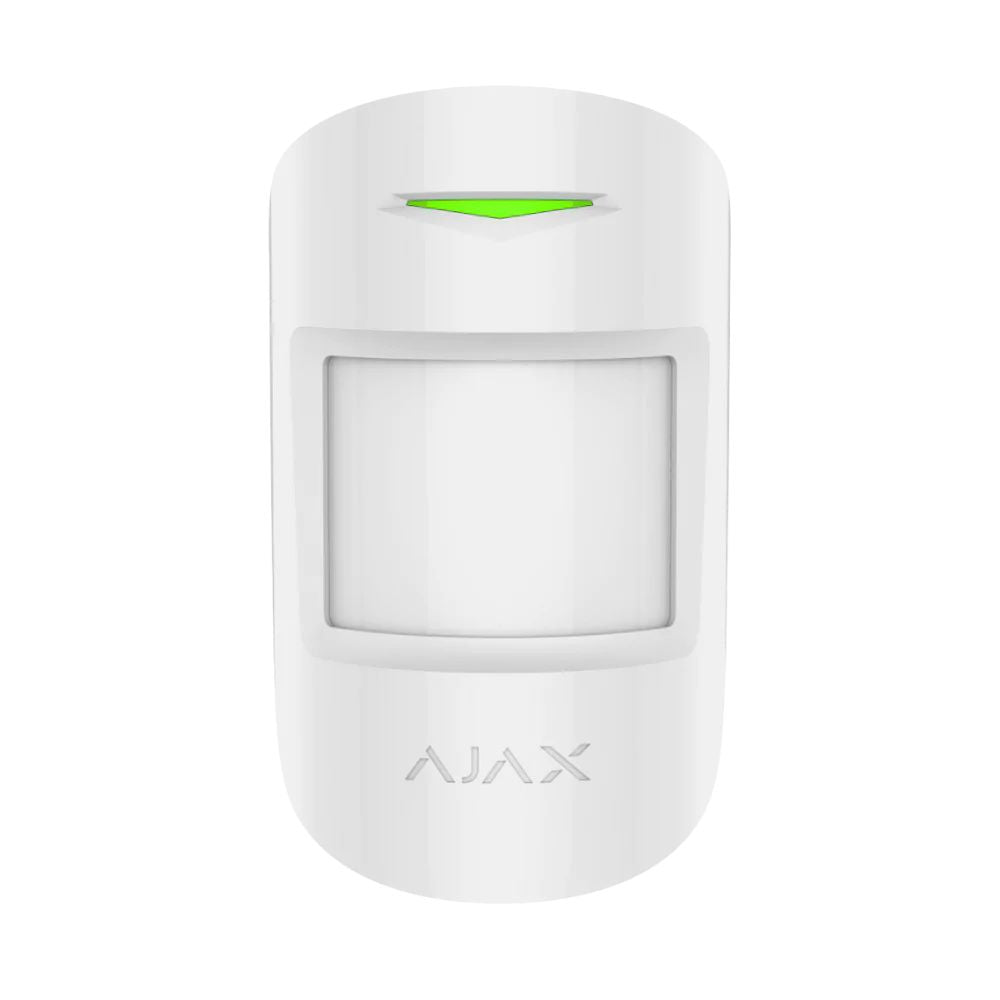

Motiion Protect Jeweller is a wireless indoor motion detector. It can operate for up to 5 years from a built-in battery, and monitors the area within a 12-meter radius. MotionProtect ignores animals, while recognizing a human from the first step.
MotionProtect operates within the Ajax security system, connected to the hub via the protected Jeweller protocol. The communication range is up to 1700 meters in the line of sight. In addition, the detector can be used as a part of third-party security central units via the uartBridge or ocBridge Plus integration modules.
The detector is set up via the Ajax app for iOS, Android, macOS and Windows. The system notifies users of all events through push notifications, SMS and calls (if activated).
Features
- Wireless motion detector that notifies the owner of the first signs of home or office intrusion.
- The device detects human presence by IR level using a passive IR sensor.
- The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather.
- Installation and set up
Complete Set
-
MotionProtect motion detector
-
SmartBracket mounting panel
-
CR123A battery (pre-installed)
-
Installation set
- User's guide
More info about MotionProtect on Ajax website: https://ajax.systems/products/motionprotect/
Download
Video
Tech specs
| Sensitive element |
PIR sensor |
| Motion detection distance |
Up to 12 m |
| Motion detector viewing angles (H/V) |
88,5° / 80° |
| Time for motion detection |
From 0.3 to 2 m/s |
| Pet immunity |
Yes, height up to 50 cm, weight up to 20 kg
Why motion detectors react to animals and how to avoid it >
|
| Tamper protection |
Yes |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale.
|
| Compatibility |
Operates with all Ajax hubs, radio signal range extenders, ocBridge Plus, uartBridge
|
| Maximum RF output power |
Up to 20 mW |
| Modulation of the radio signal |
GFSK |
| Radio signal range |
Up to 1700 m (any obstacles absent)
Learn more
|
| Power supply |
1 battery CR123A, 3 V |
| Battery life |
Up to 5 years |
| Installation method |
Indoors |
| Operating temperature range |
From -10°С to +40°С |
| Operating humidity |
Up to 75% |
| Overall dimensions |
110 × 65 × 50 mm |
| Weight |
86 g |
| Service life |
10 years |
| Certification |
Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-2-2, EN 50131-5-3 |
