Description

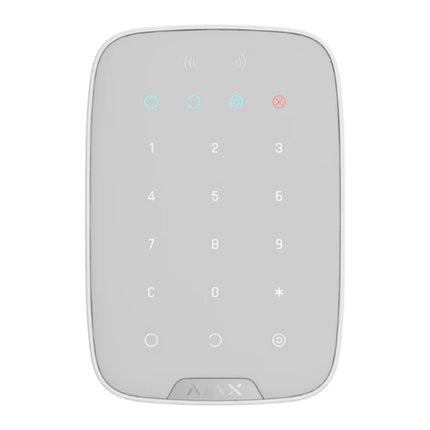

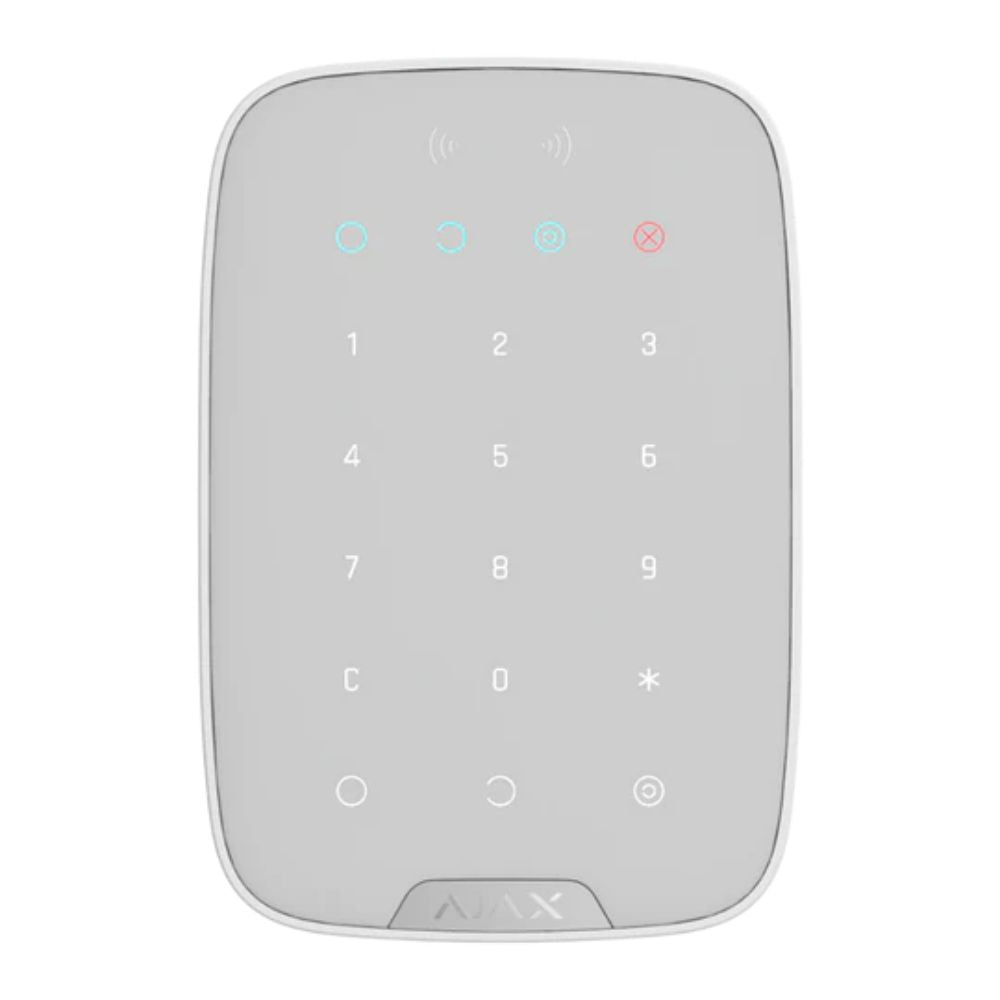

KeyPad Plus is a wireless touch keypad for managing the Ajax security system with encrypted contactless cards and key fobs. Designed for indoor installation. Supports “silent alarm” when entering the duress code.
Manages security modes using passwords and cards or key fobs. Indicates the current security mode with a LED light.
Features
- Contactless control without reliability compromises
- Top-tier data protection
- Outstanding autonomy
- Remote access control
- Adding users. Fast and easy
- Access for unregistered users
- Security mode indication
- Silent alarm transmission to a monitoring station
- Duress code allows you to simulate disarming via KeyPad Plus.
- Smart security management console
- Hassle-free installation
Complete Set
-
KeyPad Plus
-
SmartBracket mounting panel
- 4 × АА battery (pre-installed)
-
Installation kit
- Quick Start Guide
More info about KeyPad Plus on Ajax website: https://ajax.systems/products/keypad-plus/
Download
Video
Tech specs
| Compatibility |
Hub Plus
Hub 2
Hub 2 Plus
ReX
ReX 2 |
| Color |
Black
White |
| Installation |
Indoor only |
| Keypad type |
Touch-sensitive |
| Sensor type |
Capacitive |
| Contactless access |
DESFire EV1, EV2
ISO14443-А (13.56 MHz) |
| Tamper protection |
Yes |
| Code guessing protection |
Yes.
The keypad is locked for the time set in the settings if an incorrect code is entered three times
|
| Protection against attempts to use not bound to the system pass/tag |
Yes.
The keypad is locked for the time defined in the settings
|
| Radio communication protocol with hubs and range extenders |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Radio signal modulation |
GFSK |
| Maximum radio signal strength |
6.06 mW (limit up to 20 mW) |
| Radio signal range |
Up to 1,700 m (without obstacles)
Learn more
|
| Power supply |
4 lithium batteries AA (FR6)
Voltage 1.5V
|
| Battery life |
Up to 3.5 years (if pass/tag reading is enabled)
Up to 4.5 years (if pass/tag reading is disabled) |
| Operating temperature range |
From -10°C to +40°C |
| Operating humidity |
Up to 75% |
| Dimensions |
165 × 113 × 20 mm |
| Weight |
267 g |
| Service life |
10 years |
| Warranty |
24 months |
