Description

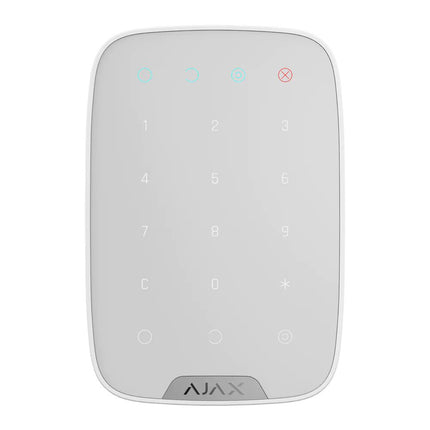

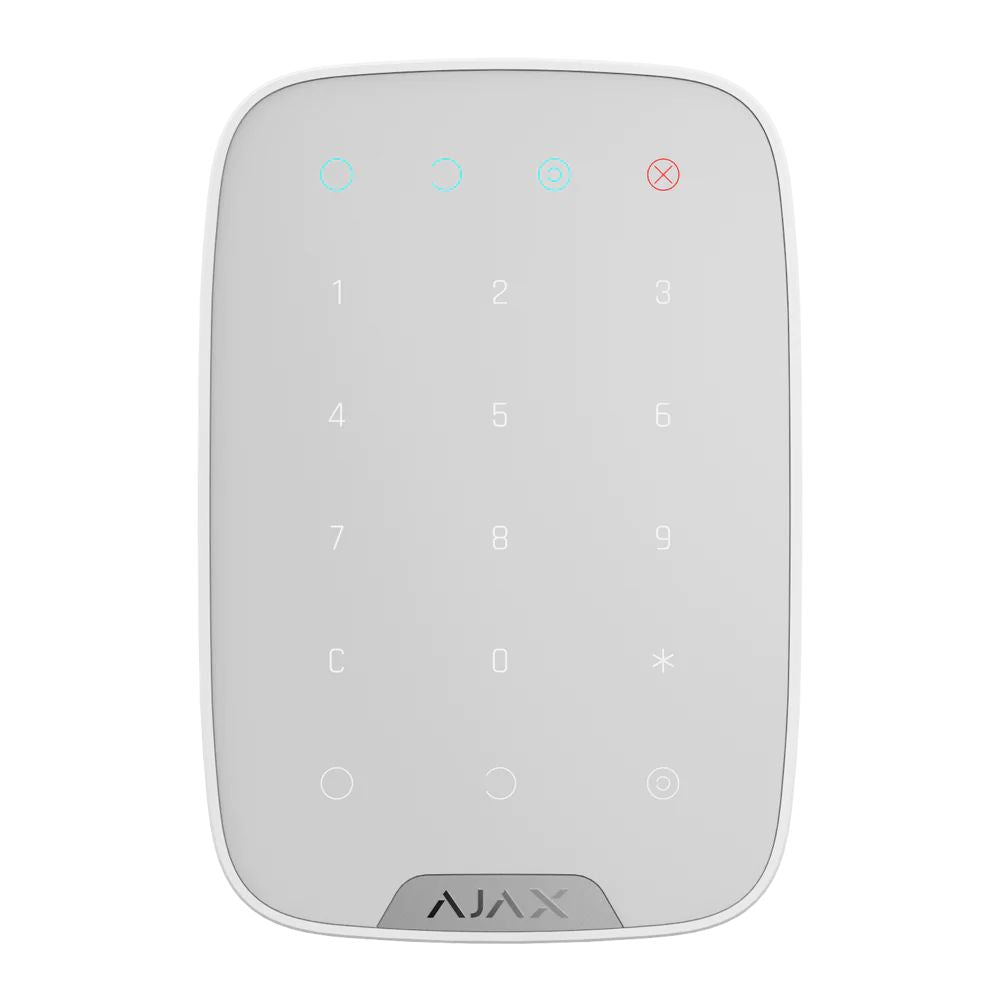

KeyPad is a wireless indoor touch-sensitive keyboard managing the Ajax security system. Designed for indoor use. With this device, the user can arm and disarm the system and see its security status. KeyPad is protected against attempts to guess the code and can raise a silent alarm when the code is entered under duress.
Connecting to the Ajax security system via a secured Jeweller radio protocol, KeyPad communicates with the hub at a distance of up to 1,700 m in line of sight.
Features
- The device activates the full security mode by pressing one button
- If the burglar forces the user to enter the code, a hidden alarm signal can be sent to the Central Monitoring Station
- The keypad is blocked automatically if the incorrect code is entered too many times
- Alarm button is available.
- Ready to operate straight out the box
Complete Set
- KeyPad
- SmartBracket mounting panel
- 4 × ААА battery (pre-installed)
- Installation kit
- Quick Start Guide
More info about KeyPad on Ajax website: https://ajax.systems/products/keypad/
Download
Video
Tech Spech
| Sensor type |
Capacitive |
| Anti-tamper switch |
Yes |
| Protection against guessing a code |
Yes |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility |
Operates only with all Ajax hubs, and radio signal range extenders
|
| Maximum RF output power |
Up to 20 mW |
| Modulation of the radio signal |
GFSK |
| Radio signal range |
Up to 1,700 m (if there are no obstacles)
Learn more
|
| Power supply |
4 × AAA batteries |
| Power supply voltage |
3 V (batteries are installed in pairs) |
| Battery life |
Up to 2 years |
| Installation method |
Indoors |
| Operating temperature range |
From -10°C to +40°C |
| Operating humidity |
Up to 75% |
| Overall dimensions |
150 × 103 × 14 mm |
| Weight |
197 g |
| Service life |
10 years |
| Certification |
Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-3, EN 50131-5-3 |
2 Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
