Description

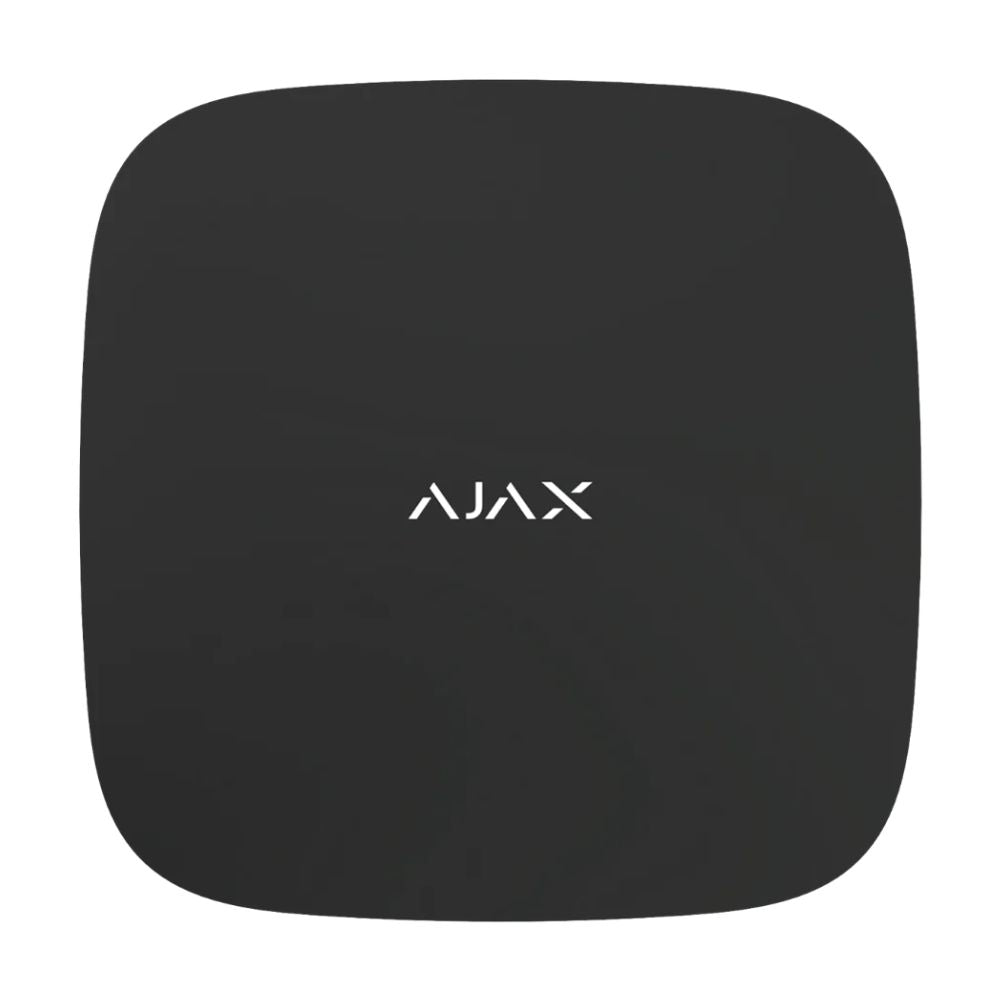

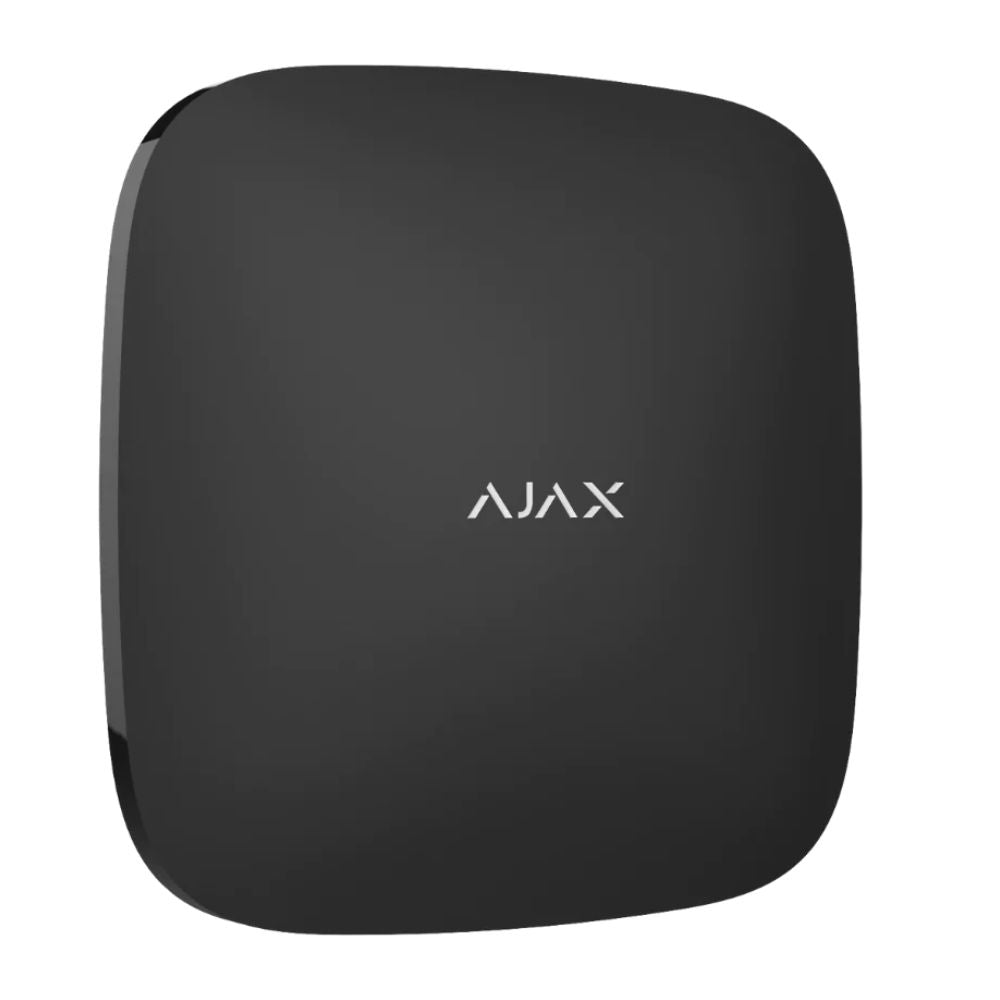

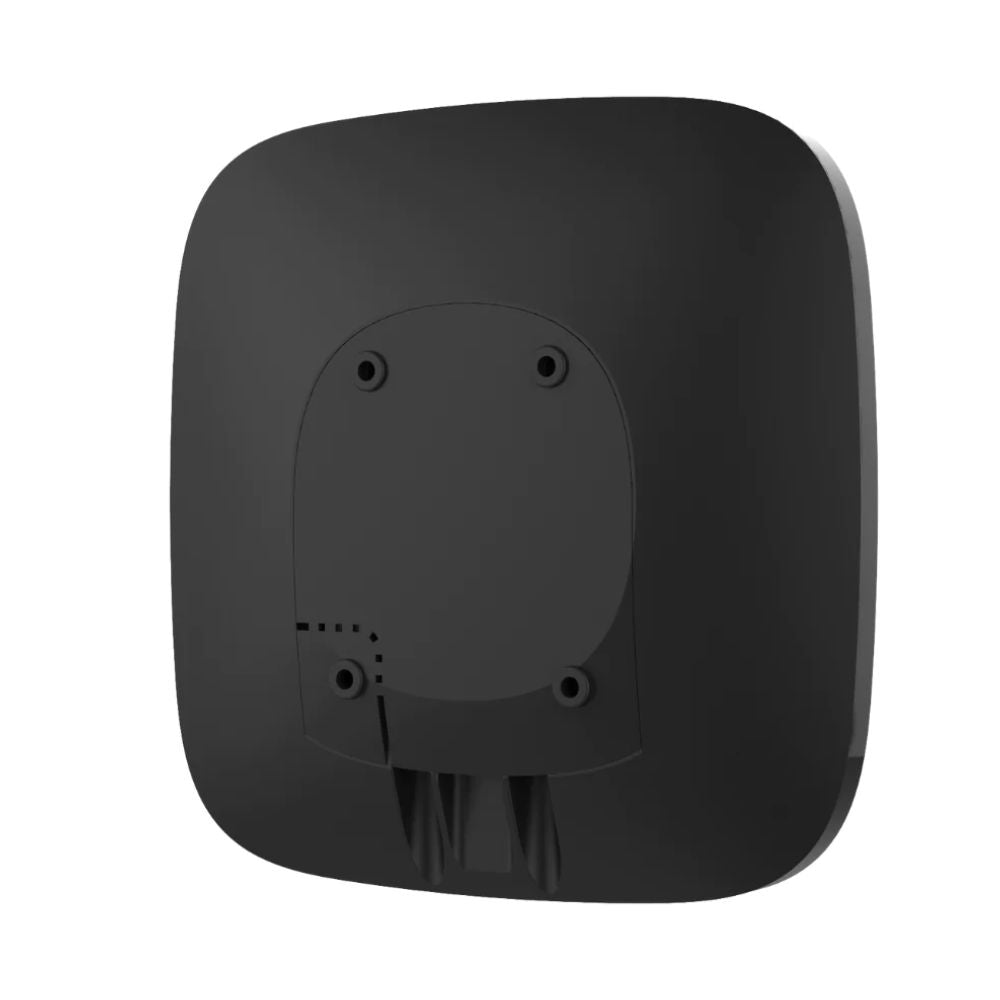

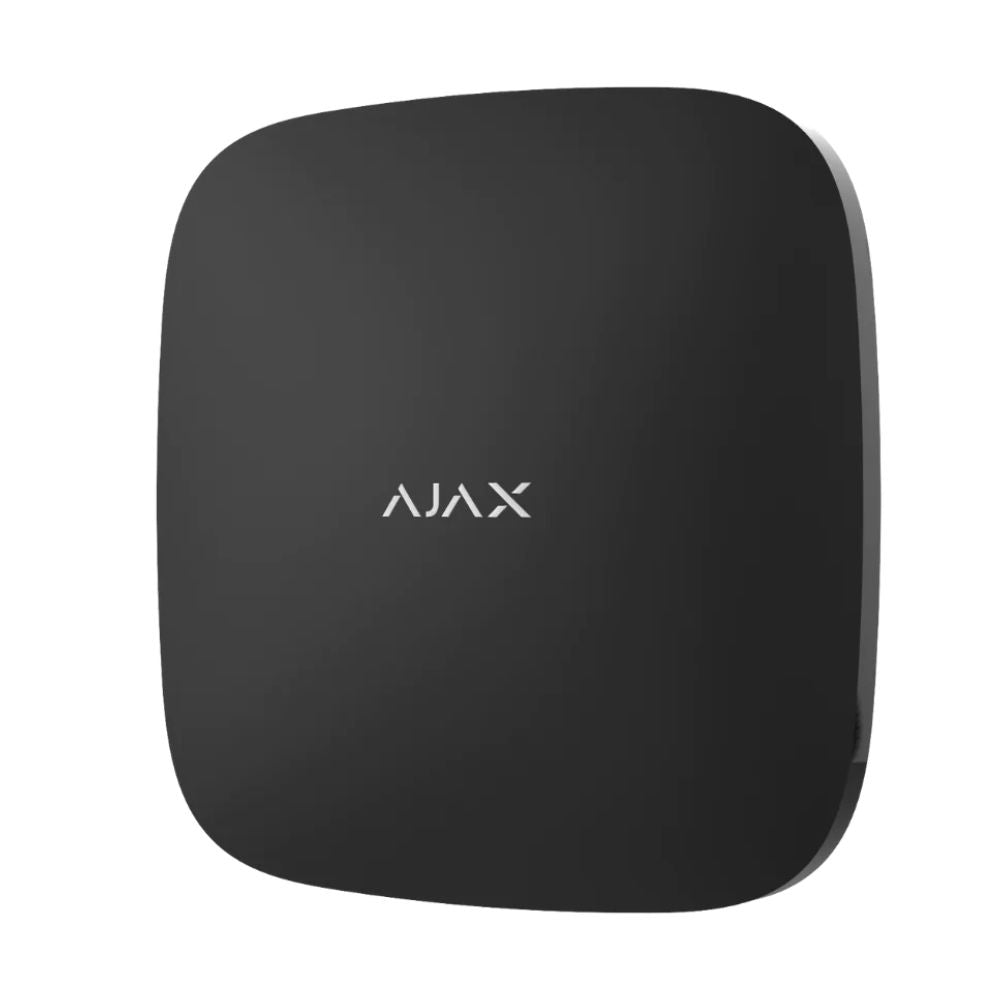

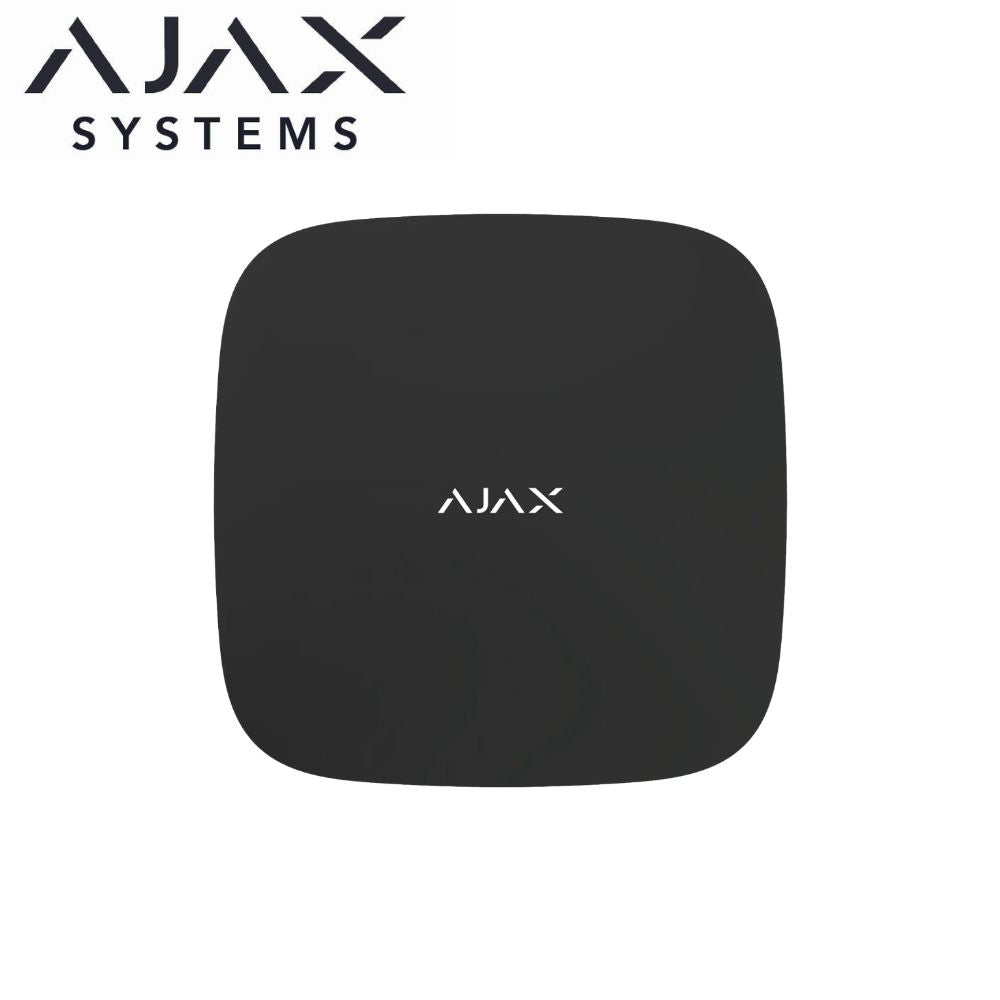

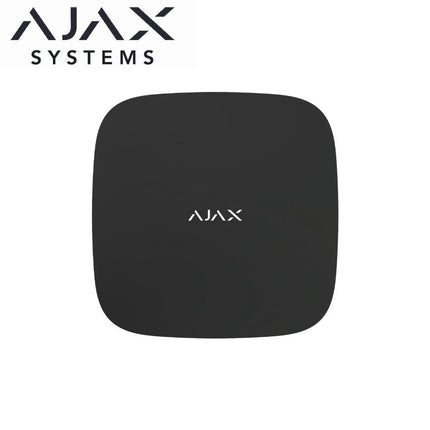

Hub 2 Plus is a central device in the Ajax security system, which controls the operation of all connected devices and interacts with the user and the security company.
The hub reports the opening of doors, breaking of windows, threat of fire or flood, and automates routine actions using scenarios. If outsiders enter the secure room, Hub 2 Plus will send photos from MotionCam / MotionCam Outdoor motion detectors and notify a security company patrol.
Features
- Always in touch — via cables, Wi-Fi, LTE
- Alarm verification with photo in 9 seconds
- Automated security
- Protection of large premises with complex internal organization
- Resistant to sabotage
- Future-proof
- Controlled with apps
- Installation without fuss
- Seamless security system upgrade
Complete Set
- Ajax Hub 2 Plus control panel
- SmartBracket mounting panel
- Power cable
- Ethernet cable
- Installation kit
- SIM card (depends on region)
- User’s guide
More info about Hub 2 Plus on Ajax website: https://ajax.systems/products/hub2-plus/
Download
Video
Tech Specs
| Classification |
Security system control panel with Ethernet, Wi-Fi, and dual SIM card support |
| Support of detectors with photo verification of alarms |
Available |
| Number of connected devices |
Up to 200 |
| Number of connected ReX |
Up to 5 |
| Number of connected sirens |
up to 10 |
| Number of security groups |
Up to 25 |
| Number of users |
Up to 200 |
| Video surveillance |
Up to 100 cameras or DVRs |
| Number of rooms |
Up to 50 |
| Number of scenarios |
Up to 64
Learn more
|
| Central Monitoring Station communication protocols |
SurGard (Contact ID)
SIA (DC-09)
ADEMCO 685
Other proprietary protocols
CMS software supporting visual alarms verification
List of supported protocols
|
| Power supply |
110-240 V~ AC with pre-installed battery
6 V⎓ DC with alternative 6V PSU power supply |
| Built-in back-up battery |
Li-Ion 3 Аh
Ensures up to 15 hours of operation when using SIM card only |
| Energy consumption from the grid |
Up to 10 W |
| Tamper proof |
Available, tamper |
| Radio communication protocols with Ajax detectors and devices |
Jeweller — for transmitting events and alarms.
Learn more
Wings — for transmitting photos.
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| RF output power |
10.4 mW (max 25 mW) |
| Radio signal range |
Up to 2000 m |
| Communication channels |
2 SIM cards
- 2G (GSM900/DCS1800 (B3/B8))
- 3G (WCDMA 850/900/2100 (B1/B5/B8))
- LTE (FDD B1/B3/B5/B7/B8/B20/B28)
Wi-Fi (802.11 b/g/n)
Ethernet
|
| Operating temperature range |
From –10°C to +40°C |
| Operating humidity |
Up to 75% |
| Size |
163 × 163 × 36 mm |
| Weight |
367 g |
| Service life |
10 years |
