Description

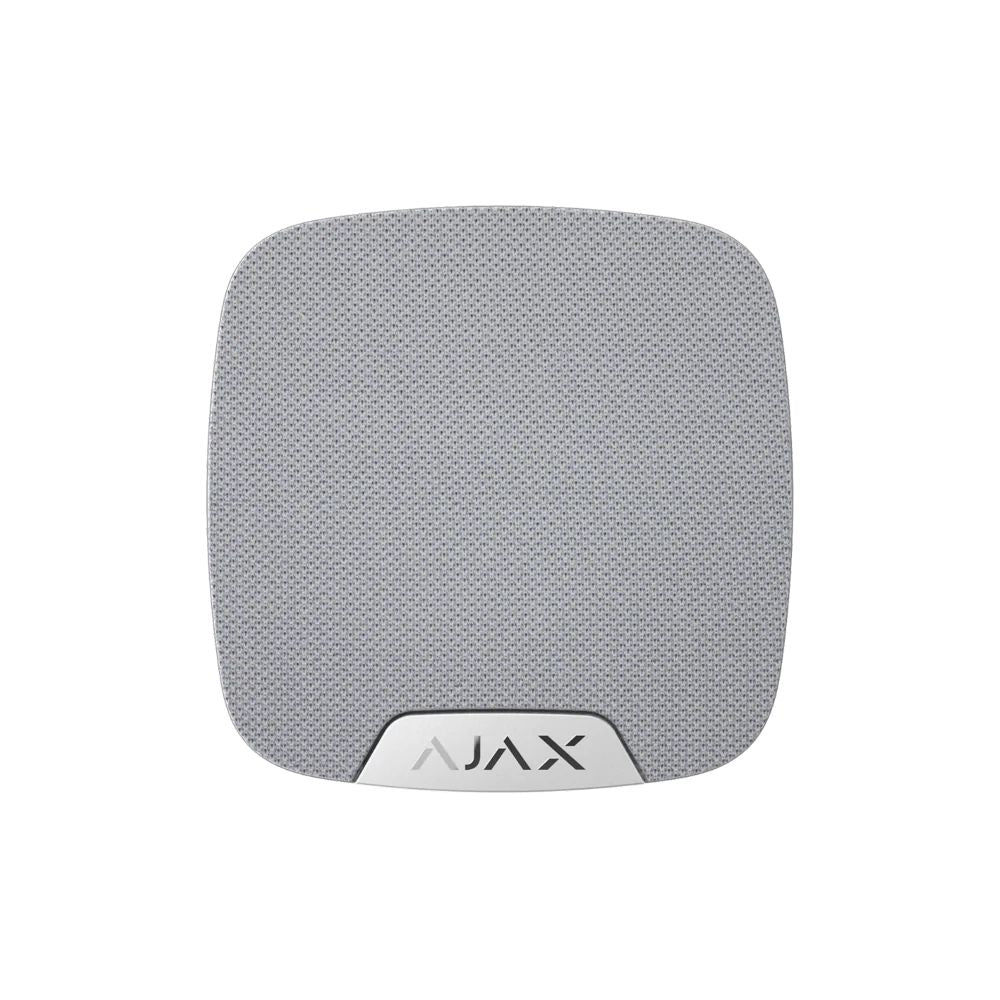

HomeSiren is a wireless home siren with the capacity up to 105 dB. Developed only for indoor use. It can be quickly installed and set up, is furnished with a LED (plus allows connecting an external LED), and can operate up to 5 years from a battery.
HomeSiren operates within the Ajax security system, by connecting via the protected Jeweller protocol to the hub. The communication range is up to 2,000 meters if there are no obstacles.
The siren is set up via a mobile application for iOS and Android-based smartphones. The user is notified of all events through push notifications, SMS messages and calls (if activated).
Features
- Wireless indoor siren that loudly notifies of an alarm during detector activation.
- The device notifies of detector activation with an audible alarm.
- Connector for external LED is available. It can be mounted outside your apartment or office to monitor the security system status.
- Installation and set up
Complete Set
- HomeSiren siren
- SmartBracket mounting panel
- Connector for LED indicator
- Two CR123A batteries (pre-installed)
- Installation set
- User's guide
More info about HomeSiren on Ajax website: https://ajax.systems/products/homesiren/
Download
Video
Tech specs
| Type of notification |
Acoustic and LED |
| Sound notification volume |
81 – 105 dB at a distance of 1 m (adjustable) |
| Operating frequency of the buzzer |
3.4 ± 0.5 kHz |
| Tamper protection |
Yes |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility |
Operates only with all Ajax hubs, and radio signal range extenders |
Maximum RF output power |
Up to 25 mW |
Radio signal modulation |
GFSK |
Radio signal range |
Up to 2,000 m (any obstacles absent) |
Battery supply |
2 × CR123A, 3 V |
Battery life |
Up to 5 years |
Socket for connecting
an external light indicator |
Yes (power supply 3 V, 10 mA) |
| Body protection level |
IP50 |
| Installation method |
Indoors |
Operating temperature range |
From -10°С to +40°С |
Operating humidity |
Up to 75% |
Overall dimensions |
75 × 76 × 27 mm |
Weight |
97 g |
Service life |
10 years |
| Certification |
Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-4, EN 50131-5-3 |
2 Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
