Description

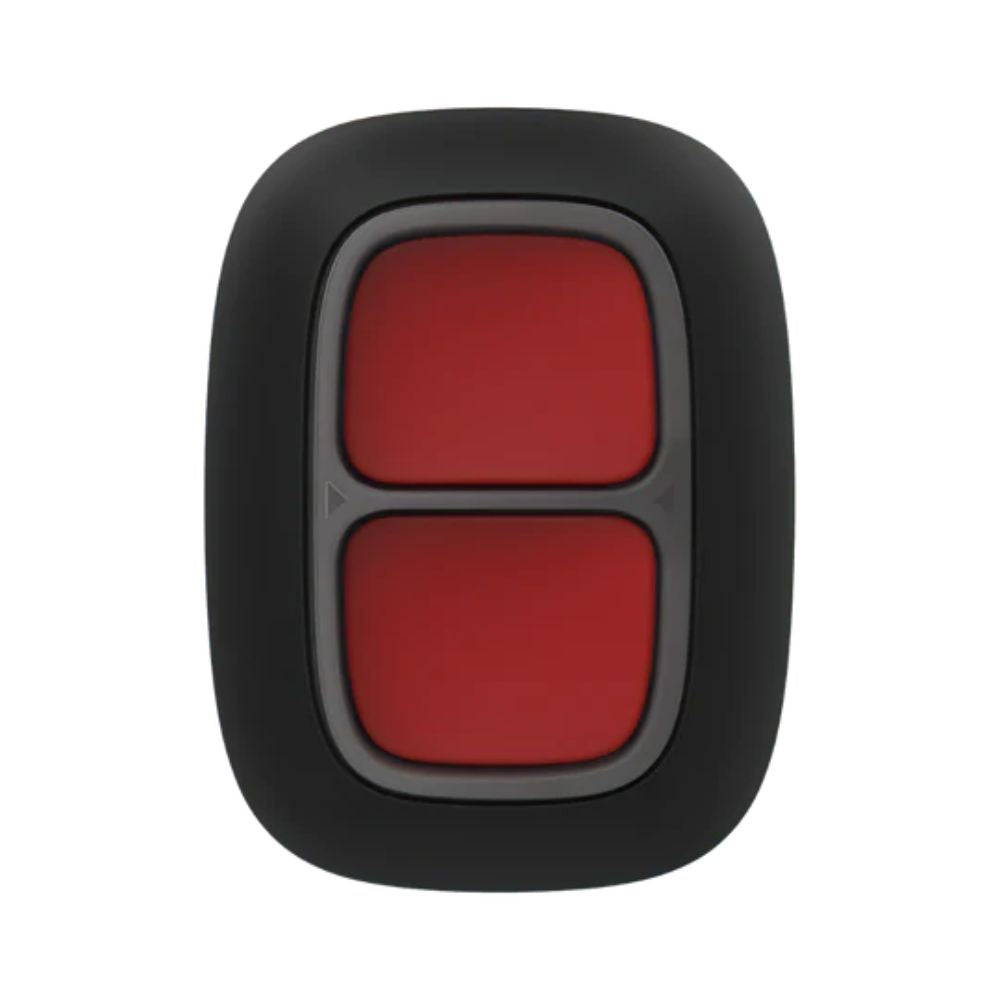

DoubleButton is a wireless hold-up device with advanced protection against accidental presses. The device communicates with a hub via the encrypted Jeweller radio protocol and compatible only with Ajax security systems. The line-of-sight communication range is up to 1300 meters. DoubleButton operates from the pre-installed battery up to 5 years.
DoubleButton is connected and configured via Ajax apps on iOS, Android, macOS, and Windows. Push notifications, SMS, and calls can notify about alarms and events.
Features
- No accidental presses
- No unnecessary dispatches
- PRO-technology solution for any object
- Truly effortless maintenance
- Connecting without puzzles
Complete Set
-
DoubleButton
-
Pre-installed CR2032 battery
- Quick Start Guide
More info about DoubleButton (Black) Plus on Ajax website: https://ajax.systems/products/doublebutton/
Download
Video
Tech specs
| Number of buttons |
2 |
| LED indicating command delivery |
Available |
| Protection against accidental press |
- To raise an alarm, press 2 buttons simultaneously
- Protective plastic divider
|
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility |
Operates only with Ajax hubs and radio signal range extenders on OS Malevich 2.10 and higher |
| Maximum radio signal power |
Up to 20 mW |
| Radio signal modulation |
GFSK |
| Radio signal range |
Up to 1,300 m (line-of-sight) |
| Power supply |
1 CR2032 battery, 3 V |
| Battery life |
Up to 5 years (depending on the frequency of use) |
| Protection class |
IP55 |
| Operating temperature range |
From −10°С to +40°С |
| Operating humidity |
Up to 75% |
| Dimensions |
47 × 35 × 16 mm |
| Weight |
17 g |
| Service life |
10 years |
2 Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
