Description

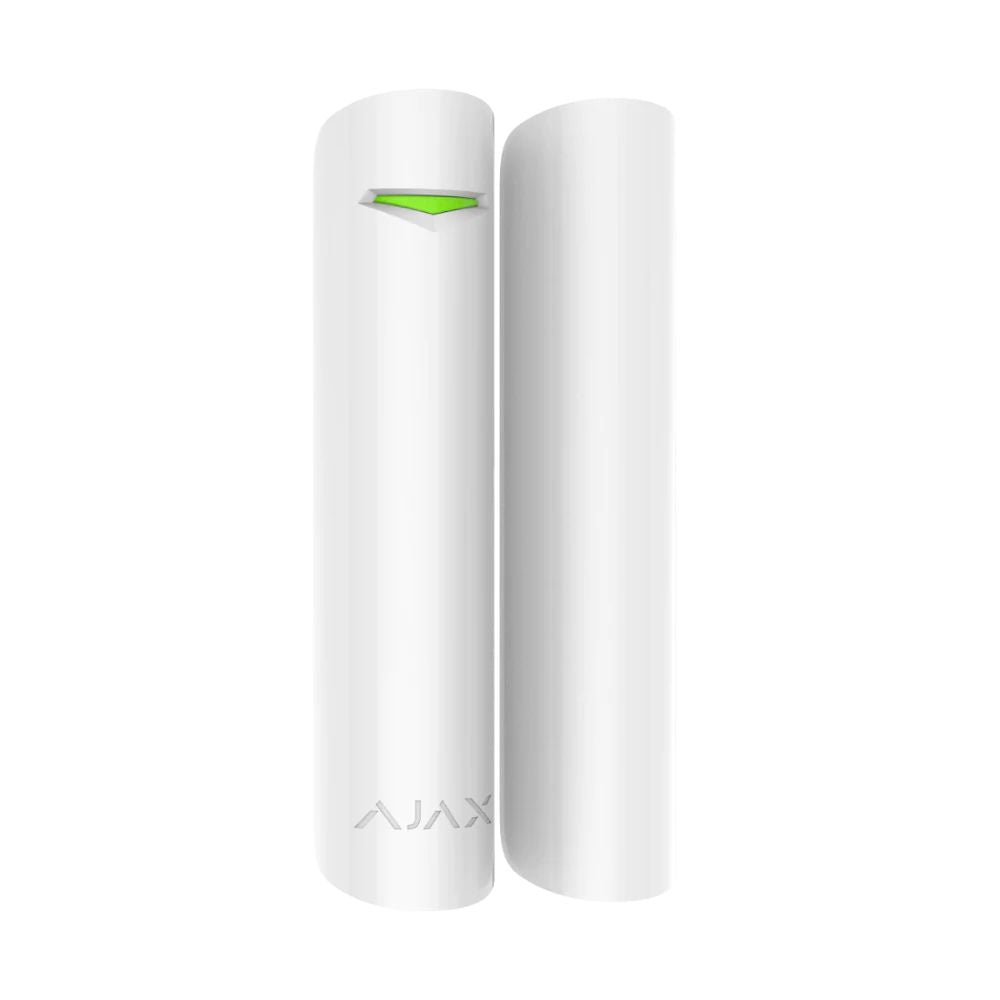

DoorProtect Plus Jeweller is a wireless opening, shock, and tilt detector. Supports connection of a third-party wired detector with a normally closed (NC) contact type. For indoor installation.
Features
- Authentication to prevent forgery
- Jamming detection and communication channels encryption
- Tampering alarm
- Operates up to 5 years without battery replacement
- Registers change in vertical slope angle, bangs and vibration
- External contact is available for connecting third-party detectors
Complete Set
- DoorProtect Plus Jeweller
- SmartBracket mounting panel
- CR123A battery (pre-installed)
- Big magnet
- Small magnet
- Terminal to connect a third-party detector
- Installation kit
- Quick Start Guide
More info about DoorProtect Plus on Ajax website: https://ajax.systems/products/doorprotectplus
Download
Video
Tech Specs
DoorProtect Plus
Compatibility |
Hubs
Compatible range extenders
|
Communication |
Proprietary wireless technology to transmit alarms and events.
Features:
- Two-way communication.
- Advanced anti-sabotage.
- Block encryption featuring a dynamic key.
- Instant notifications.
- Remote configuration via the Ajax apps.
Radio frequency bands
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region.
Maximum effective radiated power (ERP)
up to 20 mW
Radio signal modulation
GFSK
Radio communication range
up to 1,200 m
Between the detector and a hub (or radio signal range extender) in an open space.
Encrypted communication
All the data stored and transmitted are protected by block encryption with a dynamic key.
Frequency hopping
To prevent radio interference and radio signal interception.
|
Detection |
Sensitive elements
1 × accelerometer
1 × reed switch
The magnet should be installed to the right of the detector.
Maximum number of openings
up to 2,000,000
For each reed switch.
Additional detector connection
Third-party wired detector with the NC (normally closed) contact type.
Shock sensitivity
3 levels
Adjusted by a PRO or user with admin rights in the Ajax app.
Option to ignore single shock
Adjusted by a PRO or user with admin rights in the Ajax app.
Tilt sensor activation threshold
from 5° to 25°
Adjusted by a PRO or user with admin rights in the Ajax app.
|
Recommendations |
The magnet is mounted to the right of the detector. It can be placed horizontally. Do not install the detector with the LED indicator facing down, as this may cause it to fall and fail due to damage. Device is designed for indoor use only. |
Anti-sabotage protection |
Tamper alarm
Notifications of attempts to tear off the detector from the surface or remove it from the mounting panel.
Protection against spoofing
Device authentication
|
Power supply |
1 × CR123A battery
Up to 5 years of battery life.
|
Enclosure |
Dimensions
20 × 90 mm
Weight
29 g
Operating temperature range
from −10°C to +40°C
Operating humidity
up to 75%
Protection class
IP50
|
Colours |
  |
Complete set |
DoorProtect Plus Jeweller
SmartBracket mounting panel
CR123A battery (pre-installed)
Big magnet
Small magnet
Terminal to connect a third-party detector
Installation kit
Quick Start Guide |
|
