Description

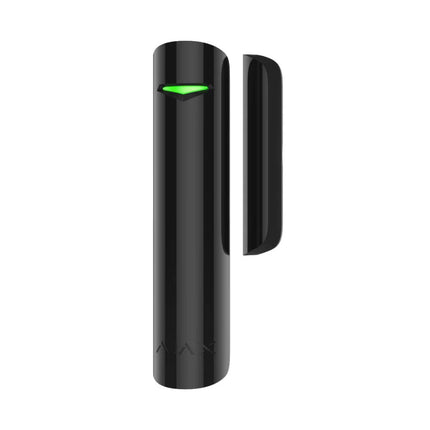

DoorProtect is a wireless door and window opening detector designed for indoor use. It can operate up to 7 years from a pre-installed battery and capable to detect more than 2 millions openings. DoorProtect has a socket for connecting an external detector.
Features
- Operates up to 7 years without battery replacement
- External contact is available for connecting third-party detectors
- Includes magnets of various sizes for installation on narrow frames and door frames
- The device detects the door or window being opened
- The device consists of two modules — detector and magnet
- Ready to operate straight out the box
Complete Set
- DoorProtect opening detector
- SmartBracket mounting panel
- Two magnets
- CR123A battery (pre-installed)
- External contact
- Installation set
- User's guide
More info about DoorProtect (Black) on Ajax website: https://ajax.systems/products/doorprotect/
Download
Video
Tech specs
| Sensor |
Sealed contact reed relay |
| Sensor resource |
2,000,000 openings |
| Detector actuation threshold |
1 cm (small magnet)
2 cm (big magnet)
|
| Tamper protection |
Yes |
| Socket for connecting wire detectors |
Yes, NC |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the sales region. |
| Compatibility |
Operates with all Ajax hubs, radio signal range extenders, ocBridge Plus, uartBridge
|
| Maximum RF output power |
Up to 20 mW |
| Modulation |
GFSK |
| Radio signal range |
Up to 1,200 m (in an open space)
Learn more
|
| Power supply |
1 battery CR123A, 3 V |
| Battery life |
Up to 7 years |
| Installation method |
Indoors |
| Protection class |
IP50 |
| Operating temperature range |
From -10°С to +40°С |
| Operating humidity |
Up to 75% |
| Dimensions |
Ø 20 × 90 mm |
| Weight |
29 g |
| Service life |
10 years |
| Certification |
Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-2-6, EN 50131-5-3 |
2 Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
