Description

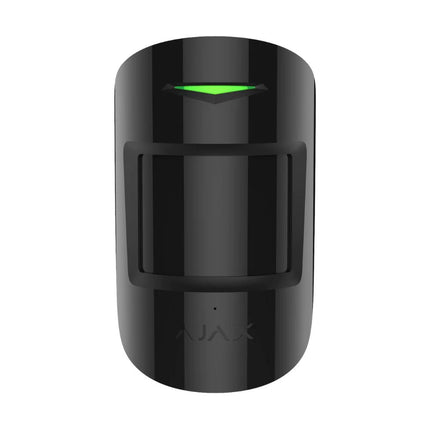

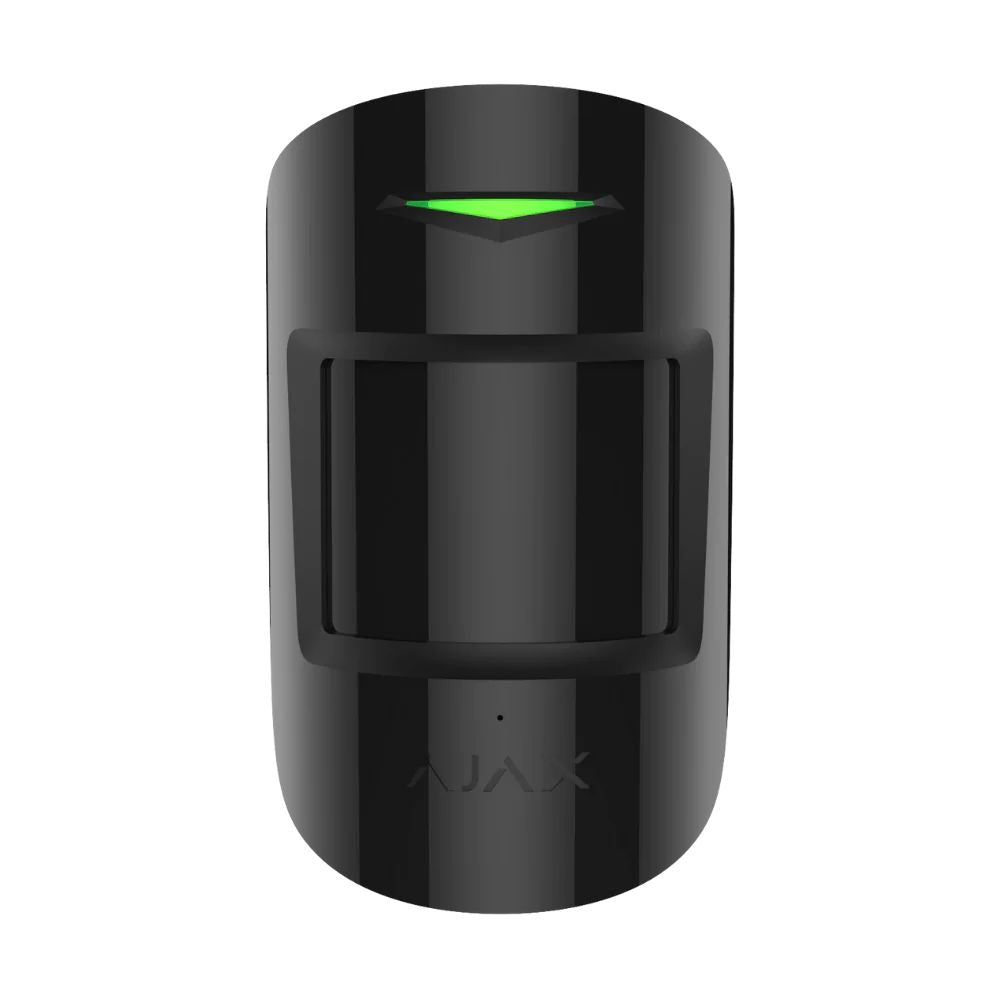

CombiProtect is a device combining a wireless motion detector with the viewing angle of 88.5° and distance up to 12 meters, as well as a glass break detector with the distance up to 9 meters. It can ignore animals and detects a person within the protected zone from the first step. It can operate for up to 5 years from a pre-installed battery and is used inside premises.
CombiProtect operates within the Ajax security system, connected to the hub via the protected Jeweller protocol. The communication range is up to 1200 meters in the line of sight. In addition, the detector can be used as a part of third-party security central units via the Ajax uartBridge or Ajax ocBridge Plus integration modules.
The detector is set up via a mobile application for iOS and Android based smartphones. The system notifies user of all events through push notifications, SMS messages and calls (if activated).
The Ajax security system is self-sustaining, but the user can connect it to the central monitoring station of a private security company.
Features
- The device detects motion even in hot climates by means of temperature compensation.
- CombiProtect
- Principle of operation
- Installation and set up
Complete Set
- CombiProtect combined motion and glass break detector
- SmartBracket mounting panel
- CR123A battery (pre-installed)
- Installation set
- User's guide
More info about CombiProtect (Black) on Ajax website: https://ajax.systems/products/combiprotect/
Download
Video
Tech specs
| Sensitive element |
PIR sensor (motion)
electret microphone (glass break) |
| Motion detection distance |
Up to 12 m |
| Motion detector viewing angles (H/V) |
88.5° / 80° |
| Time for motion detection |
From 0.3 to 2 m/s |
| Pet immunity |
Yes, weight up to 20 kg, height up to 50 cm
Why motion detectors react to animals and how to avoid it >
|
| Glass break detection distance |
Up to 9 m |
| Microphone coverage angle |
180° |
| Tamper protection |
Yes |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility |
Operates with all Ajax hubs, radio signal range extenders, ocBridge Plus, uartBridge
|
| Maximum RF output power |
Up to 20 mW |
| Radio signal modulation |
GFSK |
| Radio signal range |
Up to 1,200 m (any obstacles absent)
Learn more
|
| Power supply |
1 battery CR123A, 3 V |
| Вattery life |
Up to 5 years |
| Installation method |
Indoors |
| Operating temperature range |
From -10°С to +40°С |
| Operating humidity |
Up to 75% |
| Overall dimensions |
110 × 65 × 50 mm |
| Weight |
92 g |
| Service life |
10 years |
| Certification |
Security Grade 2, Environmental Class II in conformity with the requirements of EN 50131-1, EN 50131-2-7-1, EN 50131-2-2, EN 50131-5-3 |
2 Years Warranty
Ajax’s 2-year manufacturer warranty covers defects in materials or errors in the manufacturing process that may occur within 24 months from the date of sale. The warranty does not cover normal wear and tear (device body scrapes, scratches, etc.), wear of the elements caused by improper operation, and normal wear of the device components, mechanical and/or electrical damage (including latent), exposure to direct sunlight, high humidity, and vibration or damage caused by natural disasters.
The warranty does not cover damage to the product resulting from unauthorised repair, installation, and/or replacement of components or programs, including the installation of updates and extensions, performed by anyone other than an authorised representative of the Limited Liability Company “Ajax Systems Manufacturing”.
If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
