Description

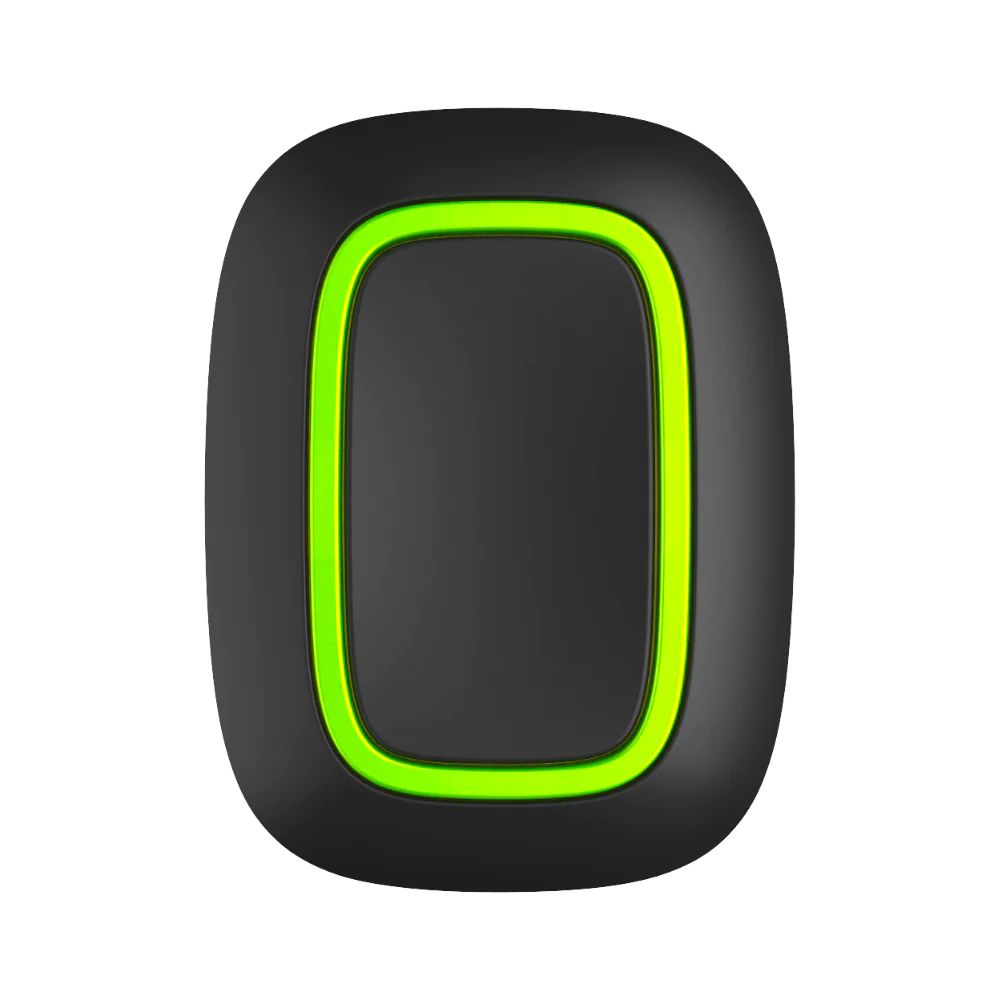

Button is a wireless panic button with protection against accidental press and additional mode to control automation devices. Button is connected to the security system and configured via Ajax apps on iOS, Android, macOS, and Windows. The users are alerted of all alarms and events via push notifications, SMS, and phone calls (if enabled).
Features
- Data-rich alarms. Lightning-fast commands
- Panic mode
- Raise an alarm
- Medical alert button
- Control mode
- Automate routine actions
- Without false alarms
- Guarantees alarm delivery
- Jeweller radio protocol on a distance of up to 1300 m.
- Seamless installation
Complete Set
- Button
- CR2032 battery (pre-installed)
- Double-sided tape
- Quick Start Guide
More info about Button (Black) on Ajax website: https://ajax.systems/products/button/
Download
Video
Tech specs
| Number of buttons |
1 |
| LED backlight indicating command delivery |
Available |
| Protection against accidental activation |
Available, in panic mode |
| Radio communication protocol |
Jeweller
Learn more
|
| Radio frequency band |
866.0 – 866.5 MHz
868.0 – 868.6 MHz
868.7 – 869.2 MHz
905.0 – 926.5 MHz
915.85 – 926.5 MHz
921.0 – 922.0 MHz
Depends on the region of sale. |
| Compatibility |
Operates with all Ajax hubs, and radio signal range extenders featuring OS Malevich 2.7.102 and later |
| Maximum radio signal power |
Up to 20 mW |
| Radio signal modulation |
GFSK |
| Radio signal range |
Up to 1,300 m (without obstacles) |
| Power supply |
1 CR2032 battery, 3 V |
| Battery life |
Up to 5 years (depending on frequency of use) |
| Protection class |
IP55 |
| Operating temperature range |
From -10°С to +40°С |
| Operating humidity |
Up to 75% |
| Dimensions |
47 × 35 × 13 mm |
| Weight |
16 g |
| Service life |
10 years |
