| Specifications |
|---|
| Model |

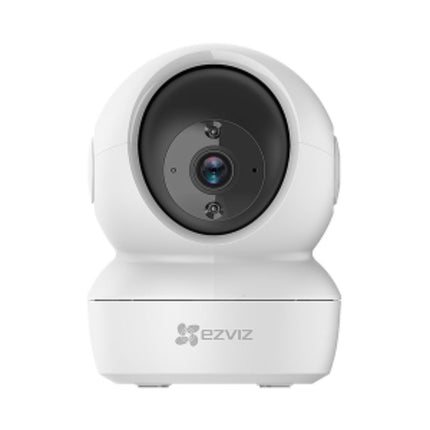

CS-C6N-D0-8B4WF |
| Camera |
|---|
| Image sensor |
F2.2@1/3" Progressive Scan CMOS |
| Shutter Speed |
Self-adaptive shutter |
| Lens |
4mm, view angle: 88°(Diagonal), 75° (Horizontal), 41°(Vertical) |
| Lens Mount |
M12 |
| Day & Night |
IR-cut filter with auto-switching |
| DNR |
3D DNR |
| WDR |
Digital WDR |
| Compression |
|---|
| Video Compression |
H.265 / H.264 |
| Video Bit Rate |
Adaptive bit rate. |
| image |
|---|
| Max. Resolution |
2560 × 1440 |
| Frame Rate |
Max. 20 fps; Self-Adaptive during network transmission |
| Network |
|---|
| Smart Alarm |
Motion detection |
| Wi-Fi Pairing |
AP pairing |
| Protocol |
EZVIZ cloud proprietary protocol |
| Interface Protocol |
EZVIZ cloud proprietary protocol |
| Interface |
|---|
| Storage |
Micro SD card slot (Max. 256G) |
| Power |
Micro USB |
| Wired Network |
RJ45 × 1 (10M/100M self-adaptive Ethernet port) |
| Wi-Fi |
|---|
| Standard |
IEEE802.11b, 802.11g, 802.11n |
| Frequency Range |
2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth |
Supports 20MHz |
| Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| Transmission Rate |
11b: 11Mbps, 11g :54Mbps, 11n :72Mbps |
| Output Power(EIRP) |
19 dBm |
| Antenna Gain |
1.9 dBi |
| General |
|---|
| Operating Conditions |
-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
| Power Supply |
DC 5V/2A |
| Power Consumption |
Max. 5W |
| IR Range |
Max. 10 m (32.81 ft) |
| Dimensions |
88 × 88.2 × 119 mm (3.46 × 3.47 × 4.69 inch) |
| Packaging Dimensions |
103 × 103 × 186 mm (4.06 × 4.06 × 7.30 inch) |
| Bare Weight |
252g (8.89 oz) |
| In the box: |
|---|
| In the box: |
- C6N Camera |
| - Base |
| - Screw Kit |
| - Power Cable 3m (9.8 ft.) |
| - Drill Template |
| - Power Adapter |
| - Quick Start Guide |
| - Regulatory Information |
| Certifications: |
|---|
| Certifications: |
FCC / UL / CE / WEEE / REACH / ROHS |
