| Alarm Interface |
N/A |
| Audio Interface |
1 Input, 1 Output (RCA) |
| Bit Rate |
H.265: 12K~6400Kbps/ H.264: 32K~8192Kbps |
| Bit Rate Control |
Constant bit rate (CBR) / Variable bit rate (VBR) |
| Camera Type |
Pinhole |
| Day/Night |
Auto (Electronic) / Colour / B&W |
| Detect (25px/m) |
42m |

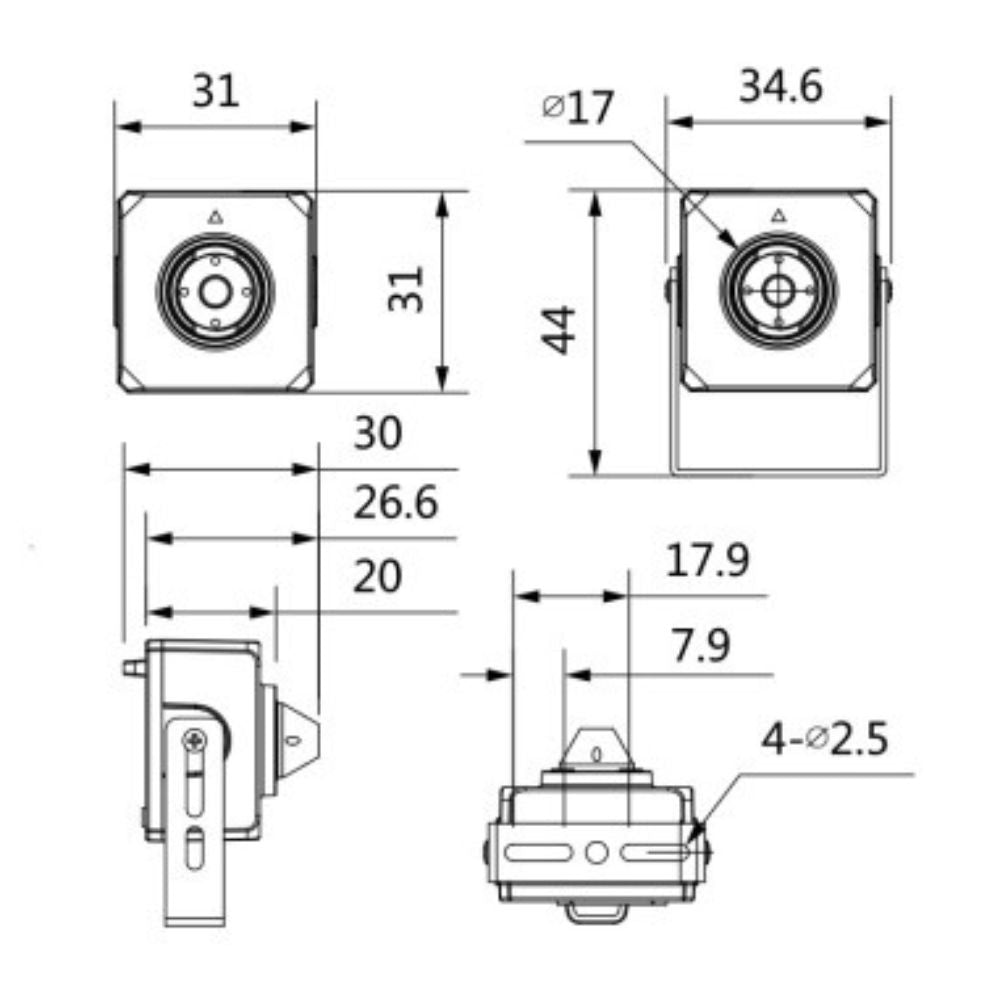

| Dimensions |
35mm x 44mm x 30mm |
| Edge Storage |
NAS / Local PC |
| Effective Pixels |
1920 (H) x 1080 (V) |
| ePoE |
No |
| Ethernet |
RJ45 (10/100 Base-T) |
| Field of View |
Horizontal: 108°, Vertical: 59° |
| Focus |
Fixed / 0.6m Min. Focus Distance |
| Frame Rate (Main) |
1080p (1 ~ 25fps) |
| Frame Rate (Sub) |
D1 (1 ~ 25fps) |
| Frame Rate (Third) |
N/A |
| Gain Control |
Auto / Manual |
| Housing |
Metal |
| Identify (250px/m) |
4m |
| Image Sensor |
1/2.7” 2.0 Megapixel Progressive Scan CMOS |
| Infrared |
No |
| Infrared System |
N/A |
| Ingress Protection |
N/A |
| Intelligent Functions |
Tripwire, Intrusion, Motion Detection (4 Zone), Region of Interest (4 Zone), Privacy Masking (4 Zone) |
| Interoperability |
ONVIF Profile S / API |
| IVS |
Yes |
| Lens / Iris |
2.8mm F2.0 Fixed lens |
| Lens Type |
Fixed |
| Lighting Compensation |
BLC / HLC / WDR (120dB) |
| Max. Resolution |
2.0 Megapixel |
| Max. User Access |
10/20 Users |
| Min Illumination |
Colour: F2.0 0.005lx (1/3s) |
| Net Weight |
0.10kg |
| Noise Reduction |
3D DNR |
| Observe (63px/m) |
17m |
| Operating Conditions |
-30° ~ +60° C / Less than 95% RH |
| Pan/Tilt/Rotation |
N/A |
| Picture Control |
N/A |
| Power Consumption |
<1.5W |
| Power Supply |
12VDC / Non POE |
| Protocol |
IPv4/IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour |
| RAM / ROM |
128MB / 128MB |
| Recognise (125px/m) |
8m |
| Resolution |
1080p (1920 x 1080) to CIF (352 x 288) |
| RS232 |
N/A |
| RS485 |
N/A |
| RTMP Support |
No |
| S/N Ratio |
> 56dB |
| Series |
Pinhole Series |
| Smart Scene Adaptive (SSA) |
N/A |
| Streaming Method |
Unicast / Multicast |
| Tri-Axis Mounting |
No |
| Ultra Low Light Colour |
Yes |
| Vandal Resistance |
N/A |
| Video Compression |
H.265 / H.264 / MJPEG (sub stream) |
| Video Interface |
N/A |
| Weather Resistance |
No |
| White Balance |
Auto / Natural / Street Lamp / Outdoor / Manual |
