Description
The LOX EM3500D Series product line is a comprehensive Electro Magnetic Lock range with up to 280kg holding force. It is one of the most reliable and most successful Electro Magnetic Locks in the Australian market.
EM3500D Facts
- Door and Lock Status monitoring Sensor (DSS & LSS with monitored models)
- Built-in varistor (MOV) surge protection
- CE/RCM Approvals
- Anti Tamper Mounting Plate (with “M” models)
- High visibility red/green Status Light Panel
- Lifetime warranty
- Up to 4 hour fire rated to AS Standard
- No residual magnetism
Datasheet

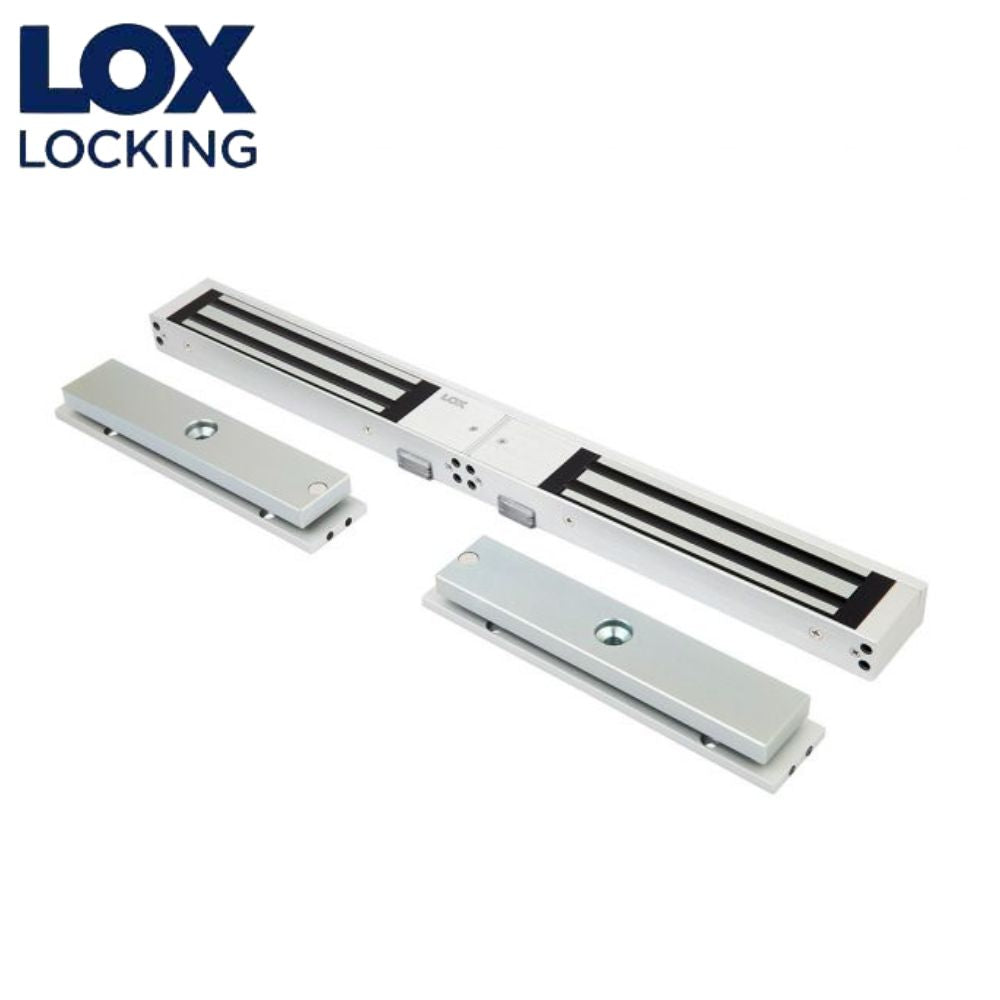

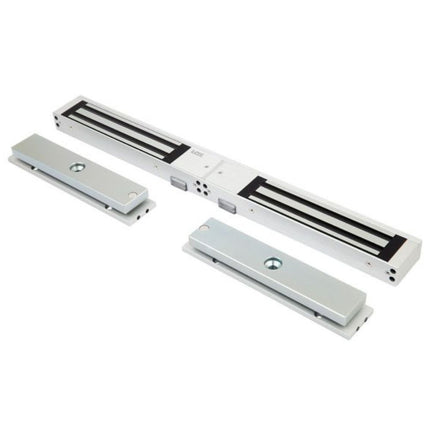

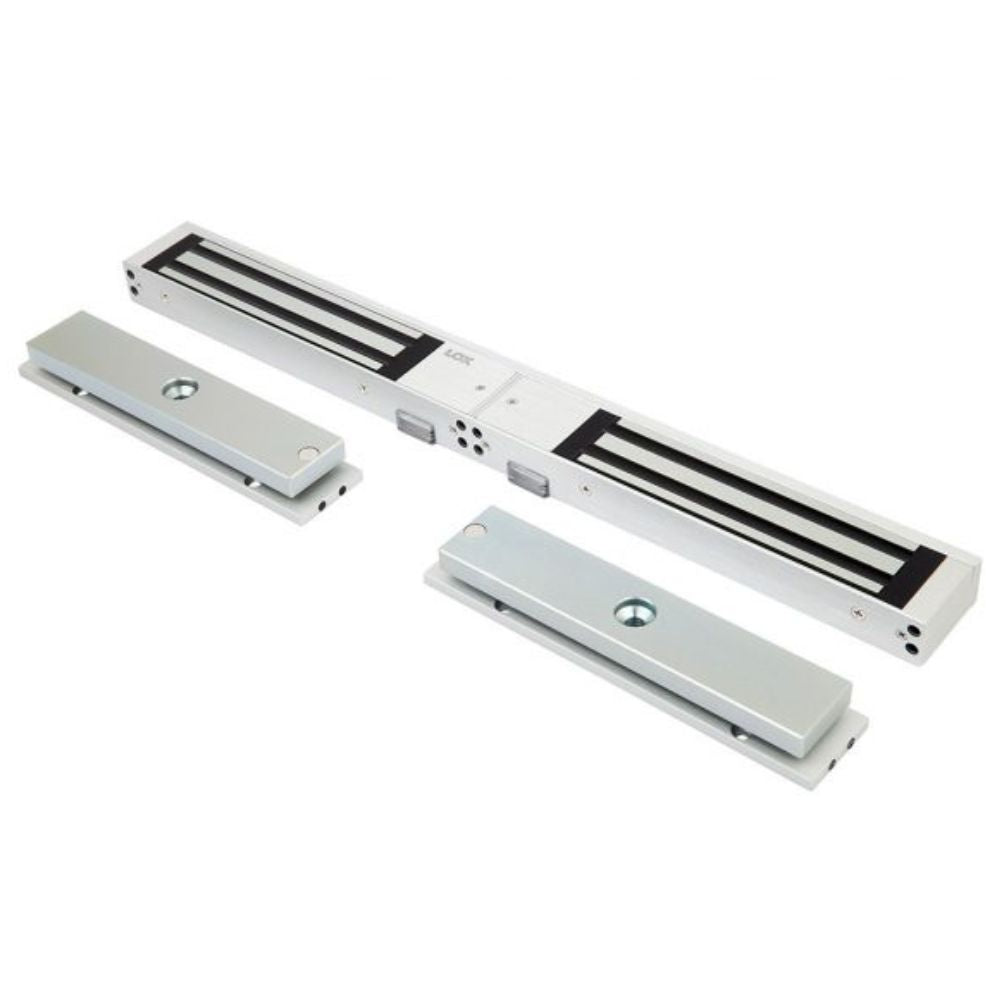

LOX Double Electro Magnetic Lock Non Monitored - EM3500D
Tech Specs
| EM3500D |
DOUBLE ELECTRO MAGNETIC LOCK NON MONITORED |
| HOLDING STRENGTH |
UP TO 280KG, TESTED TO 1 MILLION CYCLES |
| VOLTAGE/CURRENT |
DUAL VOLTAGE 12/24VDC 12VDC = 530mA X 2 24VDC = 260mA X 2 |
| APPROVALS |
UP TO 4 HOUR FIRE RATED TO A.S STANDARD CE C-TICK |
| LSS MONITORING |
LSS LOCK STATUS SENSOR (HALL EFFECT) |
| DSS MONITORING |
DOOR STATUS SENSOR (REED SWITCH) |
| LED LIGHT STATUS |
LED LIGHT STATUS INDICATES LOCKED OR UNLOCKED STATUS |
| ENVIRONMENTAL |
OPERATIONAL TEMPERATURE RANGE - 20 DEG. C TO 60 DEG. C. |
