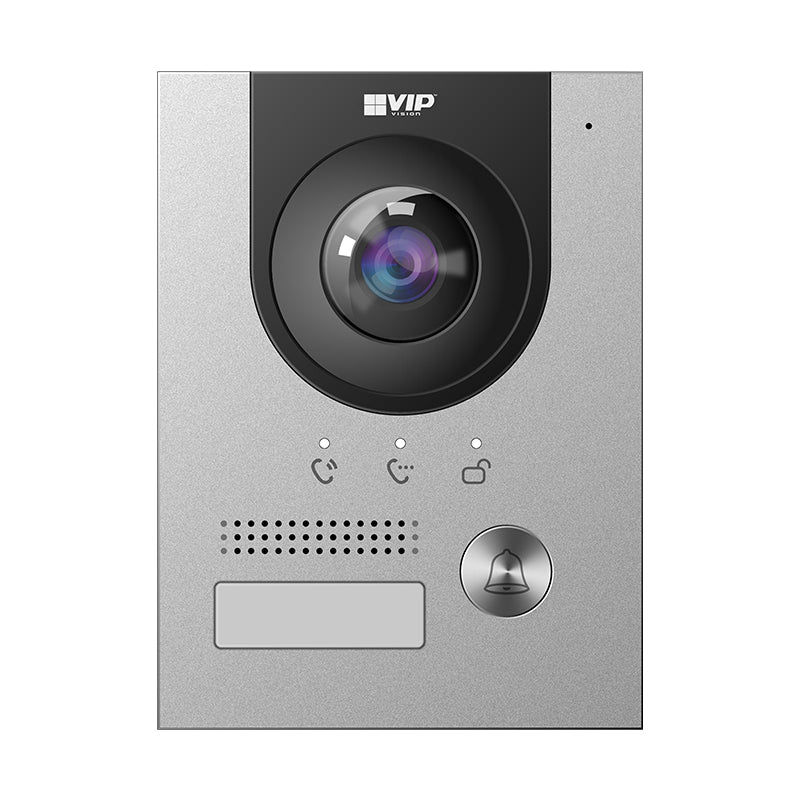

The INTIPRDSG2 is a single channel video intercom solution ideal for homes and single-premises buildings. This door station features a 2.0MP camera, all in a stylish aluminium weather and vandal resistant body.
Features:
• 1/2.5’’ 2.0MP 1.9mm lens camera with 169° FOV
• Built-in microphone and speaker for 2-way talk
• Connect with intercom monitor(s) via Ethernet
• Alarm and RS485 input/output relays
• Intuitive, easy-to-use interface
• Weather and vandal resistant IP55/IK07 aluminium body
• Power via 48VDC or Power over Ethernet (802.3af)
• Flush and surface mount installation options
* We recommended that Door Stations are mounted in a sheltered location, not exposed directly to weather, as only the front plate is weather resistant.
* When installing the Door Station, apply outdoor silicone sealant between the Door Station & the wall, & seal the hole that has been created for the cable to prevent water ingress. If using a mounting box, ensure the box is sealed, & the included waterproof rubber seals are used when installing the screws.
Downloads
Tech Specs
| Specification |
Details |
| App Connection |
QR Code |
| Audio / 2-Way Talk |
Omni-directional Microphone & Embedded Loudspeaker for 2-way talk |
| Button Illumination |
None |
| Camera System |
1/2.5’’, 2.0 Megapixel CMOS camera with 1.9mm lens (Horizontal FoV: 169°), WDR |
| Card Support |
N/A |
| Construction |
Aluminium |
| Dimensions |

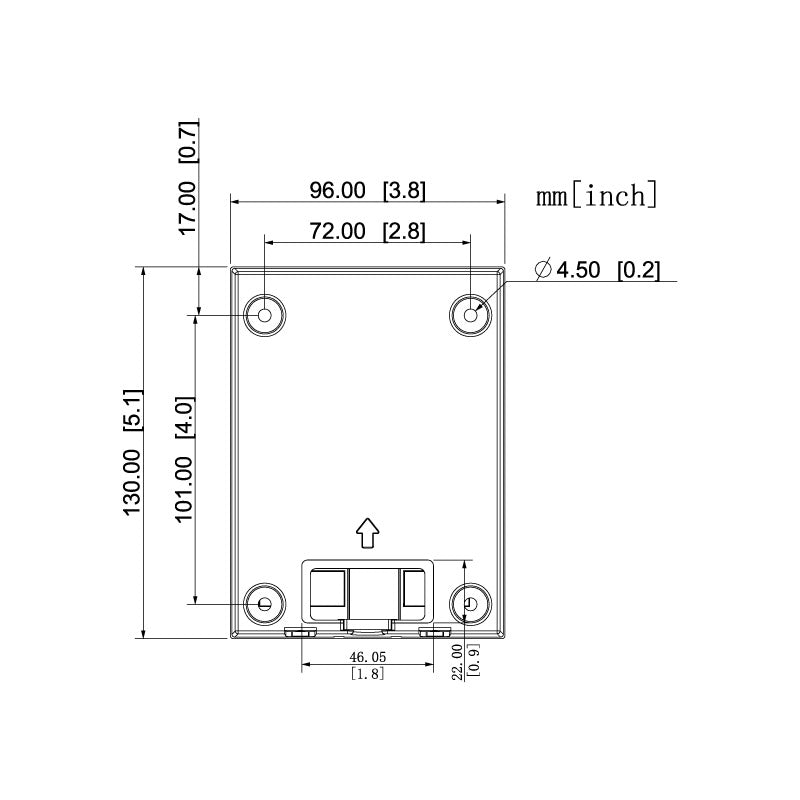

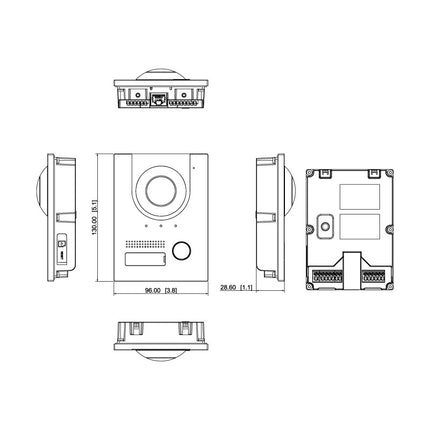

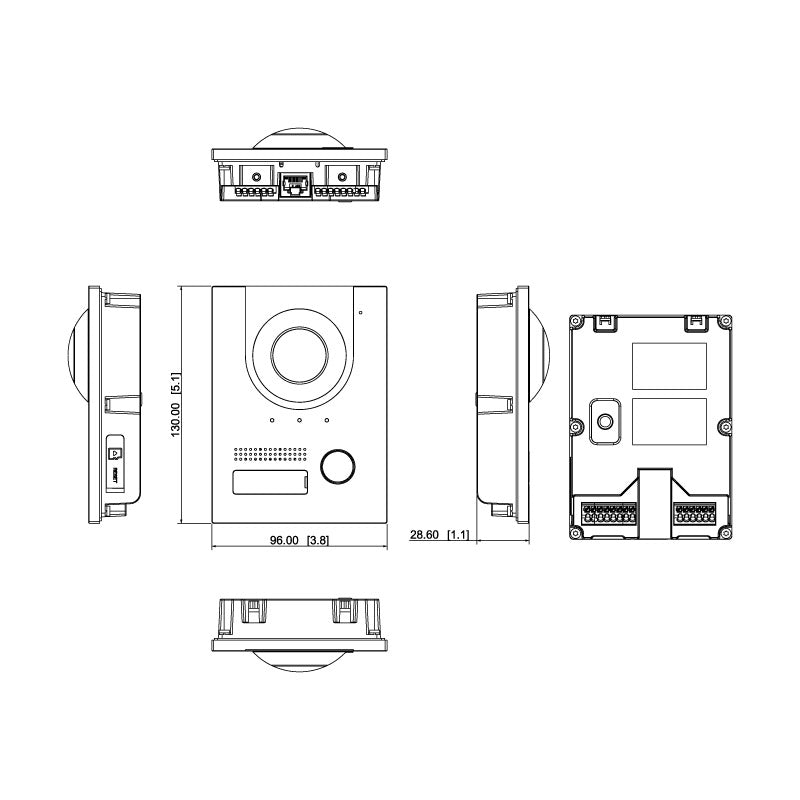

130 x 96 x 29mm |
| Ethernet / Network |
N/A |
| Ingress Protection |
IP55 |
| Input / Output |
1 x alarm input / 1 x alarm output / 1 x RS485 |
| Installation Options |
Supports surface box and flush box mount |
| Internal MicroSD Slot |
Yes, up to 64GB |
| Keypad |
N/A |
| Low-Light Application |
Infrared |
| Main Processor |
Embedded Microprocessor |
| Max. Additional Door Stations |
20 |
| Max. Indoor Monitors |
10 |
| Power Consumption |
<12W |
| Power Input |
48VDC 1A / PoE (802.3af) |
| Series |
G Series |
| Tamper Detection |
Yes |
| Vandal Resistant |
IK07 |
| Weight |
0.35kg |
4-Year Manufacturer's Warranty
As an authorised distributor, our products are eligible for all standard warranties and firmware updates offered by their manufacturers.
