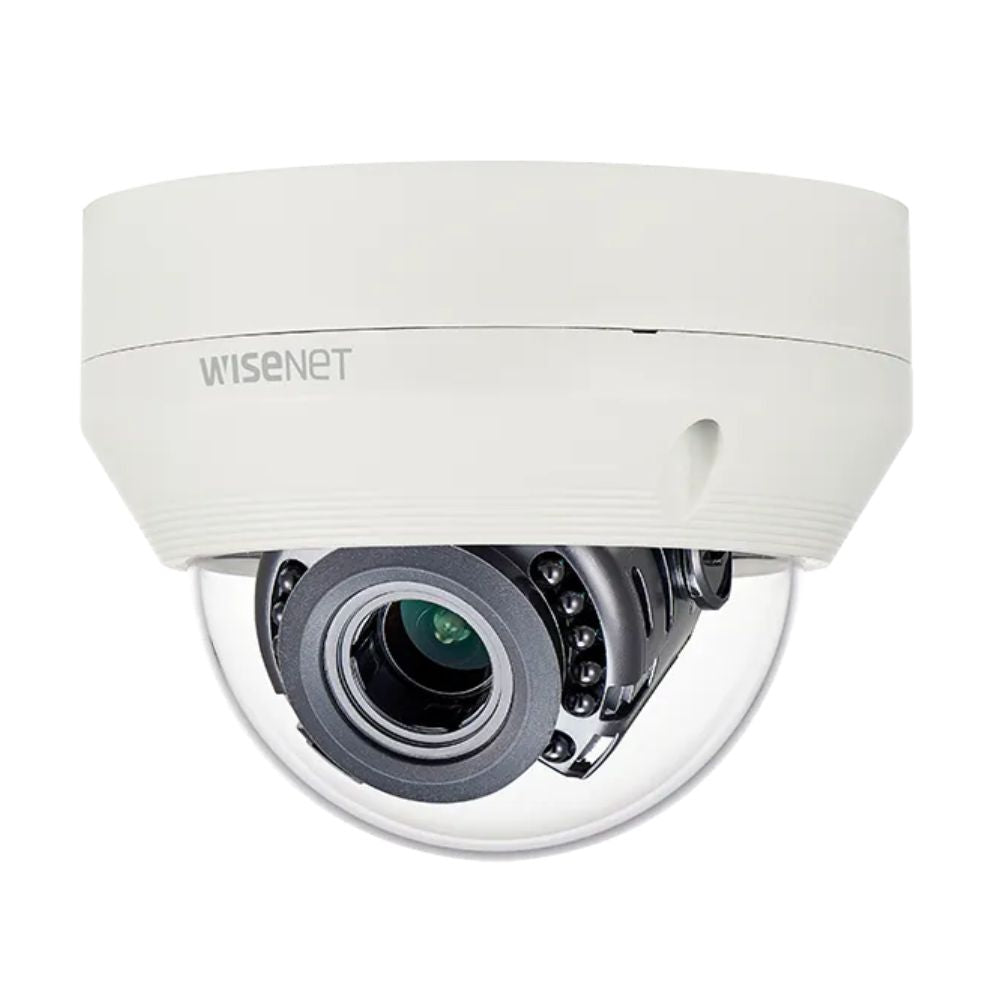

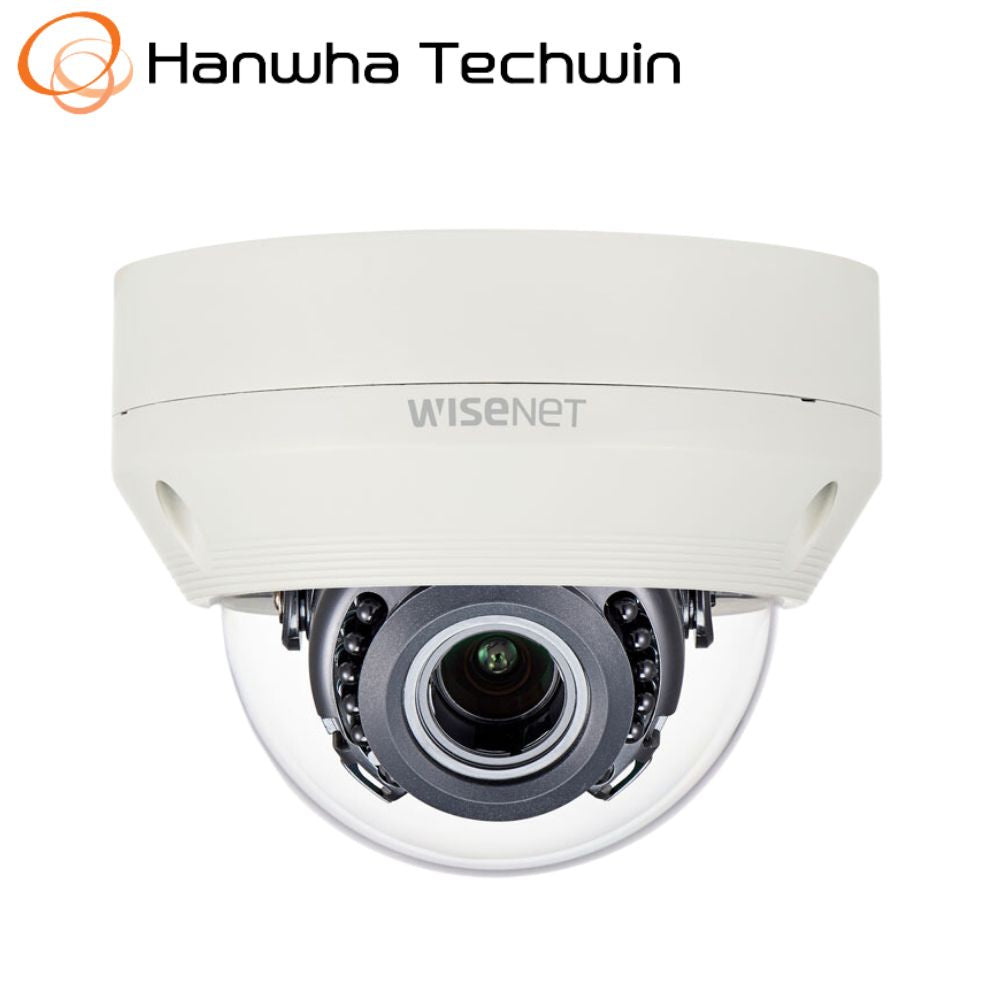

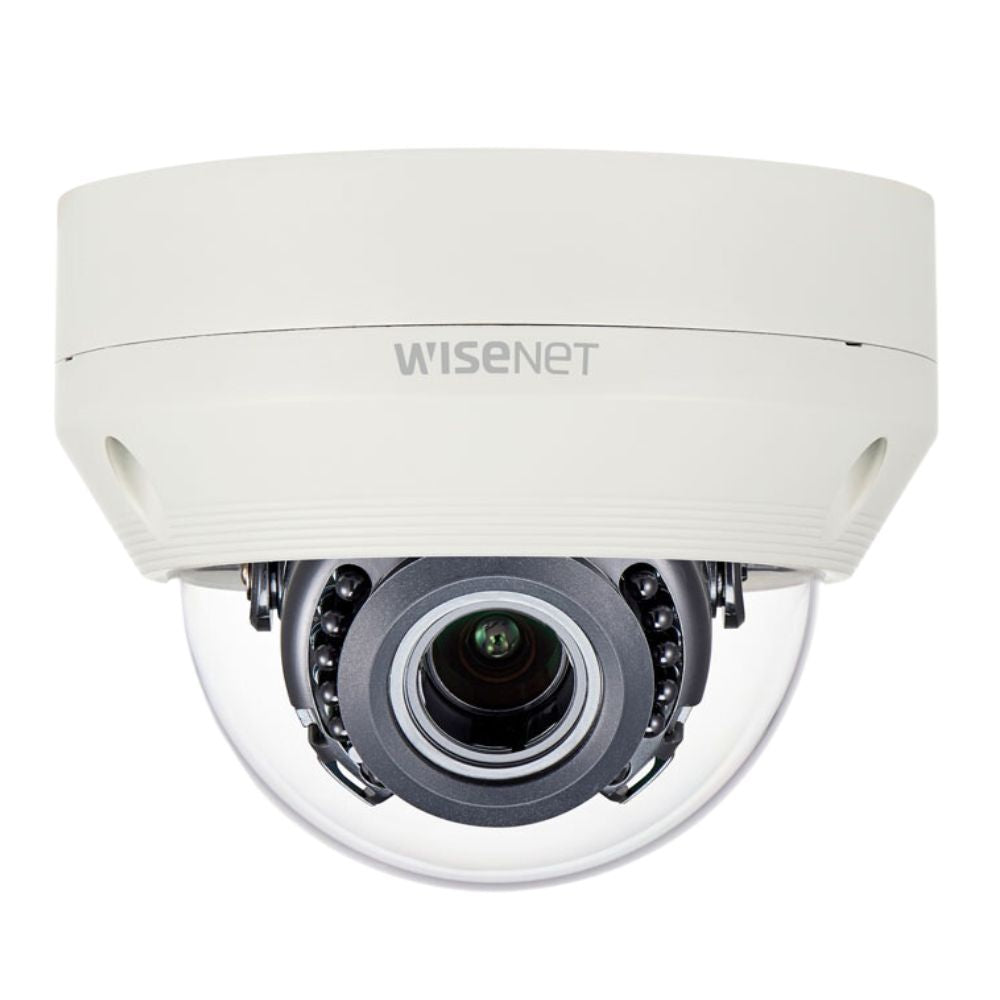

Name: Hanwha Wisenet HD+ 4MP AHD Outdoor Dome, 30m IR, IP66, IK10, 24VAC/12VDC, 3.2-10mm - HAN-HCV-7070R
Brand: Hanwha
SKU: HCV-7070R
Price: 255.0 AUD

Hanwha Wisenet HD+ 4MP AHD Outdoor Dome, 30m IR, IP66, IK10, 24VAC/12VDC, 3.2-10mm - HAN-HCV-7070R

VendorHanwha
Share
- WhatsApp
- Deel
- Messenger
- Email

Hanwha Wisenet HD+ 4MP AHD Outdoor Dome, 30m IR, IP66, IK10, 24VAC/12VDC, 3.2-10mm - HAN-HCV-7070R

VendorHanwha
Share
- WhatsApp
- Deel
- Messenger
- Email

Product form

SKU: HCV-7070R

Out of stock

$255.00 Incl. GST

Guaranteed secure & safe checkout.

FREE Express Courier Shipping for all orders over $100

30-Day Returns Policy

Back to Base Australian Warranty & Tech Support

Australian Stock, No Grey Import Products

Product Datasheet

Product Information

Imaging Device	1/3" 4M CMOS
Total Pixels	2,720(H) x 1,536(V)
Effective Pixels	2,688(H) x 1,520(V)
Scanning System	Progressive Scan
Min. Illumination	Colour : 0.16 Lux (F1.6) B/W : 0 Lux (IR LED on)
S / N Ratio	52dB (AGC off, Weight on)
Video Output	BNC (AHD), Additional CVBS for installation (2Pin connector type)
Resolution	2560 x 1440
Max. Framerate	30fps @ 4M	25fps @ 4M

Focal Length (Zoom Ratio)	3.2 ~ 10mm (3.1x) varifocal
Max. Aperture Ratio	F1.6
Angular Field of View	H : 93.48˚(Wide) ~ 29.44˚(Tele) / V : 50.47˚(Wide) ~ 16.64˚(Tele) / D : 112.53˚(Wide) ~ 33.7˚(Tele)
Min. Object Distance	0.5m (1.64ft)
Focus Control	Manual
Lens Type	DC Auto Iris
Mount Type	Board-in Type

On Screen Display	Multi-language Support (14) English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish
Day & Night	Auto (ICR) / Colour / B/W
Backlight Compensation	Off / User BLC / HLC
Wide Dynamic Range	D-WDR (Off / On)
Digital Noise Reduction	2D DNR
Motion detection	Off / On (4 zones)
Privacy Masking	Off / On (2 zones rectangle)
Gain Control	Off / Low / Middle / High / Very High
White Balance	ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°)
Electronic Shutter Speed	1/30sec ~ 1/12,000sec	1/25sec ~ 1/12,000sec
Reverse	Off / H-Rev / V-Rev
Alarm	(MD) output 1
Remote Control Interface	Coaxial
Protocol	AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron)
IR Distance	30m (98.43ft)
Video Transmission Distance	500m (5C2V Coaxial cable)

Imaging Device	1/3" 4M CMOS
Total Pixels	2,720(H) x 1,536(V)
Effective Pixels	2,688(H) x 1,520(V)
Scanning System	Progressive Scan
Min. Illumination	Colour : 0.16 Lux (F1.6) B/W : 0 Lux (IR LED on)
S / N Ratio	52dB (AGC off, Weight on)
Video Output	BNC (AHD), Additional CVBS for installation (2Pin connector type)
Resolution	2560 x 1440
Max. Framerate	30fps @ 4M	25fps @ 4M
