| Video |
| Imaging Device |
43.3mm Full-frame CMOS |
| Effective Pixels |
7680(H)x4320(V) |
| Min. Illumination |
Color : 0.015Lux(F1.4, 1/30sec)
B/W : 0.0015Lux(F1.4, 1/30sec) |
| Video Out |
HDMI: 1080p@30fps |
| Lens |
| Angular Field of View |
Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM) : Horizontal field of view: 8K 62.1°
Canon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM) : Horizontal field of view: 8K 44.5°
Canon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM) : Horizontal field of view: 8K 31.6°
Canon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM) : Horizontal field of view: 8K 19.2°
Canon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM) : Horizontal field of view: 8K 16.1°
Canon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70-200mm f/2.8L USM) : Horizontal field of view: 8K 23.2° ~ 8.3° |
| Focus Control |
Autofocus |
| Lens Type |
Canon EF mount Lens |

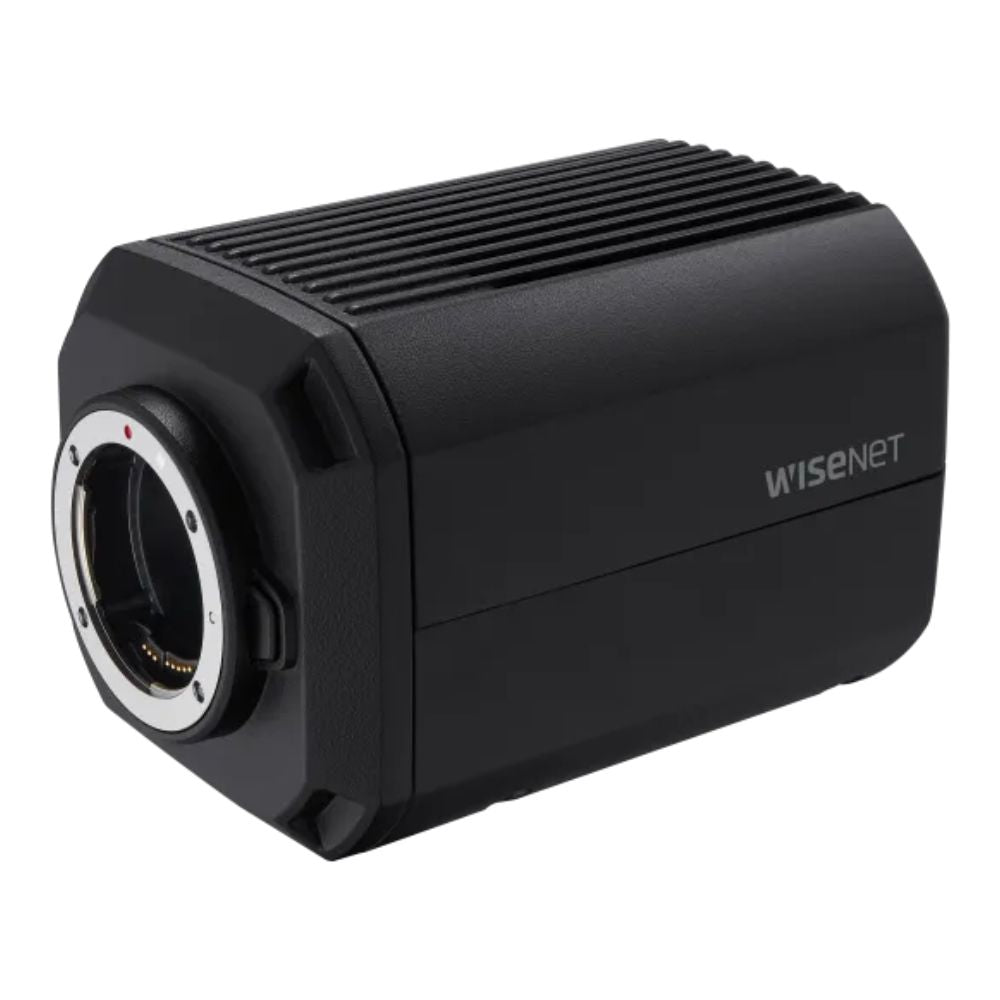

| Mount Type |
Canon EF mount |
| Optional Lens |
Canon 24mm f1.4L, Auto-Iris (EF 24mm f/1.4L II USM)
Canon 35mm f1.4L, Auto-Iris (EF 35mm f/1.4L II USM)
Canon 50mm f1.4, Auto-Iris (EF 50mm f/1.4 USM)
Canon 85mm f1.2L, Auto-Iris (EF 85mm f/1.2L II USM)
Canon 100mm f2.0, Auto-Iris (EF 100mm f/2 USM)
Canon 70-200mm f2.8L, Auto-Iris, Vari Focal (EF 70-200mm f/2.8L USM) |
| Operational |
| Camera Title |
Displayed up to 75 characters |
| Day & Night |
Auto(ICR) |
| Backlight Compensation |
BLC, DWDR |
| Digital Noise Reduction |
SSNRⅤ |
| Motion Detection |
8ea, 8point polygonal zones (in 8K resolution only) |
| Privacy Masking |
6ea, Rectangular
- Color: Grey/Black/White |
| Gain Control |
Low / Middle / High |
| White Balance |
ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed |
Minimum / Maximum / Anti flicker (1/5 ~ 1/12,000sec) |
| Analytics |
- Classified object type : Person/Face/Vehicle/License plate with attributes, BestShot per object
- Analytics events based on AI engine : object detection, Directional detection, Enter/Exit, Loitering, Virtual line
- Analytics events : Defocus detection, Motion detection, Appear/Disappear, Tampering, Audio detection, Sound classification |
| Serial Interface |
RS-485(Samsung-T, Pelco-D/P) |
| Alarm I/O |
Input 1ea / Output 1ea |
| Alarm Triggers |
Analytics, Network disconnect, Alarm input |
| Alarm Events |
File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Handover |
| Audio In |
Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out |
Line out, Max.output level: 1Vrms |
| Network |
| Ethernet |
RJ-45(10/100/1000 BASE-T), SFP slot(100/1000Mbps) |
| Video Compression |
H.265/H.264: Main/High, MJPEG |
| Resolution |
7680x4320, 7360x4128, 6016x3384, 6016x4008, 5472x3648, 4768x3184, 4608x2592, 3840x2160, 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate |
H.265/H.264: 8K @ Max. 15fps (Mode 0) : Available in Jan. 2020
H.265/H.264: 24MP @ Max. 20fps (Mode 1) : Available in May. 2020
H.265/H.264: 15MP @ Max. 30fps (Mode 2) : Available in May. 2020
H.265/H.264: 4K @ Max. 60fps (Mode 3) : Available in May. 2020 |
| Smart Codec |
WiseStreamⅡ |
| Bitrate Control |
H.264/H.265: CBR or VBR
MJPEG: VBR |
| Streaming |
Unicast(10 users) / Multicast
Multiple streaming(Up to 3 profiles) |
| Audio Compression |
G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz |
| Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security |
HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device Certificate(Hanwha Techwin Root CA) |
| Edge Storage |
Micro SD/SDHC/SDXC 1slot 256GB |
| Application Programming Interface |
ONVIF Profile S/G/T
SUNAPI(HTTP API) |
| Web Viewer |
Supported OS: Windows 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Memory |
4096MB RAM, 512MB Flash |
| Environmental |
| Operating Temperature / Humidity |
0°C ~ +45°C(32°F ~ +122°F) / Less than 90% RH |
| Storage Temperature / Humidity |
-40°C ~ +65°C(-40°F ~ +149°F) / Less than 90% RH |
| Certification |
EMC
EN 50130-4, EN 55032 Class A, EN 61000-6-3, EN 61000-3-2,
EN 61000-3-3, EN 61000-6-1, FCC Part 15 Subpart B Class A,
IC ICES-003 Class A,
Safety
UL 60950-1 |
| Electrical |
| Input Voltage |
HPoE(IEEE802.3bt, Class5), 12VDC |
| Power Consumption |
PoE: Max 30W, typical 20W
12VDC: Max 26W, typical 18W |
| Mechanical |
| Color / Material |
Black / Aluminum |
| Product dimensions / weight |
120(W)x118.1(H)x179(D)mm, 2.1Kg(4.55 lb) |
| Package dimensions / weight |
250(W)x250(D)x323(H)mm, 3.8Kg(8.38 lb) |
