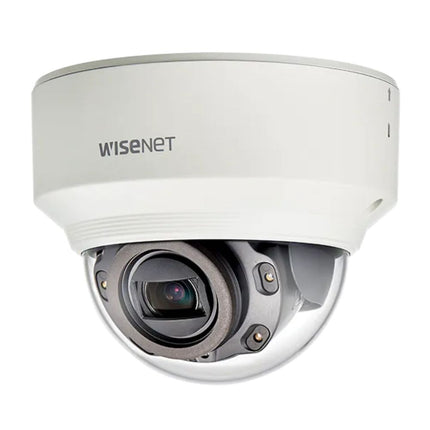

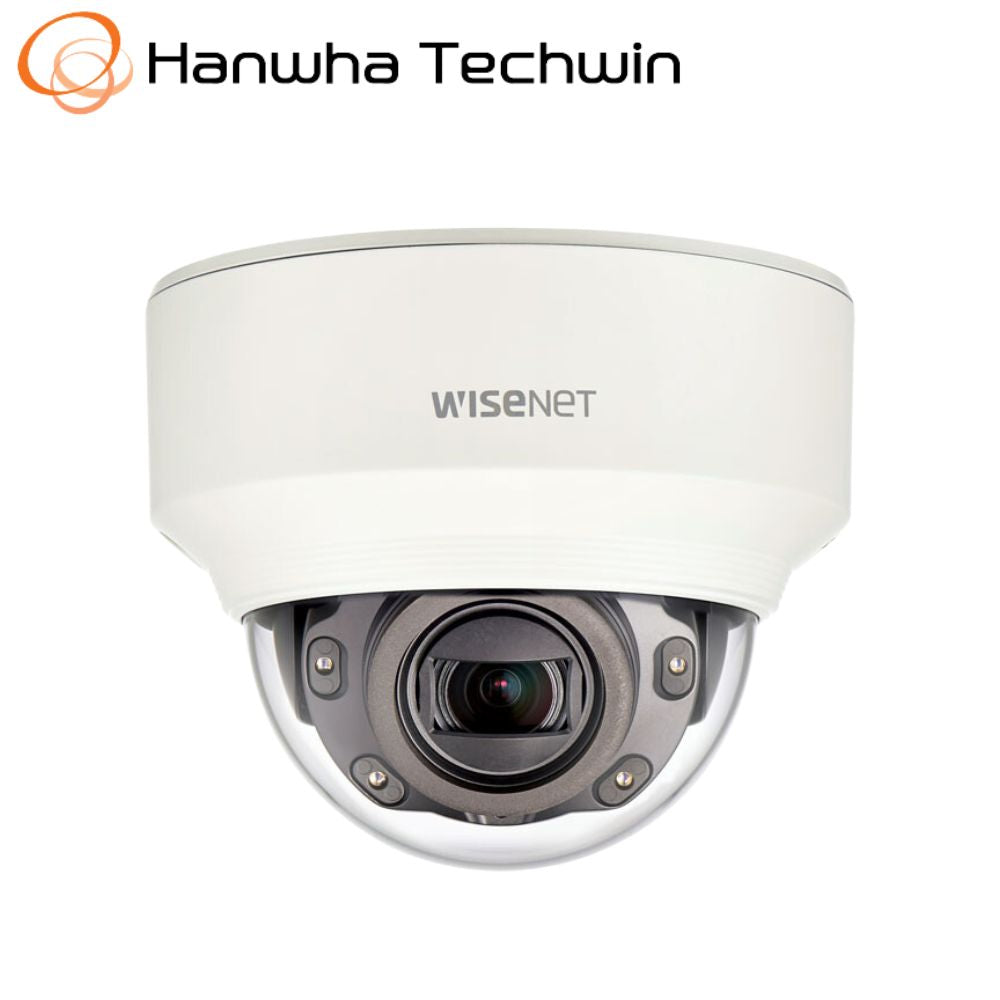

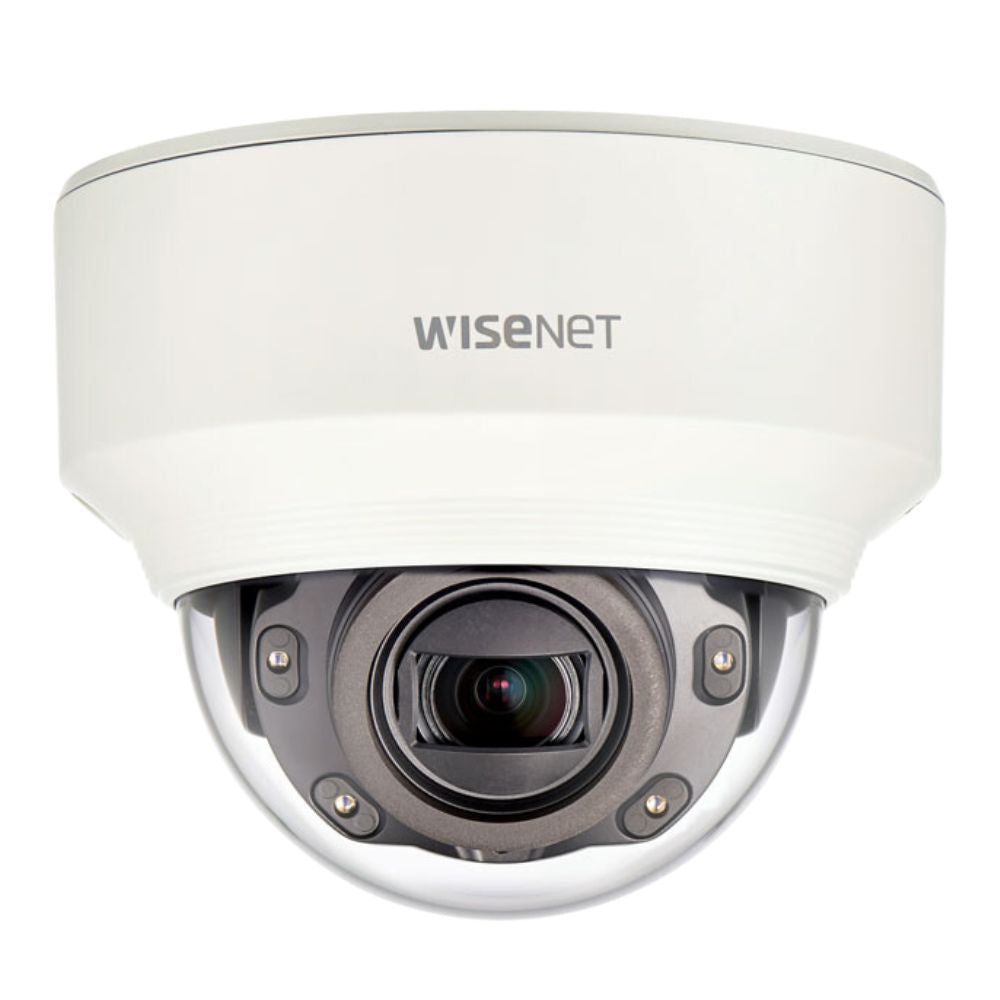

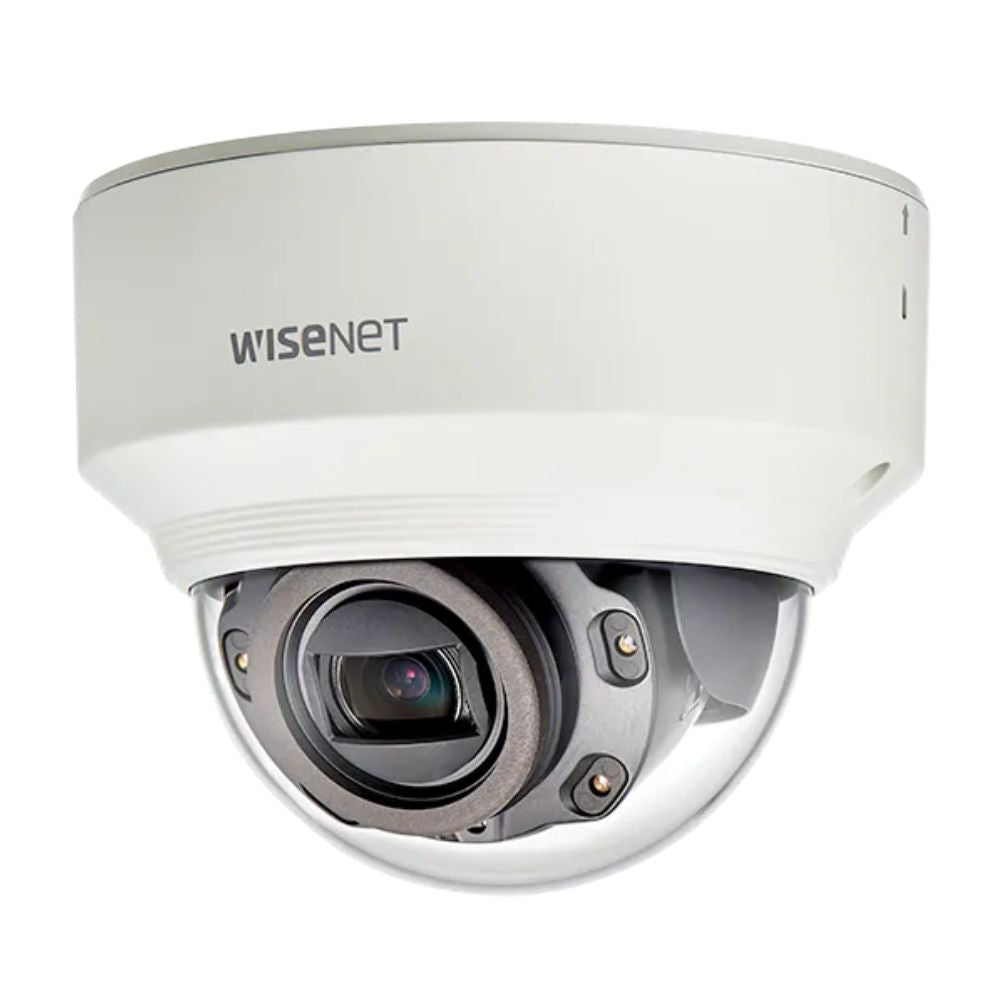

Hanwha Wisenet 2MP Indoor Dome Camera, H.265, 60fps, 150dB WDR, 30m IR, 2.8-12mm - HAN-XND-6080RV

Description

Description

With cutting-edge WDR technology, the Hanwha HAN-XND-6080RV conquers limitations found in conventional WDR cameras while producing clear and vivid images through 150dB WDR. Part of the Wisenet X series, this camera can achieve optimal performance in low-light conditions by capturing and producing flawless images regardless of the environment or time of day. Using WiseStream II, the HAN-XNO-6080RV reduces data by up to 99% when combined with H.265 compression, through this, system costs are greatly reduced without compromising image quality. Installation is convenient as you can connect cameras and mobile devices through USB and Wi-Fi, so no additional devices are required, saving time and money. The HAN-XND-6080RV is jam-packed with other features such as loitering detection, queue management, sound classification, lens distortion correction, fog detection and PTZ handover, making this camera a holistic solution for a variety of security environments.

Features

  • Max. 2MP (1920 x 1080) resolution
  • Max. 60fps at all resolutions (H.265 / H.264)
  • H.265, H.264, MJPEG codec supported, multiple streaming
  • Day & night (ICR), WDR (120dB), defog
  • Digital image stabilisation with built-in gyro sensor
  • Loitering, directional detection, fog detection, audio detection
  • Digital auto tracking, sound classification, tampering
  • Motion detection, handover
  • SD / SDHC / SDXC memory slot (Max. 512GB)
  • Hallway view, WiseStream II support
  • IR viewable length 30m, IK08
  • LDC support (lens distortion correction)
  • PoE/12V DC, bi-directional audio support
Datasheet
Tech Specs

Camera

Sensor

2 MP 1/2.8"

Focal Length

2.8 to 12mm

Maximum Aperture

f/1.4 to 3.6

Zoom

Optical: 4.3x
Digital: 24x

Lens Field of View

Horizontal: 119.5 to 27.9°
Vertical: 62.8 to 15.7°
Diagonal: 142.1 to 32°

IR Cut Filter

Mechanical

Day/Night

Yes

Minimum Illumination

Color: 0.015 Lux
B&W: 0 Lux

Shutter Speed

1/12,000 to 2 Seconds

Camera Angle Adjustment

Horizontal: 0 to 354°
Vertical: 0 to 67°

Video

Streaming Resolution

1920 x 1080 at 60 fps

Supported Video Compression

H.264, H.265, MJPEG

Multi-View Streaming

Yes, 10 Streams

Audio

1- or 2-Way Audio

Two-Way

Audio Formats

AAC-LC, G.711, G.726

Built-In Mic

Yes

Networking

Security

Digest Authentication, HTTPS, IEEE 802.1X, IP Address Filtering, User Access Log

Supported Protocols

ARP, Bonjour, DDNS, DHCP, DNS, FTP, HTTP, ICMP, IGMP, IPv4/v6, NTP, PIM, PPPoE, QoS Layer 3 DiffServ, RTCP, RTP, RTSP, SMTP, SNMP v1/v2c/v3 (MIB-II), SSL/TLS, TCP, UDP, UPnP

System Integration

Application Programming Interface (API)

ONVIF Profiles S & G, SUNAPI (HTTP API), Wisenet Open Platform

Analytics

Tampering
Loitering
Defocus Detection
Fog Detection
Virtual Line
Enter/Exit
Disappear/Appear
Audio Detection
Face Detection
Motion Detection
Handover
Directional Detection
Digital Auto Tracking
Sound Classification

Event Trigger

Yes

Event Action

Recording, Notification, Alarm

Data Streaming

Yes

Built-In Installation Aids

Pixel Counter

System Requirements

Windows OS Support

Windows 7, 8.1, 10

Mac OS Support

macOS 10.12, OS X 10.11, OS X 10.10

Environmental

Operating Temperature

14 to 131°F / -10 to 55°C

Storage Temperature

-58 to 140°F / -50 to 60°C

Operating Humidity

0 to 90%

IK Rating

IK08

General

Media/Memory Card Slot

Single Slot: microSD/microSDHC/microSDXC [512 GB Maximum]

Pan/Tilt

None

Alarm I/O

1 / 1

I/O Connections

1 x RJ45
1 x Power
1 x BNC

IR Range

98.43' / 30 m

Video Management Software

Wisenet WAVE, SmartViewer, SSM

Supported Languages

Czech
Dutch
English
French
German
Greek
Hungarian
Italian
Japanese
Korean
Polish
Portuguese
Russian
Simplified Chinese
Spanish
Swedish
Turkish

Internal Storage

None

External Storage Options

Local PC, NAS

Power Source

DC, PoE 802.3af (15 W)

Power Consumption

DC: 9 W
PoE: 10 W

Material of Construction

Aluminum

Dimensions

ø: 5.5 x H: 4.4" / ø: 140.8 x H: 113.0 mm

Weight

1.59 lb / 724 g

Packaging Info

Package Weight

1.89 lb

Box Dimensions (LxWxH)

7.1 x 6.8 x 6.7"



Read more
