Description
Old Model: DHI-NVR5208-8P-4KS2E
New Model: DHI-NVR4208-8P-AI/ANZ
Launched by Dahua Technology, WizSense is a series of AI products and solutions that adopt independent AI chips and deep learning algorithms. It focuses on humans and vehicles with high accuracy, enabling users to fast act on defined targets. Based on Dahua's advanced technologies, WizSense provides intelligent, simple and inclusive products and solutions.
SMD With intelligent algorithm, Dahua Smart Motion Detection technology can categorize the targets that trigger motion detection and filter the motion detection alarm triggered by non-concerned targets to realize effective and accurate alarm.
WizSense Series - Engineered to provide smart, simple and affordable security. WizSense series cameras support an independent AI chip with a deep learning algorithm to provide a more intelligent and simple security solution focused on human and vehicle detection. This helps filter out false alerts triggered by bugs, changes in light, leaves, trees and animals.
Supports Smart Motion Detection Plus (SMD+) dramatically reduces false alarms in motion detection by only detecting humans and vehicles, greatly reducing false alerts triggered by bugs, changes in light, leaves, trees and animals. Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app.
Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as Tripwire and Intrusion Detection.
Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.
The new Dahua DHI-NVR5208-8P-4KS2E Pro Series network video recorder is ideal for applications requiring high-resolution recording and high performance. As well as 4K image processing, the NVR supports edge storage, central storage or backup storage with an intuitive shortcut operation menu for remote management and control.
The NVR supports Smart Motion Detection with a deep learning algorithm allowing human and vehicle identification with compatible cameras. It also supports advanced intelligent detection technology such as detecting abandoned or missing objects, Tripwire violations and intrusion violations. The NVR is also capable of recording business analysis data such as Facial Detection, People Counting, and Heat maps from IP cameras with built-in Intelligent Business Analytics.
For applications where high image detail is required, the DHI-NVR4108HS-8P-4KS2/L delivers the capability of 8MP or 4K resolution processing. It supports smart encoding (Smart H.265+/ Smart H.264+) which is an optimised implementation of (H.265/H.264) codec that uses a scene-adaptive encoding strategy, providing more efficiency in the encoding process and higher video quality, reducing the cost of storage and transmission significantly.
The NVR supports P2P remote surveillance for Live camera viewing and playback on mobile devices with the free app for ios and android called iDMSS (for iOS) and gDMSS (for Android).
The NVR is ideal for a wide range of applications from public safety, water conservancy, transportation and city centres, to education and financial institutions.
Camera Features
- Records up to 5 Megapixel resolution. Equipped with a 2.8mm Fixed lens. Supports up to 2592 × 1944 pixels resolution.

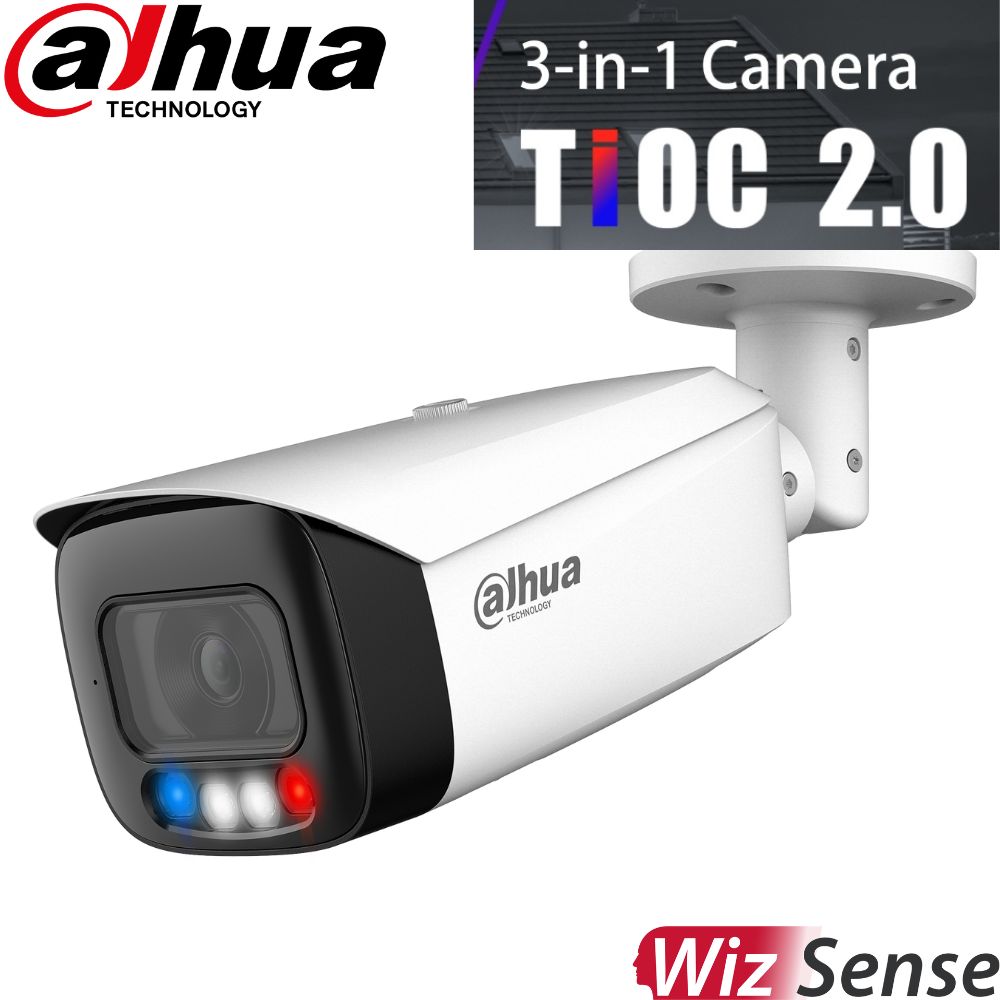

- Three-in-One Camera (TiOC) integrates 24/7 full-colour, active deterrence and artificial intelligence into one smart and innovative solution, greatly saving time and financial costs.
- Active Deterrence camera actively warns off intruders with built-in flashing lights, siren and audible commands.
- Series 2.0 supports DUAL Illuminators with IR infrared and Warm LED light
- Full Colour uses a warm LED light that enables the camera to capture vivid colour video even in the dark to enhance the probability and accuracy of target recognition and feature extraction with 98% AI accuracy.
- Smart Motion Detection Plus (SMD+), greatly reduces false alarms in motion detection by only detecting humans and vehicles.
- Target is tracked and triggers real-time alerts to a smart device through the iOS/Android app
- Features up to H.265+ high-efficiency video encoding and Triple-Streaming.
- Starlight technology generates clear colour images in near-complete darkness.
- 120 dB Wide Dynamic Range (WDR). 3D Noise Reduction (3D DNR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
- Built-in Infrared LED and illuminator with a maximum range of 30 meters
- Supports Power-Over-Ethernet (PoE) installations.
- Supports MicroSD Card Storage up to 256 Gigabytes.
- Resilient "Weather-Proof" Ingress Protection Rating (IP67).
- 3 Years Back-to-Base Manufacturer Warranty
Recorder Features
- 8-channel IP video access
- Smart H.265+/Smart H.264+/H.265/H.264/MJPEG; H.265 auto switch
- Max 320 Mbps incoming bandwidth
- Up to 24MP resolution for live view and playback
- 1-channel fisheye dewarping (AI by NVR)
- AI by Camera: Perimeter protection; face detection and recognition; SMD Plus; video metadata; ANPR; people counting; stereo analysis; crowd distribution; heat map
- Support IPC UPnP, 8 PoE ports
- 2 SATA III ports, up to 10 TB for a single HDD.
System Includes
If the system is purchased with a hard drive, it will be pre-installed in the NVR.
Ethernet cables, mounts, junction boxes. and other accessories are available for purchase.
Downloads
Tech Specs

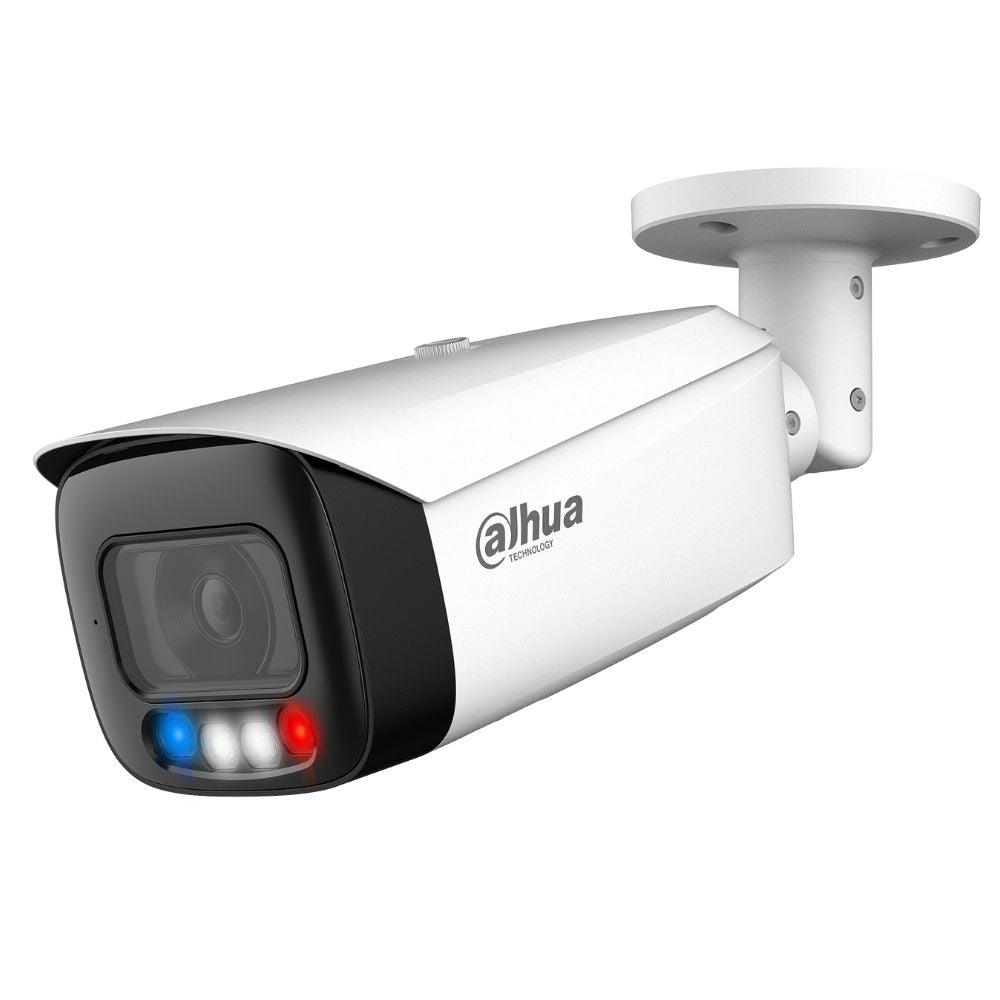

Dahua Security Camera: 5MP TIOC 2.0 Bullet, 2.8mm, Active Deterrence, WizSense AI - DH-IPC-HFW3549T1P-AS-PV-0280B-S3
Camera |
Image Sensor |
1/2.7" CMOS |
Max. Resolution |
2592 (H) × 1944 (V) |
ROM |
128 MB |
RAM |
512 MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on) |
S/N Ratio |
﹥ 56 dB |
Illumination Distance |
30 m (98.43 ft) (IR)
30 m (98.43 ft) (warm light) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
2 (IR LED)
2 (warm light) |
Pan/Tilt/Rotation Range |
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360° |
Lens |
Lens Type |
Fixed-focal |
Mount Type |
M12 |
Focal Length |
2.8 mm; 3.6 mm |
Field of View |
2.8 mm: Horizontal: 97°× Vertical: 70°× Diagonal: 128°
3.6 mm: Horizontal: 78°× Vertical: 58°× Diagonal: 102° |
Iris Type |
Fixed |
Close Focus Distance |
2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 2.2 m (7.22 ft) |
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
66.0 m (216.54 ft) |
26.4 m
( 86.61 ft)
|
13.2 m
(43.31 ft)
|
6.6 m
(21.65 ft)
|
3.6 mm |
78.0 m (255.91 ft) |
31.2 m
( 102.36 ft)
|
15.6 m
(51.18 ft
|
7.8 m
(25.59 ft)
|
Professional, intelligent |
IVS (Perimeter Protection) |
Tripwire; intrusion (support the classification and accurate detection of vehicle and human) |
SMD 3.0 |
Less false alarm, longer detection distance |
Intelligent Search |
Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
Video |
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
Smart Codec |
Smart H.265+; Smart H.264+ |
AI Coding |
AI H.265; AI H.264 |
Video Frame Rate |
Main stream: 2592 × 1944@(1 fps–20 fps)/2688 × 1520 @(1 fps–30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability |
3 streams |
Resolution |
5M (2592 × 1944); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 3 kbps–20480 kbps
H.265: 3 kbps–20480 kbps |
Day/Night |
Auto (ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
Scene Self-adaptation |
Yes |
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control |
Auto; manual |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas) |
Region of Interest (RoI) |
Yes (4 areas) |
Smart Illumination |
Yes |
Defog |
Yes |
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror |
Yes |
Privacy Masking |
8 areas |
Audio |
Built-in MIC |
Yes |
Audio Compression |
PCM; G.711a; G.711Mu; G.726; G.723 |
Alarm |
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
Network |
Network |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone |
User/Host |
20 (Total bandwidth: 72 M) |
Storage |
FTP; SFTP; Micro SD card (support max. 256 G); NAS |
Browser |
IE: IE8/9/11
Chrome
Firefox |
Management Software |
Smart PSS; DSS; DMSS |
Mobile Phone |
iOS; Android |
Certification |
Certification |
CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14;
|
Port |
Audio Input |
1 channel (RCA port) |
Audio Output |
1 channel (RCA port) |
Alarm Input |
1 channel in: 5mA 3V–5 VDC |
Alarm Output |
1 channel out: 300mA 12 VDC |
Power |
Power Supply |
12 VDC/PoE (802.3af) |
Power Consumption |
Basic: 2.4 W (12 VDC); 3.1 W (PoE)
Max. (H.265+main stream/IR intensity+warm light on): 7.9 W (12 VDC); 9.7 W (PoE) |
Environment |
Operating Conditions |
–40 °C to +60 °C (–40 °F to +140 °F)/Less than 95% RH |
Storage Conditions |
–40 °C to +60 °C (–40 °F to +140 °F) |
Protection Grade |
IP67 |
Structure |
Casing |
Metal + plastic |
Dimensions |
288.4 mm × 94.4 mm × 84.7 mm
(11.4" × 3.7" × 3.3") (L × W × H) |
Net Weight |
1.0 kg (2.20 lb) |
Gross Weight |
1.23 kg (2.71 lb) |
Dahua 8 Channel Network Video Recorder: 12MP(4K) Pro - DHI-NVR5208-8P-4KS2E
System |
Main Processor |
Industrial embedded micro-processor |
Operating System |
Embedded Linux |
Operation Interface |
Web; local GUI |
Perimeter Protection by Camera |
Performance |
8/16 channels |
AI Search |
Search for pictures by channel, time and event type |
Face Recognition by Camera |
Performance |
8/14 channels |
Face Attributes |
6 attributes: Gender; age; glasses; expression; mouth mask; beard |
AI Search |
Search for pictures by channel, time and face attributes |
SMD Plus by Camera |
Performance |
8/16 channels |
AI Search |
Search by target classification (human, vehicle) |
Video Metadata by Camera |
Performance |
8/16 channels |
Human Body |
Top; top color; bottom; bottom color; hat; bag; gender; age; umbrella |
Vehicle |
Plate No.; type; color; vehicle type; logo; plate color; ornament; calling; seatbelt; region |
Non-motor Vehicle |
Type; color; number of passengers; helmet |
AI Search |
Supports searching for target video by metadata |
ANPR by Camera |
Performance |
4 channels |
Stereo Analysis by Camera |
Performance |
8/16 channels |
AI Search |
Search by target classification (fall detection; people approach detection; people No. exception detection; people staying detection; violence detection) |
Video |
Access Channel |
8/16 |
Network Bandwidth |
320 Mbps for access, 320 Mbps for storage and 320 Mbps for forwarding |
Resolution |
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 1.3MP, 720p, D1, and more |
Decoding Capability |
16-channel@1080P (30 fps) |
Video Output |
HDMI1: 3840 × 2160; 1920 × 1080; 1280 × 1024; 1280 × 720
VGA1: 1920 × 1080; 1280 × 1024; 1280 × 720 |
Multi-screen Display |
8-channel: 1/4/8/9
16-channel: 1/4/8/9/16 |
Third Party Camera Access |
Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon and more |
Compression |
Video |
Smart H.265+; Smart H.264+; H.265; H.264; MJPEG |
Audio |
PCM; G.711A; G.711U; G.726 |
Network |
Network Protocol |
HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, and more.) ; P2P |
Mobile Phone Access |
Android; iOS |
Interoperability |
ONVIF (profile T/S/G); CGI; SDK |
Browser |
Chrome; IE9 or later; Firefox |
Record Playback |
Multi-channel Playback |
8-channel: 1/4/9
16-channel: 1/4/9/16
|
Record Mode |
Manual; schedule (general; MD; alarm; MD & alarm; intelligent; POS) |
Storage Method |
Local HDD and network |
Backup |
USB device |
Playback Function |
1. Play; pause; stop; fast forward; fast backward; rewind; play by frame
2. Full screen; backup (cut/file) ; partially enlarge; audio on/off |
Storage |
Disk Group |
Yes |
Alarm |
General Alarm |
Motion detection; privacy masking; video loss; local alarm; PIR alarm; IPC alarm |
Anomaly Alarm |
Camera offline; storage error; full storage; IP conflict; MAC conflict; login lock; network security anomaly |
Intelligent Alarm |
Perimeter protection; face detection; face recognition; SMD; video metadata (human; motor-vehicle; non-motor vehicle) ; ANPR; people counting; stereo analysis; crowd distribution;
heat map
|
Alarm Linkage |
Record; snapshot; IPC external alarm output; buzzer; log; preset; email |
External Port |
Audio Input |
1 channel, RCA connector |
Audio Output |
1 channel, RCA connector, which supports voice intercom output |
HDD |
2 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature |
Alarm Input |
4 channels |
Alarm Output |
2 channels |
RS-232 |
1 channel, used to debug and pass through serial data |
RS-485 |
1 channel, used to control PTZ, and it supports multiple protocols |
USB |
1 front USB 2.0 port, 1 rear USB 3.0 port |
HDMI |
1 |
VGA |
1 |
Network |
1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet port |
PoE |
8 ports support ePoE & EoC |
General Parameter |
Power Supply |
Single, 100V–240V AC, 50 Hz–60 Hz |
Power Consumption |
NVR: < 15.2W (without HDD)
PoE: Max 25.5W for single port
130W total rated power, 80% control for protection |
Net Weight |
2.6 kg (5.7 lb) (without HDD) |
Gross Weight |
4 kg (8.8 lb) (without HDD) |
Product Dimensions |
375.0 mm × 327.4 mm × 53.0mm (14.8" × 12.9" × 2.1") |
Package Dimensions |
429 mm × 137 mm × 360 mm (16.9" × 14.2" × 5.4") |
Operating Temperature |
-10°C to +55°C (+14°F to +131°F) |
Storage Temperature |
0°C to +40°C (+32°F to +104°F) |
Operating Humidity |
10%–93% (RH) |
Storage Humidity |
30%–85% (RH) |
Operating Altitude |
3,000 m (9,843 ft) |
Certifications |
CE: EN55032; EN55024; EN50130-4; EN60950-1
FCC: Part 15 Subpart B; ANSI C63.4-2014
UL: UL 60950-1 |
Videos
3-Years Warranty
Dahua’s 3-year manufacturer warranty covers defects in materials or broken components that could affect the normal operation of the product. If a device is faulty, SpyMonkey will facilitate the warranty process with the manufacturer for you. We aim to do so in a manner that is as fast and efficient as possible. We don’t wait for the manufacturer to send us a replacement, if your item is determined to be faulty we will have it replaced as soon as possible from new stock.
Please contact our support team at support@SpyMonkey.com.au or 1300-049-519.
The warranty does not cover damage to the product resulting from incorrect installation or negligence, damage caused by a natural disaster, or theft.
Please note, that we do not cover inbound shipping of the return to us however if a replacement is to be sent we will cover outbound shipping to the customer. We will need the serial number of the product and your order number.
Please don’t ship us anything until you have had confirmation from our teams and they have given you an RMA number and return address.
