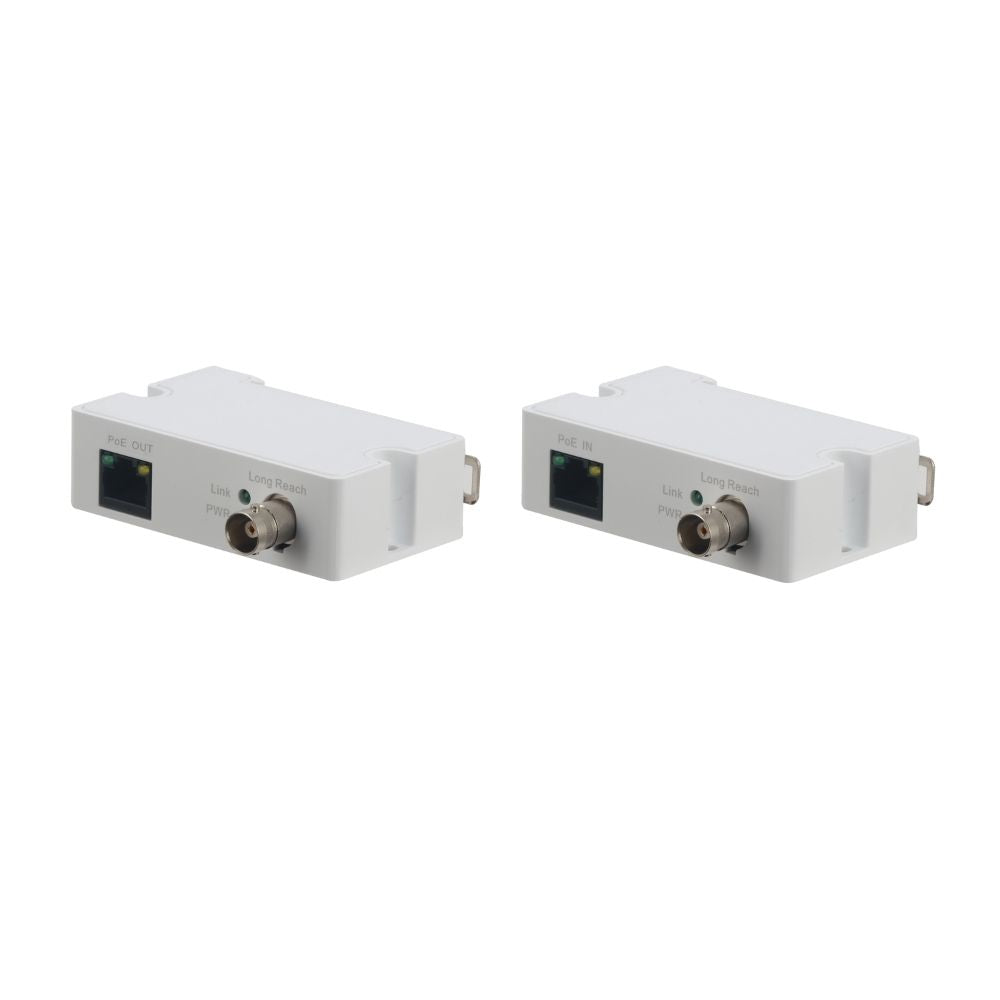

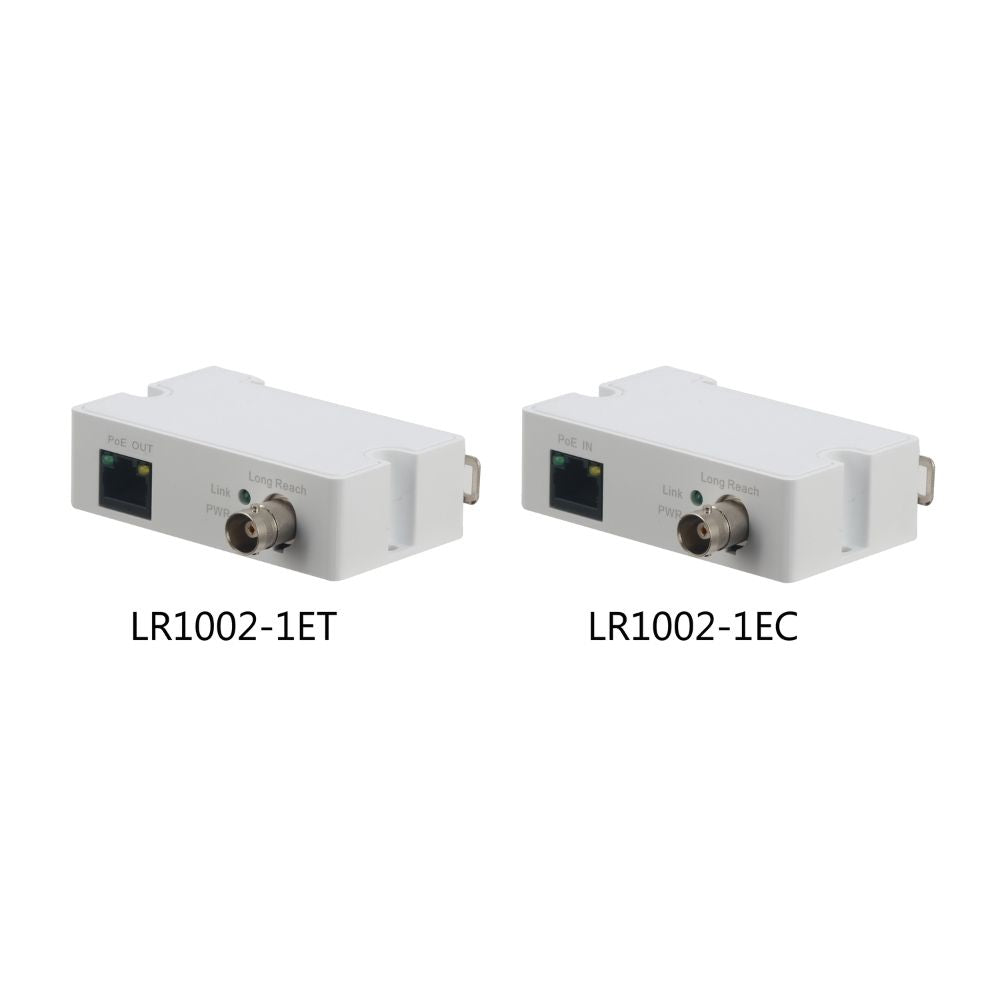

| Dahua Single-Port Long Reach Ethernet over Coax Extender - KIT-DH-LR1002-1ET/LR1002-1EC |
| Technical Specification |
| Model |
LR1002-1ET/LR1002-1EC |
| Function Port |
1*10/100 Mbps Base-TX |
| 1*BNC |
| Power Consumption |
<2W |
| Transmission Bandwidth |
RG59 coaxial cable: |
| 400m/100Mbps, 1000m/10Mbps |
| PoE Protocol |
IEEE802.3af, IEEE802.3at |
| Network Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
| Lightning Protection |
Common Mode 4KV |
| Differential Mode 2KV |
| Operating Temperature |
-30°C-65°C |
| Operating Humidity |
5%~95% |
| Weight |
61g |
| Dimension (W×D×H) |
79mm×52mm×23mm |
| Take RG59 as an example (Max. DC resistance < 5.0Ω/100m) |
| LR1002-1ET/LR1002-1EC |
Supports with 48V/Supports with 53V |
| 100m |
Bandwidth (Mbps)/100/100 |
| Load Capacity (W)/21/25.5 |
| 200m |
Bandwidth (Mbps)/100/100 |
| Load Capacity (W)/15/24 |
| 300m |
Bandwidth (Mbps)/100/100 |
| Load Capacity (W)/11/19 |
| 400m |
Bandwidth (Mbps)/100/100 |
| Load Capacity (W)/9/16 |
| 500m |
Bandwidth (Mbps)/10/10 |
| Load Capacity (W)/7/13 |
| 800m |
Bandwidth (Mbps)/10/10 |
| Load Capacity (W)/5/8 |
| 1000m |
Bandwidth (Mbps)/10/10 |
| Load Capacity (W)/4/6 |
