This video highlights the features and functionalities of the TiOC 2.0 series. Device specifications may vary. Please refer to the datasheets for accurate specs or contact us for questions.

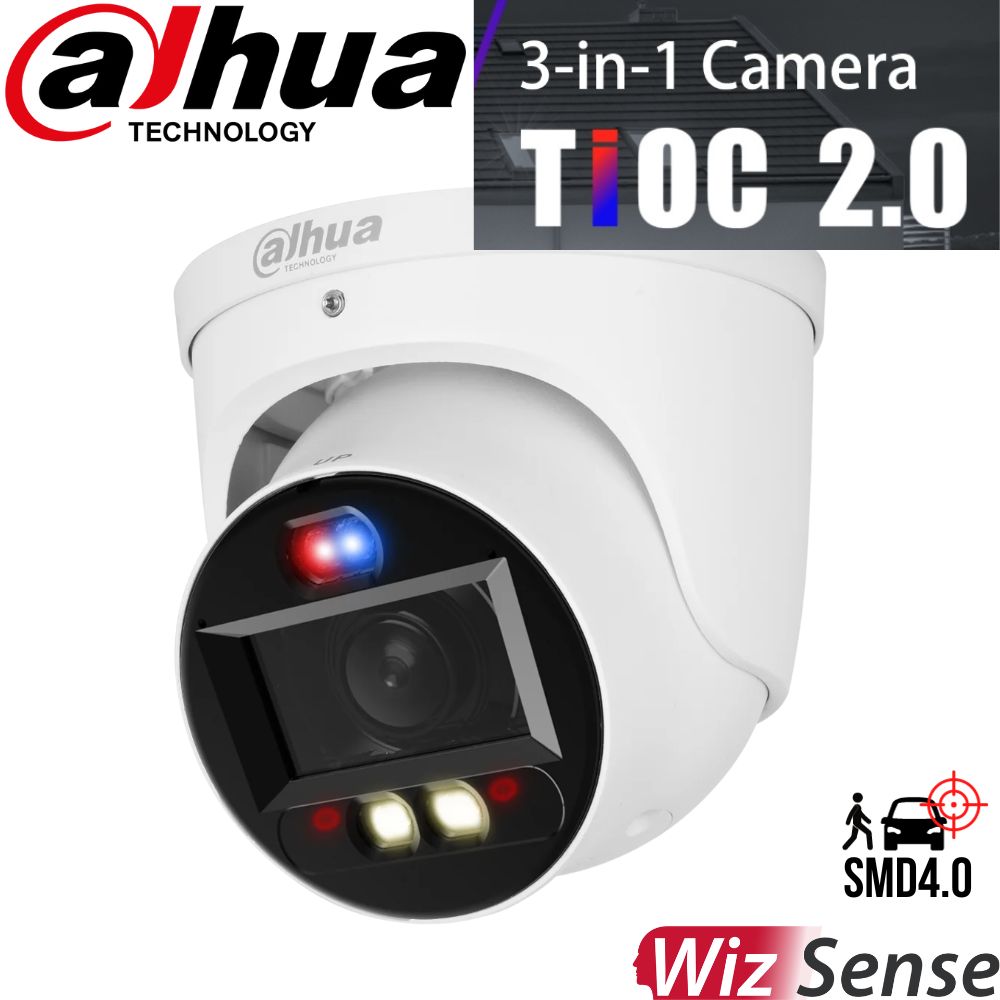

Dahua's Three-in-One Cameras 2.0 (TiOC 2.0) integrate multiple layers of protection into one single system. A TiOC surveillance system features WizSense AI, Active Deterrence, and 24/7 Full-Colour Nightvision as well as 2-way audio.
WizSense AI offers quick, quality, and reliable surveillance while minimising false alarms. AI Smart Motion Detect 4.0 will alert you only when detecting humans or vehicles, ignoring insects, branches, etc. Recognising changes in image quality, AI Scene Self-Adaptation will adjust settings for clarity to compensate for reflections, glare, and other changes in the scene. Swiftly locate relevant footage using AI Quick Pick to narrow down the search for specific targets by the colour of clothing or vehicles, when paired with a Dahua WizSense NVR.
Active Deterrence turns your system into responsive security that uses strobe lights and audio warnings or alarms to deter any would-be intruder.
24/7 Full-Colour intuitively maximises visual clarity in relevant situations by utilising LED lights to brighten the area in the event of a detected intrusion.
Click here to read our hands-on review of the Dahua TiOC 2.0 cameras.
Dahua TiOC Cameras - Adding Active Deterrence and AI To Your Surveillance Solution

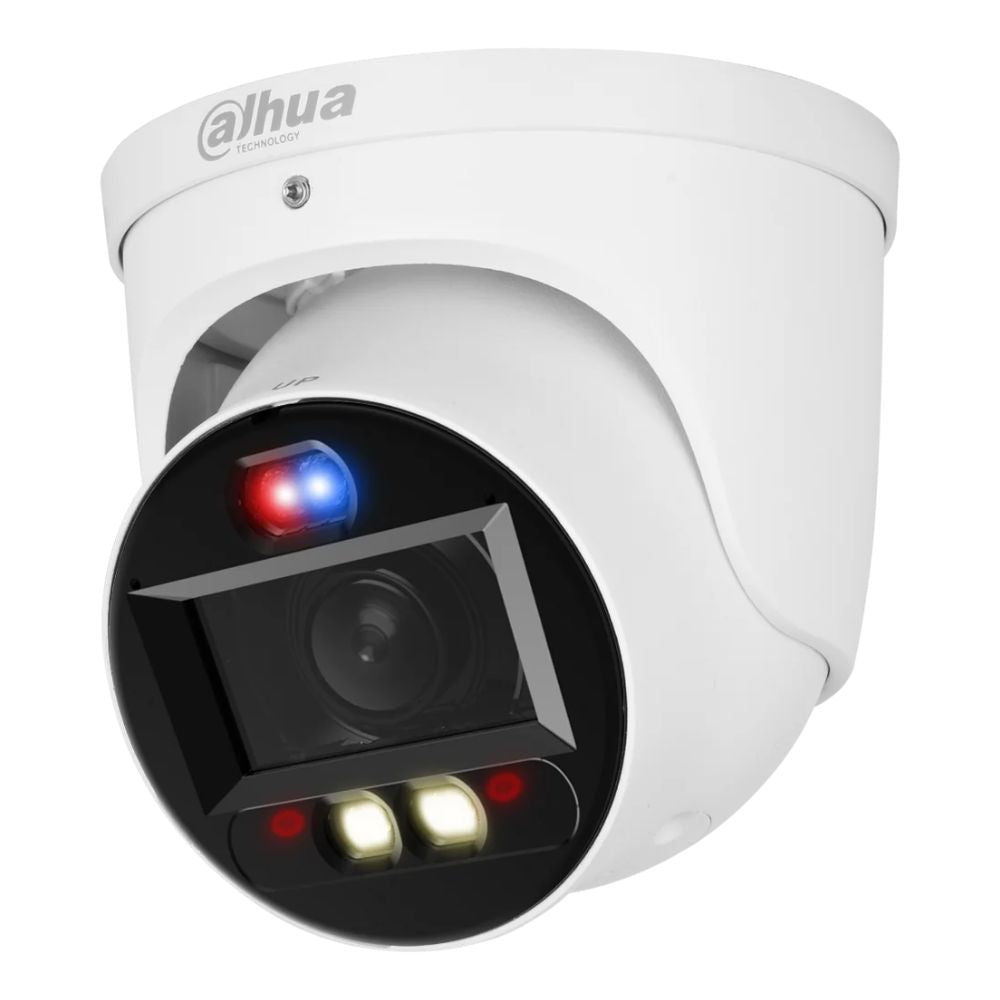

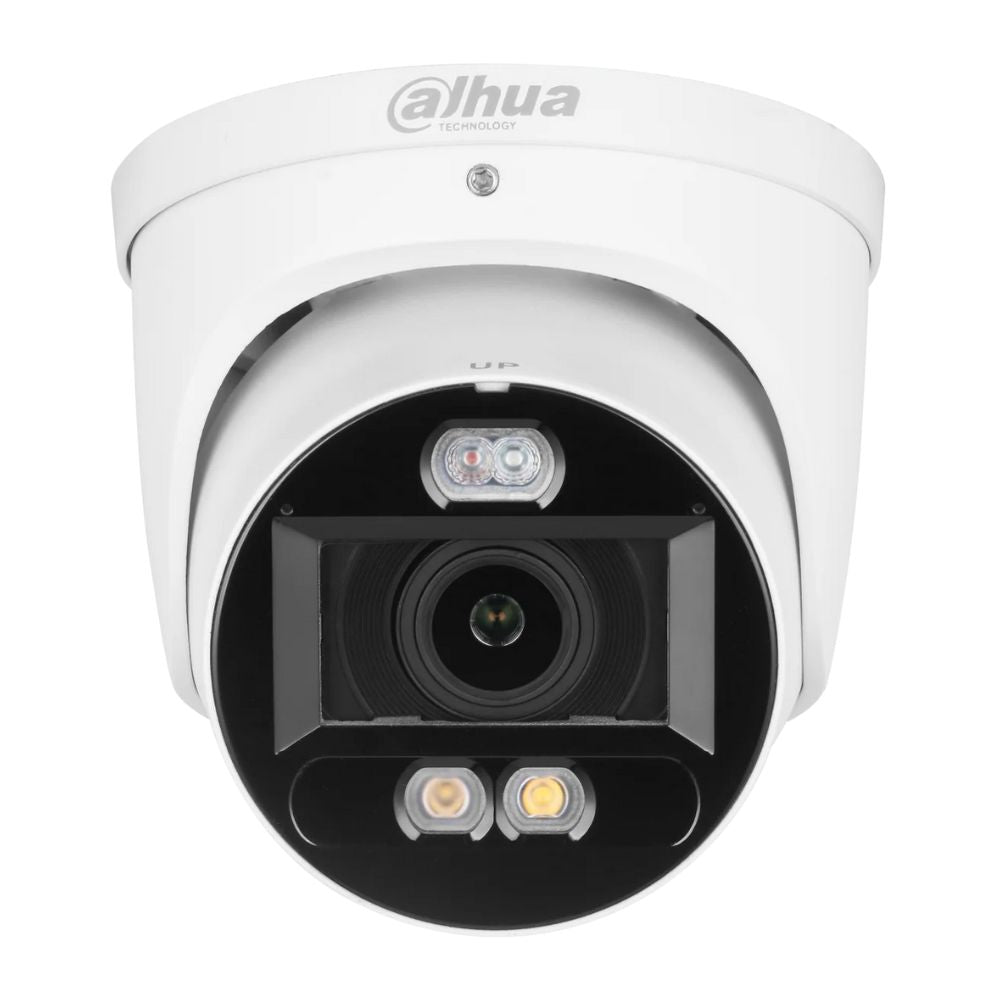

Camera Features
- 8MP 1/2.8'' CMOS image sensor, low luminance, and high definition image
- Outputs max. 8 MP (3840 x 2160)@25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m
- ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)
- Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built-in dual Mic; built-in speaker; support two-way talk
- 12 VDC/PoE power supply
- IP67 protection
- Sound and light alarm (red and blue lights)
- One-tap arming/disarming through alarm input
- SMD 4.0
Datasheet
Tech Specs
Camera |
Image Sensor |
1/2.8" CMOS |
Max. Resolution |
3840 (H) × 2160 (V) |
ROM |
128 MB |
RAM |
512 MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination |
0.004 lux@F1.0 (Color, 30 IRE)
0.0004 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on) |
S/N Ratio |
﹥ 56 dB |
Illumination Distance |
Up to 50 m (164.04 ft) (IR)
Up to 40 m (131.23 ft) (warm light) |
Illuminator On/Off Control |
Auto; manual |
Illuminator Number |
2 (IR LED)
2 (warm light) |
Angle Adjustment |
Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360° |
Lens |
Lens Type |
Motorized vari-focal |
Mount Type |
φ16 |
Focal Length |
2.7 mm–13.5 mm |
Field of View |
H: 108°–34°
V: 56°–19°
D: 130°–39° |
Iris Type |
Fixed |
Close Focus Distance |
1.5 m (4.92 ft) |
DORI Distance |
Lens |
Detect |
Observe |
Recognize |
Identify |
2.8 mm |
89.9 m
(294.95 ft) |
36.0 m
(118.11 ft) |
18.0 m
(59.06 ft) |
9.0 m
(29.53 ft) |
3.6 mm |
257.4 m
(844.49 ft) |
103.0 m
(337.93 ft) |
51.5 m
(168.96 ft) |
25.7 m
(84.32 ft) |
Intelligent |
IVS (Perimeter Protection) |
Tripwire; intrusion (Support the classification and
accurate detection of vehicle and human) |
SMD 4.0 |
Less false alarm, longer detection distance |
Smart Search |
Work together with Smart NVR to perform refine
intelligent search, event extraction and merging to event
videos. |
Quick Pick |
With AI NVR, quickly pick up the human/vehicle targets
that users are interested in from SMD events |
AI SSA |
Adopt deep learning algorithms to adjust the parameters
of the image to suit the conditions |
Video |
Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec |
Smart H.265+; Smart H.264+ |
AI Coding |
AI H.265; AI H.264 |
Video Frame Rate |
Main stream:3200 × 1800 @(1 fps–25/30 fps)
Sub stream: 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
Third stream: 1920 × 1080@(1 fps–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability |
3 streams |
Resolution |
6M (3200 × 1800); 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520/2560 × 1440); 3M 2304×1296/2048 × 1536); 1080p (1920×1080); 1.3M (1280 × 960); 720P(1280×720); D1 (704× 576/704×480); VGA(640 × 480); CIF (352×288/352×240) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 32kbps–8192 kbps
H.265:12kbps–8192 kbps
|
Day/Night |
Auto (ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
Scene Self-adaptation |
Yes |
White Balance |
Auto; natural; street lamp; outdoor; manual; regional custom |
Gain Control |
Auto; manual |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas) |
Region of Interest (RoI) |
Yes (4 areas) |
Smart Illumination |
Yes |
Defog |
Yes |
Image Rotation |
0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror |
Yes |
Privacy Masking |
8 areas |
Audio |
Built-in MIC |
Yes |
Audio Compression |
PCM; G.711a; G.711Mu; G.726; G.723 |
Alarm |
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; voltage detection; external alarm; SMD; security exception |
Network |
Network |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI |
User/Host |
20 (Total bandwidth: 72 M) |
Storage |
FTP; SFTP; Micro SD card (Support max. 256 G); NAS |
Browser |
IE: IE8/9/11
Chrome
Firefox |
Management Software |
SmartPSS Lite; DSS; DMSS |
Mobile Phone |
iOS; Android |
Certification |
Certification |
CE-LVD: EN 62368-1;
CE-EMC: Electromagnetic Compatibility Directive
2014/30/EU |
Port |
Audio Input |
1 channel (RCA port) |
Audio Output |
1 channel (RCA port) |
Alarm Input |
1 channel in: wet contact, 5 mA 3 V–5 VDC |
Alarm Output |
1 channel out: wet contact, 300 mA 12 VDC |
Power |
Power Supply |
12 VDC/PoE (802.3af) |
Power Consumption |
Basic: 4.8 W (12 VDC); 6 W (PoE)
Max. (pulling stream+warning light+speaker+warm light
on): 8.5 W (DC12 V) 11.6 W (POE) |
Environment |
Operating Temperature |
–30 °C to +60 °C (–22 °F to +140 °F) |
Operating Humidity |
≤95% |
Storage Temperature |
–40 °C to +60 °C (–40 °F to +140 °F) |
Storage Humidity |
≤95% |
Protection Grade |
–40 °C to +60 °C (–40 °F to +140 °F) |
Protection Grade |
IP67 |
Structure |
Casing |
Metal |
Dimensions |
127.6 mm × Φ122.0 mm (5.02" × Φ4.80") |
Net Weight |
885 g (2.0 lb) |
Gross Weight |
1060 g (2.3 lb) |
