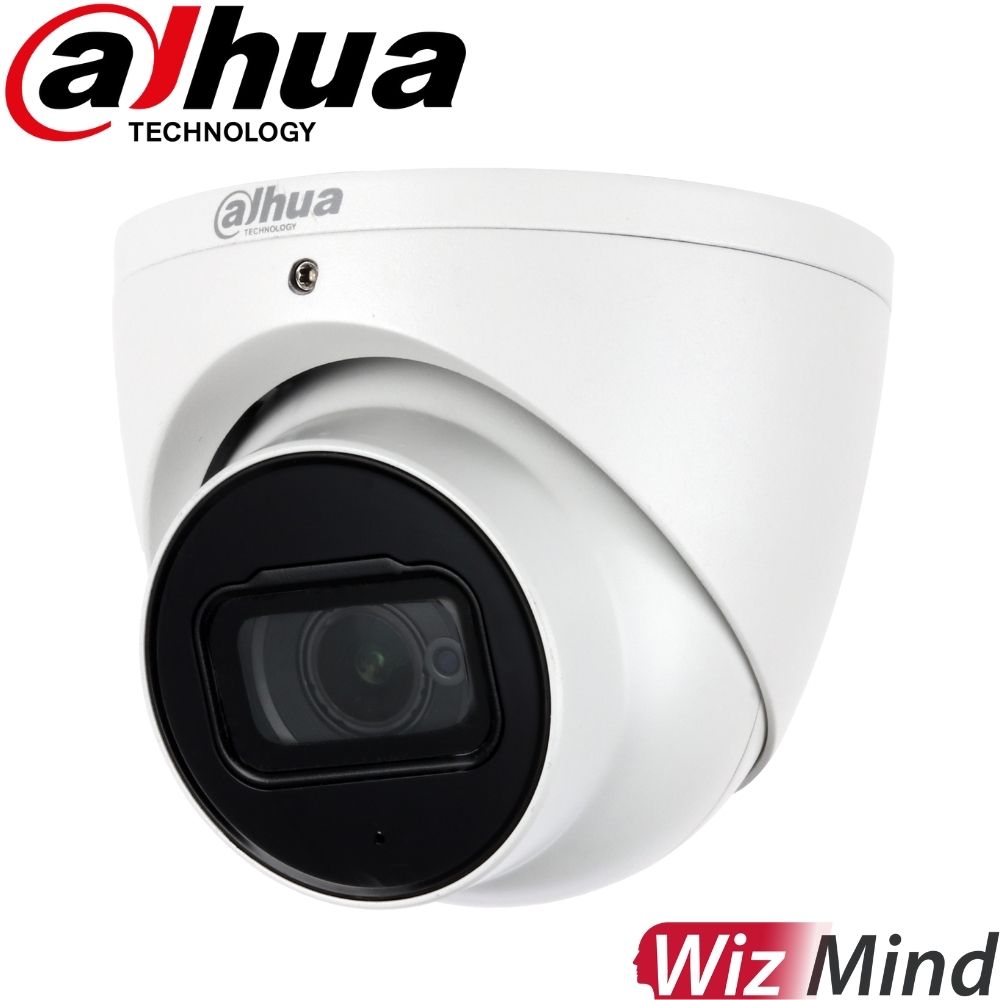

Dahua Security Camera: 4MP Turret, 2.8mm, WizMind - DH-IPC-HDW5442TMP-ASE-0280B
Launched by Dahua Technology, Dahua WizMind is a full portfolio of solutions composed of project-oriented products including IPC, NVR, PTZ, XVR, Thermal and software platform which adopts industry-leading deep learning algorithms. Focusing on customers’ requirements, WizMind provides precise, reliable and comprehensive AI solutions for verticals.
With starlight solution and deep learning algorithm, Dahua WizMind 5 Series network camera has various intelligent functions, including face capture, perimeter protection and people counting, which greatly improve the accuracy of video analysis. The series camera supports dust-proof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).
Features
- 1/1.8” 4Megapixel progressive scan CMOS
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- 25/30 fps@2688 × 1520, 50/60 fps@1080P (1920 × 1080)
- WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
- 2.8 mm fixed lens (3.6 mm, 6.0 mm optional)
- Built-in MIC
- Max. IR LEDs Length 50 m
- Micro SD memory, IP67
- 3 Years Back-to-Base Manufacturer Warranty!
More Info
Face Detection
Dahua Face Detection technology can detect the face in the image. With deep learning algorithm, the technology supports detecting, tracking, capturing and selecting the best face image, and then outputs face snapshot.
Perimeter Protection
With a deep learning algorithm, Dahua Perimeter Protection technology can recognize humans and vehicles accurately. In restricted areas (such as pedestrian areas and vehicle areas), the false alarms of intelligent detection based on the target type (such as tripwire, intrusion, fast-moving, parking detection, loitering detection and gathering detection) are largely reduced.
People Counting
With a deep learning algorithm, Dahua People Counting technology can track and process moving human body targets to realize the accurate statistics of entering No., leave No., and In Area No. Working with the management platform, it outputs reports to meet your requirements.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can works normal after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environments with unstable voltage.
ePoE
Dahua ePoE technology provides a new way to accomplish long-distance transmission between IP camera and network switch. It allows more flexible surveillance system design, improves reliability and saves construction and wiring costs.
Downloads
Tech Specs
| Dahua Security Camera: 4MP Turret, 2.8mm, WizMind - DH-IPC-HDW5442TMP-ASE-0280B |
| Camera |
| Image Sensor |
1/1.8” 4Megapixel progressive scan CMOS |
| Max. Resolution |
2688 (H) × 1520 (V) |
| RAM/ROM |
512 MB/128 MB |
| Scanning System |
Progressive |
| Electronic Shutter Speed |
Auto/Manual, 1/3 s–1/100000 s |
| S/N Ratio |
Yes |
| Minimum Illumination |
0.002 Lux@F1.6 |
| Illumination Distance |
Distance up to 50 m (164 ft) |
| Illuminator On/Off Control |
Auto/Manual |
| Illuminator Number |
2 (IR LED) |
| Pan/Tilt/Rotation Range |
Pan: 0˚–360˚; Tilt: 0˚–78˚; Rotation: 0˚–360˚ |
| Lens |
| Lens Type |
Fixed-focal |
| Mount Type |
Board-in |
| Focal Length |
2.8 mm, 3.6 mm, 6.0 mm |
| Max. Aperture |
F1.6 |
| Angle of View |
H: 113°, V: 60°/H: 89°, V: 48°/H: 56°, V: 31° |
| Aperture Type |
Fixed |
| Close Focus Distance |
1.3 m (4.27 ft)/1.9 m (6.23 ft)/3.8 m (12.47 ft) |
| Artificial Intelligence |
| Face Detection |
Face detection; track; optimization; snapshot; face enhancement; face exposure; face matting setting: face, single inch photo; three snapshot methods: real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting |
| Perimeter Protection |
Tripwire; intrusion; fast-moving (the three functions |
| support the classification and accurate detection |
| of vehicle and human); loitering detection; people |
| gathering; parking detection |
| People Counting |
Support the counting of entering numbers, leave |
| number, and pass number, and displaying and |
| outputting yearly/monthly/daily reports. |
| Support the counting of numbers in the area and 4 rules |
| configuration. Count the number of people or stay time |
| and link alarm. |
| Support queue management, and 4 rules |
| configuration. Count the number of people or stay time |
| and link alarm |
| General Intelligence |
| Event Trigger |
Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly |
| General Intelligence |
Object Abandoned/Missing |
| Heat Map |
Yes |
| Video |
| Compression |
H.265,H.264,H.264B,H.264H, |
| MJPEG (only supported by sub stream) |
| Smart Codec |
Smart H.265+/ Smart H.264+ |
| Streaming Capability |
3 Streams |
| Resolution |
2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240) |
| Frame Rate |
Main Stream: 2688 × 1520 (1 fps–25/30 fps) |
| 2560 × 1440 (1 fps–25/30 fps) |
| 1920 × 1080 (1 fps–50/60 fps) |
| Sub Stream: D1 (1 fps–25/30 fps) |
| D1 (1 fps–50/60 fps) |
| Third Stream: 1080P (1 fps–16 fps) |
| Bit Rate Control |
CBR/VBR |
| Bit Rate |
H.264: 32 Kbps–8192 Kbps |
| H.265: 19 Kbps–8192 Kbps |
| Day/Night |
Auto(ICR)/Color/B/W |
| BLC Mode |
BLC/HLC/WDR (140 dB) |
| White Balance |
Auto/Natural/Street Lamp/Outdoor/Manual |
| Gain Control |
Auto/Manual |
| Noise Reduction |
3D DNR |
| Motion Detection |
Off/On (4 Zone, Rectangle) |
| Region of Interest |
Off/On (4 Zone) |
| Smart Illumination |
Yes |
| Defog |
Yes |
| Flip |
0°/90°/180°/270° |
| Mirror |
Off/On |
| Privacy Masking |
Off/On (4 Area, Rectangle) |
| Audio |
| Audio Compression |
G.711a, G.711Mu, G.726, AAC, G.723 |
| Alarm |
| Alarm Event |
No SD card;SD card full;SD card error;network disconnection;IP conflict;illegal access;motion detection;video tampering;Defocus Detection;scene changing;intrusion;tripwire;abandoned object;missing object;fast-moving;parking detection;loitering detection;people gathering;audio detection;people counting;face detection;People counting in area;Stay alarm;People No. exception detection;Queue Management |
| Network |
| Network |
RJ-45 (10/100 Base-T) |
| SDK and API |
Yes |
| Protocol |
IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP |
| Interoperability |
ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P |
| User/Host |
20 Users |
| Storage |
NAS;FTP;SFTP;Dahua Cloud |
| Micro SD card 256 GB |
| Browser |
IE (versions newer than IE8), Chrome, |
| Firefox, Safari (versions newer than Safari 12) |
| Management Software |
Smart PSS, DSS, DMSS |
| Mobile Phone |
iOS, Android |
| Certifications |
| Certifications |
CE-LVD: EN60950-1 |
| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU |
| FCC: 47 CFR FCC Part 15, Subpart B |
| UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Interface |
| Audio Interface |
Built-in MIC |
| Power |
| Power Supply |
DC 12V (±30%), PoE (802.3af) |
| Power Consumption |
<7.2W |
| Environmental |
| Operating Conditions |
-40°C to +60°C (-40°F to +140°F)/Less than 95% RH |
| Storage Conditions |
-40°C to +60°C (-40°F to +140°F) |
| Protection Grade |
IP67 |
| Construction |
| Casing |
Metal |
| Dimensions |
Φ106 mm × 99.2 mm (4.17” × 3.91”) |
| Net Weight |
0.55 kg (1.21 lb) |
| Gross Weight |
0.71 kg (1.57 lb) |
