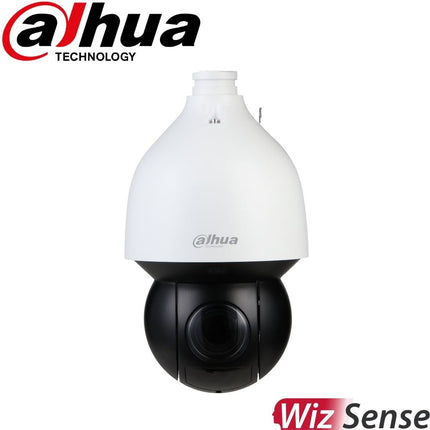

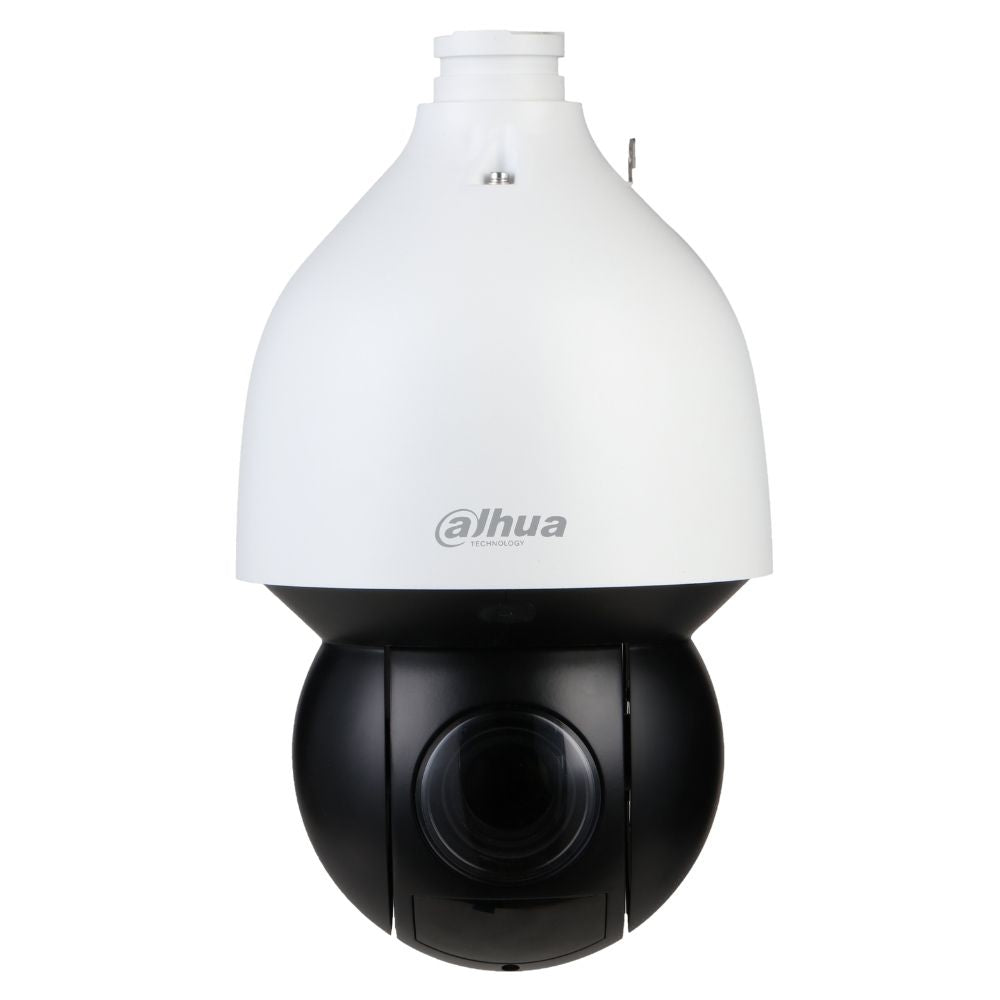

DH-SD5A432XA-HNR |
Camera |
Image Sensor |
1/2.8" STARVIS™ CMOS |
Pixel |
4MP |
Max. Resolution |
2560 (H) × 1440 (V) |
ROM |
4 GB |
RAM |
1 GB |
Electronic Shutter Speed |
1/1 s–1/30,000 s |
Scanning System |
Progressive |
Min. Illumination |
Color: 0.005 Lux@F1.35
B/W: 0.0005 Lux@F1.35
0 Lux (IR on) |
Illumination Distance |
150 m (492.13 ft) |
Illuminator On/Off Control |
Zoom Prio/Manual/SmartIR |
Illuminator Number |
4 |
Lens |
Focal Length |
4.9 mm–156 mm |
Max. Aperture |
F1.35–F4.4 |
Field of View |
H: 61.6°–2.1°; V: 35.1°–1.3°; D: 68.2°–2.5° |
Optical Zoom |
32x |
Focus Control |
Auto/Semi-Auto/Manual |
Close Focus Distance |
1 m–1.5 m (3.28 ft–4.92 ft) |
Iris Control |
Auto/Manual/Fixed |
PTZ |
Pan/Tilt Range |
Pan: 0°–360° endless
Tilt: –15° to +90°, auto flip 180 |
Manual Control Speed |
Pan: 0.1°/s–300°/s
Tilt: 0.1°/s–200°/s |
Preset Speed |
Pan: 400°/s
Tilt: 300°/s |
Presets |
300 |
Tour |
8 (up to 32 presets per tour) |
Pattern |
5 |
Scan |
5 |
Power-off Memory |
Support |
Idle Motion |
Preset/Tour/Pattern/Scanning |
Protocol |
DH-SD
Pelco-P/D (auto recognition) |
Artificial Intelligence |
Event Trigger |
Motion detection, video tampering, scene changing, Network disconnection, IP address conflict, illegal access, and storage anomaly. |
IVS |
Object Abandoned/Missing |
Smart Capture |
Support human, motor vehicle and non-motor vehicle image capture. |
Perimeter Protection |
Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
Face Detection |
Support |
Auto Tracking |
Support |
SMD PLUS |
Support |
Video |
|
Compression |
H.265; H.264B; H.264M; H.264H; MJPEG (Sub Stream); H.265+; H.264+ |
Streaming Capability |
3 streams |
Resolution |
4M (2560 × 1440); 3M (2048 × 1536); 1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
Frame Rate |
Main stream: 4M/3M/1080p/1.3M/720p (1–25/30 fps)
Sub stream 1: D1/CIF (1–25/30 fps)
Sub stream 2: 720p (1–25/30 fps) |
Bit Rate Control |
Variable/Constant |
Bit Rate |
H.264: 3 Kbps–20480 Kbps
H.265: 3 Kbps–20480 Kbps |
Day/Night |
Auto (ICR)/Color/B/W |
BLC |
Support |
WDR |
120 dB |
HLC |
Support |
White Balance |
Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
Gain Control |
Auto/Manual |
Noise Reduction |
2D/3D |
Motion Detection |
Support |
Region of Interest (RoI) |
Support |
Image Stabilization |
Electronic |
Defog |
Electronic |
Digital Zoom |
16x |
Flip |
180° |
Privacy Masking |
Up to 24 areas, and up to 8 areas in the same view |
S/N Ratio |
≥ 55 dB |
Audio |
Compression |
G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723 |
Network |
Ethernet |
RJ-45 (10/100Base-T) |
Protocol |
IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP; RTMP |
Interoperability |
ONVIF Profile S&G&T; CGI |
Streaming Method |
Unicast/Multicast |
User/Host |
20 (total bandwidth 64M) |
Storage |
FTP; Micro SD card (256G); NAS |
Browser |
IE7 and later versions
Chrome 42 and earlier versions
Firefox 52 and earlier versions
Safari |
Management Software |
Smart PSS; DSS; DMSS; Easy4ip; IVSS |
Mobile Phone |
IOS, Android |
Certification |
Certifications |
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpartB, ANSI C63.4-2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
|
Port |
Audio I/O |
1 (Line in; bare wire)/1 (Line out; bare wire) |
Alarm I/O |
2/1 |
Power |
Power Supply |
DC 24 V/2.5 A ± 25%
PoE+ (802.3at)
|
Power Consumption |
Basic: 12 W
Max: 20 W |
Environment |
Operating Temperature |
–40 °C to +70 °C (–40 °F to +158 °F) |
Operating Humidity |
≤ 95% |
Protection |
IP67; IK10; 6000V lightning proof; surge protection; voltage transient protection |
Structure |
Dimensions |
Φ190 mm × 332 mm (Φ7.48" × 13.07") |
Net Weight |
4.7 kg (10.36 lb) |
Gross Weight |
8 kg (17.64 lb |
