Description

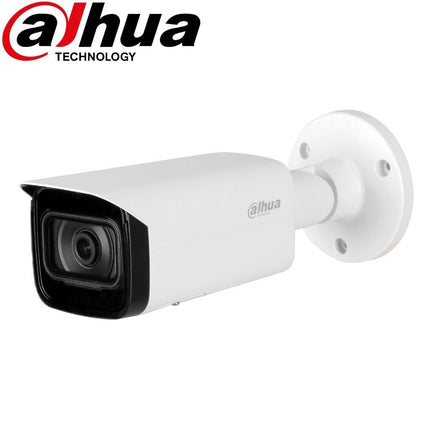

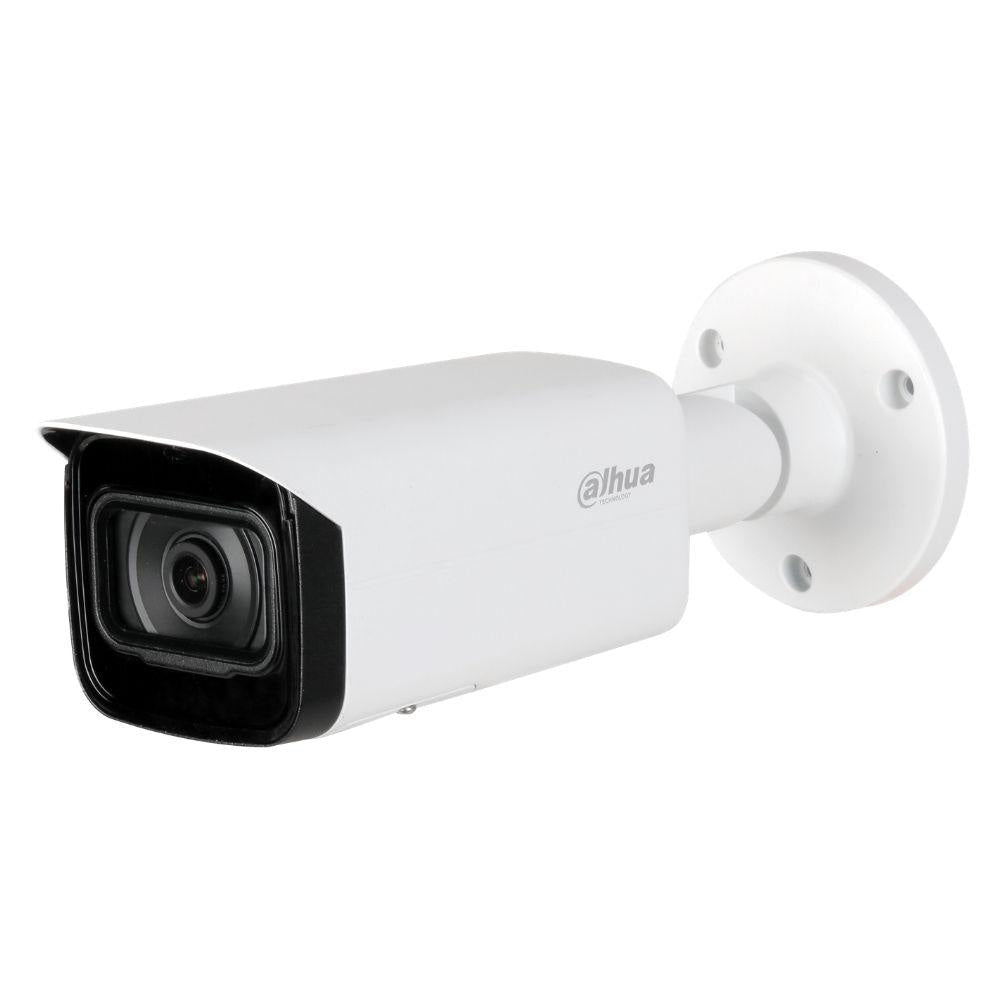

Dahua IPC-HFW2831T-AS-S2 Security Camera
With upgraded H.265 encoding technology, Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidth and storage space. This camera adopts the latest starlight technology and displays a better colour image in the condition of low illumination. It supports SD card storage, dust-proof function, waterproof function and vandal-proof function, complying to the standards of IP67 and IK10 (Supported by some select models).
Through advanced video algorithms, Dahua's Intelligent Video Surveillance (IVS) technology supports smart functions such as tripwire and intrusion detection.
Starlight technology generates clear images in near-complete darkness. A high-performing sensor and special algorithms work together to capture images in low-light and no-light environments.
Features
- Records up to 8 Megapixel (4K Ultra HD) resolution.
- Equipped with a 3.6mm Fixed lens.
- Supports up to 3840 × 2160 resolution.
- Features up to H.265+ high-efficiency video encoding and Dual-Streaming.
- Supports Starlight technology, generates clear images in near-complete darkness.
- 120 dB Wide Dynamic Range (WDR). Day/Night Infrared Cut Removal (ICR). Auto White Balance (AWB). Automatic Gain Control (AGC). Backlight Compensation (BLC). Highlight Compensation (HLC). Region of Interest (ROI).
-
Intelligent Video Surveillance (IVS) technology supports smart functions such as tripwire and intrusion detection.
- Built-in Infrared LED, with a maximum range of 80 meters.
- Supports Power-Over-Ethernet (PoE) installations.
- Supports MicroSD Card Storage up to 256 Gigabytes.
- Resilient "Weather-Proof" Ingress Protection Rating (IP67).
- Durable "Vandal-Proof" Impact Protection Rating (IK10).
- 3 Years Back-to-Base Manufacturer Warranty!
Downloads
Tech Specs
Dahua IPC-HFW2831T-AS-S2 Security Camera
Camera |
Image Sensor |
1/2.7” 8Megapixel progressive CMOS |
Max. Resolution |
3840 (H) × 2160 (V) |
ROM |
128 MB |
RAM |
256 MB |
Scanning System |
Progressive |
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100, 000 s |
Min. Illumination |
0.009 Lux@F2.0 |
S/N Ratio |
56 dB |
Illumination Distance |
80 m (262.5 ft) |
Illuminator On/Off Control |
Auto/Manual |
Illuminator Number |
4 (IR LED) |
Pan/Tilt/Rotation Range |
Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°
|
Lens |
Lens Type |
Fixed-focal |
Mount Type |
M12 |
Focal Length |
3.6 mm
6 mm
|
Max. Aperture |
3.6 mm: F2.0
6 mm: F2.0
|
Field of View |
3.6 mm: Horizontal 87° × Vertical 47° × Diagonal 104°
6 mm: Horizontal 54° × Vertical 31° × Diagonal 61°
|
Iris Type |
Fixed |
Close Focus Distance |
3.6 mm: 1.9 m (6.2 ft)
6 mm: 3.7 m (12.1 ft)
|
Smart Event |
IVS |
Tripwire; intrusion |
Video |
Video Compression |
H.265; H.264; H.264B; MJPEG (only supported
by the sub stream)
|
Smart Codec |
Smart H.265+/ Smart H.264+ |
Video Frame Rate |
Main stream:
3840 × 2160 (1 fps–15 fps)
2688 × 1520 (1 fps–25/30 fps)
Sub stream:
704 × 576 (1 fps–25 fps)
704 × 480 (1 fps–30 fps)
|
Stream Capability |
2 streams |
Resolution |
3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 ×1728 (3072 × 1728); 2592 × 1944 (2592 × 1944); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Bit Rate Control |
CBR/VBR |
Video Bit Rate |
H.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps
|
Day/Night |
Auto(ICR)/Color/B/W |
BLC |
Yes |
HLC |
Yes |
WDR |
120 dB |
White Balance |
Auto/natural/street lamp/outdoor/manual/regional custom |
Gain Control |
Auto/Manual |
Noise Reduction |
3D NR |
Motion Detection |
OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) |
Yes (4 areas) |
Smart Illumination |
Yes |
Image Rotation |
0°/90°/180°/270° (Supports 90°/270° with 3840 × 2160 resolution and lower) |
Mirror |
Yes |
Privacy Masking |
4 areas |
Audio |
Audio Compression |
G.711a; G.711Mu; G.726 |
Alarm |
Alarm Event |
No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; security exception; local alarm |
Network |
Network |
RJ-45 (10/100 Base-T) |
SDK and API |
Yes |
Cyber Security |
Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Protocol |
IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour |
Interoperability |
ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P |
User/Host |
20 |
Storage |
FTP; SFTP; Micro SD Card (support max. 256 GB); NAS |
Browser |
IE
Chrome
Firefox |
Management Software |
Smart PSS; DSS; DMSS |
Mobile Phone |
IOS; Android |
Certification |
Certifications |
CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
Port |
Audio Input |
1 channel (RCA port) |
Audio Output |
1 channel (RCA port) |
Alarm Input |
1 channel in: 5mA 3V–5V DC |
Alarm Output |
1 channel out: 300mA 12V DC |
Power |
Power Supply |
12V DC/PoE (802.3af) |
Power Consumption |
< 8.4W |
Environment |
Operating Conditions |
–40°C to +60°C (–40°F to +140°F)/less than ? 95% RH |
Storage Temperature |
–40°C to +60°C (–40°F to +140°F) |
Protection |
IP67; IK10(optional) |
Structure |
Casing |
Metal |
Dimensions |
244.1 mm × ?90.4 mm (9.61" × ?3.26") |
Net Weight |
0.88 kg (1.9 lb) |
Gross Weight |
1.15 kg (2.5 lb) |
Videos
Sample 8MP Videos from a similar Dahua camera
